Powerware 3110 Manuel utilisateur

POWERWARE®3110

250 VA600 VA

User's Guide

www.powerware.com

Powerware is a registered trademark of Powerware Corporation.

reproduced in any way without the express written approval of Powerware Corporation.

Powerware®3110 User's Guide 05147486 B Uncontrolled Copy

TABLE OF CONTENTS

1 Installation 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspecting the Equipment 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Precautions 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quick Startup 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UPS Top and Side Panels 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Features 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Communication Port 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pinouts 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery Start Feature 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Network Transient Protector 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 UPS Maintenance 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UPS and Battery Care 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storing the UPS 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing Batteries 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Recycling the Used Battery 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Specifications 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 Troubleshooting 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service and Support 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents

ii Powerware®3110 User's Guide 05147486 B Uncontrolled Copy

Powerware®3110 User's Guide 05147486 B Uncontrolled Copy

C H A P T E R 1

INSTALLATION

This section explains:

Equipment inspection

Safety precautions

UPS installation

UPS top and side panels

Inspecting the Equipment

If any equipment has been damaged during shipment, keep the shipping

cartons and packing materials for the carrier or place of purchase and

file a claim for shipping damage. If you discover damage after

acceptance, file a claim for concealed damage.

To file a claim for shipping damage or concealed damage: 1) File with

the carrier within 15 days of receipt of the equipment; 2) Send a copy of

the damage claim within 15 days to your service representative.

Safety Precautions

Read the following precautions before you install the UPS.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS. This manual contains important instructions that you

should follow during installation and maintenance of the UPS and batteries. Please

read all instructions before operating the equipment and save this manual for future

reference.

WARNING

This UPS contains its own energy source (batteries). The output receptacles may

carry live voltage even when the UPS is not connected to an AC supply.

Do not remove or unplug the input cord when the UPS is turned on. This removes

the safety ground from the UPS and the equipment connected to the UPS.

Installation

2Powerware®3110 User's Guide 05147486 B Uncontrolled Copy

To reduce the risk of fire or electric shock, install this UPS in a temperature and

humidity controlled, indoor environment, free of conductive contaminants. Ambient

temperature must not exceed 40°C (104°F). Do not operate near water or

excessive humidity (95% max).

With the exception of the user-replaceable battery, all servicing of this equipment

must be performed by qualified service personnel.

Before maintenance or repair, all connections must be removed. Before

maintenance, repair, or shipment, the unit must be completely switched off and

unplugged or disconnected.

CAUTION

Important Notice The UPS ground (earth) conductor carries leakage current from

the loads in addition to any leakage current generated by the UPS. This UPS

generates no more than 0.5 mA of current (120V Model), or 1 mA of current

(230V Model).

To limit the total leakage current to 3.5 mA, the load leakage must be limited to

3 mA on the 120V Model and 2.5 mA on the 230V Model.

If you do not know the load leakage current, replace the UPS power cord

(230V Model only) with a power cord that uses a locking plug with a minimum

rating of 10A (such as IEC 309).

If you do not have a matching receptacle, consult an electrician to install the

proper receptacle.

The three-wire receptacle that you plug the UPS into must have a good

(low-impedance) ground (protective earth) connection to provide a safe path for

leakage current.

Quick Startup

The Powerware 3110 provides protection against many power problems,

including power outages. It also provides spike suppression and line

noise filtering to protect your equipment.

1. On 230V Models, plug the UPS power cord into the input

connector on the UPS side panel.

2. Plug the equipment to be protected into the UPS output

receptacles.

DO NOT protect laser printers with the UPS because of the

exceptionally high power requirements of the heating elements.

Installation

Powerware®3110 User's Guide 05147486 B Uncontrolled Copy

3. Start the UPS by pressing the switch as shown in Figure 3

or Figure 4 on page 4. The Power indicator illuminates

indicating that power is available from the UPS output

receptacles.

The units beeps and the front panel LEDs illuminate several

times. The green indicator remains on, indicating normal

operation.

If the unit continues to beep, or if the green indicator is off

even though input power is available from the wall outlet, see

Troubleshooting" on page 13.

NOTE Let the unit charge the battery for at least 3 hours. You may use the unit while

the battery charges, but the battery backup runtime will be reduced until the battery is

fully charged. This will take up to 8 hours after a full discharge while the UPS is fully

loaded.

UPS Top and Side Panels

Figure 1 and Figure 3 identify features of the 120V Model (USA) units,

with attached input line cord. Figure 2 and Figure 4 identify features of

the 230V Model (European) units, which have a connector for the input

line cord as well as different output receptacles.

Fault Indicator

Output Receptacles

(Battery and Surge Protection)

Output Receptacles

(Surge Protection Only)

Power Indicator

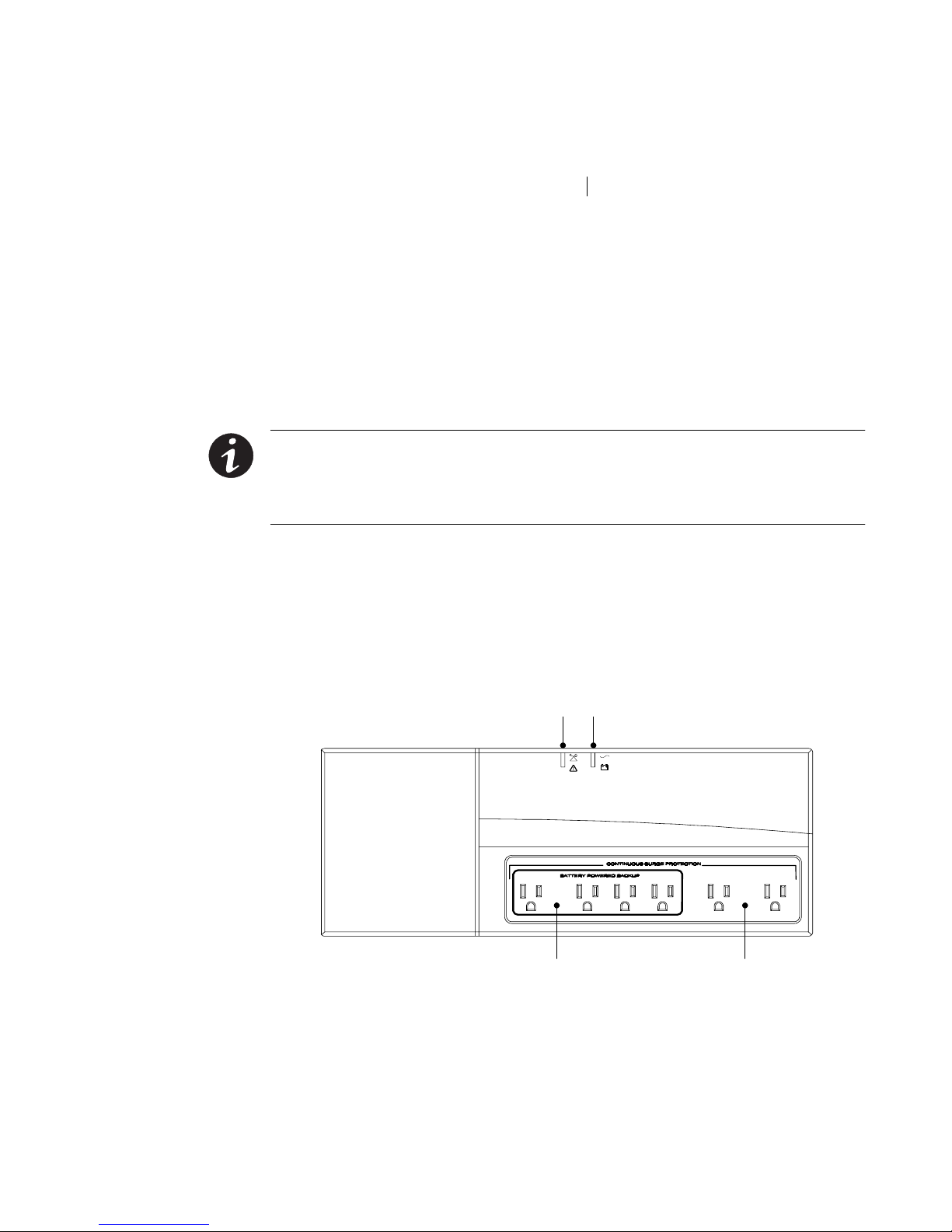

Figure 1. 120V Model Top Panel

Installation

4Powerware®3110 User's Guide 05147486 B Uncontrolled Copy

Fault Indicator

Output Receptacles

(Battery and Surge Protection)

Output Receptacles

(Surge Protection Only)

Power Indicator

Figure 2. 230V Model Top Panel

Circuit Breaker Power Cord

Network Transient Protector Communication Port

On/Standby Switch

Figure 3. 120V Model Side Panel (600 VA Shown)

Circuit Breaker Input Connector

Network Transient Protector Communication Port

On/Standby Switch

Figure 4. 230V Model Side Panel (600 VA Shown)

Powerware®3110 User's Guide 05147486 B Uncontrolled Copy

C H A P T E R 2

FEATURES

This section covers:

Using the communication port

Starting the UPS on battery

Communication Port

Powerware Corporation offers an accessory interface kit that allows you

to connect many types of computer systems to the UPS communication

port. For specific information on Powerware Corporation interface kits,

call your service representative.

Pinouts

Contacts consist of open collector circuits capable of switching up to

+30 Vdc, 6 mA resistive load.

Table 1. Communication Port Pin Assignment

Pin Signal Type Function

1 RS-232 Level Shutdown +12 Vdc signal held for 5 seconds on this pin shuts the UPS down

120 seconds later. The UPS restarts after 15 seconds when utility

power returns.

2 Not Used Not Used

3Normally Open On-Battery Contact A normally open contact that closes 15 seconds (pulls to

Common) after the UPS switches to battery power.

4 Common The signal ground for all signal pins.

5Normally Open Low-Battery-Alarm Contact A normally open contact that closes (pulls to Common) during a

Low Battery Alarm.

6Normally Closed Low-Battery-Alarm Contact A normally closed contact that opens (releases from Common)

during a Low Battery Alarm. This tells some shutdown software

when to start a computer shutdown.

7 Not Used Not Used

8Normally Closed On-Battery Contact A normally closed contact that opens 15 seconds (releases from

Common) after the UPS switches to battery power.

9 Not Used Not Used

Features

6Powerware®3110 User's Guide 05147486 B Uncontrolled Copy

Battery Start Feature

The Battery Start feature allows you to turn on the UPS when utility

power is not available. The battery-start range is up to about 40% of

nominal input; otherwise, the UPS displays an input voltage fault and

the alarm beeps.

Network Transient Protector

The Network Transient Protector is located on the side panel and has

jacks labeled IN and OUT. This feature accommodates a RJ11

telephone connector that provides protection for modems, fax machines,

or other telecommunications equipment. As with most modem

equipment, it is not advisable to use this jack in digital PBX (Private

Branch Exchange) environments.

Low voltage models can also accommodate a single RJ45 (10BaseT)

network connector.

Connect the input connector of the equipment you are protecting to the

jack labeled IN. Connect the output connector to the jack labeled OUT.
