Potterton Promax System HE Instructions de fonctionnement

User’s Operating

Instructions

Please keep these instructions safe.

Should you move house, please hand

them over to the next occupier.

Promax System HE

Wall Mounted Powered Flue Condensing Boiler

Gas Fired Central Heating Unit

Natural Gas

Potterton Promax System HE

G.C.No41 590 69

The boiler meets the requirements of Statutory

Instrument “ The Boiler (Efficiency) Regulations

1993 No3083” and is deemed to meet the

requirements of Directive 92/42/EEC on the energy

efficiency requirements for new hot water boilers

fired with liquid or gaseous fuels:-

Type test for purpose of Regulation 5 certified by:

Notified Body 0086.

Product/Production certified by:

Notified Body 0086.

For GB/IE only.

Guarantee

Your Potterton Promax System HE is

designed and produced to meet all the

relevant Standards.

Potterton provide a 12 month

guarantee on the boiler. The guarantee

operates from the date installation is

completed for the customer who is the

original user.

To maximise the benefit from our

guarantee we urge you to return the

reply-paid guarantee registration.

This does not in any way prejudice your

rights at Common Law. Such rights

between the customer and the installer

or supplier from whom the unit was

purchased remain intact.

Any component or part which becomes

defective during the guarantee period

as a result of faulty workmanship or

material whilst in normal use will be

repaired or replaced free of charge.

B.S. Codes of Practice

Standard Scope

BS 6891 Gas Installation.

BS 5546 Installation of hot water supplies for

domestic purposes.

BS 5449 Part 1 Forced circulation hot water systems.

BS 6798 Installation of gas fired hot water boilers.

BS 5440 Part 1 Flues.

BS 5440 Part 2 Ventilation.

BS 7074 Expansion vessels and ancillary

equipment for sealed water systems.

BS 7593 Treatment of water in domestic hot water

central heating systems.

IMPORTANT - Care must be

exercised when lifting and handling

this product. Seek assistance where

appropriate and avoid stooping.

Protective equipment (e.g. gloves)

should be worn as necessary.

1.0 Warnings

1.1 Safe Installation

1. The installation must be carried out by a CORGI

Registered Installer or other registered competent

person and be in accordance with the relevant

requirements of the current GAS SAFETY

(Installation and Use) REGULATIONS, the BUILDING

REGULATIONS (Scotland)(Consolidation), the LOCAL

BUILDING REGULATIONS, the current I.E.E. WIRING

REGULATIONS and the bye laws of the LOCAL WATER

UNDERTAKING. Where no specific instruction is

given reference should be made to the relevant

BRITISH STANDARD CODES OF PRACTICE.

For Ireland install in accordance with IS 813

“INSTALLATION OF GAS APPLIANCES”. Reference

should also be made to BRITISH GAS GUIDANCE

NOTES FOR THE INSTALLATION OF DOMESTIC GAS

CONDENSING BOILERS.

2. This appliance must be installed in accordance

with the manufacturer’s instructions and the rules

in force, and only used in a suitably ventilated

location.

3. Read the instructions before installing or using

this appliance.

4. Any purpose provided ventilation should be

checked periodically to ensure that it is free from

obstruction.

IMPORTANT - The addition of anything that

may interfere with the normal operation of the

appliance without the express written

permission of Potterton could invalidate the

appliance warranty and infringe the GAS SAFETY

(Installation and Use) REGULATIONS.

1.2 In case of gas leaks

1. If a gas leak is found or suspected, turn off the

gas supply at the meter immediately and at the

isolating valve on the boiler if possible. Contact your

Installer or Transco (under 'Gas' in the phone

directory). Do not operate any electrical equipment

or light switches.

1.3 Servicing your Appliance

1. For reasons of safety and economy your appliance

should be serviced annually. Your Installer or British

Gas Service will be able to advise you.

1.4 Electricity Supply

1. THIS APPLIANCE MUST BE EARTHED.

2. A standard 230V ~ 50Hzsupply is required. The

appliance must be protected by a 3 amp fuse.

Never Hang any Items Over

The Appliance

“Benchmark”Installation, Commissioning and Service Record

Log Book

Please ensure that your installer has completed the Installation and

Commissioning sections of the Log Book and hands the Log Book over.

The details of the Log Book will be required in the event of any warranty

work. Keep the Log Book in a safe place and ensure that the relevant

sections are completed at each subsequent regular service visit.

All CORGI registered installers carry a CORGI identification card

and have a registration number. Both should be recorded in your

boiler Log Book. You can check your installer is registered by

telephoning 01256 372300 or writing to:-

1 Elmwood,

Chineham Business Park,

Crockford Lane,

Basingstoke.

RG24 8WG.

2.0 Operating the Boiler

2.1 Operating the Boiler

1. Hinge the lower door panel down (Fig. 1).

2. Turn on the main gas and electricity supplies to

the appliance.

3. Set the boiler thermostat control knob to the

required setting (Fig. 2). (The optimum boiler

setting depends upon type of system, external

controls and your requirements. Your installer will

be able to advise you on this matter.)

4. The fan will start to run and after a short period,

the ignition spark will commence. Sparking will

continue until the flame is established. Check that

both the Mains ON light and Boiler ON light are on.

Mains ON is indicated by green and Boiler ON by

yellow (Fig. 3).

5. Flashing Mains ON light indicates that there is a

mains electrical supply to the boiler, but the control

knob is in the OFF position. Turn the control knob

on and ignition will start.

2.2 To shut down the Boiler

1. Turn off the electricity supply to the appliance at

the mains.

2. Turn the boiler thermostat control knob to OFF

““(Fig. 2), then turn off the gas supply at the

appliance gas tap.

2.3 Frost Protection

1. The boiler does not have integral frost

protection. It is recommended that the installer fits

a suitable protection device to the system controls

if required. For frost protection the boiler must be

turned on.

2.4 Central Heating System Pressure

1. The water pressure in the central heating

system is indicated by the pressure gauge.

2. The normal operating pressure is the range

between 1 and 2·5 (Fig. 4).

3. A pressure of 3 or greater indicates a fault. The

safety pressure relief valve will operate, at a

pressure of 3 (Fig. 5). It is important that your

Service Engineer is contacted as soon as possible.

4. The MINIMUM pressure for correct operation

is 1. If the pressure falls below 1, this may indicate

a leak on the central heating system (Fig. 6).

5. The system must be re-pressurised by your

Service Engineer.

2.5 In Operation

1. The Promax System HE is a high efficiency

“condensing boiler”. In common with other

condensing boilers its exceptional efficiency means

the flue gases are cooled to such an extent that

steam is often visible at the outside flue terminal.

The amount produced depends on system design,

product use and outside air temperature but it is

not harmful to the individual or the working of the

appliance in any way.

Fig. 1

Fig. 2

Normal Pressure

Fig. 4

Fault

Fig. 5

Below Minimum

Fig. 6

Pressure Gauge

HIGH

LOW

Fig. 3

Boiler

Thermostat

Knob

Mains ON

(Green) Boiler ON

(Yellow)

Overheat or

Lockout

(Red)

3.0 Safety Devices

3.1 Operation of Safety Devices

1. Your Potterton Promax System HE is fitted with

safety devices which shut down the appliance if:

a) the system overheats.

b) the condensate drain is blocked.

c) there is no gas to the boiler.

2. The lockout indicator light will be either flashing

or permanently illuminated and the boiler will need

resetting (Fig. 7).

NOTE: In the case of persistent operation of

the devices, turn off the boiler and consult your

service engineer as an appliance or system

fault is indicated.

3.2 Resetting

TO RESET THE BOILER

1. Allow the boiler to cool if hot.

2. Hinge the lower door panel down (Fig. 8).

3. If the lockout indicator light is flashing once

a second, follow these instructions.

4. Turn the boiler thermostat control knob fully

anti-clockwise to the OFF position marked ““

(Fig. 9).

5. Wait 10 seconds and then turn the boiler

thermostat control knob clockwise to the required

thermostat setting. The overheat light will go out

and the boiler will fire up automatically when it has

cooled sufficiently.

6. If the lockout indicator light is permanently

illuminated, follow these instructions.

7. Check that the gas supply to the appliance has

not been inadvertently turned off.

8. Check the condensate drain outlet has not

been blocked.

WARNING: The condensate outlet must not be

blocked or modified.

9. Turn the boiler thermostat control knob fully

anti-clockwise to the OFF position marked ““

(Fig. 9).

10. Wait 10 seconds and then turn the boiler

thermostat control knob clockwise to the required

thermostat setting. The overheat or lockout light

will go out and the boiler will fire up automatically.

Fig. 8

HIGH

LOW

Overheat or

Lockout

(Red)

Fig. 7

HIGH

LOW

Fig. 9

Boiler

Thermostat

Knob

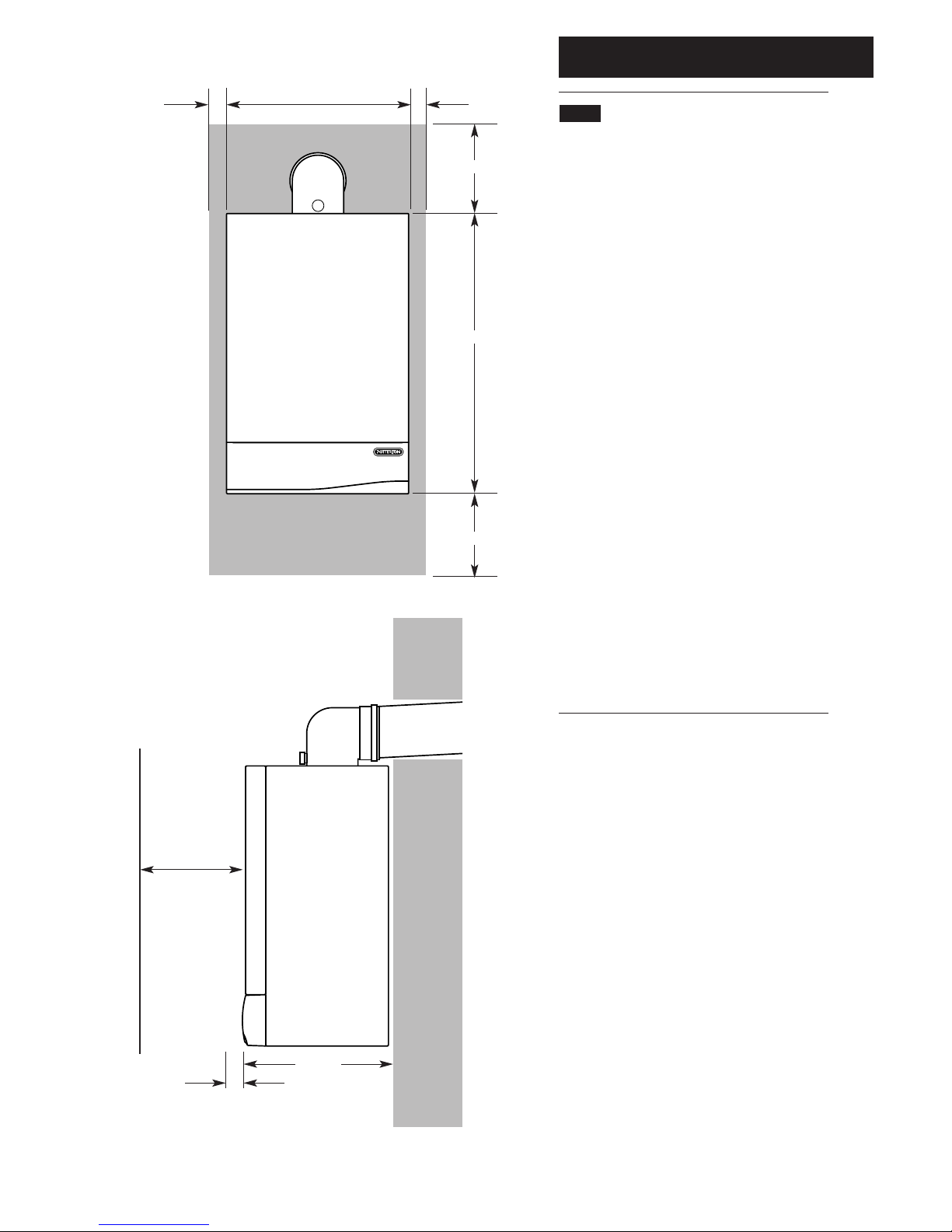

4.0 Clearances

4.1 Clearances around the Boiler

(Figs. 10 & 11)

1. The minimum clear spaces needed around

the boiler are:

Top - 200mm

Bottom - 200mm

Both sides - 5mm

Front - 500mm (For Servicing)

- 5mm (In Operation)

2. The boiler may be installed in an unventilated

cupboard or compartment if the following

minimum clearances are maintained:

Top - 200mm

Bottom - 200mm

Sides - 25mm

Front - 100mm

3. Any compartment should be large enough to

house the boiler only.

4. IT SHOULD NOT BE USED AS A STORAGE

CUPBOARD.

5. The gas burning compartment of your boiler is

completely sealed from the room in which it is

fitted. Products from the combustion of gas are

vented to the outside through the flue terminal

which must be kept free from obstruction as this

would interfere with the correct operation of the

boiler.

200mm

850mm

490mm

200mm

5mm Min

5mm

500mm

For Servicing

Purposes

Fig. 10

Fig. 11 In Operation

325mm

5.0 Cleaning, Spares & Guarantee

5.1 Cleaning the Outercase

The painted panels should be wiped with a damp

cloth and then dried completely. DO NOT USE

ABRASIVE CLEANING AGENTS.

5.2 Spare Parts

Repairs should be carried out by a CORGI

Registered Installer or other Registered Person

1. Any repairs to the boiler will usually be the

responsibility of the Installer during the

guarantee period after which spare parts may be

obtained through approved Potterton stockists if

required.

2. Quote the appliance name, model number

(found on the reverse of the lower door panel)

and where possible the part number when

ordering spares. A short parts list is included in

the Installation and Servicing Instructions.

5.3 Guarantee

1. Your Potterton Promax System HE is

designed and produced to meet all the relevant

Standards.

2. Potterton provide a 12 month guarantee on

the boiler. The guarantee operates from the date

installation is completed for the customer who is

the original user.

3. To maximise the benefit from our guarantee

we urge you to return the reply-paid guarantee

registration.

4. This does not in any way prejudice your rights

at Common Law. Such rights between the

customer and the installer or supplier from whom

the unit was purchased remain intact.

Any component or part which becomes

defective during the guarantee period as a

result of faulty workmanship or material

whilst in normal use will be repaired or

replaced free of charge.

Potterton, Baxi UK Limited, Brownedge Road, Bamber Bridge, Preston, Lancashire. PR5 6SN

After Sales Service 08706 096 096

www.baxi.com

Comp No5106704 - Iss A - 1/02

Autres manuels pour Promax System HE

Table des matières

Autres manuels Potterton Chaudière

Potterton

Potterton Heatmax Combi HE Range Mode d’emploi

Potterton

Potterton Performa System 18 HE Instructions d'installation et d'entretien

Potterton

Potterton 40eL Manuel utilisateur

Potterton

Potterton Promax 24 Combi ErP Manuel

Potterton

Potterton Promax FSB 30 HE Guide de l'utilisateur

Potterton

Potterton Statesman 45/50 Instructions d'installation et d'entretien

Potterton

Potterton eurocondense four 125 kw Instructions générales

Potterton

Potterton Promax 15 HE Instructions de fonctionnement

Potterton

Potterton Gold H Range Mode d’emploi

Potterton

Potterton Promax System HE Plus A Range Instructions d'installation et d'entretien

Potterton

Potterton Prorile Prima 30e Guide de l'utilisateur

Potterton

Potterton Statesman 45/50L Manuel utilisateur

Potterton

Potterton HE Plus Instructions d'installation et d'entretien

Potterton

Potterton Gold 24 HE Instructions d'installation et d'entretien

Potterton

Potterton 15 HE Plus Instructions d'installation et d'entretien

Potterton

Potterton Performa 28 Manuel utilisateur

Potterton

Potterton Performa 30 HE Manuel utilisateur

Potterton

Potterton Titanium 15 Heat Manuel utilisateur

Potterton

Potterton PROFILE LPG 100e Guide de l'utilisateur

Potterton

Potterton Performa System 12e Guide de l'utilisateur

Potterton

Potterton Promax HE Store 90 Litres Note de version

Potterton

Potterton Heatmax Combi HE Range Instructions d'installation et d'entretien

Potterton

Potterton Eurocondense three Manuel du propriétaire

Potterton

Potterton Gold HE A Range Instructions d'installation et d'entretien

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur

Radiant

Radiant R2K 55 Manuel

Worcester

Worcester Greenstar 36LXi Manuel utilisateur
