Sirius FS 50-70

Floor Standing Condensing Gas Boilers

Installation, Operation & Maintenance Manual

To be kept by the user October 2010

heating specialists

2912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

Dear Customer,

We are sure your new boiler will comply with all your requirements.

Do not dispose of this booklet. This manual contains the information, which will help you to

run your boiler correctly and efciently.

POTTERTON COMMERCIAL boilers bear the CE mark in compliance with the basic

requirements as laid down in the following Directives:

- Gas Directive 90/396/EEC

- Efciency Directive 92/42/EEC

- Electromagnetic Compatibility Directive 2004/108/EEC

- Low Voltage Directive 2006/95/EC

Do not leave any parts of the packaging (plastic bags, polystyrene, etc.) within children’s reach as they are a

potential source of danger.

ATTENTION

This boiler can only be installed and operate

in permanently, ventilated rooms in accordance with

BS6644

3912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

1. Instructions prior to installation 4

2. Instructions prior to commissioning 4

3. Commissioning of the boiler 5

4. Filling the boiler 12

5. Switching the boiler off 12

6. Prolonged standstill of the system. Frost protection 12

7. Servicing instructions and gas change 12

8. General information 13

9. Instructions prior to installation 13

10. Boiler installation and dimensions 14

11. Chimney ue connection 21

12. Connecting the mains supply 23

13. Adjusting the gas valves and gas change 30

14. Setting the boiler parameters 32

15. Control and operation devices 34

16. Positioning of the ignition and ame sensing electrode 35

17. Check of combustion parameters 35

18. Activating the chimney-sweep function 36

19. Annual service 36

20. Boiler schematic 37

21. Illustrated wiring diagram 38

22. Technical data 39

CONTENTS

INSTRUCTIONS PERTAINING TO THE USER

INSTRUCTIONS PERTAINING TO THE INSTALLER

4912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

This boiler is designed to heat water at a lower than boiling temperature at atmospheric pressure. The boiler

must be connected to a central heating system and/or to a domestic hot water supply system in compliance

with its performances and output power.

The boiler must be installed by a Qualied Service Engineer and ensure the following operations are carried

out:

a) Check that the boiler is t for operation with the type of gas available. For more details see the notice on the

packaging and the label on the appliance itself.

b) Careful checking that the ue terminal draft is appropriate; that the terminal is not obstructed and that no

other appliance exhaust gases are expelled through the same ue duct, unless the ue is especially desi-

gned to collect the exhaust gas coming from more than one appliance, in conformity with the standards and

regulations in force.

c) Careful checking that, in case the ue has been connected to pre-existing ue ducts, thorough cleaning

has been carried out in that residual combustion products may come off during operation of the boiler and

obstruct the ue duct.

d) To ensure correct operation of the appliance and avoid invalidating the warranty, observe the following

precautions:

1. Heating circuit

1.1.New system

Before proceeding with installation of the boiler, the system must be cleaned and ushed out thoroughly to

eliminate residual thread-cutting swarf, solder and solvents if any, using suitable proprietary products.

To avoid damaging metal, plastic and rubber parts, use only neutral cleaners, i.e. non-acid and non

alkaline. The recommended products for cleaning are:

SENTINEL X300 or X400 and FERNOX heating circuit restore. The use of this product must be strictly

in accordance with the maker’s directions. Finally the system must be dosed with a suitable inhibitor at

1% system volume.

1.2. Existing system

Before proceeding with installation of the boiler, the system must be cleaned and ushed out to remove

sludge and contaminants, using suitable proprietary products as described in section 1.1.

To avoid damaging metal, plastic and rubber parts, use only neutral cleaners, i.e. non-acid and non-

alkaline such us SENTINEL X100 and FERNOX heating circuit protective. To use this product proceed

strictly in accordance with the maker’s directions. Dose with inhibitor.

Remember that the presence of foreign matter in the heating system can adversely affect the operation

of the boiler (e.g. overheating and noisy operation of the heat exchanger).

Failure to observe the above will render the warranty null and void.

1. INSTRUCTIONS PRIOR TO INSTALLATION

Initial lighting of the boiler must be carried out by a qualied service engineer. Ensure the following operations

are carried out:

a) compliance of boiler parameters with (electricity, water, gas) supply systems settings.

b) compliance of installation with the standards and regulations in force.

c) appropriate connection to the power supply and earthing of the appliance.

Failure to observe the above will render the warranty null and void.

2. INSTRUCTIONS PRIOR TO COMMISSIONING

5912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

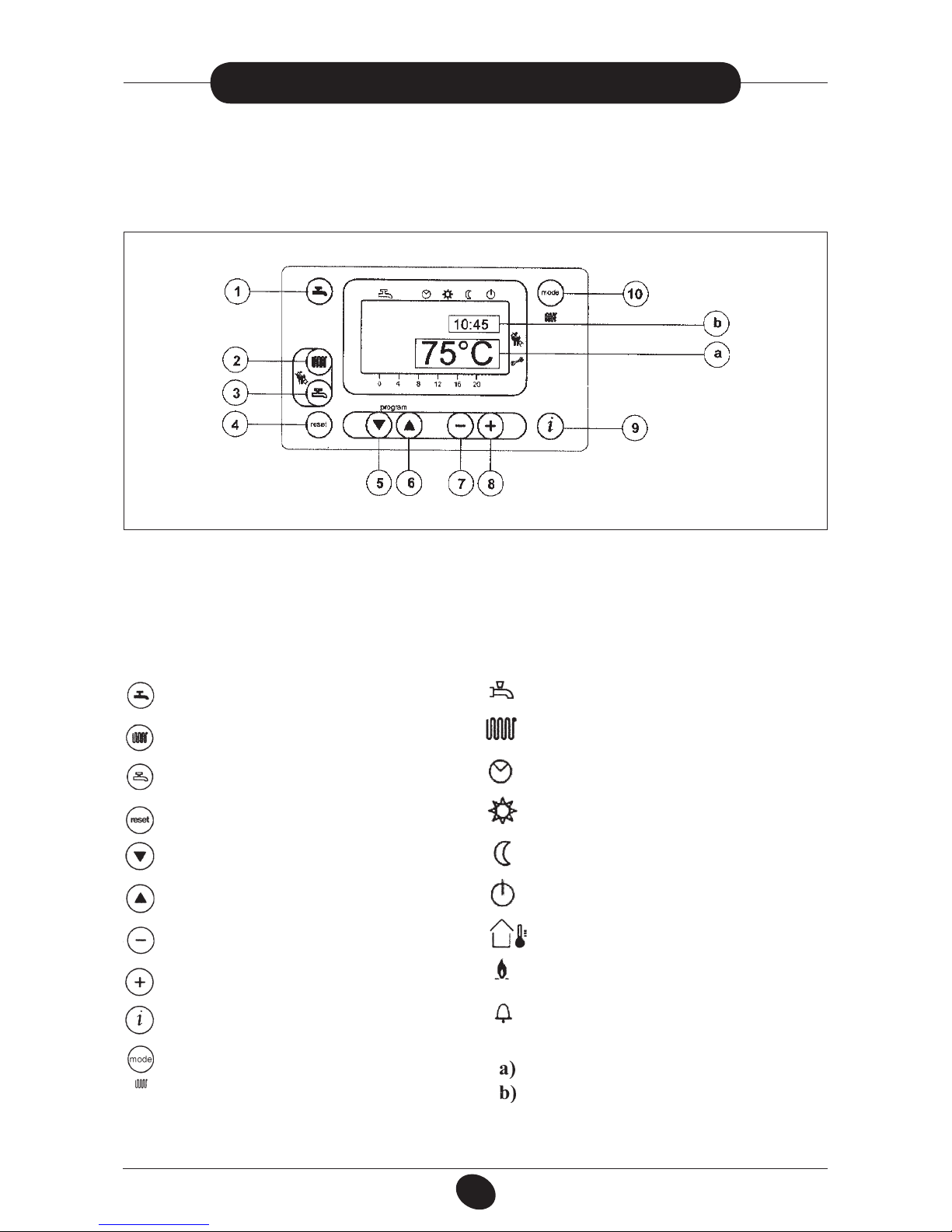

KEYS DISPLAY SYMBOLS

Central heating mode setting key

Data display reset key

Parameter setting key (increase value)

Parameter setting key (decrease value)

Program access and scroll key

Program access and scroll keys

Reset key

Domestic hot water temperature setting key

Central heating water temperature setting key

Domestic hot water on/off key

Resettable alarm warning

MAIN display

SECONDARY display

Flame present (on)

Outdoor temperature

Standby (off)

Operation in manual mode at minimum tem-

perature

Operation in manual mode at the maximum

temperature set

Operation in automatic mode

Operation in central heating mode

Operation in domestic hot water mode

020503_1100

Figure 1

IMPORTANT: Domestic Hot Water (D.H.W.) instructions discribed here, are to be taken into account only

if the boiler is connected to a D.H.W. production system.

To correctly light the burner proceed as follows:

1) Provide power supply to the boiler;

2) Open the gas cock;

3) Follow the directions given below regarding the adjustments to be made at the boiler control panel.

3. COMMISSIONING OF THE BOILER

6912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

020503_0800

Figure 2

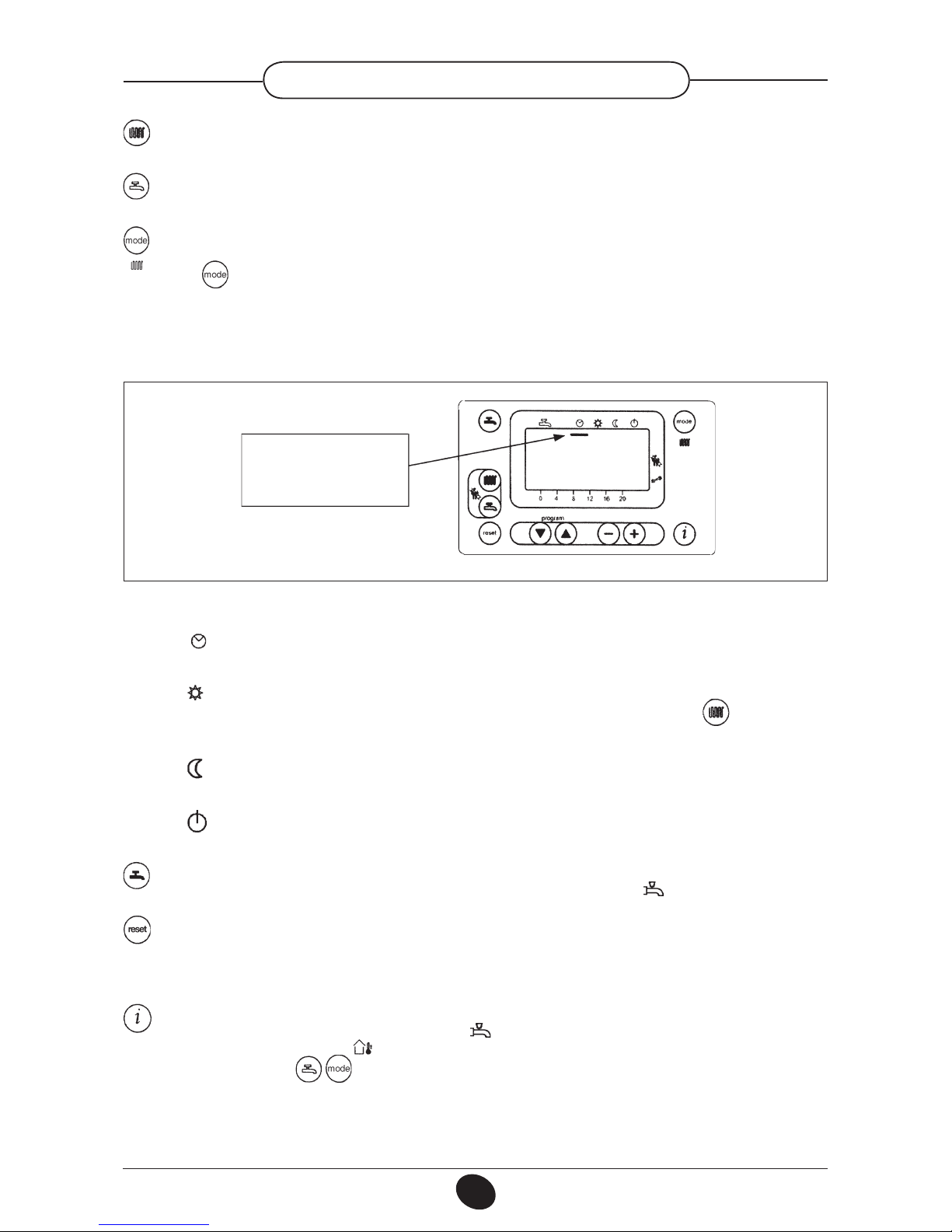

• Automatic operation. Operation of the boiler is controlled by the timed program as described

in point 3-5.1 “Daily timed program for operation of the central heating system”;

• Manual operation at the maximum temperature set. The boiler comes into operation regardless

of the timed program set. The operating temperature is that set using the key (point 3-3:

“Setting the maximum central heating temperature”);

• Manual operation at minimum temperature. The operating temperature is that set in point

3-6: “setting the minimum central heating temperature”.

• Standby. The boiler does not work in central heating mode, although the antifreeze function is

still enabled.

(1) Domestic hot water on/off key: This key can be pressed to activate or deactivate this function,

which is identied on the display by a black cursor line under the symbol .

(4) Reset key. In case of a fault, referred to in point 3-7 “Faults and resetting the boiler”, the boiler can

be restarted by pressing this key for at least two seconds (see 3-8).

If this key is pressed with no fault present, the display will show the message “E153”, and the same key

has to be pressed again (for at least two seconds) to restart the boiler.

(9) Data key. This key can be pressed repeatedly to display the following information:

- Temperature (°C) of the domestic hot water ( );

- outdoor temperature (°C) ( ); only provided with the outdoor temperature sensor probe connected.

Press either of the keys to return to the main menu.

Dash

“Automatic mode”

active

(2)

Central heating water temperature setting key.

This key can be pressed to set the central heating

water output temperature as described in point 3-3.

(3) Domestic hot water temperature setting key. This key can be pressed to set the domestic hot

water temperature as described in point 3-4.

(10) Central heating mode operating key

The key can be pressed to activate four boiler central heating operating modes; these modes are

identied by a black cursor line underneath the relative symbol on the display, and are as follows:

3.1 DESCRIPTION OF KEYS

7912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

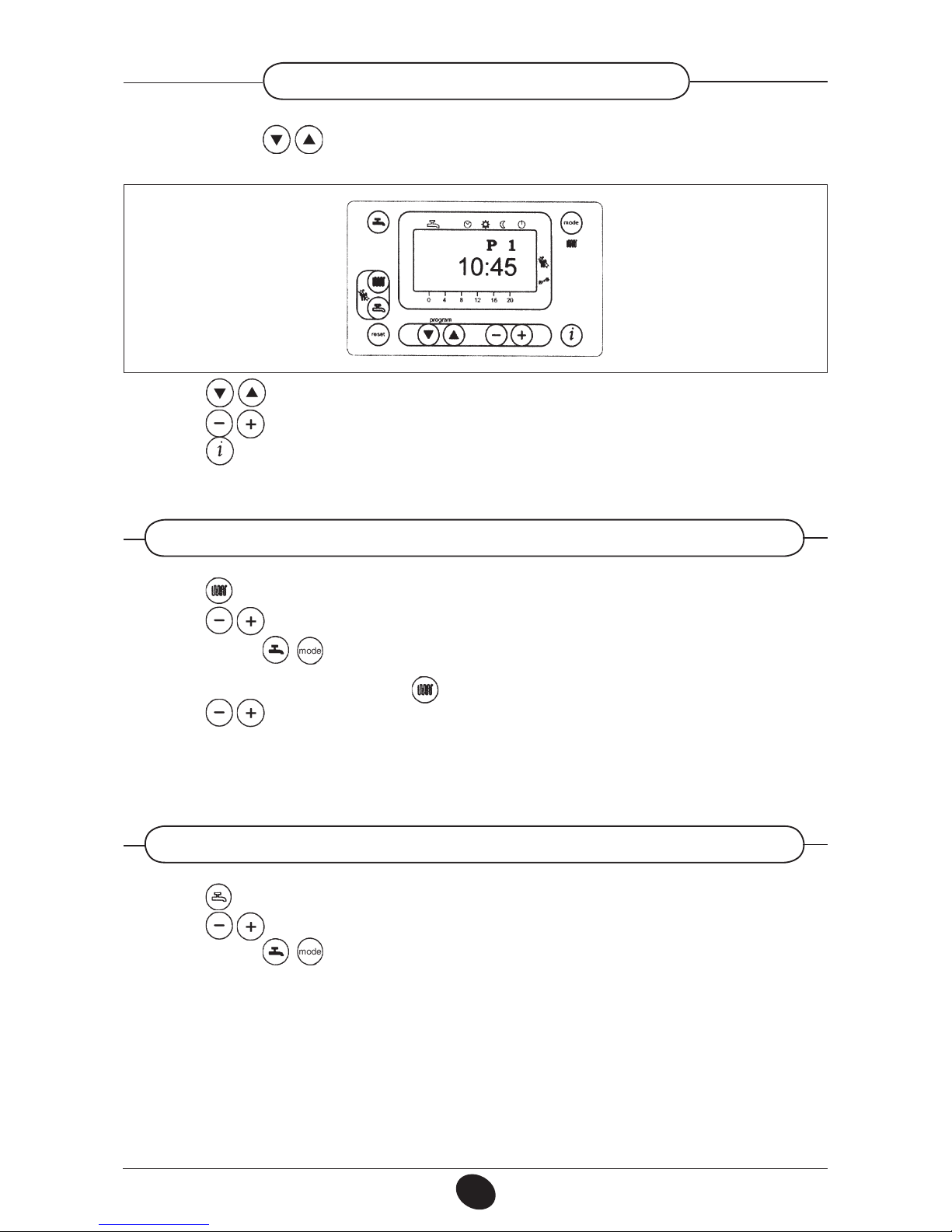

•Press either of the keys to access the programming function;

the display will show the letter P followed by a number (program line);

•Press the keys until the display shows P1, referring to the time to be set;

•Press the keys to set the time; on the display, the letter P will start to ash;

•Press the key to save and exit the programming function;

020503_0700

Figure 3

3.2 SETTING THE TIME

- Press the key (2-gure 1) to set the central heating water temperature;

- Press the keys to set the temperature required;

- Press either of the keys (1 or 10 - gure 1) to save and return to the main menu.

N.B – With the outdoor sensor connected, the key (2 - gure 1) can be used to shift the central heating curve.

Press the keys to decrease or increase the room temperature in the premises to be heated.

3.3 SETTING THE MAXIMUM CENTRAL HEATING TEMPERATURE

- Press the key (3-gure 1) to set the maximum domestic hot water temperature;

- Press the keys to set the temperature required;

- Press either of the keys (1 or 10 - gure 1) to save and return to the main menu.

3.4 SETTING THE MAXIMUM DOMESTIC HOT WATER TEMPERATURE

8912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

- Press either of the keys to access the programming function;

a) press these keys until the display shows P11, referring to the program start time;

b) press the keys to set the time;

- Press the key; the display will show P12, referring to the program end time;

-Repeat the operations described in points a and b until the third and last cycle is reached (program line

P16);

-Press the key to save and exit from the programming function.

3.5 SETTING THE DAILY PROGRAM FOR OPERATION IN CENTRAL HEATING AND DOMESTIC HOT WATER MODES

3.5.1 Setting the daily times for central heating mode operation

3.5.2 Setting the daily times for domestic hot water mode operation

-Factory setting of D.H.W. function is enable (ON) while is disabled D.H.W. daily times program. To enable

D.H.W. daily times program see section 14 (parameter H91).

Setting the daily times for domestic hot water mode operation-Carry out the operations described in section

3.5.1 for program lines 31 to 36.

3.6 SETTING THE MINIMUM CENTRAL HEATING TEMPERATURE

- Press either of the keys to access the programming function;

- Press these keys until the display shows P5, referring to the temperature to be set;

- Press the keys to set the temperature required.

This operating mode is enabled when minimum temperature central heating mode “ ” is activated or when

the daily central heating program does not require heat.

N.B – With the outdoor sensor connected, parameter P5 can be used to set the minimum room tempe-

rature in the premises to be heated (night set-back).

9912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

Range

0…23:59

25..80

00:00…24:00

0...1

Factory

setting

———-

6:00

22:00

0:00

24:00

0:00

Parameter description

Time of day setting

Minimum central heating temperature setting (°C)

Start of rst daily period of automatic central heating

End of rst daily period of automatic central heating

Start of second daily period of automatic central heating

End of second daily period of automatic central heating

Start of third daily period of automatic heating

End of third daily period of automatic central heating

Start of rst daily period of domestic hot water production

End of rst daily period of domestic hot water production

Start of second daily period of domestic hot water production

End of second daily period of domestic hot water production

Start of third daily period of domestic hot water production

Fine End of third daily period of domestic hot water production

Reset of daily central heating and domestic hot water production programs (factory settings).

Press the - + keys together for about 3 seconds; the number 1 appears on the display.

Conrm by pressing either of the keys

Parameter

P11

P12

P13

P14

P15

P16

*P31

*P32

*P33

*P34

*P35

*P36

P45

*Parameters for program lines P31 to P36 are displayed only if Domestic Hot Water (D.H.W.) program (pa-

rameter H91 see section 14) is activated.

3.7 TABLE FOR USER-SETTABLE PARAMETERS

10 912.822.1 - GB

INSTRUCTIONS PERTAINING TO THE USER

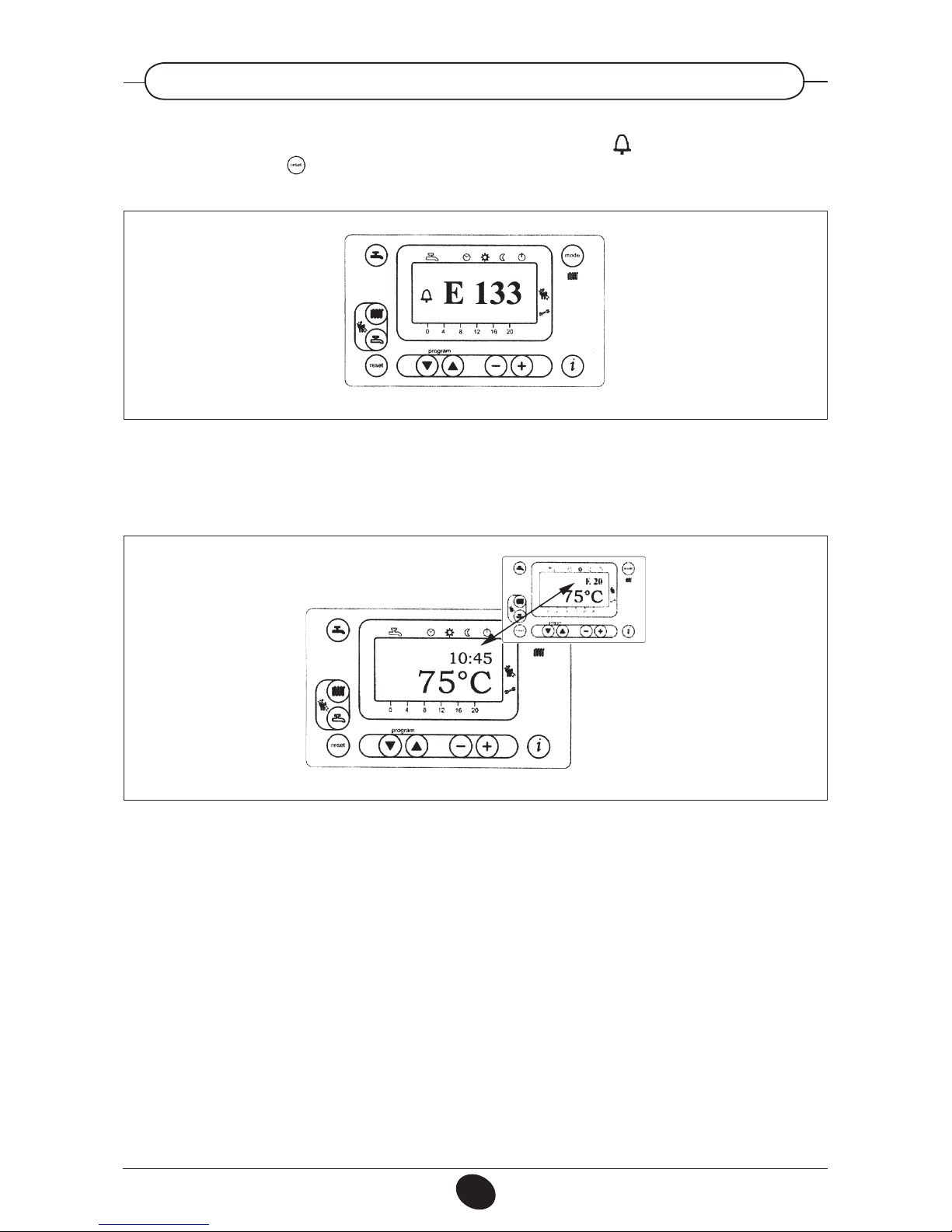

If a fault occurs, a ashing warning code appears on the display.

The fault warnings appear on the main display (gure 1 a) together with the symbol (Figure 4).

To reset, press the reset button for at least two seconds.

020503_0500

Figure 4

020503_0600

Figure 4.1

Fault warnings appear on the secondary display (gure 1 b) alternating with the time, both of them ashing

(gure 4.1). It is not possible to reset malfunction warnings which appear on the secondary display as the cause

of the alarm has rst to be removed.

3.8 FAULT WARNINGS AND RESETTING THE BOILER

Autres manuels pour Sirius two FS 50

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Potterton Chaudière

Potterton

Potterton PRIMA 30C Manuel utilisateur

Potterton

Potterton Prorile Prima 30e Manuel utilisateur

Potterton

Potterton Promax System HE Guide de l'utilisateur

Potterton

Potterton iHE 150 Note de version

Potterton

Potterton 15 HE Plus Instructions d'installation et d'entretien

Potterton

Potterton Suprima 30L Instructions d'installation et d'entretien

Potterton

Potterton Titanium 15 Heat Manuel utilisateur

Potterton

Potterton PROMAX 24 Manuel

Potterton

Potterton PROMAX 12 Manuel utilisateur

Potterton

Potterton Envoy Flowsure Instructions d'installation et d'entretien

Potterton

Potterton Paramount 40 Manuel d'instructions

Potterton

Potterton Sirius WH 50-60-70 Manuel d'instructions

Potterton

Potterton Lynx Electronic Manuel utilisateur

Potterton

Potterton Titanium Instructions d'installation et d'entretien

Potterton

Potterton Sirius two FS 50 Manuel

Potterton

Potterton Diplomat HE Manuel utilisateur

Potterton

Potterton Suprima 70 HE Instructions d'installation et d'entretien

Potterton

Potterton Performa 24 Eco HE Mode d’emploi

Potterton

Potterton PROFILE LPG 100e Guide de l'utilisateur

Potterton

Potterton Promax System HE Plus A Range Instructions d'installation et d'entretien

Potterton

Potterton Puma Flowsure+ Instructions d'installation et d'entretien

Potterton

Potterton SIRIUS FS Note de version

Potterton

Potterton Housewarmer 45 Instructions d'installation et d'entretien

Potterton

Potterton Performa 24 Instructions de fonctionnement

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur

Radiant

Radiant R2K 55 Manuel

Worcester

Worcester Greenstar 36LXi Manuel utilisateur
