POSIFLEX RT-1016A Manuel utilisateur

Package Contents

RT-1016A 15.6” fanless touch terminal…..x1

Power adapter……………………………..x1

Power cord………………………………...x1

User manual……………………………….x1

RT-1016A

Fanless Touch POS Terminal

User Manual

16950903030 Ver. C0

http://www.posiflex.com

SOME IMPORTANT NOTES

FCC NOTES

This system meets industry & government requirements and applicable standards.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions manual, may cause

interference to radio communications. It has been tested and found to comply with

limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules,

which are designed to provide reasonable protection against interference when

operated in a commercial environment. Operation of this equipment in a residential

area is likely to cause interference in which case the user at his own expense will

be required to take whatever measures to correct the interference.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential

environment this equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement

résidentiel, cet équipement peut provoquer des interférences radio.

WARRANTY LIMITS

Warranty will terminate automatically when the machine is opened by any person

other than the authorized technicians. The user should consult his/her dealer for the

problem happening. Warranty voids if the user does not follow the instructions in

application of this merchandise. The manufacturer is by no means responsible for

any damage or hazard caused by improper application.

LIMITES DE GARANTIE

La garantie prend fin automatiquement lorsque la machine est ouverte par une

personne autre que les techniciens autorisés. L'utilisateur doit consulter son

revendeur pour le problème qui se produit. La garantie s'annule si l'utilisateur ne

suit pas les instructions d'application de cette marchandise. Le fabricant n'est en

aucun cas responsable de tout dommage ou danger causé par une mauvaise

application.

警告使用者

這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這

種情況下，使用者會被要求採取某些適當的對策。

SAFETY INSTRUCTIONS

This equipment is not suitable for use in locations where children are likely to be

present.

CONSIGNES DE SÉCURITÉ

Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir

des enfants.

BATTERY CAUTION NOTES

Dispose of used batteries according to the instructions.

Replacement of a battery with an incorrect type that can defeat a safeguard

(for example, in the case of some lithium battery types)

Disposal of a battery into fire or a hot oven, or mechanically crushing or

cutting of a battery that can result in an explosion.

Leaving a battery in an extremely high temperature surrounding

environment that can result in an explosion or the leakage of flammable

liquid or gas.

A battery subjected to extremely low air pressure that may result in an

explosion or the leakage of flammable liquid or gas.

BATTERIE ATTENTION NOTES

Jetez les piles usagées conformément aux instructions.

Remplacement d'une batterie avec un type incorrect qui peut annuler une

sauvegarde (par exemple, dans le cas de certains types de batterie au

lithium)

Mise au rebut d'une batterie dans le feu ou dans un four chaud, ou

écrasement ou coupure mécanique d'une batterie pouvant entraîner une

explosion.

Laisser une batterie dans un environnement environnant àdes températures

extrêmement élevées pouvant entraîner une explosion ou la fuite de liquide

ou de gaz inflammable.

Une batterie soumise à une pression atmosphérique extrêmement basse

pouvant provoquer une explosion ou une fuite de liquide ou de gaz

inflammable.

警告

本電池如果更換不正確會有爆炸的危險，請依製造商說明書處理用過之電

池。

Views of RT-1016A

Front View

Rear View

Bottom View

P-Cap Touch Panel

LED indicator

Camera (Optional)

Right-Side View

Views of RB-5000 UPS Base Stand (Option for RT Series Model)

Top View Bottom View

When the AC power is turned off, the RT terminal will begin to be

three seconds. At this time, back up the data on the terminal

immediately and power off the RT terminal.

When the AC power is turned off, if the UPS battery is very low, the

RB-5000 will beep once every second. At this moment, power off the

RT terminal immediately.

To get more detailed information of RB-5000, please contact the service team

of Posiflex or download the RB-5000 user manual from Posiflex Global

Website: (http://www.posiflex.com/en-global/Download/download).

BATT.

DC OUT

DC IN

Rubber Foot

Battery Cable

Screw Hole

Through Hole

View of I/O Interface of RT-1016A

Bottom Side

Left Side

Positioning your POS for a Perfect Viewing Angle

Steady the base with one hand, and then tilt the screen

in the direction shown by the arrow in the figure.

Please do NOT press on the LCD panel while

setting up the tilt angle.

Installing Power Adapter and Cables

The following provides instructions required to install your cables.

1. Lay the terminal with its rear facing

towards you and tilt the screen all the way

down.

DB9 COM Port

CR Port

LAN Port

DC IN Power Connector

RJ50 COM Port

USB 3.0 Port

USB 2.0 Port

USB 2.0 Ports

Micro USB Port

HDMI Port

SD Card Slot

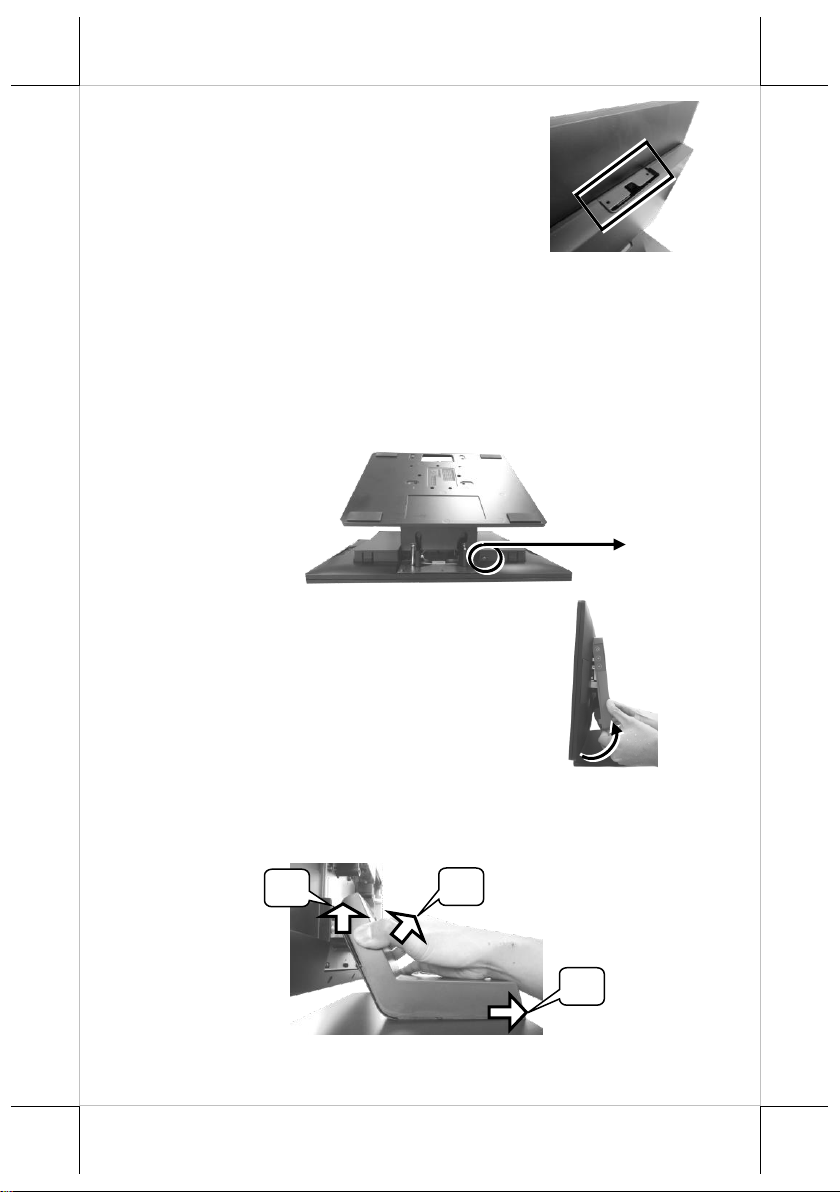

2. Remove the system back cover.

2.1 If the system back cover is fire-resistant, first locate the screw as

indicated in the figure, and then remove it.

2.2 Hold down the release lever at the bottom of

the system back cover and then pulling the

cover outwards.

3. To remove the stand cover from the base, grab the top side of the

cover, (1) lift the stand cover up gently, (2) pull it at a 45 degree

angle, and then (3) slide it in the horizontal direction shown by the

arrow.

4. Connect the connector of the power adapter

to the DC-IN power jack. If necessary,

properly insert other cables into the correct

port.

Screw for Fire-Resistant

System Back Cover

5. Neatly arrange the cables. Locate the cable holder inside the base as

shown in the figure. Push down the lever to release if from the hook,

pass the cable through cable holder, and then press down the lever

again to lock it onto the hook.

6. Make sure the cord can be held into place

and passed through the cable exit after

sliding back the stand cover.

7.1 Place back the sytem back cover. Make sure

it is well locked into place with a click sound.

7.2 For the fire-resistant system back cover, please insert another

screw into the screw hole indicated in the figure, and secure it.

8. Make sure the cable could be pulled out of

the cable exit from the bottom of the base.

Cable holder

Screw for Fire-Resistant

System Back Cover

Cable connectors like the connector of LAN cable have to be gently inserted

until a click sound is given. It is recommended that the I/O ports, such as COM

(DB9) port and VGA port, should be fastened with connector thumb screws

after the I/O cable connectors are completely connected. And please make sure

that each connector has to be connected to the right peripheral device in the

right way.

CAUTION: On doing insertion or extraction of a cable connector, please

always hold the connector head itself instead of pulling the cable wire.

Doing this could damage the cables, which is considered as an artificial

damage and is not covered by the warranty. The means of power cord

should be connected to a socket-outlet with earthing connection.

ATTENTION: Lors de l'insertion ou de l'extraction d'un connecteur de

câble, veuillez toujours tenir la tête du connecteur elle-même au lieu de

tirer le fil du câble. Cela pourrait endommager les câbles, ce qui est

considéré comme un dommage artificiel et n'est pas couvert par la

garantie. Le cordon d'alimentation doit être connecté à une prise de

courant avec mise à la terre.

Installing Optional Upgrade Kits and Peripherals

RT-1016A is an expandable model which allows you to upgrade its own

capacity by additionally installing multiple peripheral devices, such as

magnetic stripe reader (MSR), fingerprint or iButton sensors, and 2nd POS

monitor, according to your preference. The following will give you brief

instructions on how to expand on your current POS system with these optional

upgrade kits. Before proceeding with the installation of peripherals, please

make sure the POS system is completely shut down to prevent damage.

Installing Side Mount Upgrade Kits

Located at left side on the back of your system

unit, side mount compartment is mainly used for

installation of side-mounted equipment, such as

magnetic stripe reader. For detailed installation

instructions, please refer to the user manual

specific to the device which you intend to

mount onto the terminal.

Installing Rear-Mount POS Monitor

RT-series POS terminal also allows you to

additionally install rear-mount POS monitor to

expand its functionality. Regarding the step-

by-step instructions which aim to help you

mount it onto your POS system, Please refer

to the user manual specific to the device you

intend to install.

Installing PoweredUSB or USB Hub

Please go through the below steps to complete the installation of

PoweredUSB or USB hub.

1. After tilting the screen all the way down, remove the system back

cover.

1.1 If the system back cover is fire-resistant, first locate the

screw as indicated in the figure, and then remove it.

1.2 Hold down the release lever at the

bottom of the system back cover and

then pulling the cover outwards

2. To remove the stand cover from the base, grab the top side of the

cover, (1) lift the stand cover up gently, (2) pull it at a 45 degree

angle, and then (3) slide it in the horizontal direction shown by the

arrow.

Screw for Fire-Resistant

System Back Cover

Table des matières

Autres manuels POSIFLEX Terminal tactile

POSIFLEX

POSIFLEX TX-2000 Manuel utilisateur

POSIFLEX

POSIFLEX KV-2000 Series Manuel utilisateur

POSIFLEX

POSIFLEX Jiva LT 8015 Manuel utilisateur

POSIFLEX

POSIFLEX HT-4312 Series Manuel utilisateur

POSIFLEX

POSIFLEX PB-7700 Series Manuel utilisateur

POSIFLEX

POSIFLEX JIVA HS-3310A Manuel utilisateur

POSIFLEX

POSIFLEX PD - 2600 Manuel utilisateur

POSIFLEX

POSIFLEX KS - 7210 series Manuel utilisateur

POSIFLEX

POSIFLEX KS-6115 Manuel utilisateur

POSIFLEX

POSIFLEX PS Series Manuel utilisateur

POSIFLEX

POSIFLEX KS - 6910 series Manuel utilisateur

POSIFLEX

POSIFLEX XT-3817-G2 Manuel utilisateur

POSIFLEX

POSIFLEX HC-1621IR Manuel utilisateur

POSIFLEX

POSIFLEX TX-3000 Series Manuel utilisateur

POSIFLEX

POSIFLEX KS-6115 Manuel utilisateur

POSIFLEX

POSIFLEX XT-2614Q Manuel utilisateur

POSIFLEX

POSIFLEX RT-6015 Manuel utilisateur

POSIFLEX

POSIFLEX PS-3416 Manuel utilisateur

POSIFLEX

POSIFLEX HT-2000 Series Manuel utilisateur

POSIFLEX

POSIFLEX KS - 6910 series Manuel utilisateur

POSIFLEX

POSIFLEX XT-4015-G2 Manuel utilisateur

POSIFLEX

POSIFLEX DT-207 series Manuel utilisateur

POSIFLEX

POSIFLEX TX-5600 Manuel utilisateur

POSIFLEX

POSIFLEX XT- 3015 Manuel utilisateur

Manuels Terminal tactile populaires d'autres marques

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Manuel utilisateur

Ingenico

Ingenico AXIUM EX4000 Manuel utilisateur

Heisei Electronics

Heisei Electronics Q-POS 815 Manuel utilisateur

Amano

Amano MTX-15 Manuel utilisateur

FLOWBIRD

FLOWBIRD CWT Compact Touch Manuel utilisateur

Demco

Demco SP7 Manuel utilisateur

Lathem

Lathem PC600 Series Manuel utilisateur

Partner

Partner MF-2352 Manuel utilisateur

NCR

NCR RealPOS 7460-2 Manuel

Simrad

Simrad MS50 Instructions de montage

Unitech

Unitech MR350 MKII Guide de démarrage rapide

Jungheinrich

Jungheinrich WMT 210 Manuel utilisateur

Motorola

Motorola MTP850 Manuel utilisateur

YASKAWA

YASKAWA 62H-MDC0 Manuel utilisateur

MVG industries

MVG industries NeptuLink Manuel utilisateur

Price Industries Limited

Price Industries Limited FDC Manuel d'instructions

Honeywell

Honeywell TemaKey Manuel utilisateur

EBN

EBN BPC65-B-A16G Manuel utilisateur
