Planet XGSW-28040 Manuel utilisateur
24-Port 10/100/1000Mbps with 4 Shared SFP
+ 4-Port 10G SFP+ Managed Switch
XGSW-28040
Quick Installation Guide
Table of Contents
1. Package Content......................................................................................... 3
2. Requirements ............................................................................................. 4
3. Terminal Setup ........................................................................................... 5
4. Logon to the Console .................................................................................. 6
5. CongureIPAddress .................................................................................. 7
6. Start Web Management............................................................................... 9
Customer Support...........................................................................................12
3
1. Package Content
Thank you for purchasing PLANET 24-Port 10/100/1000Mbps with 4 Shared SFP
+ 4-Port 10G SFP+ Managed Switch, XGSW-28040. Terms of “Managed Switch”
means the Switches mentioned titled in the cover page of this Quick installation
guide.
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
TheXGSWManagedSwitchx1l
User’s Manual CD x 1l
QuickInstallationGuidex1l
RS232 Cable x 1l
RubberFeetx4l
TwoRack-mountingBracketswithAttachmentScrewsx1l
PowerCordx1l
SFPDustCapsx8l
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Requirements
Workstations of subscribers running Windows XP/2003/Vista/7/2008, MAC OS9l
orlater,Linux,UNIXorotherplatformcompatiblewithTCP/IPprotocols.
WorkstationinstalledwithEthernetNIC(NetworkInterfaceCard)l
Serial Port connectl(Terminal)
AbovePCwithCOMPort(DB9)
Ethernet Port connectl
Networkcables-Usestandardnetwork(UTP)cableswithRJ-45connectors.
AbovePCinstalledwithWEBBrowserandJAVAruntimeenvironmentPlug-in
Note
It is recommended to use Internet Explore 7.0 or above to access
XGSWManagedSwitch.
5
3. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerand to serial(console)portof theXGSWManagedSwitch. The
console port of the Managed Switch is DCE already, so that you can connect the
consoleportdirectlythroughPCwithouttheneedofNullModem.
PC / Workstation
with
Terminal emulation software
Serial Port
RS-232
Serial Port
115200,8,n,1
XGSW Managed Switch
A terminal program is required to make the software connection to the XGSW
Managed Switch. Windows’ Hyper Terminal program may be a good choice. The
HyperTerminalcanbeaccessedfromtheStart menu.
1. Click START,thenPrograms,AccessoriesandthenHyper Terminal.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:115200
Databits:8
Parity:None
Stopbits:1
FlowControl:None
6
4. Logon to the Console
Once the terminal has connected to the device, power on the XGSW Managed
Switch,theterminalwilldisplaythatitisrunningtestingprocedures.
Then, the following message asks the login username and password. The factory
default username and password as following and the login screen in Figure 4-1
appears.
Username:admin
Password:admin
Figure 4-1 XGSW Managed Switch Console Login screen
Note
1.For security reason, please change and memorize the
newpasswordafterthisfirstsetup.
2.Only accept command in lowercase letter under console
interface.
7
5.CongureIPAddress
TheXGSWManagedSwitchisshippedwithdefaultIPaddressasfollowing.
IPAddress:192.168.0.100
SubnetMask:255.255.255.0
Tocheckthe currentIPaddress or modifyanew IP addressfortheSwitch, please
usetheproceduresasfollow:
Show the current IP address
1. On “Switch/>”prompt,enter“show ip”.
2.Thescreendisplaysthe currentIPaddress,SubnetMask andGateway.Asshow
inFigure5-1.

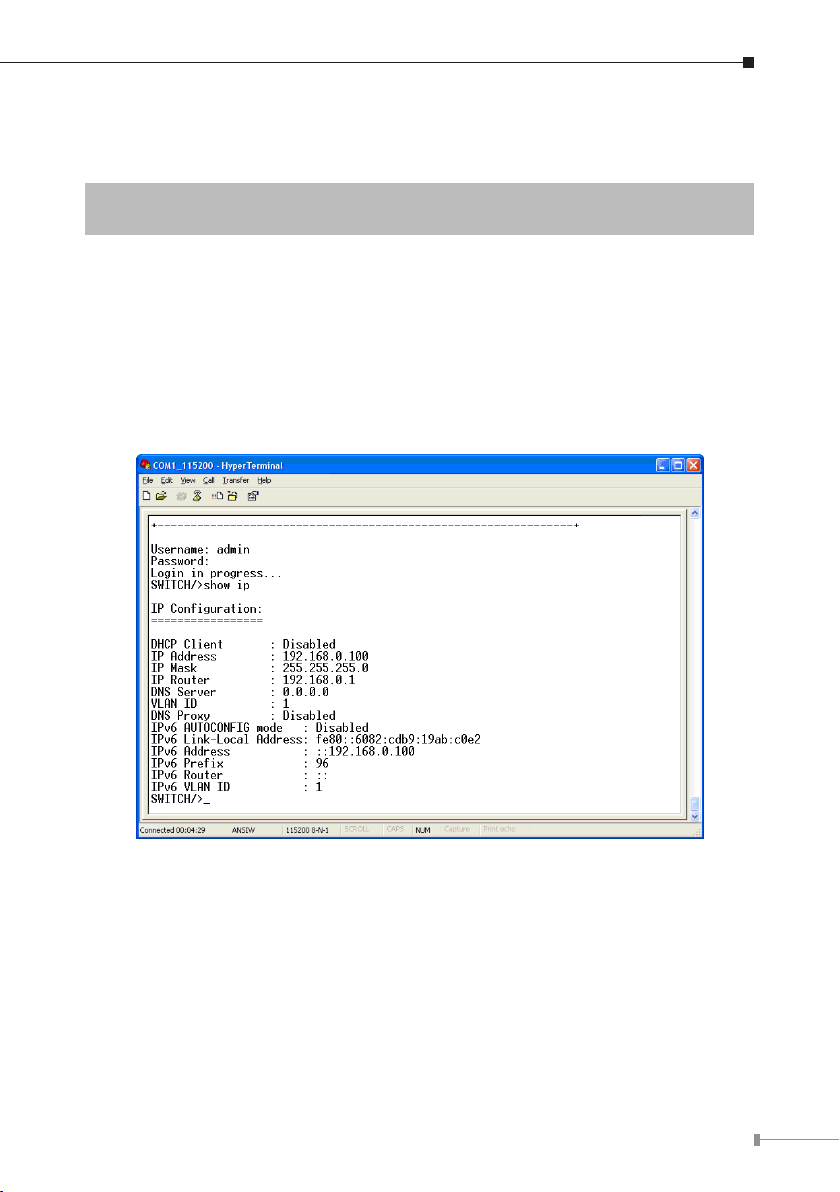

Figure 5-1 Show IP Information screen
8
Congure IP address
3. On “Switch/>” prompt, enter the following command and press <Enter>. As
showinFigure5-2.
Switch/> ip setup 192.168.1.100 255.255.255.0 192.168.1.1
ThepreviouscommandwouldapplythefollowsettingsfortheSwitch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
Figure 5-2 Set IP Address screen
4.RepeatStep1tocheckiftheIPaddressischanged.
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of XGSW Managed
SwitchthroughthenewIPaddress.
Note
If you do not familiar with console command or the related param-
eter,enter“help”anytimeinconsoletogetthehelpdescription.
9
6. Start Web Management
ThefollowingshowshowtostartuptheWeb ManagementoftheXGSWManaged
Switch. Note the Managed Switch is congured through an Ethernet connection,
please make sure the manager PC must be set on the same IP subnet address.
For example, the default IP address of the XGSW Managed Switch is
192.168.0.100, then the manager PC should be set at 192.168.0.x (where x
is a number between 1 and 254, except 100), and the default subnet mask is
255.255.255.0.
PC / Workstation
with
IE Browser
RJ-45/UTP-Cable
IP Address:
192.168.0.x
IP Address:
192.168.0.100
XGSW Managed Switch

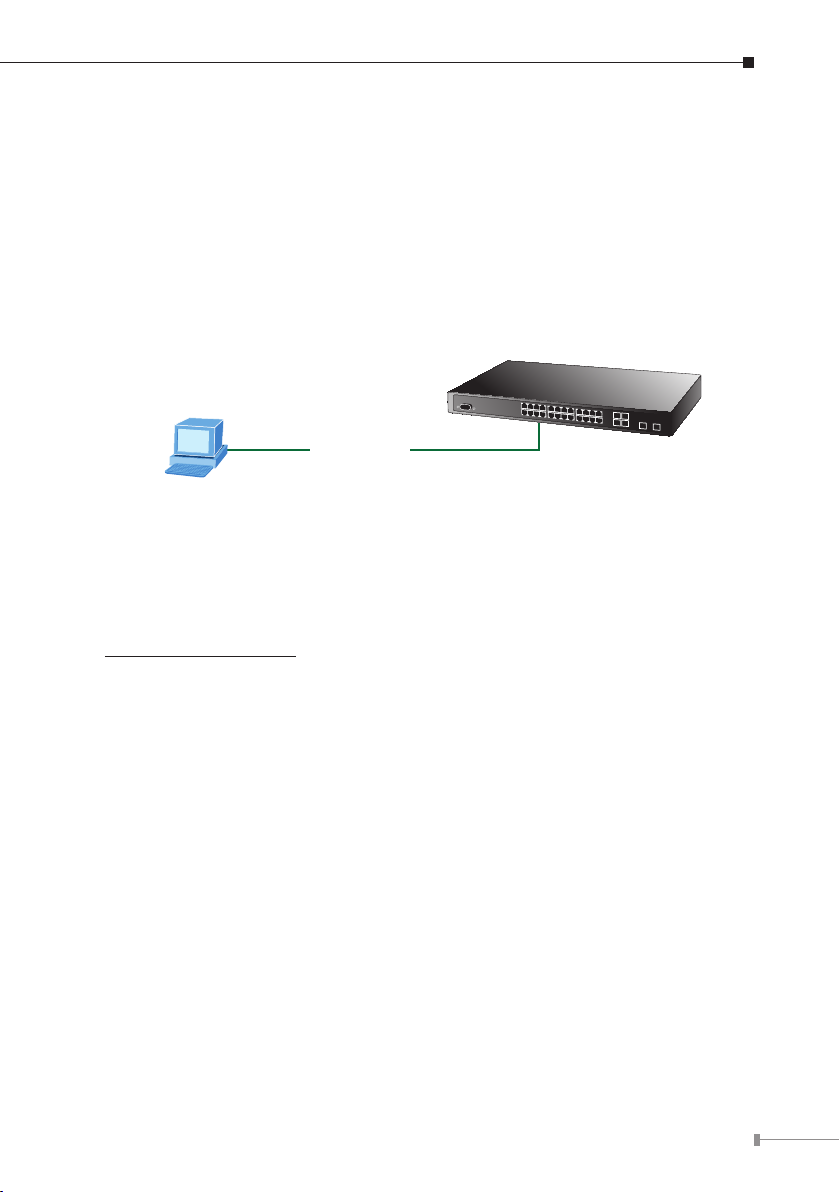

Figure 6-1 IP Management Diagram
Login the Managed Switch
1.Use Internet Explorer 7.0 or above Web browser, enter IP address
http://192.168.0.100 (the factory-default IP address or that you have just
changedinconsole)toaccesstheWebinterface.
10
2.When the following dialog box appears, please enter the default username and
password “admin” (or the password you have changed via console). The login
screeninFigure6-2appears.
DefaultUsername:admin
DefaultPassword:admin
Figure 6-2 Login screen
3.Afterenteringthepassword,themainscreenappearsasFigure6-3.
Figure 6-3 Web Main Screen of XGSW Managed Switch
