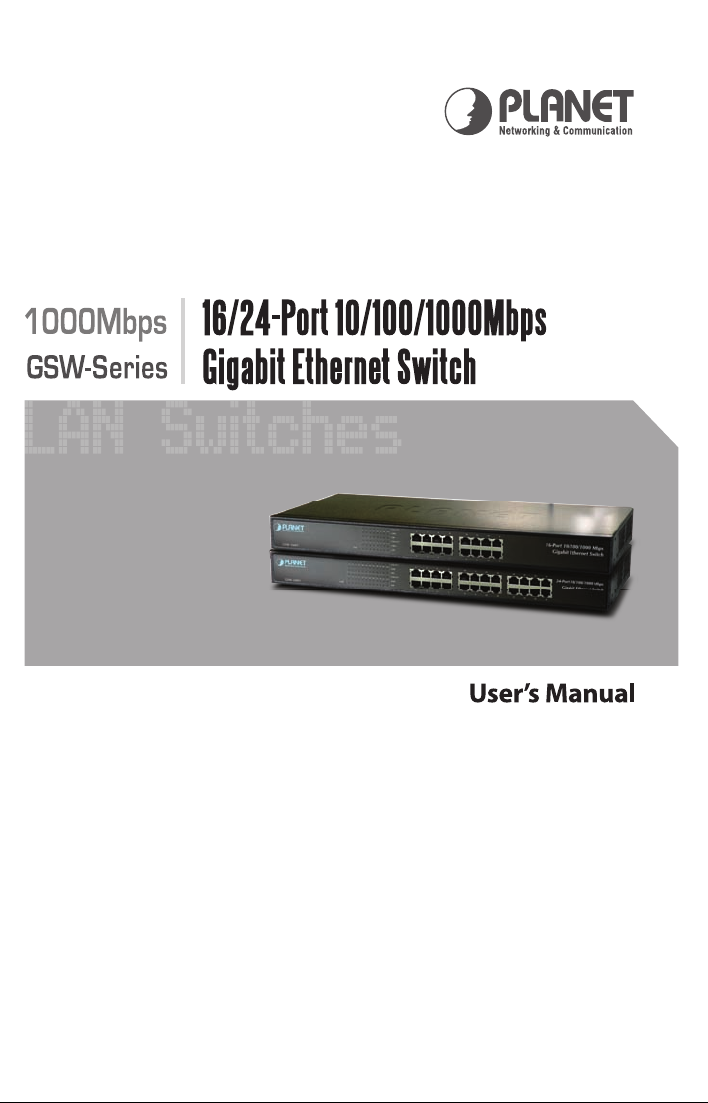

Planet GSW-2416 Manuel utilisateur

16/24-Port 10/100/1000Mbps

Gigabit Ethernet Switch

GSW-1601/GSW-2401/GSW-2416

User's Manual

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other

trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work

properly in all environments and applications, and makes no warranty

and representation, either implied or expressed, with respect to

the quality, performance, merchantability, or tness for a particular

purpose.

PLANET has made every effort to ensure that this User’s Manual is

accurate; PLANET disclaims liability for any inaccuracies or omissions

that may have occurred.

Information in this User’s Manual is subject to change without notice

and does not represent a commitment on the part of PLANET. PLANET

assumes no responsibility for any inaccuracies that may be contained in

this User’s Manual. PLANET makes no commitment to update or keep

current the information in this User’s Manual, and reserves the right

to make improvements to this User’s Manual and/or to the products

described in this User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect, misleading, or

incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with

the Instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to

take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human

health as a result of the presence of hazardous substances in

electrical and electronic equipment, end users of electrical

and electronic equipment should understand the meaning of

the crossed-out wheeled bin symbol. Do not dispose of WEEE as

unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET 16/24-Port 10/100/1000Mbps Gigabit Ethernet Switch User's

Manual

For Models: GSW-1601/GSW-2401/GSW-2416

Revision: 2.1 (October 2007)

Part No: EM-GSW1624v4 (2010-A50140-004)

TABLE OF CONTENTS

1. INTRODUCTION.......................................................................... 6

1.1 Package Contents ................................................................ 6

1.2 How to Use This Manual ..................................................... 6

1.3 Product Features ................................................................. 7

1.4 Product Specications .......................................................... 8

2. INSTALLATION...........................................................................10

2.1 Product Description.............................................................10

2.1.1 Product Overview .......................................................10

2.1.2 Switch Front Panel .....................................................11

2.1.3 LED Indicators ...........................................................11

2.1.4 Switch Rear Panel ......................................................13

2.2 Installing the Switch ...........................................................13

2.2.1 Desktop Installation....................................................14

2.2.2 Rack Mounting ...........................................................15

3. Switch Operation .......................................................................17

3.1 Address Table.....................................................................17

3.2 Learning ............................................................................17

3.3 Forwarding & Filtering.........................................................17

3.4 Store-and-Forward..............................................................17

3.5 Auto-Negotiation ................................................................18

4. Troubleshooting .........................................................................19

APPENDIX A NETWORKING CONNECTION ........................................20

A.1 Switch‘s RJ-45 Pin Assignments...........................................20

A.2 RJ-45 cable Pin Assignments ...............................................21

A.3 Install the Mini-GBIC module...............................................22

1. INTRODUCTION

1.1 Package Contents

Check the contents of your package for following parts:

● Gigabit Ethernet Switch x 1

● User's manual x 1

● Power cord x 1

● Rubber feet x 4

● Two rack-mounting brackets with attachment screws x1

If any of these are missing or damaged, please contact your dealer

immediately, if possible, retain the carton including the original packing

material, and use them against to repack the product in case there is a

need to return it to us for repair.

1.2 How to Use This Manual

This Gigabit Ethernet Switch User Manual is structured as follows:

Chapter 2 Installation

The chapter explains the feature, functionality and the physical

installation of the Gigabit Ethernet Switch.

Chapter 3 Switch operation

The chapter explains the Gigabit Ethernet Switch transmit operation.

Chapter 4 Troubleshooting

The chapter explains the troubleshooting of the Gigabit Ethernet

Switch.

Appendix A

This chapter contains cable information of the Gigabit Ethernet Switch.

In the following section, the term “Gigabit Ethernet Switch” means the

GSW-1601/GSW-2401 and GSW-2416.

1.3 Product Features

● Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE

802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Ethernet standard

● 16/24-Port 10/100/1000Mbps Gigabit Ethernet ports

● 16-Port SFP (Small Form-factor Pluggable) for 3.3V mini GBIC

module, shared with port#9 to #24 (GSW-2416 only)

● Features Store-and-Forward mode with wire-speed ltering and

forwarding rates

● Hardware based 10/100Mbps, half / full duplex and 1000Mbps full

duplex mode, ow control and auto-negotiation

● IEEE 802.3x ow control for full duplex operation and Backpressure

for half duplex operation

● Integrated address look-up engine, support 8K absolute MAC

addresses

● 340/500/400K bytes on-chip frame buffer

● 9K Jumbo packet support

● Automatic address learning and address aging

● Supports Auto MDI/MDI-X function

● Support CSMA/CD protocol

● 100~240VAC, 50~60Hz universal Power input

● FCC, CE class A compliant

1.4 Product Specications

Product

GSW-1601 / GSW-2401 / GSW-2416

16/24-Port 10/100/1000Mbps Gigabit Ethernet

Switch

Hardware Specication

Ports 16/24 10/100/1000Base-T RJ-45 Auto-MDI/

MDI-X ports

SFP Ports

(GSW-2416 only)

16 ports 3.3V mini-GBIC SFP, 1000Mbps full-

duplex; shared with port #9 to port 24

Switch

Processing

Scheme

Store-and-Forward

Throughput

(packet per

second)

GSW-1601: 23.8Mpps.

GSW-2401/GSW-2416: 35.7Mpps

Switch fabric GSW-1601: 32Gbps.

GSW-2401/GSW-2416: 48Gbps

Address Table 8K entries

Share data Buffer

GSW-1601: 340K bytes on-chip frame buffer

GSW-2401: 500K bytes on-chip frame buffer

GSW-2416: 400K bytes on-chip frame buffer

Jumbo packet

size 9K

Flow Control Back pressure for half duplex, IEEE 802.3x

Pause Frame for full duplex

Dimensions

(W x D x H)

GSW-1601/GSW-2401: 440 x 120 x 44 mm

(1U height)

GSW-2416: 440 x 200 x 44 mm (1U height)

Weight

GSW-1601: 1.54kg

GSW-2401: 1.64kg

GSW-2416: 2.6kg

Power

Requirement 100~240 VAC, 50-60 Hz

Power

Consumption /

Dissipation

GSW-1601/GSW-2401: 30 watts / 102BTU

GSW-2416: 130 watts / 443 BTU

Temperature Operating: 0~50 degree C

Storage -40~70 degree

Humidity

Operating:

5% to 90%, Storage: 5% to 90% (Non-

condensing)

Standards Conformance

Regulation

Compliance FCC Part 15 Class A, CE

Standards

Compliance

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3ab(Gigabit Ethernet)

IEEE 802.3z (Gigabit Ethernet)

IEEE 802.3x (Full-duplex ow control)
