Planet IGS-604HPT-M12 Manuel utilisateur
Industrial IP67-rated 4-Port 10/100/1000T
802.3at PoE + 2-Port 10/100/1000T
M12 Managed Ethernet Switch
(-40~75 degrees C)
IGS-604HPT-M12
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. Hardware Introduction ................................................................................ 4
2.1 Physical Dimensions............................................................................. 4
2.2 Switch Front Panel Layout .................................................................... 5
2.3 LED Indicators..................................................................................... 5
2.4 M12 10/100/1000T Connector Pin Assignment ....................................... 6
2.5 M12 (8-pin, Male) to RJ45 (8-pin) Straight-through UTP Cable Wiring...... 6
2.6 M12 DC Power Connector Pin Assignment ............................................... 8
2.7 M12 DC Power Cable Wiring .................................................................. 8
3. Connecting M12 Cable to the IGS-604HPT-M12 ............................................. 9
4. Switch Management...................................................................................11
4.1 Requirements.....................................................................................11
4.2 Starting Web Management ..................................................................11
4.3 Logging in the Industrial Managed Switch.............................................12
4.4 SavingCongurationviaWeb ..............................................................13
5. RecoveringBacktoDefaultConguration.....................................................15
6. Customer Support .....................................................................................16
3

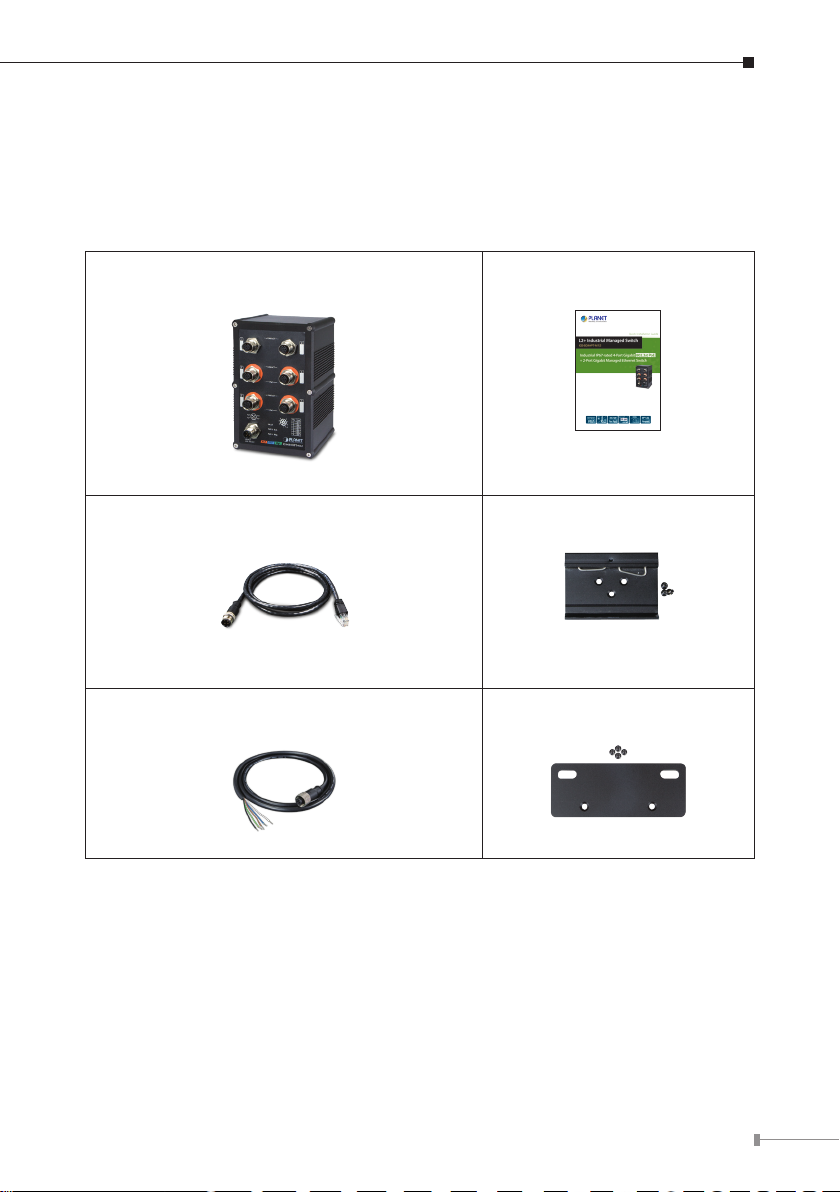

1. Package Contents
Thank you for purchasing PLANET Industrial M12 Managed Ethernet Switch.
“Industrial Managed Switch” is used as an alternative name in this Quick
Installation Guide. Open the box of the Industrial Managed Switch and carefully
unpack it. The box should contain the following items:
1 x The Industrial Managed Switch 1 x Quick Installation Guide
1 x 2m 8-pin A-code M12-to-RJ45 UTP Cable 1 x DIN Rail Kit
1 x 1.2m 5-pin A-code M12 Power Cable
1 x Wall-mount Kit
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Hardware Introduction
2.1 Physical Dimensions
5
2.2 Switch Front Panel Layout
Figure 2-1 shows the front panel of the Industrial Managed Switch.
LNK/ACT
LNK/ACT
PoE
LNK/ACT
PoE
FAULT
PWR
2
PWR
1
R.O.
Ring
V2
V2
V1
V1
INPUT
DC 48-56V
1
3
5
2
4
6
12
5
64
8
73
Pin Con
1DA+
2DA
5DC
8DD
3DB+
6DB
7DD+
4DC+
IGS-604HPT-M12
IP67PoE Mgt.
M12 Gigabit
Ethernet Port
M12 Power
Input Connector Power, Fault,
Ring LEDs
M12 Gigabit
Ethernet
PoE+ Port
Figure 2-2: IGS-604HPT-M12 Front Panel
2.3 LED Indicators
System
LED Color Function
PWR 1 Green Lights to indicate DC power input 1 has power.
PWR 2 Green Lights to indicate DC power input 2 has power.
Fault Red Lights to indicate that the Industrial Switch has failed
Ring Green Lights to indicate that the ERPS Ring has been created
successfully.
R.O. Green
Lights To indicate the Ring Owner has been enabled and the
state is in idle mode.
Blinks To indicate the Ring state is in protect mode.
Off To indicate that the Ring Owner hasn’t been enabled.
Per 10/100/1000BASE-T Port (Port 1~2)
LED Color Function
LNK/ACT Green
Lights To indicate the port is running in 10/10/1000Mbps
speed and successfully established.
Blinks To indicate the switch is actively sending or receiving
data over that port.
6
Per 10/100/1000BASE-T PoE+ Port (Port 3~6)
LED Color Function
LNK/ACT Green
Lights To indicate the port is running in 10/10/1000Mbps
speed and successfully established.
Blinks To indicate the switch is actively sending or
receiving data over that port.
PoE-in-Use Orange
Lights To indicate the port is providing 45~55 V DC
in-line power.
Off To indicate the connected device is not a PoE
powered device (PD).
2.4 M12 10/100/1000T Connector Pin Assignment
The Industrial Managed Switch front panel provides six 10/100/1000BASE-T
Ethernet ports in the form of M12 8-pin A-coded female connector. These ports are
designed for Ethernet equipment connection through Cat5/5e UTP cables. The M12
input interface pinout is shown below:
Pin Con
1DA+
2DA
5DC
8DD
3DB+
6DB
7DD+
4DC+
12
5
6
4
8
73
8-pin M12 Female 10/100/1000T Connector Pin Assignment
2.5 M12 (8-pin, Male) to RJ45 (8-pin) Straight-through UTP Cable
Wiring
7
M12 A-code
Male Connector
Pin No.
MDI
1000BASE-T Signal ID T568B Color RJ45 connector
Pin No.
1BI_DA+ white/orange 1
2BI_DA- orange 2
3BI_DB+ white/green 3
4BI_DC+ blue 4
5BI_DC- white/blue 5
6BI_DB- green 6
7BI_DD+ white/brown 7
8BI_DD- brown 8
Note
As each Ethernet port of the Industrial Managed Switch is running
in auto negotiation mode, make sure the Ethernet ports of the
corresponding Ethernet devices are also running in auto negotiation
mode, otherwise, the Ethernet performance will be poor.
Note
The standard RJ45 receptacle/connector
There are 8 wires on a standard UTP/STP cable and each wire is
color-coded. The following shows the pin allocation and colors of
straight-through cable connection:
Straight Cable
SIDE 1
SIDE 1
SIDE 2
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
SIDE 2
1 = White/Orange
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
7 = White/Brown
8 = Brown
1 = White/Orange
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
7 = White/Brown
8 = Brown
Please make sure your waterproof RJ45 cables are with same pin
assignment and colors as the above picture before deploying the
cables into your network.
8
2.6 M12 DC Power Connector Pin Assignment
The front panel of the Industrial Managed Switch provides one M12 A-coded 5-pin
male connector for dual DC power input.
V2
V2
V1
V1
INPUT
DC 48-56V
2.7 M12 DC Power Cable Wiring
Please use the power cable with the M12 A-coded 5-pin female connector from the
Industrial Managed Switch package for DC power input. The M12 DC power cable
pin assignment is shown below:
M12 DC power cable pin assignment & wire code
V1 positive (+) pin = black cable
V1 negative (-) pin = brown cable
V2 positive (+) pin = blue cable
V2 negative (-) pin = white cable
Note
1. Make sure you connect the correct power pin to your DC power
source.
2. The wire gauge for the power cable should be in the range of 12
~ 24 AWG.
3. The DC power input range is 48 ~ 56V DC.
9
3. Connecting M12 Cable to the IGS-604HPT-M12
Step 1: Turn counterclockwise to remove the waterproof screw nuts of an M12
connector and power input.
Step 2: Insert the M12 UTP male connector into the M12 female Gigabit Ethernet
port of the Industrial Managed Switch.
Step 3: Turn clockwise to tighten the screw nut of the M12 connector and make
sure the connection is tight.
10

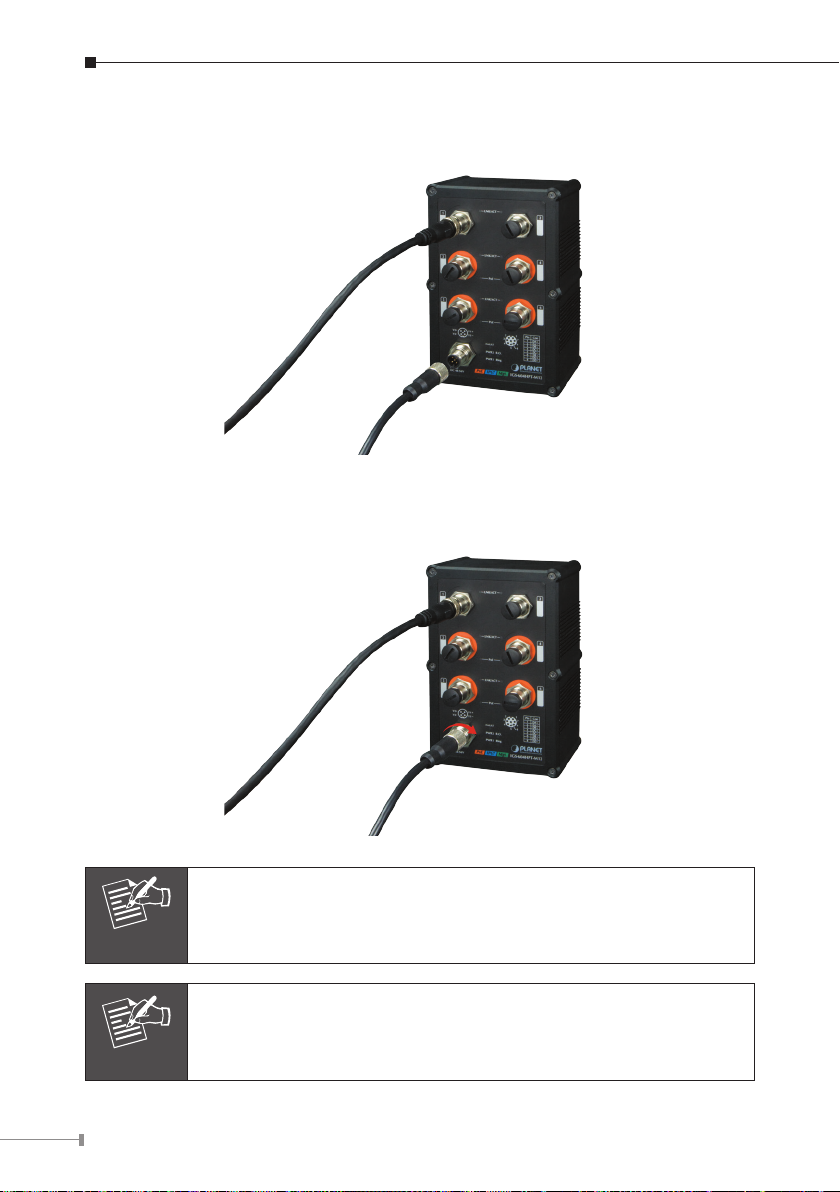

Step 4: Insert the M12 power female connector into the M12 male port of the
power input.
Step 5: Turn clockwise to tighten the screw nut of the M12 power connector.
Note
Before connecting the DC power cord, please check whether your
local DC power source is stable.
Note
Make sure to tightly close all interfaces to have waterproof effect.
