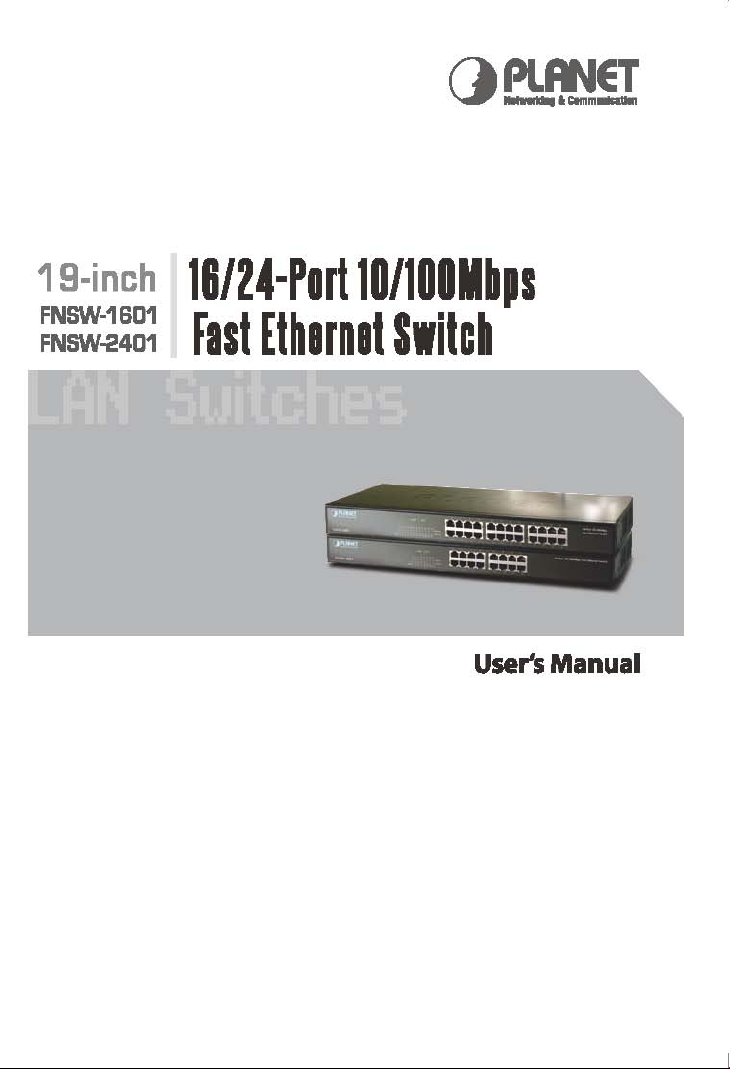

Planet FNSW-1601 Manuel utilisateur

16/24-Port 10/100Mbps

Fast Ethernet Switch

FNSW-1601/FNSW-2401

User’s Manual

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other

trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work

properly in all environments and applications, and makes no warranty

and representation, either implied or expressed, with respect to

the quality, performance, merchantability, or tness for a particular

purpose.

PLANET has made every effort to ensure that this User’s Manual is

accurate; PLANET disclaims liability for any inaccuracies or omissions

that may have occurred.

Information in this User’s Manual is subject to change without notice

and does not represent a commitment on the part of PLANET. PLANET

assumes no responsibility for any inaccuracies that may be contained in

this User’s Manual. PLANET makes no commitment to update or keep

current the information in this User’s Manual, and reserves the right

to make improvements to this User’s Manual and/or to the products

described in this User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect, misleading, or

incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with

the Instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to

take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human

health as a result of the presence of hazardous substances in

electrical and electronic equipment, end users of electrical

and electronic equipment should understand the meaning of

the crossed-out wheeled bin symbol. Do not dispose of WEEE as

unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET Fast Ethernet Switch User's Manual

For Models: FNSW-1601 / FNSW-2401

Revision: 2.0 (JANUARY 2008)

Part No: (2010-000020-003)

TABLE OF CONTENTS

1. INTRODUCTION ........................................................................ 5

1.1 Package Contents ............................................................... 5

1.2 How to Use This Manual ..................................................... 5

1.3 Product Features................................................................. 6

1.4 Product Specications ......................................................... 7

2. INSTALLATION .......................................................................... 8

2.1 Product Description ............................................................. 8

2.1.1 Product Overview ....................................................... 8

2.1.2 Switch Front Panel ..................................................... 9

2.1.3 LED Indicators ........................................................... 9

2.1.4 Switch Rear Panel .....................................................10

2.2 Installing the Switch ..........................................................10

2.2.1 Desktop Installation...................................................11

2.2.2 Rack Mounting ..........................................................12

3. SWITCH OPERATION.................................................................14

3.1 Address Table ....................................................................14

3.2 Learning ...........................................................................14

3.3 Forwarding & Filtering ........................................................14

3.4 Store-and-Forward .............................................................15

3.5 Auto-Negotiation................................................................15

4. TROUBLESHOOTING .................................................................16

APPENDIX A NETWORKING CONNECTION ........................................17

A.1 Switch‘s RJ-45 Pin Assignments ...........................................17

A.2 RJ-45 cable Pin Assignments ...............................................18

1. INTRODUCTION

1.1 Package Contents

Check the contents of your package for following parts:

 Fast Ethernet Switch x 1

 User's manual x 1

 Power cord x 1

 Rubber feet x 4

Two rack-mounting brackets with attachment screws x 1

If any of these are missing or damaged, please contact your dealer

immediately, if possible, retain the carton including the original packing

material, and use them against to repack the product in case there is a

need to return it to us for repair.

1.2 How to Use This Manual

This Fast Ethernet Switch User Manual is structured as follows:

Chapter 2 Installation

The chapter explains the feature, functionality and the physical

installation of the Fast Ethernet Switch.

Chapter 3 Switch operation

The chapter explains the Fast Ethernet Switch transmit operation.

Chapter 4 Troubleshooting

The chapter explains the troubleshooting of the Fast Ethernet Switch.

Appendix A

This chapter contains cable information of the Fast Ethernet Switch.

In the following section, the term “Fast Ethernet Switch” means the

FNSW-1601/FNSW-2401.

1.3 Product Features

● Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet

standard

● 16/24-Port 10/100Mbps Fast Ethernet ports

● Wire-speed “Store-and-Forward” ltering/forwarding eliminates

bad data packets with minimal delay

● 10/100Base-TX ports automatically sense and set optimal line speed

from 10/20, 100/200Mbps, All 100Base-TX port support Auto-Negoti-

ation function

● Shared buffer memory and up to 4K/8K entry MAC source address

table make for fast handling of data packets

● Flow control to eliminate packets loss

● Internal, full-range power supply suitable for worldwide use

● Auto MDI/MDIX on each port for easy switch/hub cascading

● FCC, CE class A compliant

1.4 Product Specications

Model FNSW-1601 FNSW-2401

Hardware Specication

Network Ports

16 10/100Base-TX

RJ-45 MDI/MDI-X

ports

24 10/100Base-TX

RJ-45 MDI/MDI-X

ports

Dimensions (W x D x H) 440 x 120 x 44 mm

Weight (KG) 1.4 KG 1.45 KG

Power Requirement 100-240 VAC, 50/60 Hz

Switch Specication

Switch Architecture Store-and-Forward

Address Table 4K entries, auto

learning/ageing

8K entries, auto

learning/ageing

Shared Data Buffer 1.625Mbits 1.25Mbits

Flow Control IEEE 802.3x full duplex operating and ow

control

Packet Control Runt & CRC ltering, Broadcast storm

control

Switch Fabric 3.2Gbps 4.8Gbps

Switch Throughput 2.38Mpps 3.57Mpps

Standard Conformance

Network Standards

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3x (Flow control)

Temperature Operating: 0~50 Degree C

Storage: -40~70 Degree C

Humidity operating 5% to 90% (Storage)

5% to 90% (Non-condensing)

Regulation Compliance FCC Class A, CE

2. INSTALLATION

This section describes the functionalities of the Fast Ethernet

Switch’s components and guides how to install it on the desktop.

Basic knowledge of networking is assumed. Please read this chapter

completely before continuing.

2.1 Product Description

The PLANET Fast Ethernet Switch is 10/100Mbps Fast Ethernet

Switch with 16/24 ports respectively, and non-blocking wire-speed

performance. With a 3.2/4.8Gbps internal switching fabric, the Fast

Ethernet Switch can handle extremely large amounts of data in a

secure topology linking to a backbone or high capacity servers.

The Fast Ethernet Switch has 4K/8K MAC Address table and provides

1.625 /1.25Mbits buffer memory. The Fast Ethernet Switch offers wire-

speed packets transfer performance without risk of packet loss.

All RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation

for optimal speed detection through RJ-45 Category 5 or 5e cables.

Support standard for Auto-MDI/MDI-X that can detect the type of

connection to any Ethernet device without requiring special straight or

crossover cables.

The Flow Control function allows your Fast Ethernet Switch supported

routers and Servers to directly connect to this Switch for fast, reliable

data transfer.

2.1.1 Product Overview

The PLANET Fast Ethernet Switch with 16/24 RJ-45 10/100Mbps ports

for high-speed network connectivity. The Fast Ethernet Switch can also

automatically identify and determine the correct transmission speed and

half/full duplex mode of the attached devices with its 16/24 ports.

The Fast Ethernet Switch also supports Store-and-Forward forwarding

scheme to ensure low latency and high data integrity, eliminates

unnecessary trafc and relieves congestion on critical network paths.

With an intelligent address recognition algorithm, the Fast Ethernet

Switch could recognize up to 4K/8K different MAC address and enables

ltering and forwarding at full wire speed.

2.1.2 Switch Front Panel

Figure 2-1 & 2-2 shows a front panel of Fast Ethernet Switch.

Figure 2-1 FNSW-1601 front panel

Figure 2-2 FNSW-2401 front panel

2.1.3 LED Indicators

FNSW-1601/FNSW-2401

System

LED Color Function

PWR Green Lights to indicate that the Switch is powered on.

Per 10/100Mbps port

LED Color Function

LNK/ACT Green

Lights: to indicate the link through that port

is successfully established.

Blink: to indicate that the Switch is actively

sending or receiving data over that

port.
