Planet FNSW-1600S Manuel utilisateur

NOVASwitch

FNSW-1600S

FNSW-2400S

10/100Base-TX

Fast Ethernet Smart Switch

PLANET NOVASwitch series

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET

Technology Corp. All other trademarks belong to their

respective owners.

FCC Warning

This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference when the equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the

Instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference

in which case the user will be required to correct the

interference at his own expense.

Revision

PLANET NOVASwitch User's Manual

FOR MODELS:

FNSW-2400S

FNSW-1600S

Part No.: EM_FNSWSV1

Before Starting

In this User's Manual, "Switch" is used for FNSW-

1600S/2400S, “NovaSwitch”for PLANET’s 19”-range

Ethernet Switch, where “switch”represent the third part

switch. The term “port 16/24”or “port 12/20”represent port

16 or 12 of FNSW-1600S and port 24 or 20 of FNSW-2400S.

FNSW-16/2400S User's Manual

TABLE OF CONTENTS

1. UNPACKING INFORMATION...........................................5

2. PRODUCT INTRODUCTION .............................................7

2.1 KEY FEATURES....................................................................7

2.2 FRONT PANEL......................................................................8

2.2.1 Ports Speed..................................................................8

2.2.2 Cabling ......................................................................8

2.2.3 MDI Switch..................................................................9

2.2.4 Status LEDs.................................................................9

2.3 THE REAR PANEL...............................................................10

2.3.1 Extension Slot............................................................10

2.3.2 Power Connector.......................................................10

2.3.3 Fan ....................................................................10

2.3.4 RS-232 Console .........................................................11

3. INSTALLATION ................................................................13

3.1 RACK-MOUNT INSTALLATION ............................................13

3.2 DESKTOP INSTALLATION....................................................13

3.3 POWER NOTES:..................................................................14

4. CONSOLE CONFIGURATION.........................................15

4.1 CONNECT TO PC...........................................................15

4.2 TRUNK/ VLAN SETTING....................................................16

4.2.1 Trunking Group Setting .............................................16

4.2.2 VLAN Group Setting..................................................17

4.3 PORT STATUS ....................................................................19

4.4 PORT SETTING...................................................................19

4.5 FACTORY SETTING.............................................................20

4.6 REDUNDANT LINK SETTING................................................21

4.7 SAVE SETTING...................................................................21

5. OPTIMIZING CONFIGURATION...................................23

5.1 PRIOR TO INSTALLATION....................................................23

PLANET NOVASwitch series

5.2 HALF- AND FULL-DUPLEX..................................................23

5.3 FAST ETHERNET ................................................................24

5.4 AUTO-NEGOTIATION..........................................................25

5.5 MAC ADDRESS TABLE ......................................................25

5.6 SAMPLE APPLICATION........................................................26

6. TROUBLESHOOTING......................................................27

7. PRODUCT SPECIFICATIONS..........................................29

8. RJ-45 PIN ASSIGNMENT..................................................30

8.1 STRAIGHT-THROUGH/CROSSOVER CABLE...........................30

FNSW-16/2400S User's Guide 5

1.UNPACKING INFORMATION

Thank you for purchasing a PLANET NOVASwitch series

Ethernet Switches. Before continuing, please check the

contents of the product package. This product package should

contain the following items:

•One NOVASwitch Ethernet Switch

•One Power Cord

•Two Rack-Mounting Brackets with Attachment Screws

•This User’s Guide

•RS-232 Console Cable

Please inform your local dealer/supplier immediately if any item

is found to be defective, damaged or missing. Retain the

original packaging (carton), including the packing materials,

and use them to re-pack the product in the unlikely event there

is a need to return it to us for repair.

PLANET NOVASwitch series

This page intentionally left blank!

FNSW-16/2400S User’s Guide 7

2.PRODUCT INTRODUCTION

NOVASwitch Ethernet Switches are multi-speed, versatile

network devices combining both standard and "Big-Pipe" ports

under the same hood.

2.1 Key Features

•Compliant with IEEE802.3 and 802.3u standards for

10Base-T / 100Base-TX/FX.

•16-port/24-port Fast Ethernet Switch, pure 10/100Base-

•Wire-speed "Store-and-Forward" filtering/forwarding

eliminates bad data packets with minimal delay

•100Base-TX ports automatically sense and set optimal

line speed from 10/20, 100/200Mbps, All 100Base-TX port

support MII Auto-Negotiation function

•Optional Fiber-optic module for 100Base-FX, shared with

port16/24. DIP switch for Half/Full-Duplex selection

•Shared buffer memory and up to 2K-entry MAC source

address table make for fast handling of data packets

•Flow control to eliminate packets loss

•Internal, full-range power supply suitable for worldwide

use

•Console port for switch basic management

•Either VLAN or Turnk port support managed via console

•Up to four port-based VLAN support

•Up to four trunk support for up to 800Mbps bandwidth

•One Redundant link support

PLANET NOVASwitch series

2.2 Front Panel

FNSW-1600S

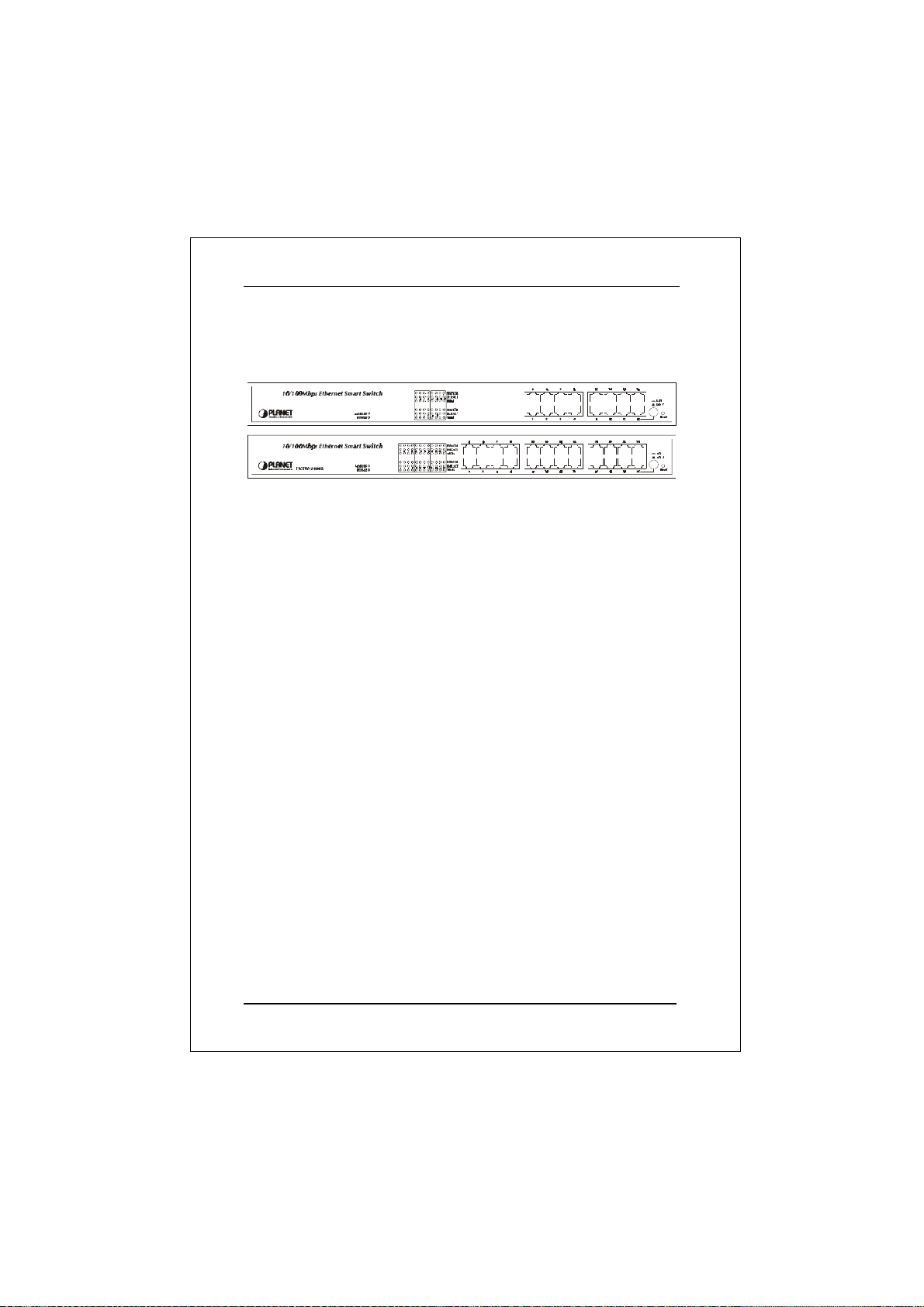

Figure 1: Front View of the FNSW-16/2400S

2.2.1 Ports Speed

100Base-TX

All 100Base-TX ports come with auto-negotiation capability.

They automatically support 100Base-TX and 10Base-T

networks. Users only need to plug a working network device

into one of the 100Base-TX ports, then turn on the hub. The

port will automatically runs in 10Mbps, 20Mbps, 100Mbps or

200Mbps after the negotiation with the connected device.

Port speed adjustment is also available through console port.

100Base-FX

The port 16/24 can be a 100Base-FX fiber-optic port as the

extension module installed (rear) At the mean time, the RJ-

45 port of #16/24 will being disabled. The Half-/Full-Duplex is

selectable by the DIP-switch on the module. Please refer to

the installation guide of the extension module for more.

2.2.2 Cabling

NOVASwitch 100Base-TX ports use RJ-45 sockets -- similar to

phone jacks -- for connection of unshielded twisted-pair cable

(UTP). The IEEE 802.3u Fast Ethernet standard requires

Category 5 UTP for 100Mbps 100Base-TX. 10Base-T networks

can use Cat.3, 4, or 5 UTP (see table A below)

FNSW-16/2400S User’s Guide 9

23 24

19 20 Reset

Port Type Cable Type Connector

10Base-T Cat 3, 4, 5 RJ-45

100Base-TX Cat.5 UTP only RJ-45

100Base-FX* 62.5/125µm multi-mode fiber ST / SC

Table A: Supported port list

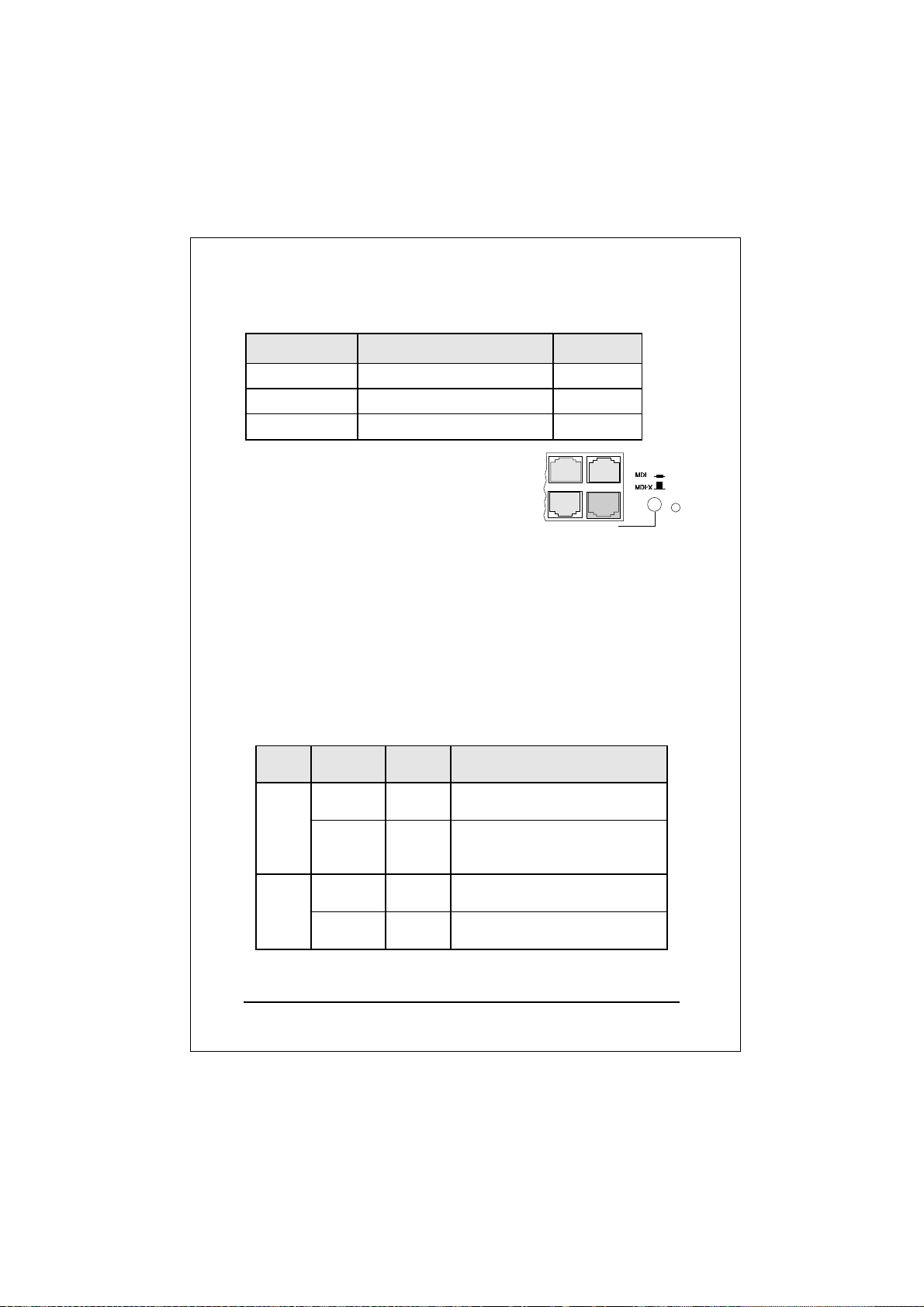

2.2.3 MDI Switch

Each numbered port of the Switch are MDI-X port, you can

direct use straight cable for the connection to your end nodes.

However, port 12/20 is with one push button. To push the button

to convert the port to MDI-II port for direct hub cascade. Please

also refer to Section “RJ-45 Pin Assignment”for more.

2.2.4 Status LEDs

One green LED to show power On/Off is on the front panel, and one

“Module Installed”LED indicator to indicate the rear open slot is

installed with a fiber-optic module. Also, each port has three status

LED indicators, as shown below.

LABEL STATUS /

COLOR MEANING DESCRIPTION

Steady

Amber FDX Lit to indicate Full-Duplex mode

detected on that port

UPPER

ROW Blink

Amber COL Blinks if a collision is detected

when the port is in Half-Duplex

mode.

Steady

Green Link Lit to indicate that a valid physical

UTP/STP connection is detected

MIDDLE

ROW Blink

Green Activity Blink to indicate the port is

receiving data packets

PLANET NOVASwitch series

Steady

Green 100M Lit to indicate that a valid physical

UTP/STP connection exists on

that port runs in 100Mbps

LOWER

ROW

OFF 10M Remains off and Link ON to

indicate the port runs in 10Mbps

Table B: FNSW-2400S Port-LED Functions

2.3 The Rear Panel

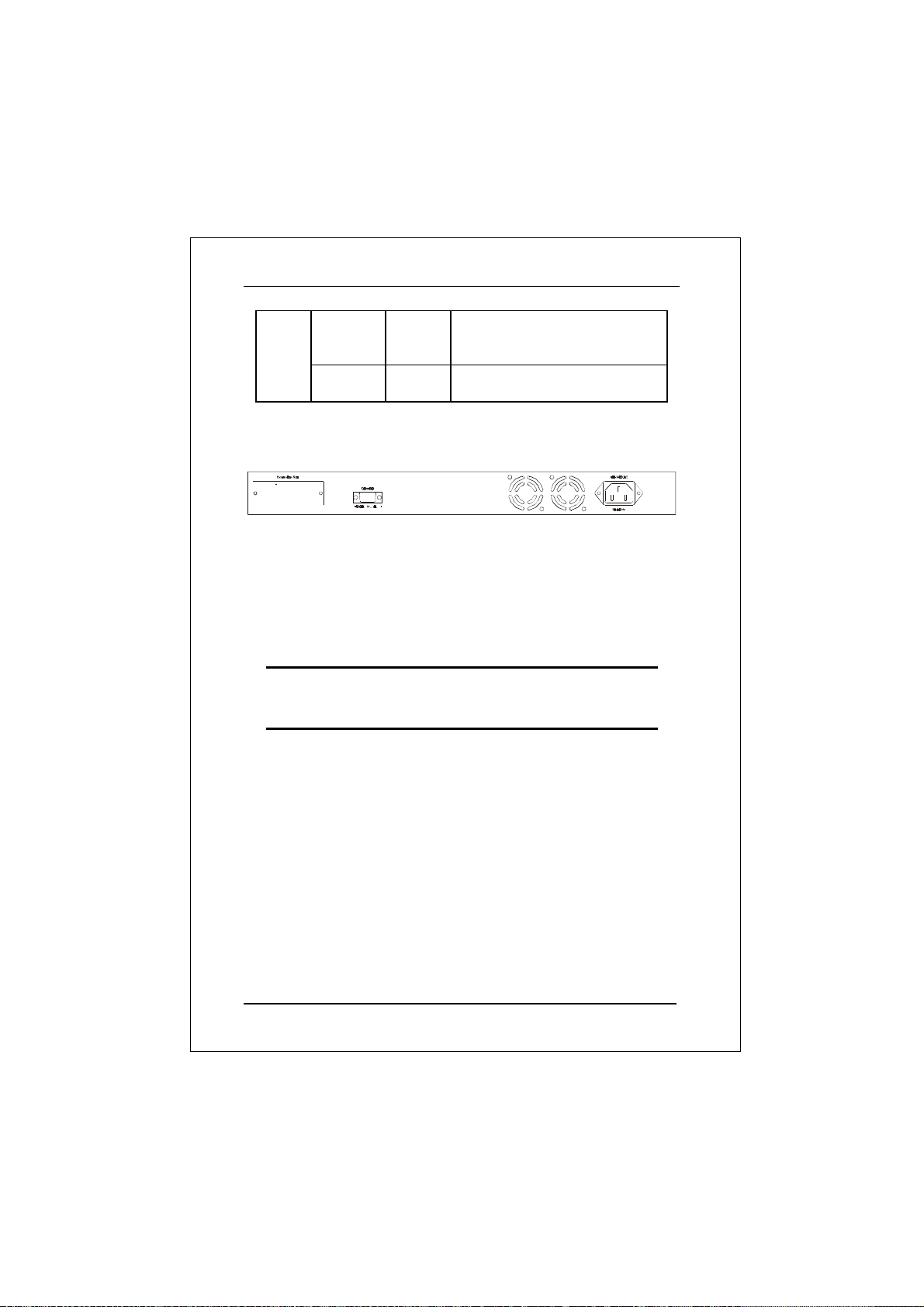

Figure 2: Rear View of the Switch

2.3.1 Extension Slot

The Switch port 16/24 can be a 100Base-FX switching port as the

extension module installed. As the module installed, the port 16/24

on the front panel will be disabled.

Please refer to the Installation Guide of the module for the detailed

installation and settings.

NOTE: While powering on, The Switch detects the DIP-

switch status of the module, then shown on the

front panel LED indicators

2.3.2 Power Connector

The Power Connector is designed to use with the power cord

included in the product package. Attach the female end of the

cord to the power connector and the male end of the cord to a

grounded power outlet. The accepted power range is from

100VAC to 240VAC, 50/60Hz.

2.3.3 Fan

All computing and communications devices work best when not

overheated. Please keep the fan area clear so that the cooling

function is not impaired.
