Pilz PSSu E F 2DI 60-R Manuel utilisateur

PSSu E F 2DI 60-R

Operating Manual-1002506-EN-04

}Decentralised system PSSuniversal I/O

Preface

This document is a translation of the original document.

All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made

for internal purposes. Suggestions and comments for improving this documentation will be

gratefully received.

Source code from third-party manufacturers or open source software has been used for

some components. The relevant licence information is available on the Internet on the Pilz

homepage.

Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,

SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks

of Pilz GmbH & Co. KG in some countries.

SD means Secure Digital

Contents

Operating Manual PSSu E F 2DI 60-R

1002506-EN-04 3

Section 1 Introduction 5

1.1 Validity of documentation 5

1.1.1 Retaining the documentation 5

1.1.2 Terminology: System environment A and B 5

1.2 Definition of symbols 6

Section 2 Overview 7

2.1 Module structure 7

2.2 Module features 7

2.3 Front view 8

Section 3 Safety 10

3.1 Intended use 10

3.2 Safety regulations 10

3.2.1 Use of qualified personnel 10

3.2.2 Warranty and liability 11

3.2.3 Disposal 11

Section 4 Function description 12

4.1 Block diagram 12

4.2 Module features 12

4.2.1 Functions 12

4.2.2 Integrated protection mechanisms 12

4.2.3 Reaction times 13

4.3 Configuration 13

4.3.1 PSSu assignment in system environment B 13

Section 5 Installation 14

5.1 General installation guidelines 14

5.1.1 Dimensions 14

5.2 Installing the base module 15

5.3 Inserting and removing an electronic module 16

5.3.1 Inserting an electronic module 17

5.3.2 Removing an electronic module 18

5.3.3 Changing an electronic module during operation 18

Section 6 Wiring 19

6.1 General wiring guidelines 19

6.1.1 Mechanical connection of the base modules 19

6.2 Terminal configuration 21

6.3 Connecting the module 22

Section 7 Operation 24

7.1 Messages 24

7.2 Display elements 24

7.2.1 Display elements for module diagnostics 24

7.2.2 Display elements for input status 25

Contents

Operating Manual PSSu E F 2DI 60-R

1002506-EN-04 4

Section 8 Technical details 26

8.1 Safety characteristic data 28

Section 9 Order reference 29

9.1 Product 29

9.2 Accessories 29

Introduction

Operating Manual PSSu E F 2DI 60-R

1002506-EN-04 5

1 Introduction

1.1 Validity of documentation

This documentation is valid for the product type PSSu E F 2DI 60-R. It is valid until new

documentation is published.

This operating manual explains the function and operation, describes the installation and

provides guidelines on how to connect the product.

1.1.1 Retaining the documentation

This documentation is intended for instruction and should be retained for future reference.

1.1.2 Terminology: System environment A and B

The PSSu system can be used in two different system environments. The module's applic-

ation area is described in the chapter "Intended Use" of the manual.

The distinction is made between

}PSSu in system environment A

}PSSu in system environment B

The distinction is based on the application area of the PSSu system.

PSSu in system environment A may be used in the

}Decentralised system PSSu I/O

}Not in the automation system PSS 4000

PSSu in system environment B may be used in the

}Automation system PSS 4000, e.g. with

– Decentralised system PSSu I/O with SafetyNET p

– Control system PSSu PLC

– Control system PSSu multi

The module PSSu E F 2DI 60-R is exclusively for use in system environment B (automation

system PSS 4000).

Introduction

Operating Manual PSSu E F 2DI 60-R

1002506-EN-04 6

1.2 Definition of symbols

Information that is particularly important is identified as follows:

DANGER!

This warning must be heeded! It warns of a hazardous situation that poses

an immediate threat of serious injury and death and indicates preventive

measures that can be taken.

WARNING!

This warning must be heeded! It warns of a hazardous situation that could

lead to serious injury and death and indicates preventive measures that can

be taken.

CAUTION!

This refers to a hazard that can lead to a less serious or minor injury plus

material damage, and also provides information on preventive measures

that can be taken.

NOTICE

This describes a situation in which the product or devices could be dam-

aged and also provides information on preventive measures that can be

taken. It also highlights areas within the text that are of particular import-

ance.

INFORMATION

This gives advice on applications and provides information on special fea-

tures.

Overview

Operating Manual PSSu E F 2DI 60-R

1002506-EN-04 7

2 Overview

2.1 Module structure

A module consists of

}Electronic module and

}Base module with

– Screw terminals or

– Cage clamp terminals

The base modules are the carrier units for the electronic modules and are used to connect

the field wiring. The electronic modules are inserted on to the base modules and determine

the module's function.

Details of the base modules that can be used are available in the chapter entitled “Intended

Use”.

2.2 Module features

The product has the following features:

}2 galvanically isolated digital inputs

}LEDs for:

– Switch status of each input

– Module error

}For failsafe applications in system environment B (automation system PSS 4000)

Overview

Operating Manual PSSu E F 2DI 60-R

1002506-EN-04 8

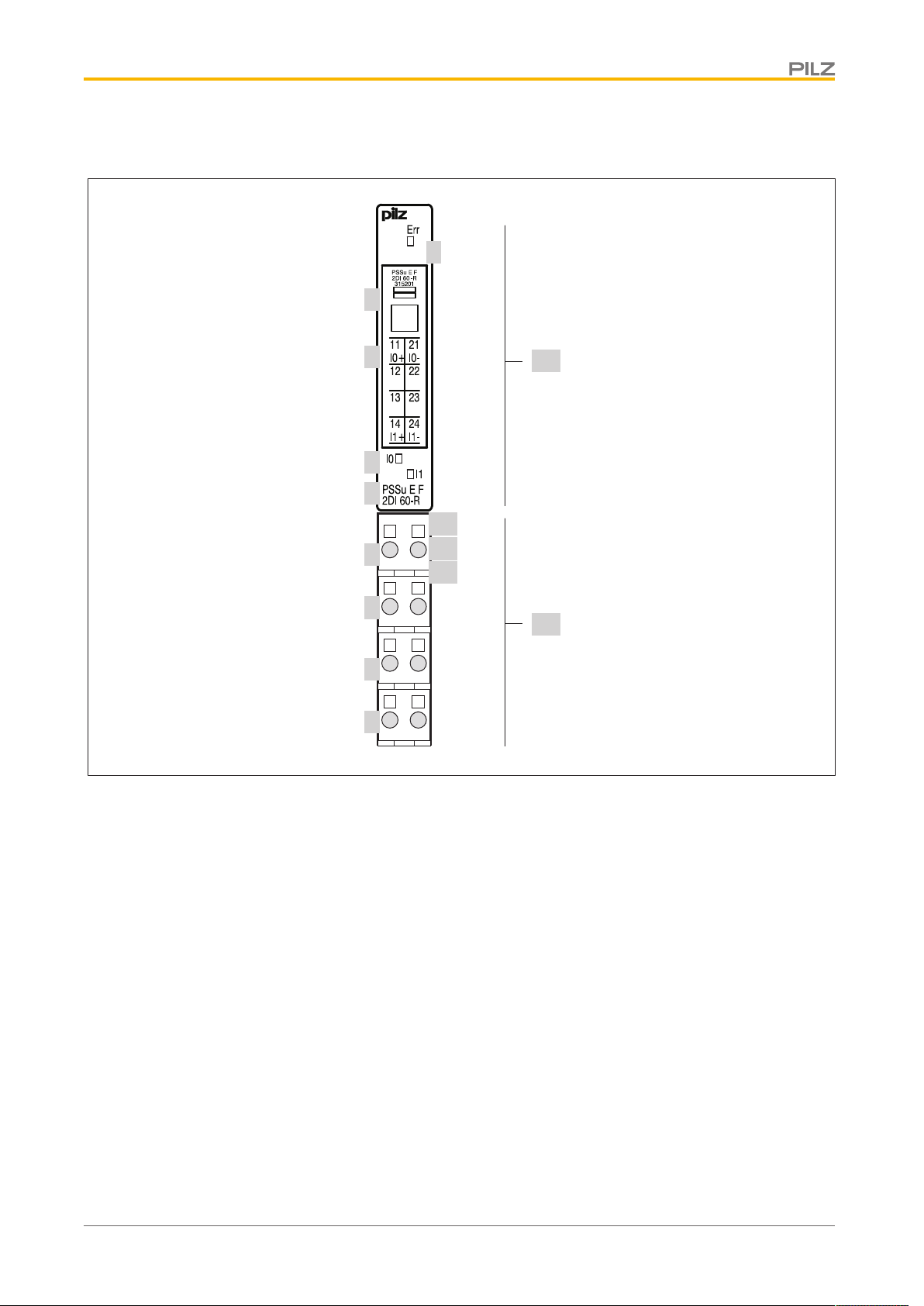

2.3 Front view

2111

2212

2313

2414

Legend:

}A: Electronic module

}B: Base module

}1: LED for module diagnostics

}2: Labelling strip with:

– Name of electronic module

– Order Number

– Serial number

– Hardware version number

– 2D code

}3: Labelling strip for the terminal configuration on the base module

}4: Status LEDs

}5: Name of electronic module

}6: Connection level 1

}7: Connection level 2

Overview

Operating Manual PSSu E F 2DI 60-R

1002506-EN-04 9

}8: Connection level 3

}9: Connection level 4

}10: Square mounting holes (connection levels 1, 2, 3 and 4)

– With screw to loosen/tighten the screw terminal on base modules with screw termin-

als

– With mechanism to operate the cage clamp on base modules with cage clamp ter-

minals

}11: Round connection holes (connection levels 1, 2, 3 and 4) for connecting the signal

lines

}12: Mounting slot for colour marker to label the connection level (connection levels 1, 2,

3 and 4)

Safety

Operating Manual PSSu E F 2DI 60-R

1002506-EN-04 10

3 Safety

3.1 Intended use

The module may be used for failsafe applications in system environment B (automation

system PSS 4000).

The module meets the requirements of ENIEC61508 up to SIL 3.

The failsafe inputs are not classified in accordance with the standard IEC61131-2.

The module PSSu E F 2DI 60-R-R is suitable for use where there are increased environ-

mental requirements demanded by railway applications (see Technical details).

Intended use includes making the electrical installation EMC-compliant. Please refer to the

guidelines stated in the "PSSuniversal Installation Manual". The module is designed for use

in an industrial environment. It is not suitable for use in a domestic environment, as this can

lead to interference.

The following is deemed improper use in particular:

}Any component, technical or electrical modification to the module

}Use of the module outside the areas described in this manual

}Any use of the module that is not in accordance with the technical details.

INFORMATION

The module is supported by PAS4000 from version 1.5.0. We recommend

that you always use the latest version (download from www.pilz.com).

The PSSu E F 2DI 60-R module may be used in conjunction with the following base mod-

ules:

}PSSu BP 1/8 S-T

}PSSu BP 1/8 C-T

}PSSu BP 1/12 S-T

}PSSu BP 1/12 C-T

}PSSu BP-C1 1/12 S-T

}PSSu BP-C1 1/12 C-T

3.2 Safety regulations

3.2.1 Use of qualified personnel

The products may only be assembled, installed, programmed, commissioned, operated,

maintained and decommissioned by competent persons.

A competent person is a qualified and knowledgeable person who, because of their train-

ing, experience and current professional activity, has the specialist knowledge required. To

be able to inspect, assess and operate devices, systems and machines, the person has to

be informed of the state of the art and the applicable national, European and international

laws, directives and standards.
