Philips Sonicare HealthyWhite HX6711 Manuel utilisateur

Sonicare toothbrush

HX6711, HealthyWhite

HX6730,HX6731,HX6732,

HealthyWhite

HX6733, HX6750, HealthyWhite

w/Sanitizer

HX6780,HX6781,HX6782,

HealthyWhite ProDispense

Published by Philips Consumer Lifestyle Printed in the Netherlands ©Copyright Reserved Subject to modification

4235-057-54621 _ 13-08-02

(YY_MM_DD)

SERVICE POLICY

Product will be serviced for 3 years after End of Life.

PRODUCT INFORMATION

Easy-start

The Easy-start feature will gently increase power over the first 14 brushings.

The Easy-start feature is active if you hear 2 beeps immediately after turning on your toothbrush.

Once you reach the optimal brushing power, after the 14th brushing, you will no longer hear the double beep at the beginning of the brushing

routine.

Easy-start can also be switched off. To deactivate or reactivate the Easy-start feature, see directions for use.

Smartimer

Automatically sets the brushing time to 2 minutes.

After these 2 minutes the product switches off automatically.

If you wish to pause, or stop brushing during the 2- minute cycle, press the on/off button. When you press the on/off button again, the

Smartimer will pick up where you left off.

Programmable brushing modes

The programmable brushing allow you to customize the brushing action. There are three different brushing modes.

Clean mode is the standard mode for superior teeth cleaning.

Sensitive mode provides gentle, yet thorough cleaning for sensitive gums and teeth.

Clean and White mode 2 minutes of Clean mode with an additional 30 seconds of White mode to focus on your visible front teeth. The White

mode begins with a change in brushing sound and motion which is the signal to start brushing the upper front teeth. After 15 seconds a beep

and pause will alert the user to move to the bottom front teeth for the final 15 seconds.

Quadpacer

The Quadpacer feature ensures that you brush all four sections of your mouth evenly and thoroughly. You will hear a short beep and notice a

brief pause in brushing action. This is the signal to move to the next section of your mouth. To deactivate and to reactivate the Quadpacer

feature, see directions for use.

Philips Domestic Appliance and Personal Care

Service Manual

HX6711/02, HX6730/02, HX6731/02,

HX6732/02, HX6733/70, HX6750

Handle, HX6780/02, HX6781/02,

HX6782/02

4235-057-54621_13-08-02 (YY_MM_DD)

2-8

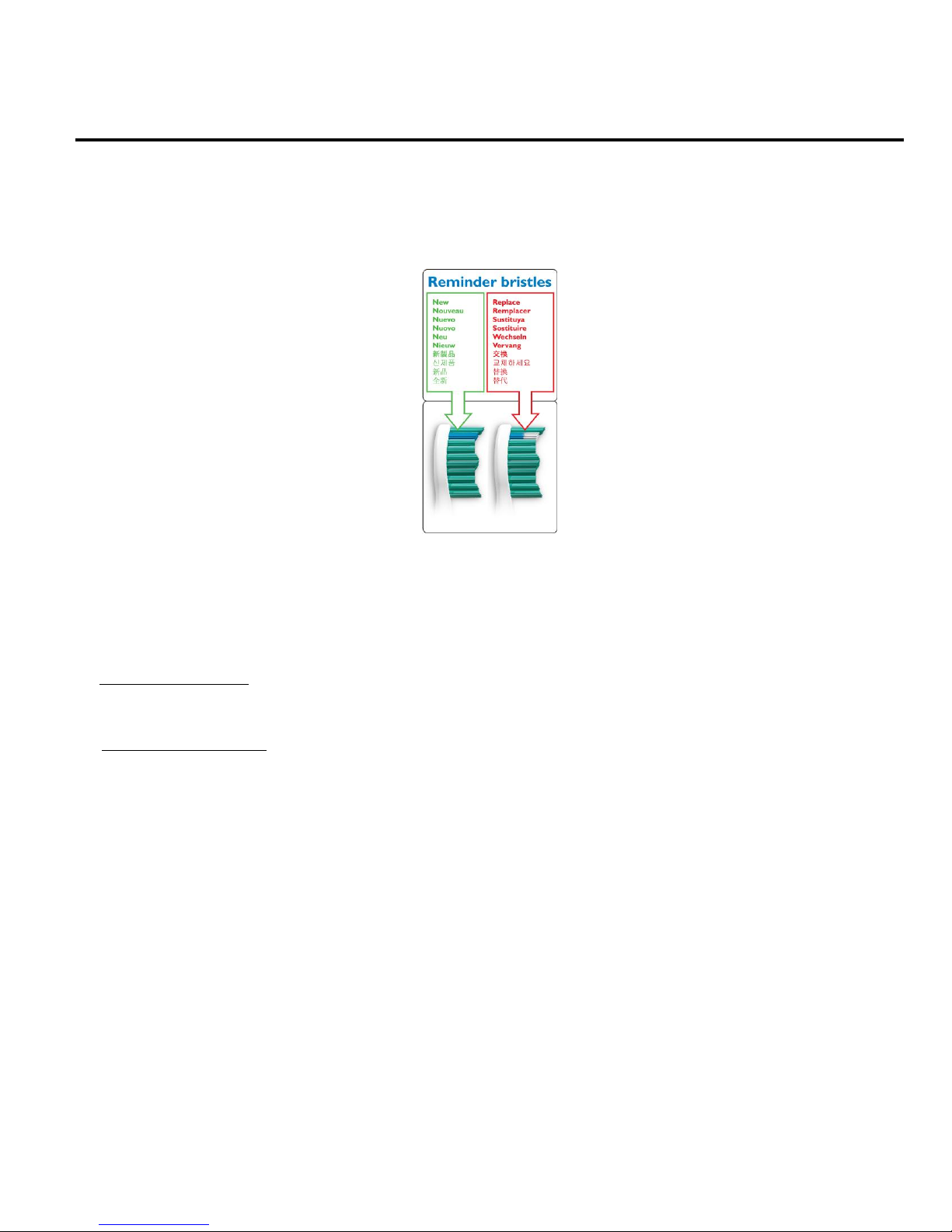

Reminder bristles

Reminder bristles are introduced to remind the consumer to replace their BHs at the recommended replacement time.

The color of the reminder bristles wears out as you use the brush head and starts fading from the tip downward. When the reminder bristles

have faded half way it is time to replace the brush head.

CHARGING YOUR SONICARE

Charging Your Sonicare

Note: It takes at least 24 hours to fully charge the battery.

Plug the charger into a live electrical outlet and place the handle on the charger. The battery indicator light located in the power on/off button

flashes to indicate that the toothbrush is charging. When the Sonicare is fully charge, the battery charge indicator light will stop flashing

Battery charger indicator

Indicates amount of charge left in battery.

Deluxe charge indicator

Solid green LED: 50-100%

Flashing green LED: 10-49%

Flashing yellow LED: less than 10%

Standard charger indicator

Solid green LED: 50-100%

Flashing green LED: less than 50%

If the battery charge of your Sonicare is low, you will hear 3 beeps at the end of the brushing cycle and the charge indicator LED flashes

yellow for 30 seconds.

When the handle is placed in the charger, the charge indicator LEDs will display the above patterns indicating the level of charge.

SAFETY INFORMATION

-Consult your physician prior to using Sonicare if you have

medical concerns.

-Sonicare has been tested and is compliant with safety standards

for electromagnetic devices.

-Do not place or store the charger where it can fall or be pulled

into a bathtub, sink or toilet.

-DO NOT plug the charger into an outlet with incorrect voltage.

This product is designed to operate within a range of 100 to 240 volts. Voltage converters and plug adapters DO NOT guarantee voltage

compatibility. Never force the plug into an outlet.

-This appliance

TECHNICAL INFORMATION

Toothbrush Handle

HX6711/02, HX6730/02, HX6731/02,

HX6732/02, HX6733/70, HX6750

Handle, HX6780/02, HX6781/02,

HX6782/02

4235-057-54621_13-08-02 (YY_MM_DD)

3-8

- Voltage : 4.05 Volts d.c. at full charge

-Power consumption : 2 watts

- Charging time : Empty-to-full: 24 hours

- Operating time : Full-to-empty: 40 minutes

- Battery type : Lithium Ion

Travel Charger

- Voltage / Frequency : 100-240V, 50 - 60 Hz

- Power consumption : 0.4 watts @ 100V / 1.4 watts @ 240V

REPAIR INSTRUCTION

-Brush head

In case of a defective brush head, the complete brush head must be replaced.

-Charging unit

In case of a defective charging unit or cordset, the complete charging unit must be replaced.

-Handle toothbrush

The batteries inside cannot be replaced. In case of a defect, the complete unit must be replaced.

-Charging the handle

The handle should be charged for at least 24 hours during the first few days of use.

Environment

- The rechargeable battery inside your Sonicare cannot be replaced, but is easy to remove for recycling or proper disposal.

-If you have any recycling questions, contact your local waster management office.

Removing the rechargeable battery

1. To deplete the rechargeable battery of any charge,

remove the handle from the charger, turn on the Sonicare

and let it run until it stops. Repeat this step until you can

no longer switch on the Sonicare.

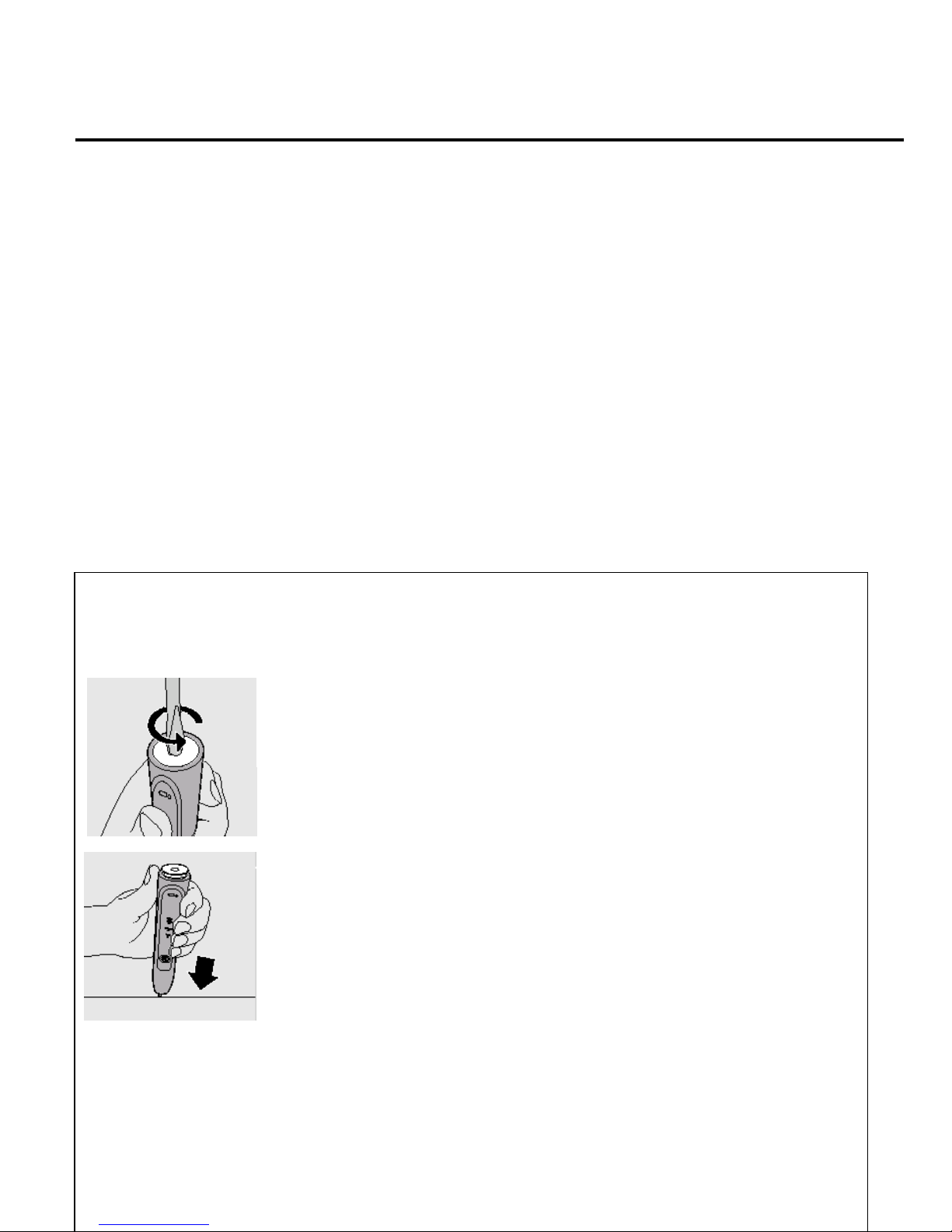

3. Hold the handle upside down

and push down on the shaft

to release the internal

components of the handle.

2. Insert a screwdriver into the

slot located at the bottom of

the handle and turn

counterclockwise to release

the bottom cap.

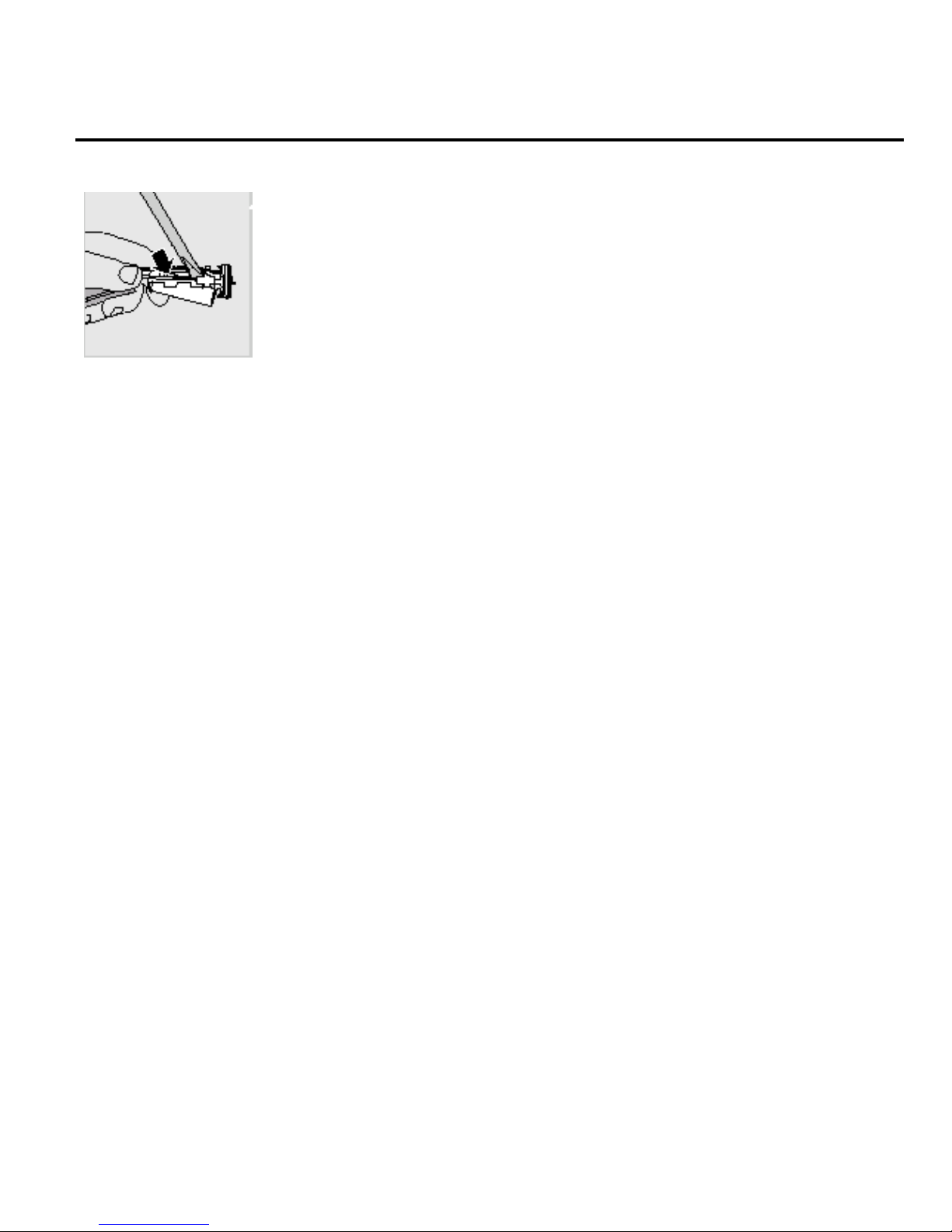

4. Insert the screwdriver under

the circuit board, next to the

battery connections, and

twist to break the

connections. Remove the

circuit board and pry the

battery from the plastic

carrier.

HX6711/02, HX6730/02, HX6731/02,

HX6732/02, HX6733/70, HX6750

Handle, HX6780/02, HX6781/02,

HX6782/02

4235-057-54621_13-08-02 (YY_MM_DD)

4-8

5. The rechargeable battery can now be recycled and the rest of the product discarded appropriately

PARTS LIST AND EXPLODED VIEW

HX6711/02, HX6730/02, HX6731/02,

HX6732/02, HX6733/70, HX6750

Handle, HX6780/02, HX6781/02,

HX6782/02

4235-057-54621_13-08-02 (YY_MM_DD)

5-8

SERVICE MANUAL - ATLAS / HEALTHY WHITE

HealthyWhite (HX6711, HX6730, HX6731, HX6732, HX6733,HX6750,HX6780,HX6781,HX6782)

Pos Service Code Description Comments

14235 010 18931 TRAVEL CHARGER - US, CANADA

4235 010 18941 TRAVEL CHARGER - EURO, UAE, SOUTH AFRICA

4235 010 18951 TRAVEL CHARGER – UK

4235 090 02571

TRAVEL CHARGER – HONG KONG, UK, SINGAPORE,

PHILIPPINES, MALAYSIA

4235 090 02541 TRAVEL CHARGER - JAPAN KOIZUMI

4235 090 02591 TRAVEL CHARGER - JAPAN YOSHIDA

4235 090 02551 TRAVEL CHARGER - KOREA

4235 090 02561 TRAVEL CHARGER - TAIWAN

4235 090 02531 TRAVEL CHARGER - CHINA

4235 090 02581 TRAVEL CHARGER - AUSTRALIA

4235 090 00971 TRAVEL CHARGER - RUSSIA

24235 010 07483 CHARGER AND BRUSHHEAD HOLDER - US, CANADA

Available as a Service part. Warranty

claims should be routed to Call Centers.

4235 010 07823

CHARGER AND BRUSHHEAD HOLDER - EURO, UAE, SOUTH

AFRICA,

4235 010 07843 CHARGER AND BRUSHHEAD HOLDER - UK

4235 090 02361

CHARGER AND BRUSHHEAD HOLDER - HONG KONG, UK,

SINGAPORE, PHILIPPINES, MALAYSIA

4235 090 02331 CHARGER AND BRUSHHEAD HOLDER - JAPAN KOIZUMI

4235 090 02511 CHARGER AND BRUSHHEAD HOLDER - JAPAN YOSHIDA

4235 090 02341 CHARGER AND BRUSHHEAD HOLDER - KOREA

4235 090 02351 CHARGER AND BRUSHHEAD HOLDER - TAIWAN

4235 090 02321 CHARGER AND BRUSHHEAD HOLDER - CHINA

4235 090 02371 CHARGER AND BRUSHHEAD HOLDER - AUSTRAILIA

N/A CHARGER AND BRUSHHEAD HOLDER - RUSSIA

34235 010 07153

DELUXCHARGER (TRAVEL CHARGER WITH DECO) - US,

CANADA

4235 010 07164

DELUXCHARGER (TRAVEL CHARGER WITH DECO) - EURO,

UAE, SOUTH AFRICA

4235 010 07174 DELUX CHARGER (TRAVEL CHARGER WITH DECO) – UK

4235 090 02491

DELUX CHARGER (TRAVEL CHARGER WITH DECO) – HONG

KONG, UK, SINGAPORE, PHILIPPINES, MALAYSIA

4235 090 02461

DELUXCHARGER (TRAVEL CHARGER WITH DECO) - JAPAN

KOIZUMI

4235 090 02511

DELUXCHARGER (TRAVEL CHARGER WITH DECO) - JAPAN

YOSHIDA

4235 090 02471 DELUXCHARGER (TRAVEL CHARGER WITH DECO) - KOREA

4235 090 02481 DELUXCHARGER (TRAVEL CHARGER WITH DECO) - TAIWAN

4235 090 02451 DELUXCHARGER (TRAVEL CHARGER WITH DECO) - CHINA

4235 090 02501

DELUXCHARGER (TRAVEL CHARGER WITH DECO) -

AUSTRALIA

N/A DELUXCHARGER (TRAVEL CHARGER WITH DECO) - RUSSIA

Available as a Service part. Warranty

claims should be routed to Call Centers.

Available as a Service part. Warranty

claims should be routed to Call Centers.

HX6711/02, HX6730/02, HX6731/02,

HX6732/02, HX6733/70, HX6750

Handle, HX6780/02, HX6781/02,

HX6782/02

4235-057-54621_13-08-02 (YY_MM_DD)

6-8

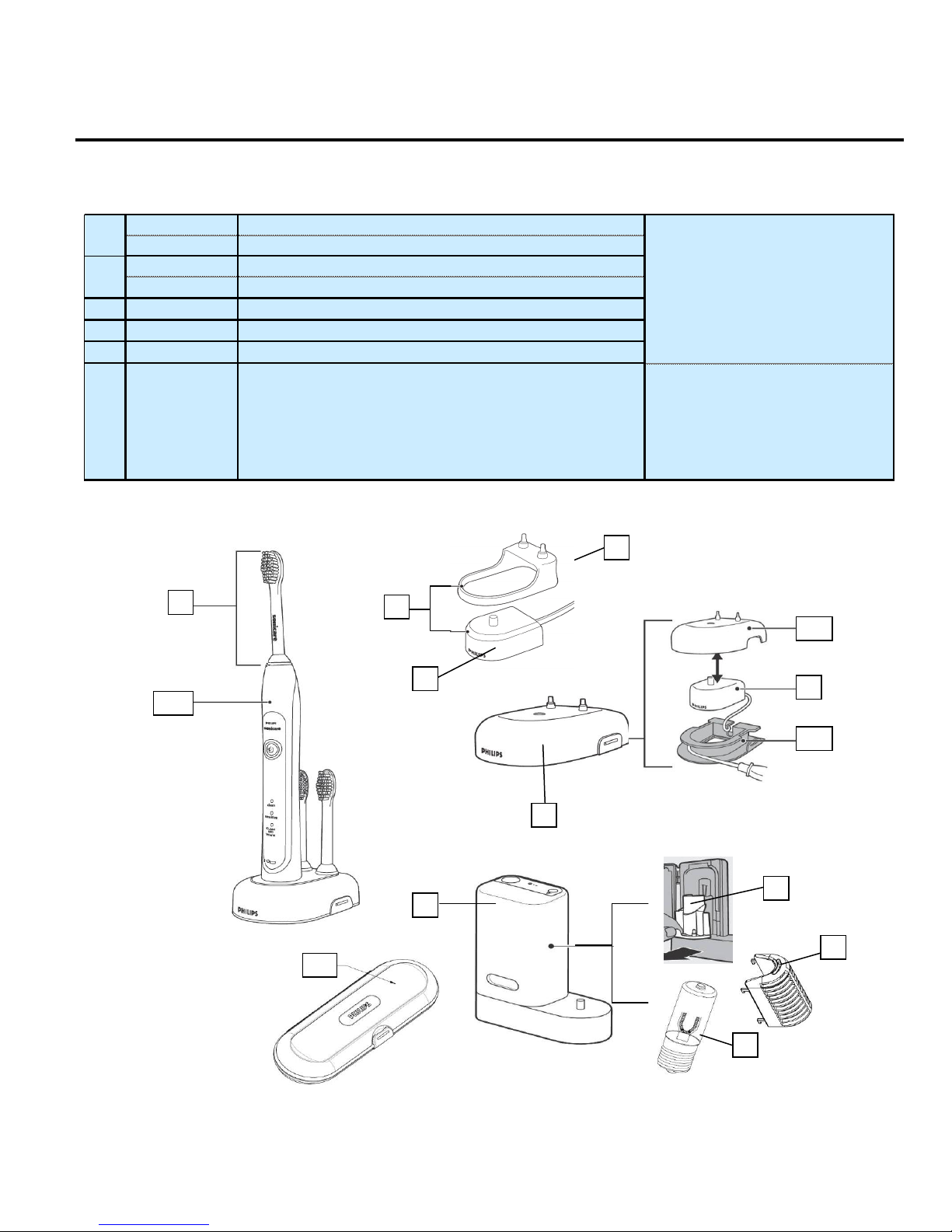

PARTS LIST AND EXPLODED VIEW cont’

HX6711/02, HX6730/02, HX6731/02,

HX6732/02, HX6733/70, HX6750

Handle, HX6780/02, HX6781/02,

HX6782/02

4235-057-54621_13-08-02 (YY_MM_DD)

7-8

48816 011 60542 PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - US

8816 011 21522 PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - CANADA

8816 011 05031

PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - EURO,

SOUTH AFRICA, UK, RUSSIA

8816 011 05551

PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - HONG

KONG, SINGAPORE, PHILIPPINES, MALAYSIA

8816 012 05461 PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - KOIZUMI

8816 012 05461

PRO RESULTS BRUSH HEAD, REMINDER BRISTLES -

YOSHIDA

8816 011 05570 PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - KOREA

8817 001 05861 PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - TAIWAN

8817 01 05811 PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - CHINA

8816 013 05341

PRO RESULTS BRUSH HEAD, REMINDER BRISTLES -

AUSTRALIA

48816 021 62542 MINI PRO RESULTS BRUSH HEAD, REMINDER BRISTLES - US

8816 021 21522
