Philips Sonicare Airfloss HX8111 Manuel utilisateur

Sonicare AirFloss

AirFloss

HX8111, AirFloss Retail

HX8181, AirFloss Dental Prof

HX8141, AirFloss Pro Disp

HX8140, AirFloss Handle

AirFloss 1.5

HX8211, AirFloss Retail

HX8241, AirFloss Dental Prof

HX8281, AirFloss Pro Disp

HX8240, AirFloss 1.5 Handle

Published by Philips Consumer Lifestyle Printed in the Netherlands ©Copyright Reserved Subject to modification

4235-006-32611-671_13-07-10

(YY_MM_DD)

SERVICE POLICY

Warranty for this product is 2 years after purchase. The product

will be serviced for 3 years after End of Life.

PRODUCT INFORMATION

Using

AirFloss is designed to be used on the outside of the teeth. Place

the tip between teeth and apply gentle pressure. Press activation

button to deliver a burst of air and water. Glide the guidance tip

along the gum line until you feel it settle between the next two

teeth. Press the activation button again and repeat for all spaces

including behind your back teeth. Press power on/off button to

turn power off after use.

Charging

Charge for 24 hours before first use. Charge indicator fl ashes

green until fully charged. Rapid yellow flashing indicates charge

is extremely low (fewer than 3 uses left). AirFloss is designed to

last 2 weeks (or 14 uses) on a single charge. The charger that

comes in the finished good configuration is not compatible with

previous Sonicare toothbrush models. The service charger is

compatible with both previous Sonicare toothbrush models as

well as the AirFloss handle. The AirFloss handle is compatible

with previous FlexCare chargers but not DiamondClean or e-

series.

Low Battery Warning - Yellow Indicator Flashes when

Approximately 90 Activations Remain (90 Activations = 3

Uses)

Full Battery Indication - Solid Green light appears after

appliance is fully charged.

Note: After 4 minutes the green light will turn off to conserve

battery life.

Attaching the Nozzle and filing the reservoir

attach nozzle and fill reservoir with water or mouthwash as

shown below.

Priming the device

After filling the reservoir, press the power on/off button to turn

on, then press the activation button approximately 6 times or

until spray is produced.

Cleaning - Remove the nozzle and rinse with water. Use a

cotton-tipped swab to wipe down the reservoir, if desired. Avoid

getting foreign objects inside. The use of cleaning agents inside

the device is not recommended. Do not clean in the dishwasher

or any other sanitizing devices.

Storing

If AirFloss will not be used for an extended period of time,

empty water from reservoir, press activation button until no

spray is produced, unplug the charger, clean the product, and

store it in a cool, dry place away from direct sunlight.

Servicing

Replace the nozzle every 6 months for optimal results.

Philips Consumer Lifestyle

Service Manual

HX8111, HX8181,

HX8141, HX8140

HX8211, HX8241,

HX8281, HX8240

4235-006-32611-671_13-07-10

(YY_MM_DD)

2-6

SAFETY INFORMATION

• Consult your dental professional before you use this

product if you have had oral or gum surgery in the

previous two (2) months.

• Contact your dental professional if excessive bleeding

occurs after using this product or bleeding continues to

occur after one (1) week of use.

• Discontinue use of this product and contact a physician/

dentist if discomfort or pain is experienced.

• This product complies with the safety standards for

electromagnetic devices. If you have a pacemaker or other

implanted device, contact your physician or the device

manufacturer prior to use.

• Consult your physician if you have other medical

concerns.

To reduce the risk of burns, electrocution, fire, or physical

injury:

• DO NOT use alcohol or other cleaning fluids in the

reservoir as it may be an ingestion hazard.

• DO NOT use attachments other than those recommended by the

manufacturer.

• DO NOT plug the charger into an outlet with a voltage

other than specified on the bottom of the charger.

This product is designed to operate within a range of

100 to 240 volts. Voltage converters DO NOT guarantee voltage

compatibility

• DO NOT use hot water so as to avoid physical injury.

• DO NOT use the charger outdoors.

• DO NOT drop

• Never force the plug into an outlet; if the plug does not

easily fit into the outlet, discontinue use.

• Keep the cord away from heated surfaces.

• Discontinue use if the nozzle, body, or charger body /

cord appear damaged in any way. Refer to “Warranty and

Service” for service or repair.

• This product contains no user-serviceable parts. Refer

to “Warranty and Service” if AirFloss no longer works

properly or needs repair.

• Use this product only for its intended use as described

in this document or as recommended by your dental

professional.

• This product is not intended for use by persons

(including children) with reduced physical, sensory, or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety.

• Children should be supervised to ensure that they do not

play with the appliance.

• AirFloss is a personal care device and is not intended for

use on multiple patients in a dental office or institution.

• Do not direct the spray under the tongue or into the ear,

nose, eye, or other sensitive areas. See “Using AirFloss”

for correct usage.

• Avoid applying excessive nozzle tip pressure.

TECHNICAL INFORMATION

Charger Electrical Ratings

Operating Voltage: 100 –240 V~

Operating Frequency: 50 / 60 Hz

Power Consumption: 0.4 –1.4 W

AirFloss Electrical Ratings

Battery Type: Lithium-Polymer

Voltage: 3.7 V

Capacity: 630 mAh

Power consumption: 6 W

REPAIR INSTRUCTIONS

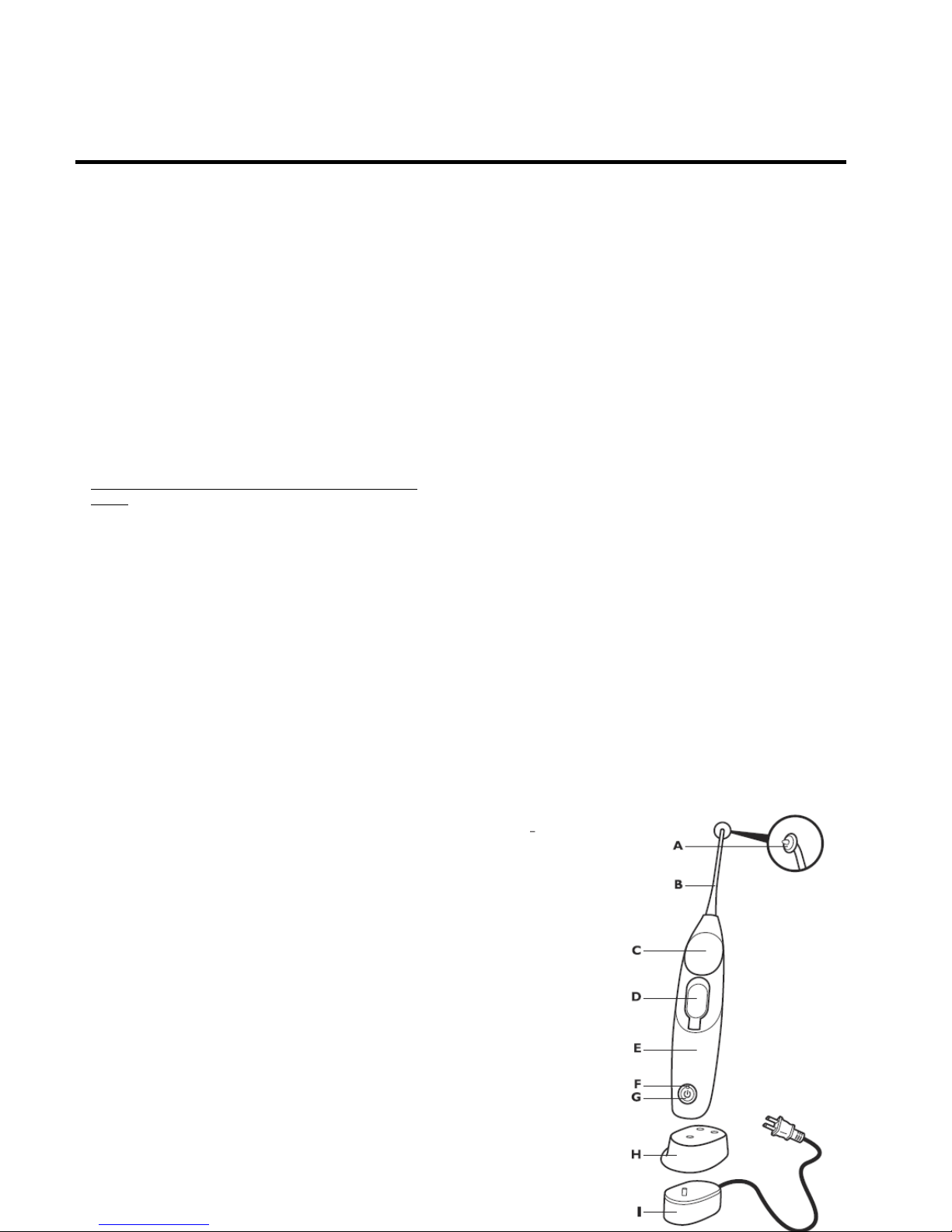

-Nozzle and Guidance tip (pos A& B)

In case of a defective Nozzle or tip, the complete Nozzle must

be replaced.

-Water reservoir cover (pos D)

If the reservoir cover is lost or no longer closes, it can be

replaced.

-Handle (pos E)

The batteries inside cannot be replaced. In case of a defect, the

handle only must be replaced.

-Charging unit (pos I)

In case of a defective charging unit or cordset, the charger must

be replaced. The charger that comes in the finished good

configuration, as shown below, is not compatible with previous

Sonicare toothbrush models. The AirFloss service charger is

compatible with both previous Sonicare toothbrush models as

well as the AirFloss handle. The AirFloss handle is compatible

with previous FlexCare chargers but not DiamondClean or

e-series chargers.

-Charging the handle (pos I)

The handle should be charged for at least 24 hours during the

first few days of use.

HX8111, HX8181,

HX8141, HX8140

HX8211, HX8241,

HX8281, HX8240

4235-006-32611-671_13-07-10

(YY_MM_DD)

3-6

ENVIRONMENT

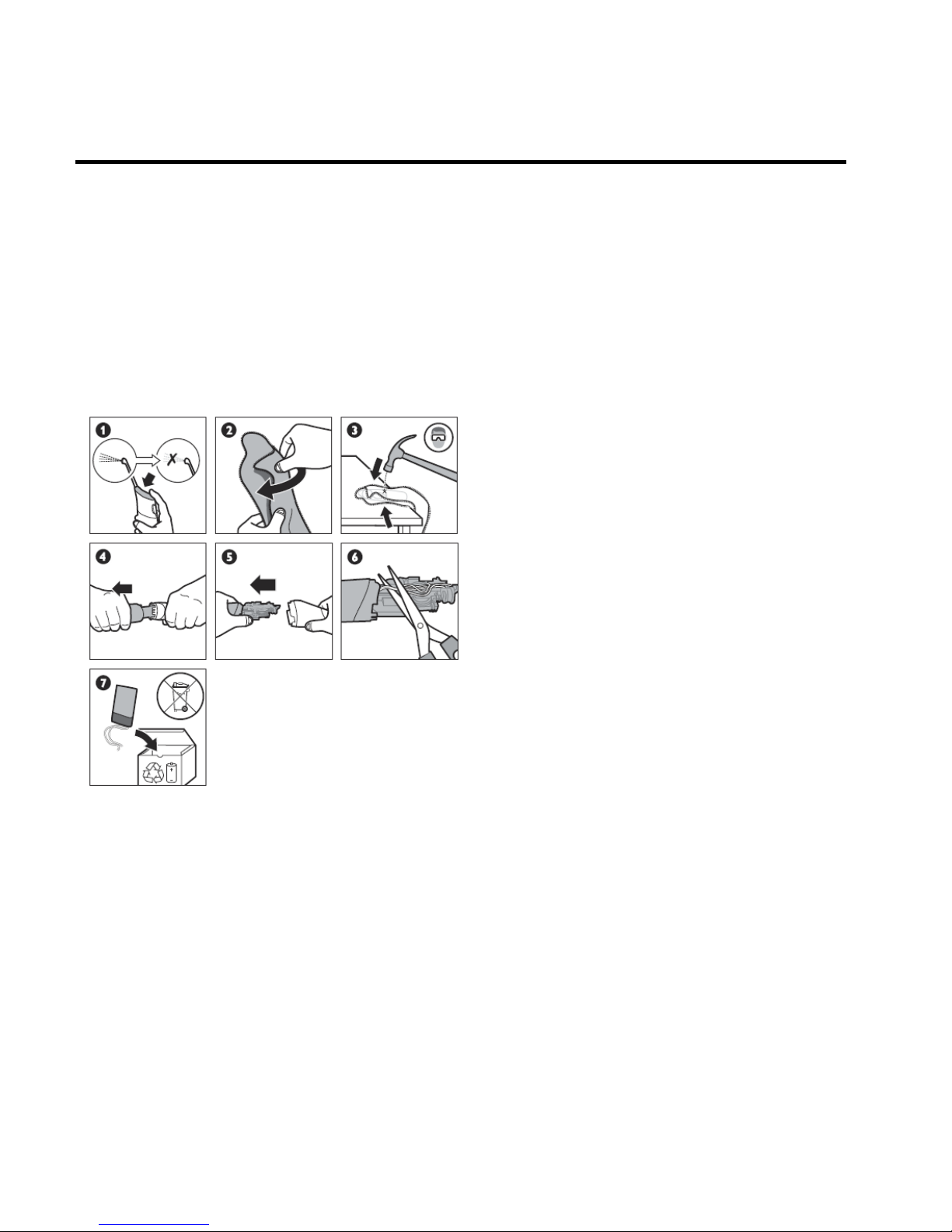

Removing the battery for recycling

Please note this process is not reversible - The rechargeable

battery inside the AirFloss cannot be replaced but can be removed

for recycling. Please contact your local waste management for

recycling requirements. Only remove the battery at the end of the

product’s life. Doing so earlier will destroy the product. Deplete

the battery charge by repeatedly pressing the activation button until

AirFloss can no longer produce any bursts of air. Observe basic

safety precautions.

HX8111, HX8181,

HX8141, HX8140

HX8211, HX8241,

HX8281, HX8240

4235-006-32611-671_13-07-10

(YY_MM_DD)

4-6

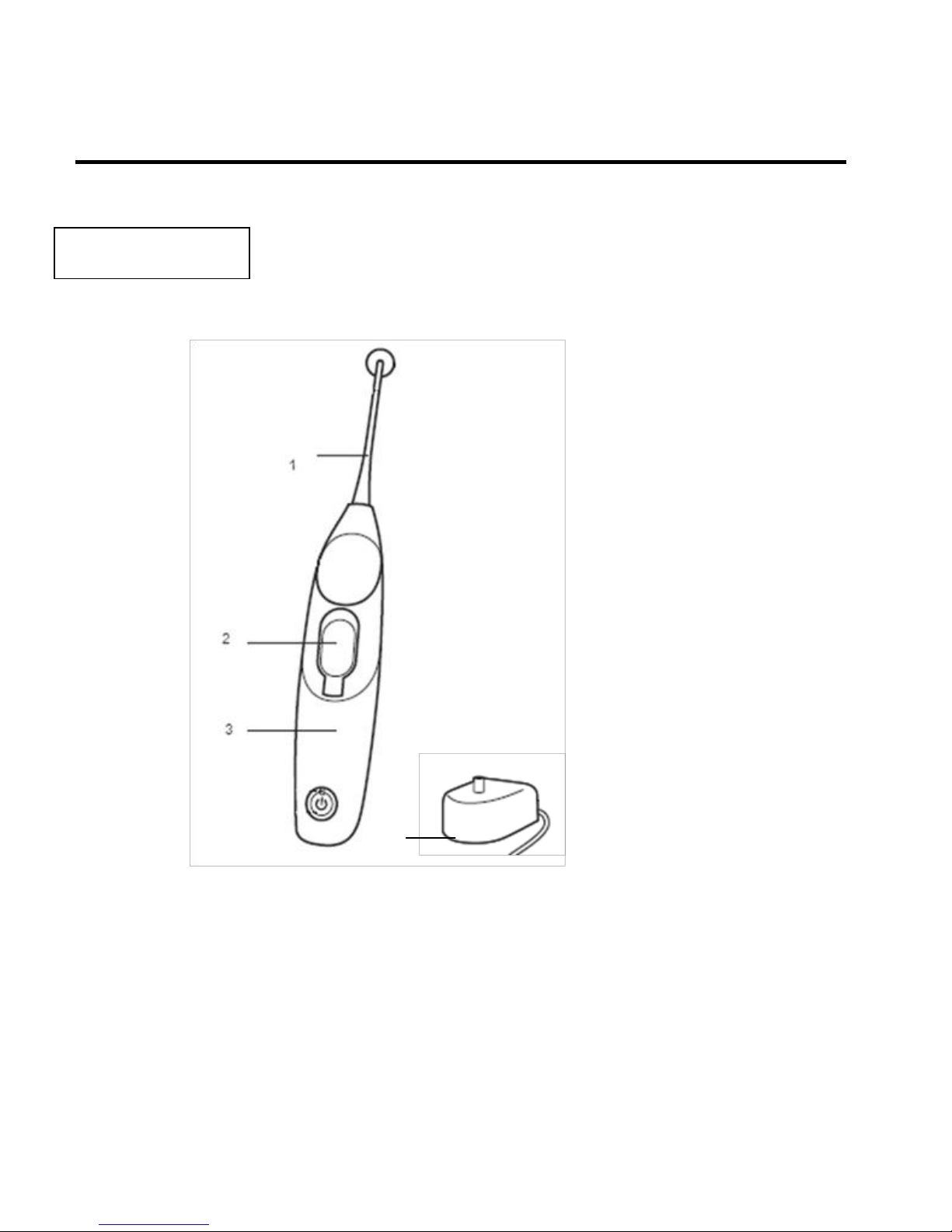

Exploded View

HX8111, HX8181,

HX8141, HX8140

HX8211, HX8241,

HX8281, HX8240

4235-006-32611-671_13-07-10

(YY_MM_DD)

5-6

SERVICE AND WARRANTY PART NUMBERS

SERVICE MANUAL - AirFloss - Chinook/Squamish

AirFloss / *AirFloss 1.5 (HX8111, HX8184, HX8141) / *(HX8211,HX8241, HX8281, HX8240)

Pos Service Code Description Comments

8818 002 60540 AIRFLOSS NOZZLE - US, CAN

8818 002 05020 AIRFLOSS NOZZLE - UK & EUR

8818 002 05460 AIRFLOSS NOZZLE - JAPAN

8818 012 23540 AIRFLOSS NOZZLE* - US

8818 012 23520 AIRFLOSS NOZZLE* - CANADA

8818 012 07020 AIRFLOSS NOZZLE* - UK & EUR

8818 012 05460 AIRFLOSS NOZZLE* - JAPAN

4235 090 03081 WATER RESERVIOR DOOR - US

4235 090 03061 WATER RESERVIOR DOOR - UK, EUR

4235 090 03071

WATER RESERVIOR DOOR - ALL OF

ASIA

4235 090 04431

WATER RESERVOIR DOOR* - US,

CANADA

4235 020 59321 WATER RESERVIOR DOOR* - UK, EUR

4235 090 04421

WATER RESERVIOR DOOR* - ALL OF

ASIA

4235 090 02711 HANDLE ONLY - US & CANADA

4235 090 02851 HANDLE ONLY -UK & EUR

4235 090 02741 HANDLE ONLY - ALL OF ASIA

4235 090 04341 HANDLE ONLY* - US & CANADA

4235 090 04351 HANDLE ONLY* -UK & EUR

4235 090 04361 HANDLE ONLY* - REST OF ASIA

4235 090 04371 HANDLE ONLY* - CHINA

4235 090 04381 HANDLE ONLY* - JAPAN

Not available as a Service Part. Only

available as warranty. Handle

warranty claims must be routed to

Call Centers for replacement.

*New AirFloss 1.5

Available as a Service part. Warranty

claims should be routed to Call

Centers.

*New AirFloss 1.5

Available as a Service part. Warranty

claims should be routed to Call

Centers.

Available as a Service part

Available As a Service Part

*New AirFloss 1.5

Not available as a Service Part. Only

available as warranty. Handle

warranty claims must be routed to

Call Centers for replacement.

HX8111, HX8181,

HX8141, HX8140

HX8211, HX8241,

HX8281, HX8240

4235-006-32611-671_13-07-10

(YY_MM_DD)

6-6

44235 010 14101 TRAVEL CHARGER - US, CANADA

4235 010 16571

TRAVEL CHARGER – UAE, SOUTH

AFRICA

4235 010 14111 TRAVEL CHARGER - EU

4235 010 14091 TRAVEL CHARGER – UK

4235 090 03611 TRAVEL CHARGER - JAPAN KOIZUMI

4235 090 03601 TRAVEL CHARGER - JAPAN YOSHIDA

4235 090 02581 TRAVEL CHARGER - AUSTRALIA

4235 090 03661 TRAVEL CHARGER - TAIWAN

4235 090 02571

TRAVEL CHARGER - PHILIPINES,

MALAYSIA, SINGAPORE, HONG KONG

4235 090 02531 TRAVEL CHARGER - CHINA

4235 090 02551 TRAVEL CHARGER - SOUTH KOREA

Available as a Service part. Warranty

claims should be routed to Call

Centers.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Brosse à dents électrique

Philips

Philips Sonicare FlexCare Platinum Connected... Manuel utilisateur

Philips

Philips Sonicare 3100 Series Manuel utilisateur

Philips

Philips Sonicare FlexCare HX6932 Manuel utilisateur

Philips

Philips Sonicare Elite HX5910/71 Manuel utilisateur

Philips

Philips Sonicare FlexCare Platinum Manuel utilisateur

Philips

Philips sonicare DiamondClean 9000 Series Manuel utilisateur

Philips

Philips sonicare HX3641 Manuel utilisateur

Philips

Philips Sonicare 300 SerieS Manuel utilisateur

Philips

Philips Sonicare 2 Series Manuel utilisateur

Philips

Philips Sonicare HX9399/36 Manuel utilisateur

Philips

Philips Sonicare For Kids Mode d’emploi

Philips

Philips Sonicare AirFloss Pro HX8331/11 Manuel utilisateur

Philips

Philips Sonicare HealthyWhite HX6711/02 Manuel utilisateur

Philips

Philips Sonicare CleanCare Guide d'installation

Philips

Philips SONICARE 4100 Manuel utilisateur

Philips

Philips DiamondClean 300 series Manuel utilisateur

Philips

Philips Sonicare FlexCare+ HX6972 Manuel utilisateur

Philips

Philips Sonicare PowerUp HX3120 Manuel utilisateur

Philips

Philips HX6732 Manuel utilisateur

Philips

Philips Sonicare HX6902/02 Manuel utilisateur

Philips

Philips DiamondClean 9000 Mode d'emploi

Philips

Philips Sonicare FlexCare Platinum HX9112/12 Manuel utilisateur

Philips

Philips HX9954/57 Manuel utilisateur

Philips

Philips HX8915/01 Manuel utilisateur

Manuels Brosse à dents électrique populaires d'autres marques

Omron

Omron Colgate ProClinical C600 Manuel utilisateur

Dentle

Dentle One Plus Manuel utilisateur

SPORT ELEC

SPORT ELEC Smilyss HC5305C Manuel utilisateur

Kompernass

Kompernass dentalux DAZ 2.4 A1 Manuel utilisateur

ONE

ONE PERSONAL OSEB001-W Manuel utilisateur

Panasonic

Panasonic EW118WC Operating Manuel utilisateur

Jula

Jula 804-193 Manuel utilisateur

Panasonic

Panasonic EW-PDA52 Manuel utilisateur

Braun

Braun OC17525 Manuel utilisateur

Panasonic

Panasonic ER-CBL1 Manuel utilisateur

Waterpik

Waterpik Sensonic Professional Plus SR-3000 Manuel utilisateur

TrueLife

TrueLife SonicBrush T100 Manuel utilisateur

Braun

Braun Oral-B 450 Manuel utilisateur

Braun

Braun Oral-B Professional Care 7000 Manuel utilisateur

Panasonic

Panasonic EW1012 Manuel utilisateur

Waterpik Technologies

Waterpik Technologies WP-900 Manuel utilisateur

Waterpik

Waterpik ST-01 Manuel utilisateur

Kooper

Kooper Sonic Pulse 2192267 Manuel utilisateur
