PERMASTEEL PG-40C10 Manuel utilisateur

Portable Square Charcoal Grill

Instruction Manual

Model No: PG-40C10

This product is sold by Permasteel Inc.

If you are missing any parts or have question

regarding this grill, please call our customer service

dept. 1-888-287-0735 / M-F / 8AM -5PM PST

Or email at: service@permasteel.net

For Outdoor Use Only

User Notes

⚫Please read the manual carefully before using the product

⚫Keep this user manual for future reference

⚫Outdoor use only

⚫Outer shell of the grill can be very hot, please make sure to keep children away

⚫Do not move the product while in use

Important Note

⚫Please read this manual carefully and confirm that the grill has been properly installed and assembled.

Failure to use this manual may result in serious personal injury and/or property damage.

⚫When assembling the grill, be careful not to scratch/cut your hands by the sharp metal edge.

⚫If you have any questions about assembly or operation, please consult your dealer.

⚫Use only on hard, horizontal, non-flammable, stable surfaces (concrete, ground, etc.) that can support

weight. Do not use on wood or other surfaces that may burn.

⚫A proper distance of 10 feet shall be maintained between the grill in use and flammable materials such as

shrubs, trees, wood decks, fences, buildings, etc.

⚫Do not use gasoline, kerosene, or alcohol to light the charcoal. The use of these or similar products may

cause an explosion which may cause serious bodily injury.

⚫Keep children and pets away from the grill.

⚫After each use, clean the grill thoroughly after it cools down, and recoat the inside of the grill with oil to

prevent rust.

⚫It is recommended to use 0.8 ~ 1Kg of charcoal at the beginning of each use.

Parts List

1. Handle

2. Lid

3. Cooking Grate

1PC

4. Charcoal Pan

5. Charcoal Tray Bracket 1

6. Charcoal Tray Bracket 2

1PC

2PCS

7. Side Panel

8. Back Panel

9. Front Panel

2PCS

1PC

Component Card

Item No.

Item name

Diagram

Qty

M4 x 8 mm Bolt

M6 x 12 mm Bolt

Installation Steps

Step 1：Install the grill panel -- part 1

Insert a side panel (Part 7) into the card slot of front panel (Part 9) and back panel (Part 8) and

buckle it. Installation method is as shown in the figure below.

Step 2：Install the grill panel -- part 2

Insert the other side panel (Part 7) into the card slot of front panel (Part 9) and back panel (Part 8)

and buckle it. Installation method is as shown in the figure below.

Step 3：Install charcoal tray bracket

Use 8 pcs M4x8mm bolts (Part A) to install the 4pcs charcoal pan bracket 1 (Part 5) and charcoal

pan bracket 2 (Part 6) in the positions shown in the figure below. The installation method is shown

in the figure below.

Step 4：Install bolts

Turn over the grill body, screw securely 4 pcs M4x8mm bolts (Part A) in the holes on the top. The

installation method is shown in the figure below.

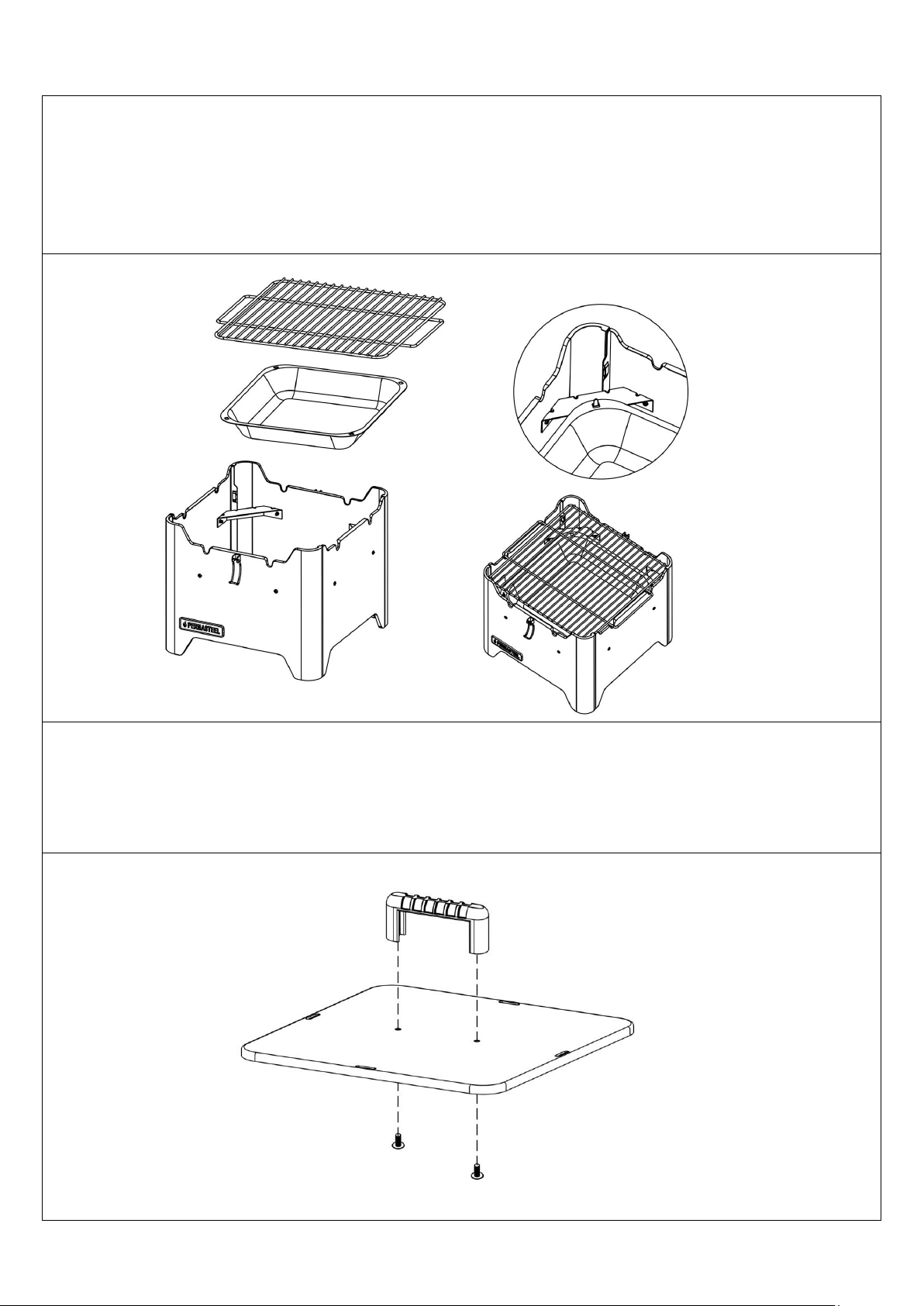

Step 5：Install charcoal pan and cooking grate

Turn over the grill body. Place the charcoal pan (Part 4) on the charcoal pan bracket. And then

place the cooking grate (Part 3) with the handles on the grooves of the side panels. The

installation method is shown in the figure below.

Step 6：install lid handle

Insert the lid handle(Part 1) into the holes on the lid(Part 2) , screw secure with 2 pcs M6x12mm

bolts(Part B). The installation method is shown in the figure below.

Step 7：Install lid

Place the lid on the grill body, lock with the lock. (This feature is for transport and storage.) The

installation method is shown in the figure below.

Tips：1. This is an open grill，please remove the lid before grilling. 2. The feature of the lid

with handle is for transport and storage.

DANGER

Risk of cuts

Every care has been taken at the factory to ensure that there are no sharp edges

on this unit. Be careful when handling the individual components of this unit to

prevent accidents and injuries when assembling and starting up the unit.

Before use, please note:

Always select a secure, even surface and a suitable place for charcoal grilling. The unit may

not be transported when warm. For safety reasons, the unit may not be operated using liquid

fuel. Recommendation: Heat the BBQ grill before you use it for the first time and allow the fuel

to glow for at least 30 min.

Notes with regard to lighting:

•Arrange the charcoal pieces in the fire basin in pyramid form.

•The fire basin can accommodate a maximum of around 1 kg of ordinary charcoal.

•Evenly space dry charcoal lighters around the pyramid.

•The pyramid is best lit using a match.

•Only start to cook when the fuel is covered with a sheet of ash.

•Grease the grilling rack with a little vegetable oil and start grilling.

DANGER

Risk of explosion

This BBQ grill becomes very hot and may not be moved when in use! Do not used in closed room!

Do not use spirit, petrol or similar liquids to light or re-light the BBQ! Only use lighters in accordance

with EN 1860-3! keep away from children and animals!

DANGER

Fire risk

Always wear gloves when adjusting the height of the grilling rack as the handles of the rack can

become very hot during grilling.
