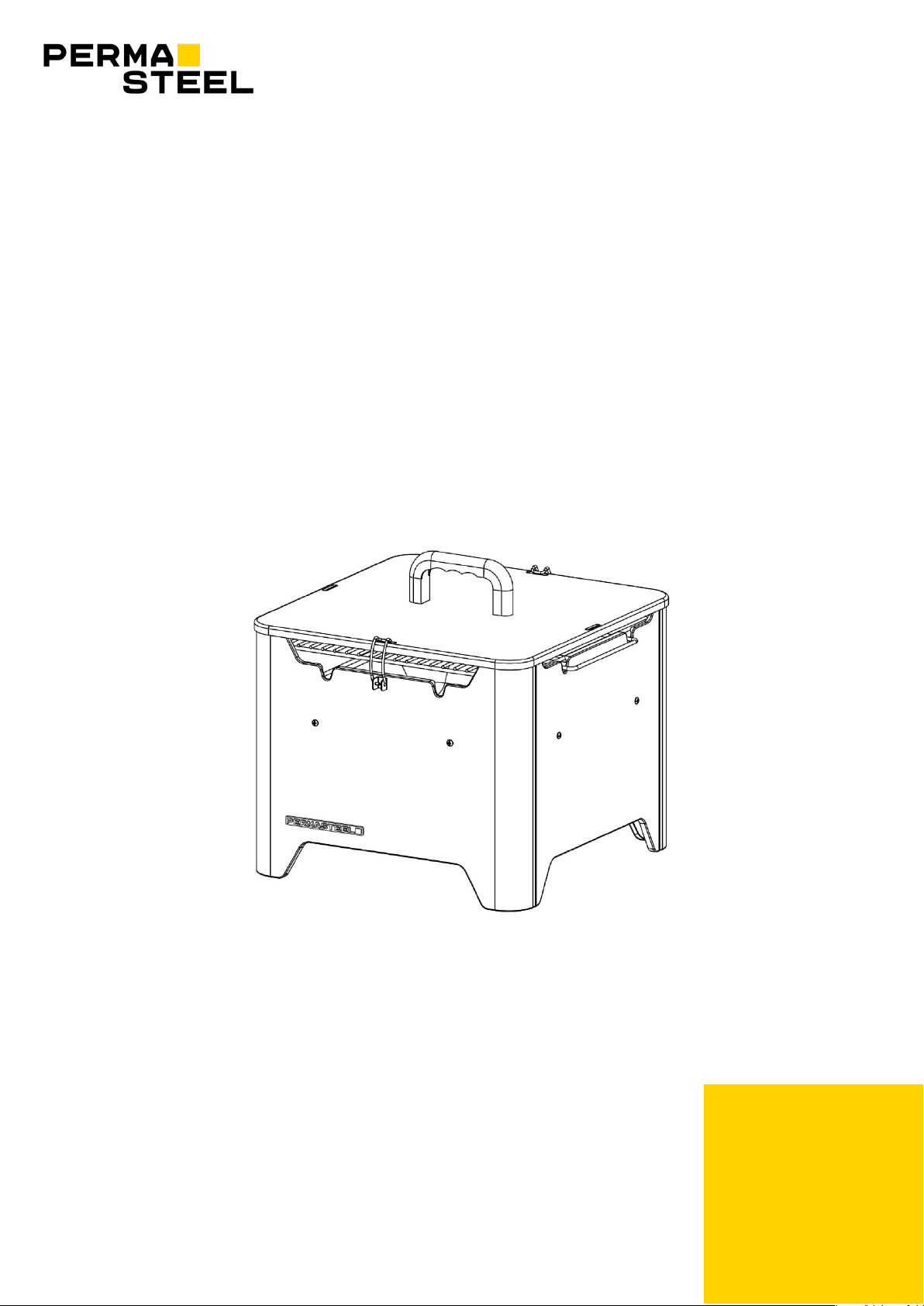

PERMASTEEL PG-40C10 Manuel utilisateur

Permasteel Square

Portable Charcoal Grill

Use & Care Guide

Model number: PG-40C10

Thank you for purchasing your new charcoal grill from Permasteel.

We hope you enjoy your product.

If you have any questions, please call us 1-888-287-0735

or visit www.permasteel.life

Table of content

Important Safety Information 3

Safety Symbols 3

Installation /Safety Precautions 4

Barbeque Safety Warning 4

Exploded View 5

Parts List 5

Assembly Steps 6

WARNING

1. This unit is designed for outdoor use only.

2. For safety reasons, this unit may not be

operated using liquid fuel.

3. Always wear gloves when adjusting the height

of the grilling rack as the handles of the rack

can become very hot during grilling.

DANGER

Risk of explosion:

1. This charcoal grill becomes very hot and may

not be moved when in use.

2. Do not use spirit, petrol or similar liquids to light

or re-light the charcoal grill.

3. Only use lighters in accordance with EN 1860-3.

4. Keep away from children and animals.

Important

Safety Information

Thank you for your purchase of our outdoor

Portable Square Charcoal Grill. We sincerely wish

you will enjoy using our fine products.

•Please read this User’s Manual in its entirety

before using the grill.

•Please contact our customer service at

1-888-287-0735 if you have any questions.

•Please read this User’s Manual carefully.

Failure to follow the provided instruction can

result in seriously bodily injury and/or property

damage.

•Some parts of this grill may have sharp edges.

Please wear suitable protective gloves.

•IMPORTANT: This charcoal grill is intended for

outdoor use only and is not intended to be

installed in or on recreational vehicles or

boats.

•NOTE TO INSTALLER: Leave this User’s

Manual with the customer after delivery

and/or installation.

•NOTE TO CONSUMER: Leave this User’s

Manual in a convenient place for future

reference.

Safety

Symbols

The symbols listed here are being used

throughout this User’s Manual. Please pay special

attention to them. The meaning of each of the

symbols is listed here:

DANGER:

this symbol indicates an imminently hazardous

situation which will result in death or serious

bodily injury if not properly followed.

WARNING:

this symbol indicates a warning of potential

serious bodily injury if the instructions are not

strictly followed. Please be sure to read and follow

all these messages carefully.

CAUTION:

this symbol indicates a potentially hazardous

situation which may result in minor or moderate

bodily injury if the instructions are not properly

followed.

Installation /

Safety Precautions

WARNING

READ THIS SECTION FIRST BEFORE INSTALLING

THE CHARCOAL GRILL

•This charcoal grill is designed for outdoor use

only.

•RISK OF CUTS: Every care has been taken at

the factory to ensure that there are no sharp

edges on this unit. Be careful when handling

the individual components to prevent

accidents and injuries when assembling and

starting up the unit.

•BEFORE USE: Always select a secure, even

surface and a suitable place for charcoal

grilling. The unit may not be transported

when warm. For safety reasons, the unit may

not be operated using liquid fuel.

•RECOMMENDATION: Heat the charcoal grill

before you use it for the first time and allow

fuel to glow for at least 30 minutes.

•This grill is safety certified for use in the United

States and Canada only. Never modify to use

in other places. Modification may cause

serious bodily injury or property damage.

PermaSteel is not responsible for any

modifications, and all warranties will be void.

•WARNING: This product can expose you to

chemicals including lead, which is known to

the State of California to cause cancer and

birth defects or other reproductive harm. For

more information go to

www.P65Warnings.ca.gov.

Barbeque Safety

Warning

WARNING

FOR YOUR SAFETY, PLEASE READ THIS

SECTION FIRST

•Use only on hard, horizontal, non-flammable,

stable surfaces (concrete, ground, etc.) that

can support weight. Do not use it on wood or

other surfaces that may burn.

•A proper distance of 10 feet shall be

maintained between the charcoal grill in use

and flammable materials such as shrubs,

trees, wood decks, fences, buildings, etc.

Notes with regard to lighting:

1) Arrange the charcoal pieces in the fire basin in

pyramid form.

2) The fire basin can accommodate a maximum

of around 3 lbs (1.5 kg) of ordinary charcoal.

3) Evenly space dry charcoal lighters around the

pyramid. The pyramid is best lit using a match.

4) Only start to cook when the fuel is covered

with a sheet of ash.

5) Grease the grilling rack with a little vegetable

oil and start grilling.

Exploded View

Parts List

Key Description Qty

1 Handle 1

2 Lid 1

3 Cooking Grate 1

4 Charcoal Pan 1

5 Inner Bracket 4

6 Side Panel 2

7 Back Panel 1

8 Front Panel 1

9 M4 x 10mm Bolt 12

10 M6 Nut 6

If you are missing any parts or have damaged

parts, please call 1-888-287-0735 M-F 8:00-5:00

Pacific Time. For replacement, visit us at

www.permasteel.life

Assemble Steps

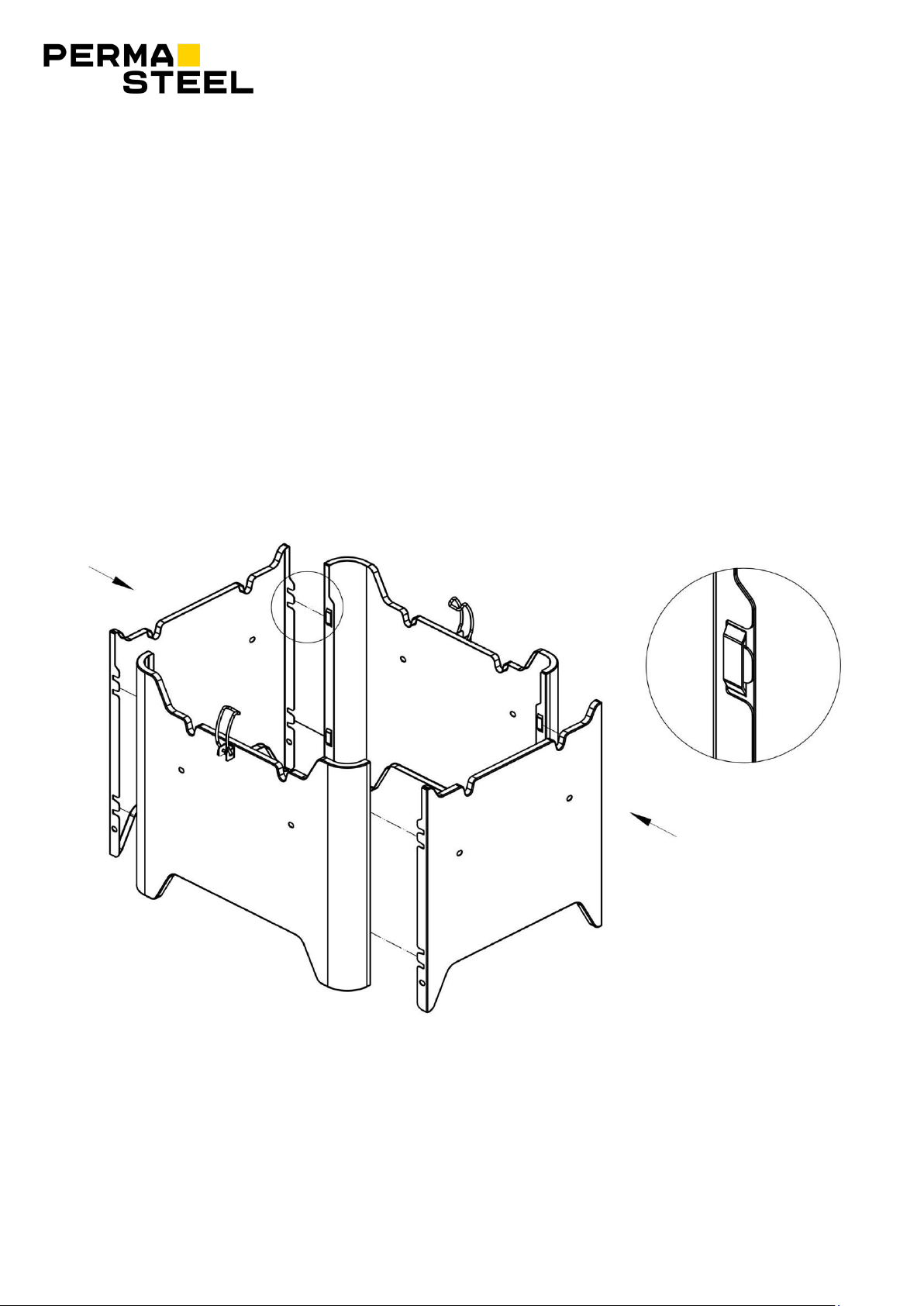

Step 1

•Insert the left and right panels into the card slot of the front and back panels.

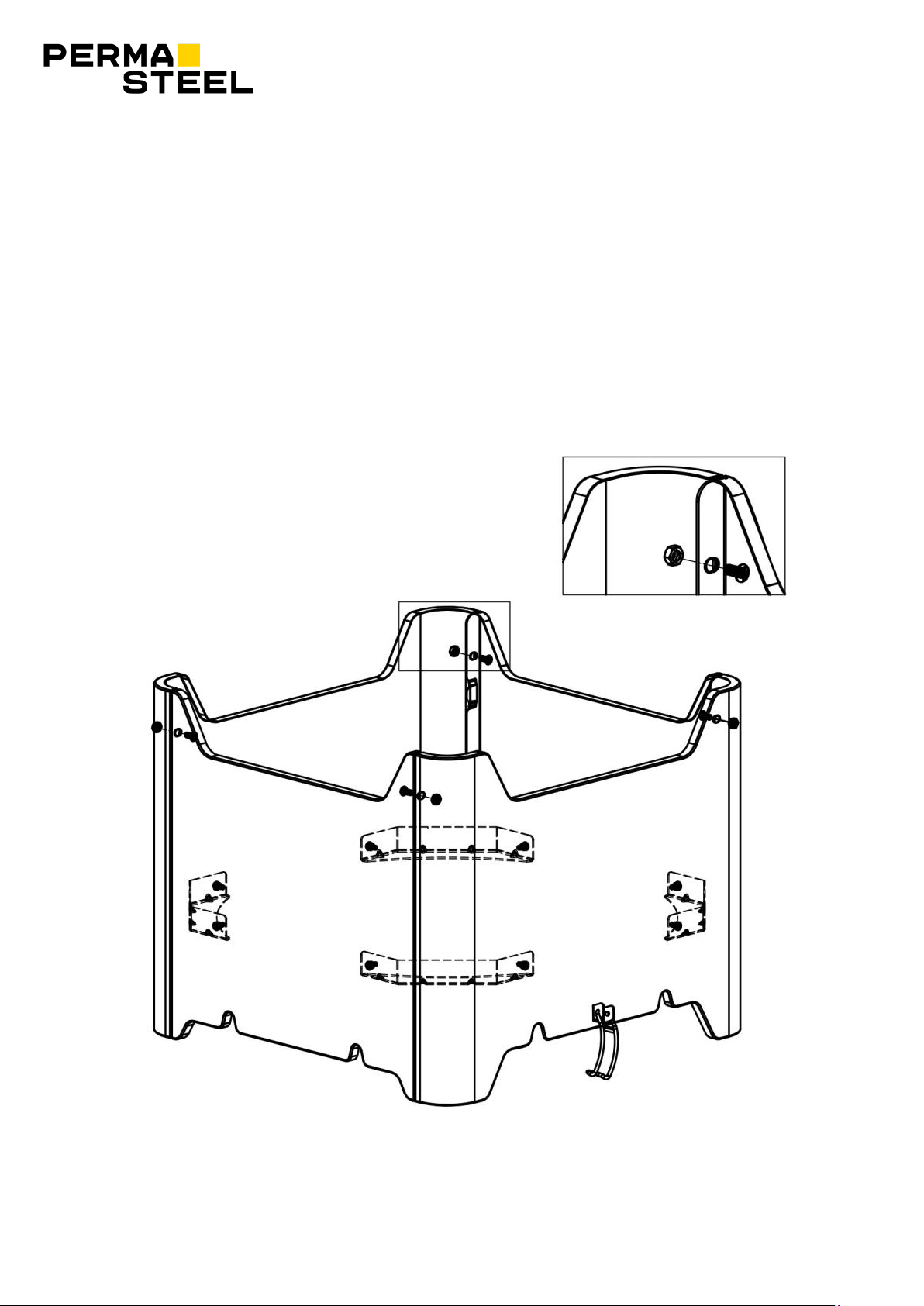

Step 2:

•Use (8) M4 x 10mm bolts to attach the 4 brackets inside the grill.

Step 3

•Turn over the grill and use the (4) M4 x 10mm bolts and (4) M4 nuts to attach the panels together.

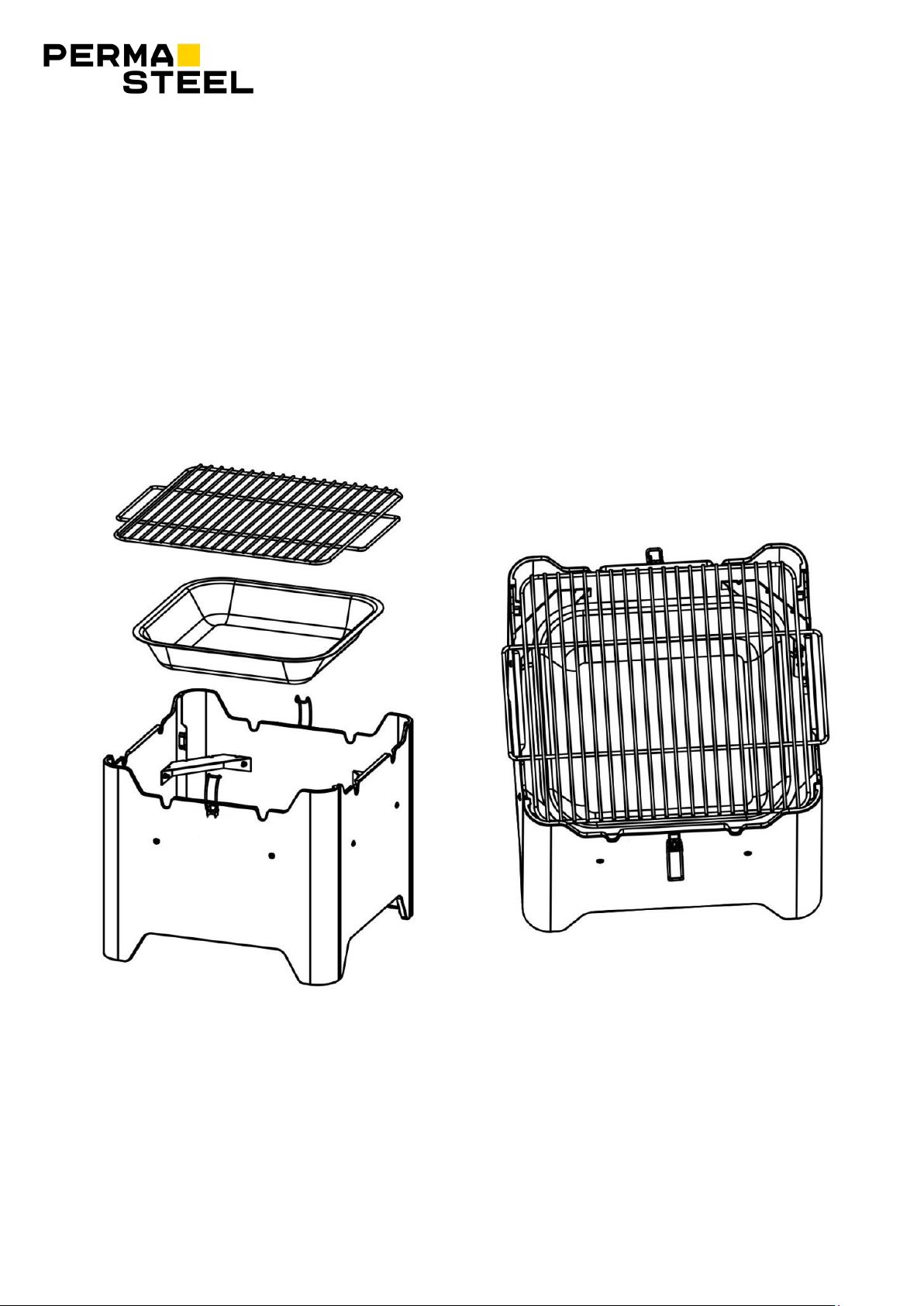

Step 4

•Turn over the grill, place the charcoal pan and then the cooking grate inside the grill.

Step 5

•Insert the handle into the holes on the lid, screw (2) M6 nuts into the handle.
