PERMASTEEL PG-4030400LG Manuel utilisateur

Outdoor

Burner

Use & Care Guide

MODEL NUMBER: PG-

4030400LG

ITEM NUMBER: PG-4030 -BK

PG-4030 -MO

PG-4030 -AZ

Outdoor

Burner

Gas

Grill

4030400LG

Grill

Table of Contents

Important Safety Information .........................................................................................................3

Safety Symbols................................................................................................................................3

Installation /Safety Precautions.....................................................................................................4

Propane & Gas Warning.................................................................................................................4

E ploded View.................................................................................................................................5

Parts List..........................................................................................................................................6

Before Assembly.............................................................................................................................7

Hardware & Tools .........................................................................................................................10

Assembly Steps.............................................................................................................................11

Gas Connection ............................................................................................................................21

Leak Testing...................................................................................................................................23

Final Installation Check Lists....................... ...............................................................................24

Lighting Instruction.......................................................................................................................25

Operating Instruction ...................................................................................................................26

Care & Maintain ............................................................................................................................27

Food Safety....................................................................................................................................28

Grill Storage ..................................................................................................................................28

Trouble Shooting...........................................................................................................................29

Warranty.........................................................................................................................................30

Important Safety Information

Thank you for your purchase of our BBQ Gas Grill. We sincerely wish you will enjoy

using our fine products.

• Please read this User’s Manual in its entirety efore using the grill.

• Please contact our customer service at (888)-287-0735 if you have any questions.

• Please read this User’s Manual carefully. Failure to follow the provided instruction

can result in seriously odily injury and/or property damage.

• Some parts of this grill may have sharp edges. Please wear suita le protective gloves.

• IMPORTANT: This grill is intended for outdoor use only and is not intended to e installed in or

on recreational vehicles or oats.

• NOTE TO INSTALLER: Leave this User’s Manual with the customer after delivery and/or

installation.

• NOTE TO CONSUMER: Leave this User’s Manual in a convenient place for future reference.

Safety Symbols

The sym ols listed here are eing used throughout this User’s Manual. Please pay

special attention to them. The meaning of each of the sym ols is listed here:

• DANGER: this sym ol indicates an imminently hazardous situation which will result in

death or serious odily injury if not properly followed.

• WARNING: this sym ol indicates a warning of potential serious odily injury if the

instructions are not strictly followed. Please e sure to read and follow all these messages

carefully.

• CAUTION: this sym ol indicates a potentially hazardous situation which may result in

minor or moderate odily injury if the instructions are not properly followed.

Installation / Safety Precautions

WARNING

READ THIS SECTION FIRST BEFORE INSTALLING THE GRILL

• This grill is designed to use LP gas only. Please use the grill with the regulator supplied y

PermaSteel.

• The installation of this appliance must conform with local codes or, in the a sence of local

codes, with either the National Fuel Gas Code, ANSI Z223 1, or CAN/CGA B149 1, Natural

Gas Installation Code or CAN/CGA-B149 2, Propane Installation Code

• The LP-gas supply cylinder is to e constructed and marked in accordance with the

specifications for LP-gas cylinders of the U S Department of Transportation (DOT) or the

National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for the

Transportation of Dangerous Goods

• This grill is safety certified for use in the United States and Canada only. Never modify to use in

other places. Modification may cause serious odily injury or property damage. PermaSteel is

not responsi le for any modifications, and all warranties will e void.

WARNING： This product can expose you to chemicals including lead,

which is known to the State of California to cause cancer and birth defects or other

reproductive harm. For more information go to www.P65Warnings.ca.gov.

Propane & Gas Warning

WARNING

FOR YOUR SAFETY, PLEASE READ THIS SECTION FIRST

• If you smell gas:

1) Shut off gas to the grill.

2) Extinguish any open flames immediately.

3) Open the grill lid.

4) If the odor persists, please call your gas supplier or your fire department immediately.

• Do not store or use gasoline or other flamma le items in the vicinity of this grill.

• Any LP cylinder that is not connected for use should not e stored in the vicinity of this grill.

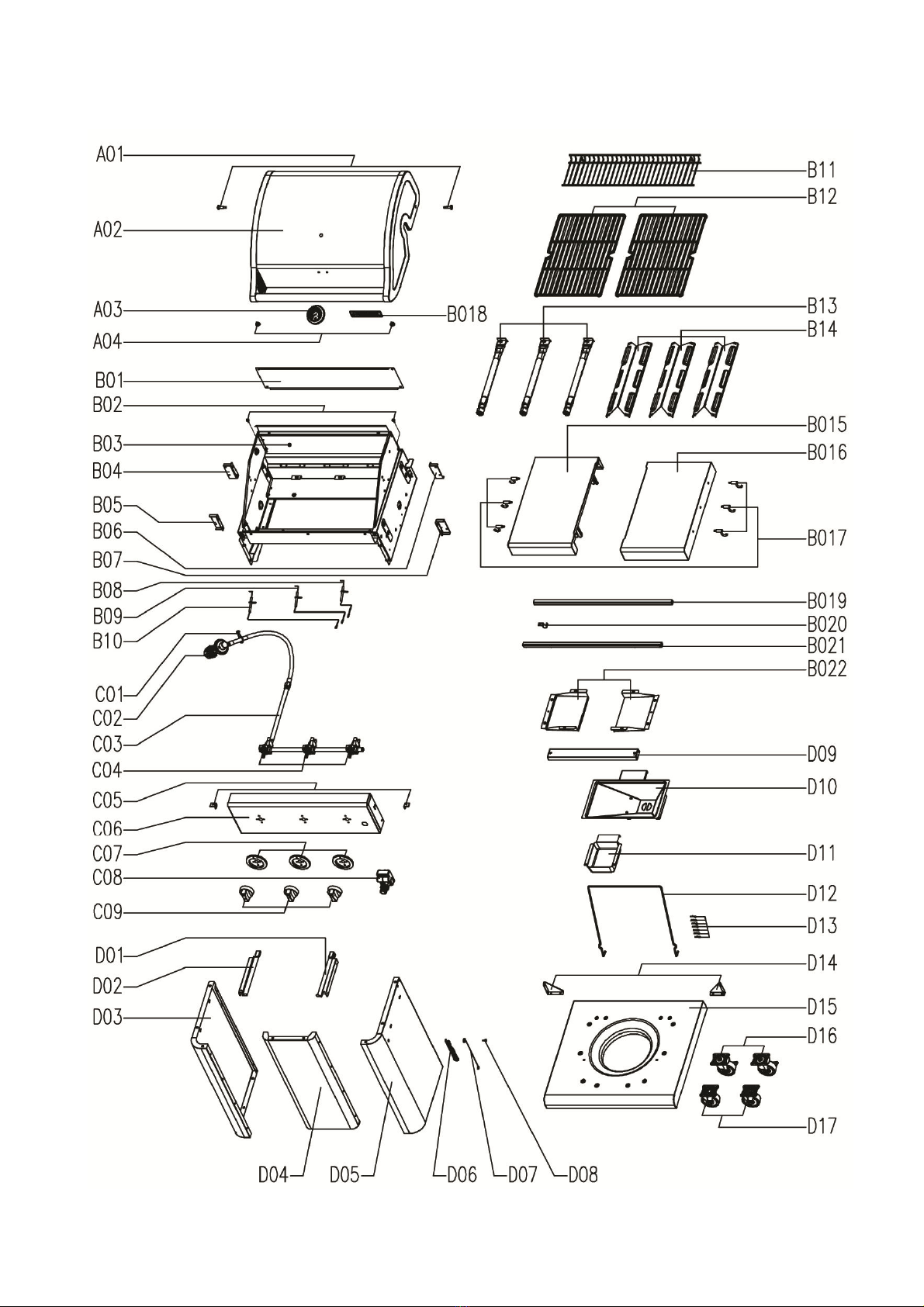

E ploded View

Parts List

Key

Description Part No. Qty

Key

Description Part No. Qty

A0 Rotated Rod, Lid 50300207 2 C04 Gas Valve 30400050 3

A02-A

Lid (color: Black) 30400G32-

C05 Side Shelf Bracket 30400G 7 2

A02-B

Lid (color: Azure) 30400G32-2

C06 Control Panel 30400G 8P

A02-C

Lid (color: Mocha) 30400G32-3

C07 Control Knob Bezel 30400G35 3

A03 Temperature Gauge 30400G33 C08 Electronic Ignition Module 30400403

A04 Front Silicone Rubber Bumper 40700 03 2 C09 Control Knob 30400G36 3

B0 Back Baffle 30400G03 D0 Drip Tray Right Bracket 30400G20

B02 Back Silicone Rubber Bumper 50300205 2 D02 Drip Tray Left Bracket 30400G2

B03 Firebox 30400G04 D03-A

Left Side Panel(color: Black) 30400G22P-

B04 Left Back Side Shelf Support Bracket 30400G05 D03-B

Left Side Panel(color: Azure) 30400G22P-2

B05 Left Front Side Shelf Support Bracket 30400G06 D03-C

Left Side Panel(color: Mocha) 30400G22P-3

B06 Right Back Side Shelf Support Bracket

30400G07 D04 Front Panel 30400G23P

B07 Right Front Side Shelf Support Bracket

30400G08 D05-A

Right Side Panel(color: Black) 30400G24P-

B08 No.3 Igniter Wire 30400054 D05-B

Right Side Panel(color: Azure) 30400G24P-2

B09 No.2 Igniter Wire 30400053 D05-C

Right Side Panel(color: Mocha) 30400G24P-3

B 0 No. Igniter Wire 30400052 D06 Match Holder Chain 20003

B Warming Rack 30400G09 D07 Match Holder 40800 28

B 2 Cooking Grid 3040030 2 D08 Match Holder Clip 30400G25

B 3 Main Burner 30400037 3 D09 Back Rail 30400G26

B 4 Heat Diffuser 40800023 3 D 0 Drip Tray 207000 5

B 5 Left Side Shelf 30400G 2P

D Drip Cup 30400G27

B 6 Right Side Shelf 30400G 3P

D 2 Tank Holder 20700049

B 7 Tool Hook 30400G34 6 D 3 Cotter Pin 0050 6

B 8 Name Plate 30400G35 D 4-

Panel Support Angle Bar(color: Black) 30400G28P-

B 9 Back Rail 30400035 D 4-2

Panel Support Angle Bar(color: Azure) 30400G28P-2

B20 Manifold Clamp 30400G 4 D 4-3

Panel Support Angle Bar(color: Mocha) 30400G28P-3

B2 Front Rail 30400033 D 5-

Bottom Shelf (color: Black) 30400G29P-

B22 Grease Tray Baffle 30400G 5 2 D 5-2

Bottom Shelf (color: Azure) 30400G29P-2

C0 Hose Holder 30400 7 D 5-3

Bottom Shelf (color: Mocha) 30400G29P-3

C02 Regulator 3040005 D 6 Caster with Brake 409002 2 2

C03 Manifold 30400G 6 D 7 Caster 409002 3 2

Not Pictured

Manual 30400G30P

Hardware Blister Pack 30400G3 P

If you are missing any parts or have

damage parts please call

888-287-0735 M-F 8:00-5:00

Pacific Time, for replacement

visit us at www.permasteel.net

Before Assembly

READ AND FOLLOW THE INSTRUCTIONS BELOW TO CORRECTLY UNPACK GRILL PARTS

FROM SHIPPING BOX.

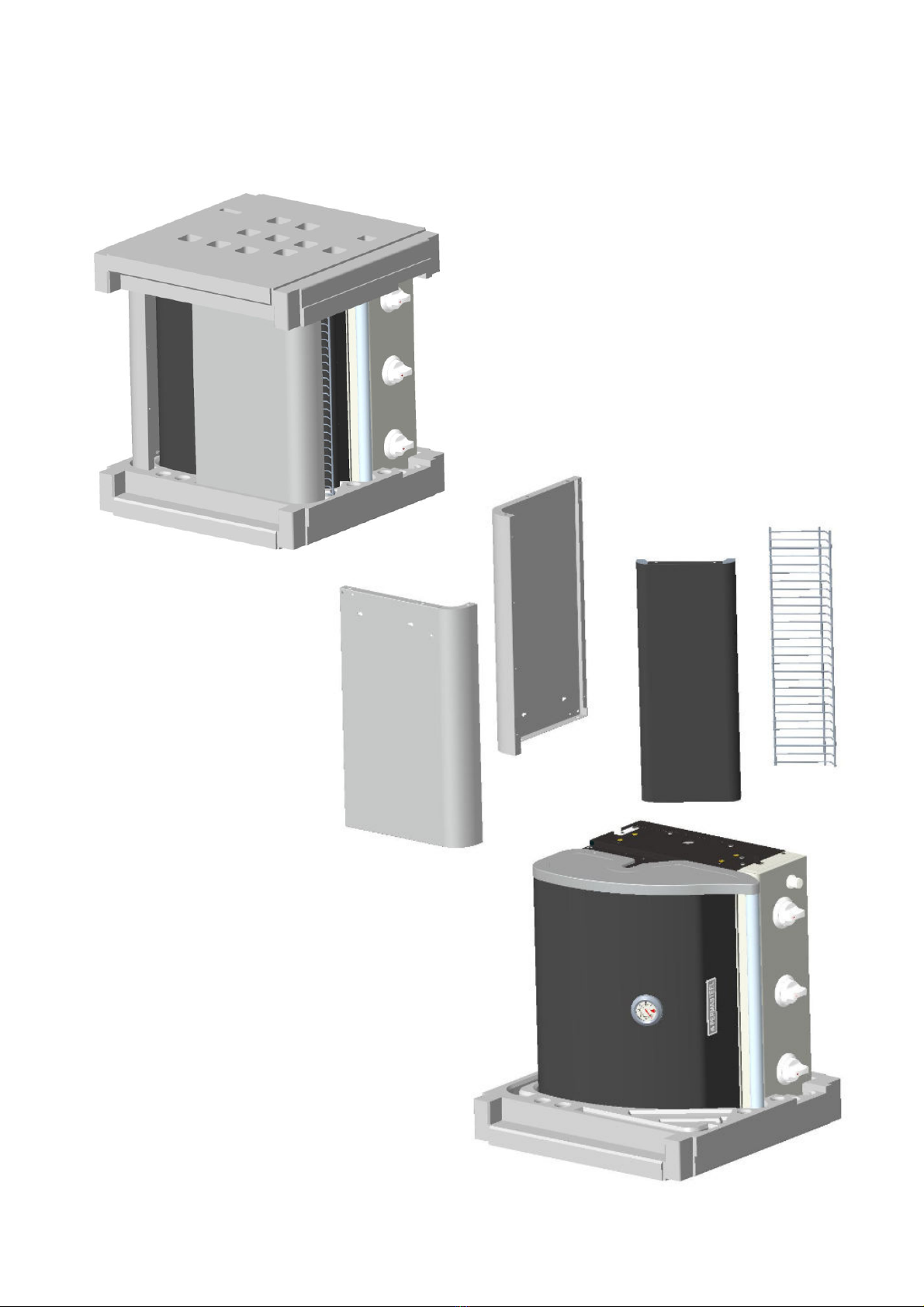

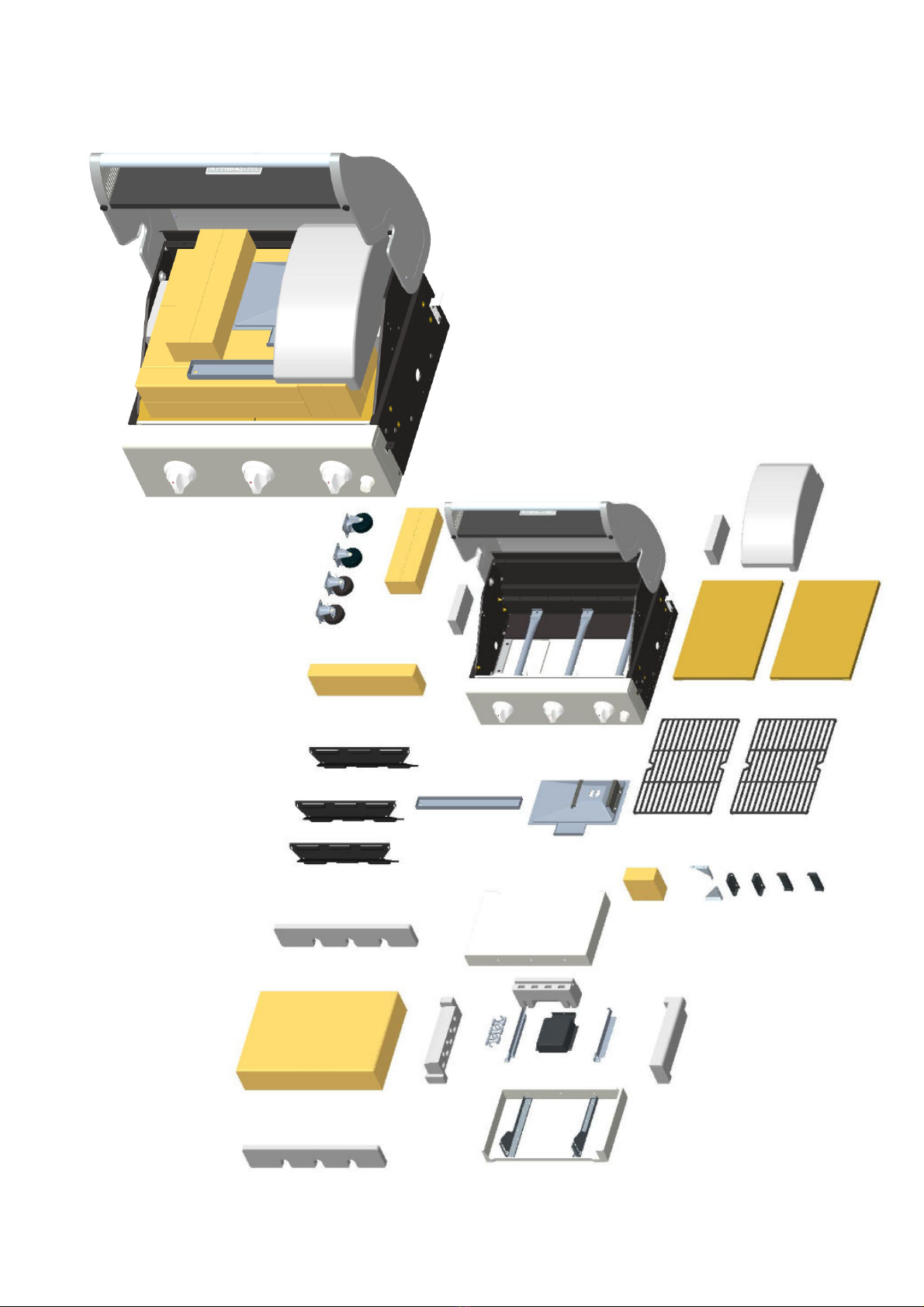

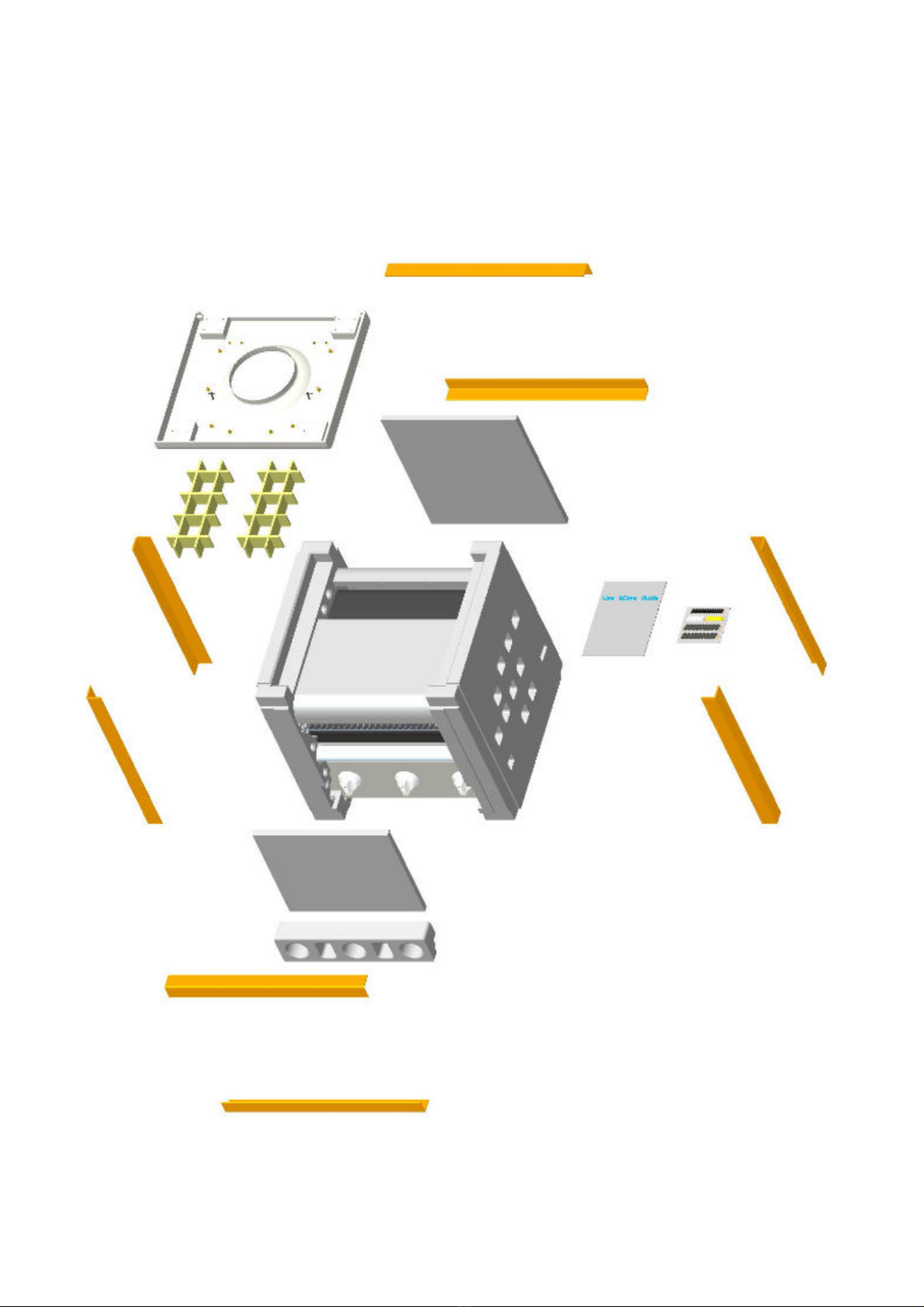

Step : Carefully open the top of the carton with a box cutter, take out all the grill parts, and packing

material above the grill.

Step 2: With the aid of an assistant, turn grill over on its side as shown below, and remove

the top styrofoam endcap. Take out the side panels, front panel and warming rack from the

styrofoam.

Step 3: Remove another styrofoam endcap from the grill and place it upright on the floor.

Open the lid, and take out the small bo es packed inside. Remove all packing materials, and

take out all parts from bo es.

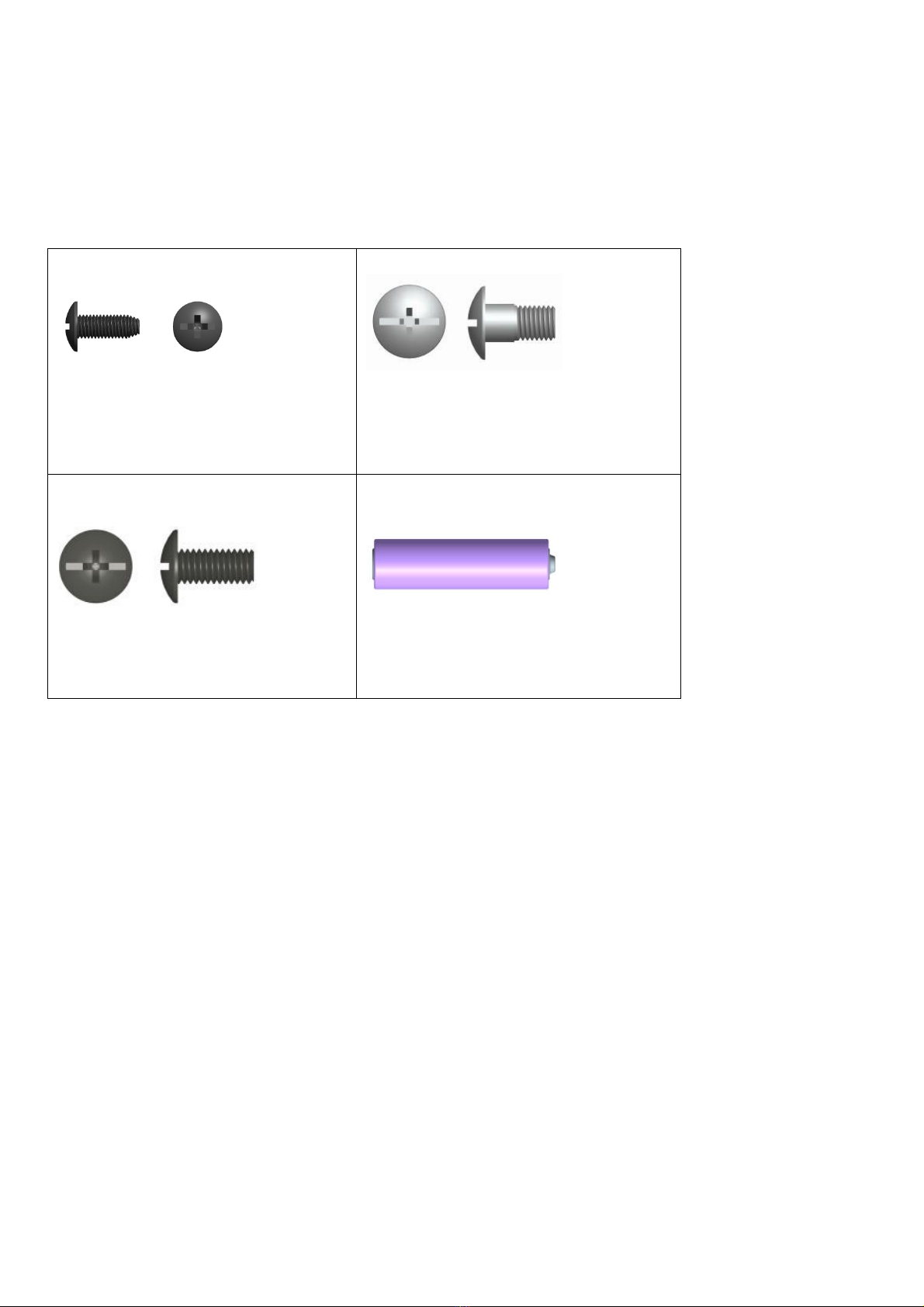

Hardware

The following hardware is provided in a blister pack for convenient use.

M4X10 Screw: 26 pcs

M6 12 Shoulder Bolt: 8 pcs

M6X13 Screw: 36 pcs

Battery (AA): 1 pc

Tools

The following tools are required for assembly:

 Adjustable wrench (not provided)

 Screwdriver (not provided)

 7/16” Combination wrench (not provided)
