Installation and Assembly:
Paramount™ Articulating Wall Mount for
37" - 60" (94 - 152 cm) LCD and Plasma screens
Models: PA760, PWS450/BK
Maximum UL Load Capacity: 130 lb (58.9 kg)
©
UL
USC
I
D
:
0
0
0
0
0
1
8
7
6
2
2 of 38 ISSUED: 12-11-08 SHEET #: 095-9287-2 06-02-09
Table of Contents
Parts List.................................................................................................................................................................................3
Installation to Wood Stud Wall................................................................................................................................................4
Installation to Solid Concrete or Cinder Block ........................................................................................................................5
Installing Adapter Brackets.....................................................................................................................................................6
Mounting and Removing Flat Panel Screen...........................................................................................................................8
NOTE: Read entire instruction sheet before you start installation and assembly.
Tools Needed for Assembly
•
• phillips screwdriver
•drill
• level
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
construction, and fully understands these instructions.
hardware and components.
power.
injury.
WALL CONSTRUCTION HARDWARE REQUIRED
•Wood Stud Included
•Wood Beam Included
•Solid Concrete Included
•Cinder Block Included
•
•
•
WARNING
3 of 38 ISSUED: 12-11-08 SHEET #: 095-9287-2 06-02-09
AB C D
E
F
Parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included with your product.
Description Qt
y
.Part #
A
wall mount 1201-P1646
Buniversal adapter brackets 2201-P1514
C 45S1-015-C03
Dconcrete anchor 4590-0320
Ecable ties 4560-9711
F4 mm allen wrench 1560-0072
Parts List
Adapter Bracket Fasteners
(504-9013)
(504-1015)
(520-1027)
(520-9543)
(520-1128)
(520-1208)
(520-9257)
(520-1136)
(540-1059)
(540-1057) multi-washer (6)
(580-1036)
(520-9402)
(510-9109)
(520-1031)
4 of 38 ISSUED: 12-11-08 SHEET #: 095-9287-2 06-02-09
5 - 3/16"
(132 mm)
CS
Installation to Wood Stud Wall
1
A
C
STUD
STUD
WALL PLATE
A)
hardware and components.
greatly reducing their holding power.
is highly recommended.
Installers are responsible for providing hardware for other types of mounting situations.
WARNING
g.1.2
g.1.1
Wall mount (A
recommended. Use a level to draw a vertical line down the center of the studs. Use a level to draw a horizontal line
lines. NOTE: Be sure arms of wall mount (A
AC
NOTE: Flanges of adapter plate indicate top of mount.
Skip to step 2 on page 6.
5 of 38 ISSUED: 12-11-08 SHEET #: 095-9287-2 06-02-09
(132 mm) above the desired screen center to locate
center points of the top mounting slots as shown in
level wall mount and mark center of four mounting
holes. NOTE: Be sure arms of wall mount (A) are
Insert anchors (D
mount (A
screws (C) as shown right. Make sure wall mount
1.3. NOTE: Flanges of adapter plate indicate top of
mount.
D
A
C
g.1.3
1
1
3
2
D
Drill holes and insert anchors (D).
Place plate (A) over anchors (D) and secure with screws (C).
Tighten all fasteners.
A
D
C
concrete
surface
Installation to Solid Concrete or Cinder Block
concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount
hammer drill to avoid breaking out the back of the hole when entering a void or cavity.
and components.
WARNING
CUTAWAY VIEW
INCORRECT CORRECT
wall
plate
wall
plate
plaster/
drywall
plaster/
drywall
concrete concrete
but do not overtighten
screws, greatly reducing their holding power.
directly
to load-bearing concrete.
concrete covered with plaster, drywall, or other
shown below. Be sure concrete anchors do not
pull away from concrete when tightening screws.
custom fasteners must be supplied by installer (not
evaluated by UL).
WARNING
6 of 38 ISSUED: 12-11-08 SHEET #: 095-9287-2 06-02-09

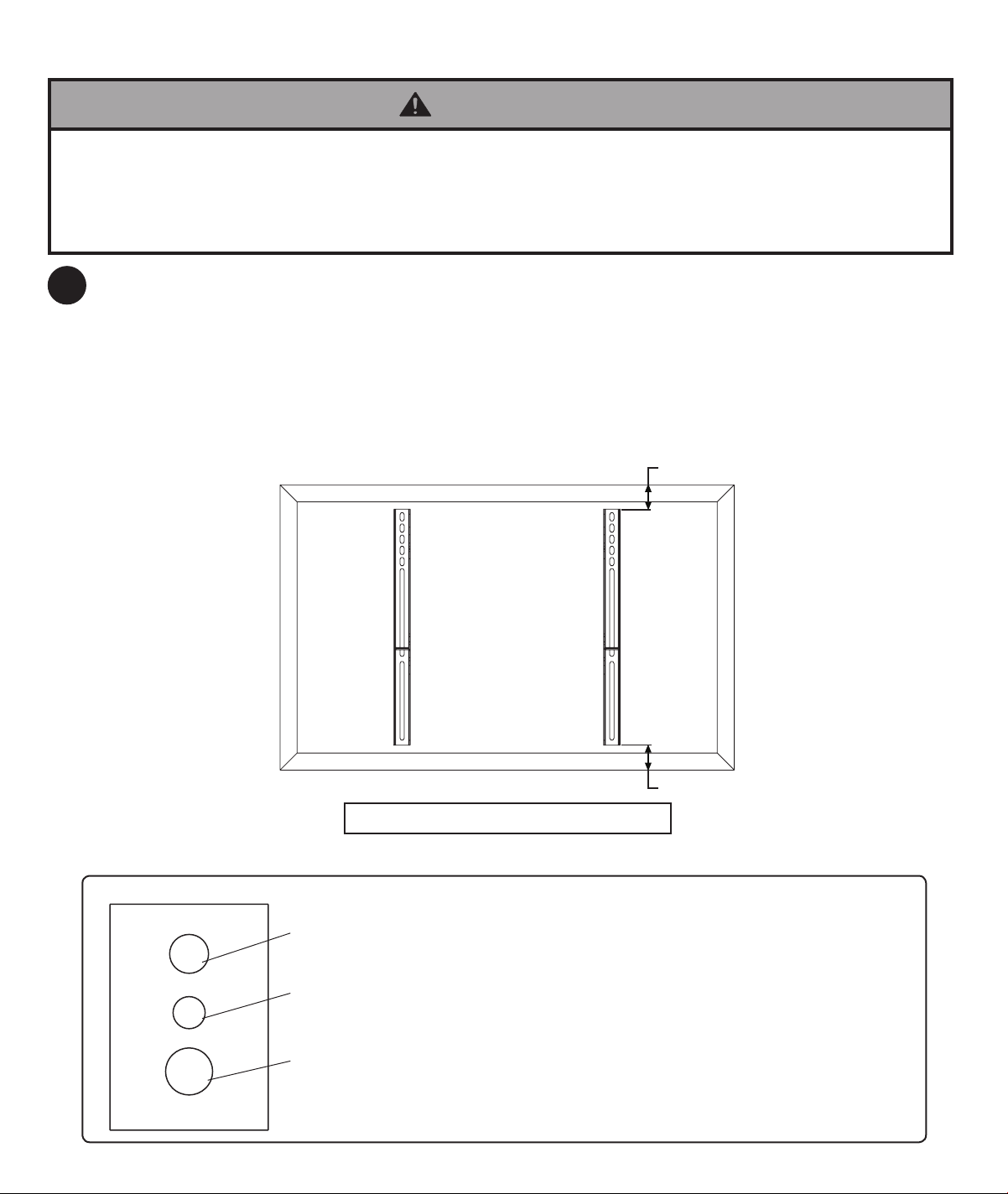

Installing Adapter Brackets
screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.
Place adapter brackets (B) on back of screen, align to holes, and center on back of screen as shown below. Attach
the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers, and
NOTE: Top and bottom holes on screen must always be used.
Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.
cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached.
secured, damage may occur to screen or product may fail.
WARNING
NOTE: For atbackscreens proceed to step 2-1. For bump-out or recessed back screen skip to step 2-2.
NOTE:
B
BRACKETS
BACK
X
X
MULTI-WASHER NOTES:
vary, depending upon the type of
screen.
be used, depending upon the type of
screen.
multi-washer that matches your screw
size.
2
7 of 38 ISSUED: 12-11-08 SHEET #: 095-9287-2 06-02-09
Refer to screen compatibility chart to determine the proper fastener to use. Visit www.peerlessmounts.com/2 for
a full screen compatibility chart for this mount.
Begin with the shortest length screw, hand thread through multi-washer and adapter bracket (B) into screen as
fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
Refer to screen compatibility chart to determine the proper fastener to use. Visit www.peerlessmounts.com/2 for
a full screen compatibility chart for this mount.
Begin with longer length screw, hand thread through multi-washer, adapter bracket (B) and spacer in that order
place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from
For Flat Back Screen
For Bump-out or Recessed Back Screen
ADAPTER BRACKET (B)
g2.1
MULTI-WASHER
SCREW
2-2
2-1
If you have any questions, please call Peerless customer care at 1-800-865-2112.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
MULTI-WASHER
SCREW
ADAPTER BRACKET (B)
g2.2
SPACER
8 of 38 ISSUED: 12-11-08 SHEET #: 095-9287-2 06-02-09
Mounting and Removing Flat Panel Screen
Hook adapter brackets (B) onto wall mount (A)
adapter plate. Then slowly swing screen in as
shown. Turn safety screw, using allen wrench (F),
To horizontally adjust screen, loosen safety screw
and slide screen along adapter plate to desired
screw.
NOTE: To lock the screen down, tighten safety
screws to adapter plate as shown in cross section of
screws, swing screen away from mount, and lift
screen off of mount.
To adjust tilt, hold screen securely and loosen
tension knob. Push or pull from top or bottom of
screen to adjust tilt, then retighten tension knob. Tilt
3
4
ADAPTER PLATE
ADAPTER PLATE
A)
SCREWS
B
B
g3.1
g3.2
g4.1
Tighten
the bottom.
WARNING
9 of 38 ISSUED: 12-11-08 SHEET #: 095-9287-2 06-02-09
Cord Management
If more or less tension is desired in the arm pivot
points, do the following:
NOTE: Do not turn more than half a turn.
Secure cables to top or bottom of wall mount arm (A)
using cable ties (E) as shown.
6
5
to fall.
WARNING
A
E
E
Arm Tension Adjustment
© 2009, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
Peerless Industries, Inc.
Melrose Park, IL 60160
www.peerlessmounts.com
