Peerless-AV LCW420A Mode d’emploi

ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

Max Load Capacity: 15 lbs (6.8 kg)

Installation and Assembly:

Wall Mount for 19" - 30" LCD Screens

Models: LCW420A, LCW620A

LCW420A

LCW620A

2 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

NOTE: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

• phillips screwdriver

• drill

• 5/32" (4mm) drill bit for wood stud

• 3/8" (10mm) drill bit for solid concrete or cinder block

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Wood Stud Wall................................................................................................................................................4

Installation to Solid Concrete or Cinder Block........................................................................................................................5

Attaching Arm Assembly to Screen ........................................................................................................................................6

WARNING

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer care at 1-800-865-2112.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity. See page 1.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

3 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

LCW420A LCW620A

Description Qt

Awall plate 1 1

Bsingle link arm assembly 1 -

double link arm assembly - 1

Cwood screw 2 2

DM6 washer 2 2

Econcrete anchor 22

FM4 x 12 mm phillips screw 44

GM4 x 25 mm phillips screw 44

Hspacer 4 4

I4 mm allen wrench 1 1

J2.5 mm allen wrench 1 1

KM6 x 12 mm phillips screw 11

LM6 plastic washer 11

Mcover 11

Ncable tie 55

Parts List

Parts may appear slightly different than illustrated.

Before you begin, make sure all parts shown are included

with your product. ACD

KL M N

LCW420A LCW620A

FG H

4 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

Installation to Wood Stud Wall

Use a stud ﬁnder to locate the edges of the studs and draw a vertical line down the stud’s center. Place wall plate

(A) on wall as a template. Drill two 5/32" (4mm) dia. holes to a depth of 2" (50mm). Attach wall plate (A) to wall

with two wood screws (C) and two M6 washers (D).

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all

attached hardware and components.

• Tighten wood screws so that wall plate is ﬁrmly attached, but do not overtighten. Overtightening can damage the

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud ﬁnder

is highly recommended.

• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs.

Installers are responsible to provide hardware for other types of mounting situations.

WARNING

5 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

SOLID CONCRETE CINDER BLOCK

Installation to Solid Concrete and Cinder Block

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35mm) of actual

concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount

in a solid part of the block, generally 1" (25mm) minimum from the side of the block. Cinder block must meet ASTM

C-90 speciﬁcations. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a

hammer drill to avoid breaking out the back of the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

WARNING

Use wall plate as template to mark center of holes.

Drill two 3/8" (10mm) dia. holes to a minimum depth

of 2.5" (64mm). Insert anchors (E) into holes. Place

wall plate (A) over anchors and

attach to wall with

two wood screws (C) and two M6 washers (D).

CUTAWAY VIEW

INCORRECT CORRECT

wall

plate

wall

plate

plaster/

drywall plaster/

drywall

concrete concrete

• Tighten screws so that wall plate is ﬁrmly attached,

but do not overtighten. Overtightening can damage

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Always attach concrete expansion anchors directly

to load-bearing concrete.

• Never attach concrete expansion anchors to

concrete covered with plaster, drywall, or other

ﬁnishing material. If mounting to concrete surfaces

covered with a ﬁnishing surface is unavoidable,

the ﬁnishing surface must be counterbored as

shown below. Be sure concrete anchors do not

pull away from concrete when tightening screws. If

plaster/drywall is thicker than 5/8" (16mm), custom

fasteners must be supplied by installer.

WARNING

Drill holes and insert anchors (E).

Place plate (A) over anchors (E) and secure with screws (C).

Tighten all fasteners.

concrete

surface

6 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

Attaching Adapter Plate to Screen

OPTIONAL: To disassemble adapter plate from arm assembly (B), remove knob attached to bottom of adapter

plate as shown in ﬁgure 2.1.

To prevent scratching the screen, set a cloth on a ﬂat, level surface that will support the weight of the screen.

Place screen face side down. If screen has knobs on the back, remove them to allow the adapter plate to be

attached. Place adapter plate on back of screen.

Choose hole pattern as shown in detail 1.

FOR DISPLAYS WITH FLAT BACKS: Attach adapter plate to display using four knobs or remove four knobs and

secure with 12mm screws (F) as shown in ﬁgure 2.2.

FOR DISPLAYS WITH RECESSED BACKS: Remove knobs from adapter plate and attach to display using four

25mm screws (G) and four spacers (H) as shown in ﬁgure 2.3.

• Tighten screws so adapter plate is ﬁrmly attached. Do not tighten with excessive force. Overtightening can cause

stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns into the screen inserts or if screws bottom out and arm is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

VESA 100mm

VESA 75mm

VESA 75mm VESA 100mm

DETAIL 1

ﬁg. 2.2

ﬁg. 2.1

ﬁg. 2.3

or KNOBS

ADAPTER PLATE

KNOB

2-1

7 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

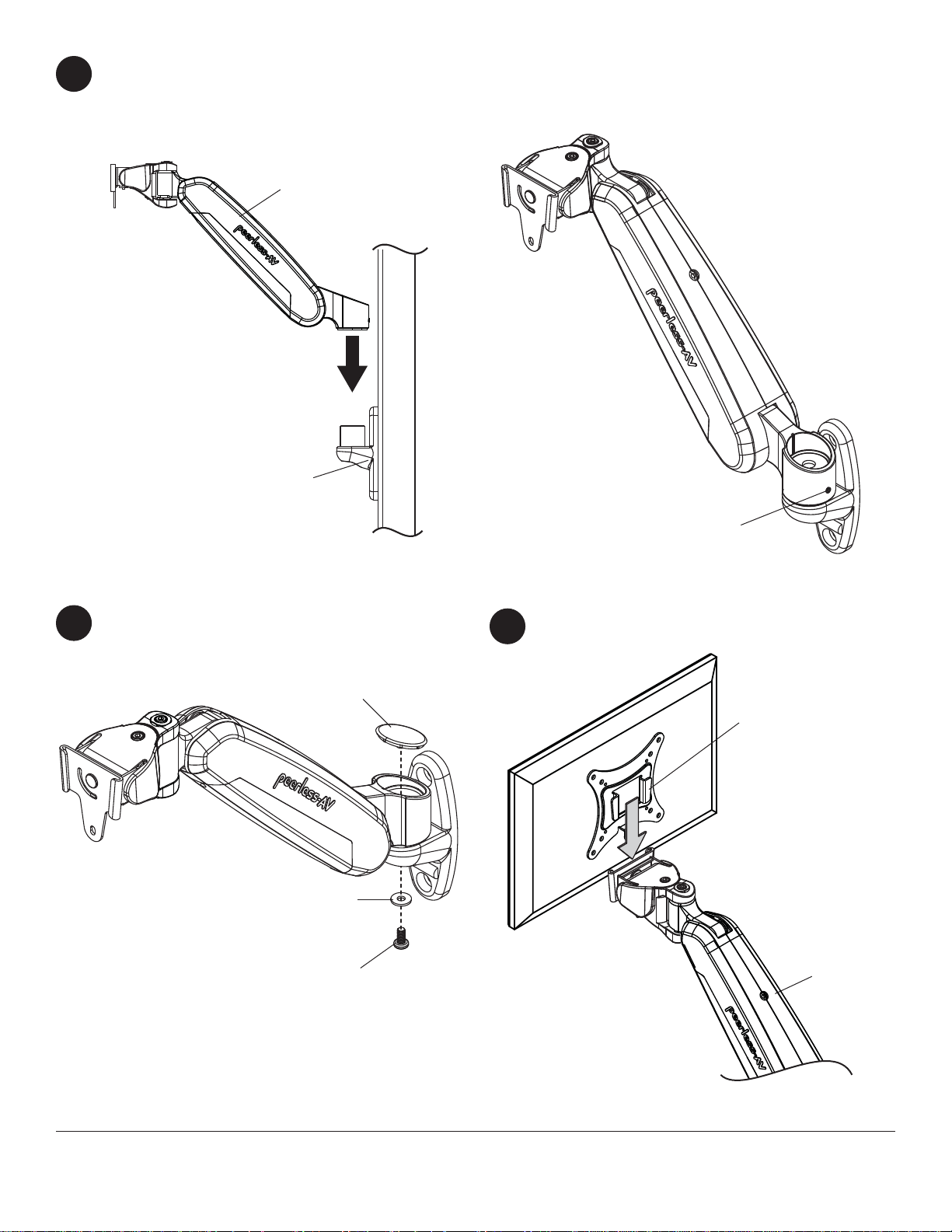

Insert arm assembly (B)onto wall plate (A) as shown in ﬁgure 3.1.

Tighten set screw on rear of arm assembly (B) using 2.5mm allen wrench (J) as shown in ﬁgure 3.2.

Secure arm assembly (B) to wall plate (A) with

one M6 x 12mm phillips screw (K), one M6 plastic

washer (L), and cover (M).

SET SCREW

ﬁg. 3.1 ﬁg. 3.2

ADAPTER PLATE

Hook adapter plate onto arm assembly (B).

8 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

Cables may be routed using cavity in arm assembly (B). Remove the cable cover on arm assembly (B) by pressing

ﬁrmly in the middle of the cable cover and then pulling the ﬂanges of the cable cover. Route the cables in arm

assembly (B) and then reinstall the cable cover.

CABLES

CABLE

COVER

FLANGES

9 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

All other brand and product names are trademarks or registered trademarks of their respective owners.

To lock down rotation, tighten set screw shown in detail 2.

To lock down tilt, tighten screw shown in detail 3.

To lock down swivel, tighten screw shown in detail 4.

To lock down height adjustment, tighten set screw shown in detail 5.

360°

+80/-20°

+/- 6.25"

180°

SET SCREW

DETAIL 2 DETAIL 3

DETAIL 4

DETAIL 5

TILT SCREW

SWIVEL

SCREW

SET SCREW

10 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal

use, for a period of ﬁve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product’s manufacture).

At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or ﬁtness for a particular purpose be longer than the period of the applicable

express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless,

(b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless’ instructions or warnings when installing,

using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured

by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other

person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product.

This warranty gives speciﬁc legal rights, and you may also have other rights which vary from state to state.

LIMITED FIVE-YEAR WARRANTY

www.peerless-av.com
