Peerless-AV DST965 Mode d’emploi

* NOTE: DST965 WILL NOT WORK WITH ADJUSTABLE

EXTENSION COLUMNS AEC006009, OR AEC012018 Maximum Load Capacity: 300 Ib (136 kg)

* SEE NOTE

2300 White Oak Circle • Aurora, IL 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com

ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

Installation and Assembly: Back to Back Ceiling Mount

Model: DST965

2 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

ABC

Before you start make sure all parts listed are included with your product.

PARTS LIST

Description Qty. Part #

main cover 2 145-1452

Bside cover 2 145-1453

Ccable assembly 1 600-0033

Dadapter bracket 4 202-1655

Ecomponent shelf clamp 2 145-1180

Fbottom bracket 1 145-1454

Gcomponent shelf 2 145-1179

HM5 x 10 mm socket pin type-F screw 12 520-1164

I1/4-20 X 2" socket screw 4 520-1010

Jcable wire clamp 1 560-0104

Kcable bracket 2 145-1178

Lsafety belt (not shown) 1 170-8039-1

Madapter plate 2 201-1110

N4 mm security driver tool 1 560-1133

Ointerface bracket 1 200-1090

Ptilt bracket 2 200-1552

QM10 x 1.5 x 15 mm penta-pin™ screw 16 520-9263

RM5 x .8 x 10 mm self-tapping penta-pin screw 1 505-9010

S#8 x 3/8" truss head sheet metal screw 1 520-1078

TM10 x 2" penta-pin tool 1 520-9260

UM5 x 1" penta-pin tool 1 520-9249

2.125" ID x 2.875" OD x .062" H fiber washer 1 540-9432

Wretaining collar 1 1800-375

18" allen wrench 1 560-1727

3 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

KJ MN

OP Q R

Some parts may appear slightly different than illustrated.

M5 x 25 mm (8)

520-1122

M4 x 12 mm (12)

510-1079

M4 x 25 mm (8)

510-1082

M5 x 12 mm (8)

520-1064 M6 x 12 mm (8)

520-1050

M6 x 25 mm (8)

520-1211

I.D. .22" (5.6 mm) (8)

540-1057

multi-washer (8)

580-1036

I.D. .34" (8.7 mm ) (8)

540-1059

M6 x 20 mm (8)

520-9554

M6 x 30 mm (8)

520-1067

M8 x 15 mm (12)

520-1068

M8 x 40 mm (8)

520-1152

M8 x 25 mm (8)

520-1101

Security Adapter Bracket Fasteners

4 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

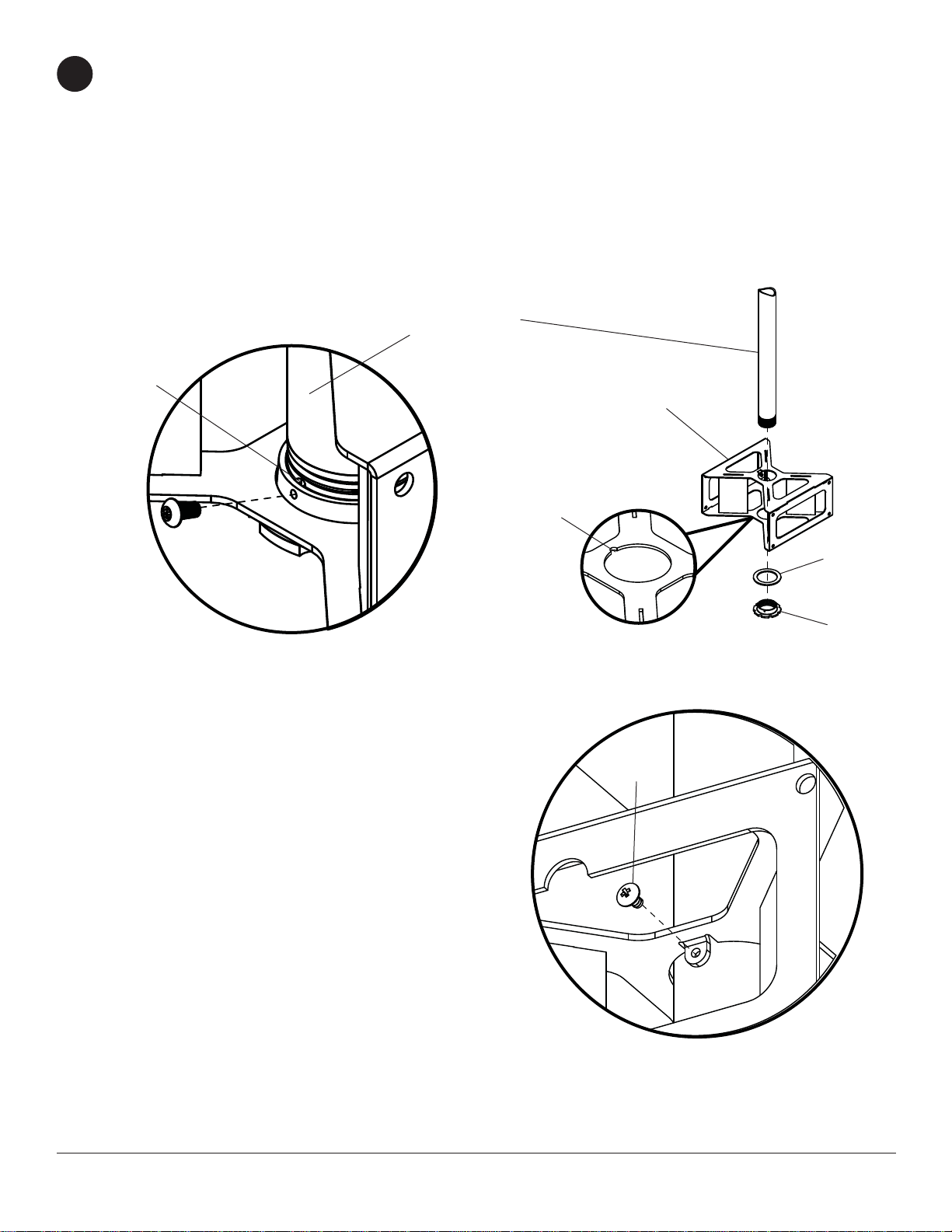

1Note: Notch indicates bottom of interface bracket (O) as shown in detail 1.

Slide interface bracket (O) onto adjustable extension column (not supplied) and attach using ﬁber washer (V) and

retaining collar (W) as shown in ﬁgure 1.1.

Carefully thread retaining collar (W) onto end of extension column. Tighten retaining collar (W) at least four

complete turns ending with one of the small holes aligned with slot in the end of extension column. Insert and

tighten M5 x 10 mm penta-pin screw (R) using M5 x 1" penta-pin tool (U) as shown in ﬁgure 1.2.

Secure Interface bracket (O) into place using one #8 x 3/8" truss head sheet metal screw (S)

as shown in detail 2.

SLOT

Detail 1

NOTCH

Figure 1.2 Figure 1.1

ADJUSTABLE

EXTENSION

COLUMNS

Detail 2

5 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

Detail 4

Secure two component shelves (G) to adjustable extension column (not supplied) using two component shelf

clamps (E) and four 1/4-20 X 2" socket screws (I).

NOTE: Make sure that component shelves are in the orientation as shown in detail 4.

Attaching Component Shelf

ADJUSTABLE

EXTENSION

COLUMNS

2Screw eight M10 x 15 mm penta-pin screws (Q) into interface bracket (O) leaving approximately

1/4" of exposed thread as shown below and in detail 3.

1/4"

Detail 3

6 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

5Hook tilt plate (P) and support assembly onto M10 x 15 mm penta-pin screws (Q).

Repeat with second support assembly.

SUPPORTASSEMBLIES

4Secure four M10 x 15 mm penta-pin screws (Q) through

cable bracket (K), tilt plate (P), main cover (A), and adapter

plate (M), and as shown below.

Repeat with second support assembly. K

TOP

7 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

7Secure bottom bracket (F) to support assemblies using M5 x 10 mm socket pin Type F screws (H)

as shown below. SUPPORTASSEMBLIES

SUPPORTASSEMBLIES

6Run cable assembly (J) down through extension column around and through two cable brackets (K)

as shown below.

Secure cable to itself using u-bolt, clamp and nuts from cable wire clamp (J).

U-BOLT

CABLE

CLAMP

NUT

8 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

Note: "X" dimensions should be equal.

Installing Adapter Brackets

To prevent scratching the screen, set a cloth on a ﬂat, level surface that will support the weight of the screen. Place

screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.

Place adapter brackets (D) on back of screen, align to holes, and center on back of screen as shown below. Attach

the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers and

spacers as shown in step 8-1 and step 8-2.

NOTE: Top and bottom holes on screen must always be used.

Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.

NOTE: Tighten using security allen wrench (X).

MEDIUM HOLE FOR M5 SCREWS

SMALL HOLE FOR M4 SCREWS

LARGE HOLE FOR M6 SCREWS

DCENTER BRACKETS

VERTICALLY ON BACK OF

SCREEN

Notes:

• The number of fasteners used will vary,

depending upon the type of screen.

• Multi-washers and spacers may not be

used, depending upon the type of screen.

• Use the corresponding hole in the multi-

washer that matches your screw size as

shown.

MULTI-WASHER

• Tighten screws so adapter brackets are ﬁrmly attached. Do not tighten with excessive force. Overtightening can

cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

NOTE: For ﬂat back screens proceed to step 8-1. For bump-out or recessed back screen skip to step 8-2.

9 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into screen as

shown below. Screw must make at least three full turns into the mounting hole and ﬁt snug into place. Do not

over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the bafﬂed

fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.

NOTE: Spacers may not be used, depending upon the type of screen.

Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into

screen as shown below. Screw must make at least three full turns into the mounting hole and ﬁt snug into place.

Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the

bafﬂed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.

For Flat Back Screen

For Bump-out or Recessed Back Screen

8-1

8-2

If you have any questions, please call Peerless customer care at 1-800-865-2112.

DISPLAY

MULTI-WASHER

SCREW

ADAPTER

BRACKET

(BB)

ﬁg. 8.2

SPACER

ﬁg. 8.1

ADAPTER

BRACKET

(BB)

DISPLAY

MULTI-WASHER

SCREW

10 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14

Mounting and Removing Flat Panel Screen

Hook adapter brackets (D) onto adapter plate (M), then slowly swing screen in as shown. Turn safety/security

screws clockwise at least six times to prevent screen from being removed as shown in detail 5.

Tighten using wrench (X).

Screen can be adjusted horizontally if desired as shown in ﬁgure 9.1.

NOTE: To lock the screen down, tighten safety/security screws to adapter bracket as shown in detail 5.

To remove screen from mount, loosen safety/security screws, swing screen away from mount, and lift screen off of

mount.

• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.

WARNING

Fig. 9.1

DETAIL 5

SAFETY/SECURITY

SCREWS
