Peerless-AV DS-VWC555-3x2 Mode d’emploi

1ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

Installation and Assembly: 3 x 2 Cart

Model: DS-VWC555-3x2

Maximum Load Capacity 650lbs (295kg)

1. All dimensions:

Font = Arial Regular 8 pt

mm color = black

inch color = Pantone 201C (SMYK)

2. Captions:

Font = Century Gothic/Bold 10 pt

Color = black

1. All dimensions:

Font = Arial Regular 4.8 pt

Color = black

2. Captions:

Font = Century Gothic/Bold 6 pt

Color = black

3. Sub-captions:

Font = Century Gothic/Bold 4.8 pt

Color = black

4. Line drawings:

Color = black

Line weight = from .5 to 1 pt (visual call depending on

drawing)

All arrows must be the same style

3. Sub-captions:

Font = Century Gothic/Bold 8 pt

Color = black

4. Line drawings:

Color = black

Line weight = from .5 to 1 pt (visual call depending on drawing)

All arrows must be the same style

A R C H I T E C T S S P E C I F I C A T I O N S

CATALOG LINE DRAWING TEMPLATE

PRODUCT DATA SHEET TEMPLATE W: 7.8883" x H: 4.3737"

W: 4.7431" x H: 2.6944"

Model: DS-VWC555-3X2

The Video Wall Cart shall be a Peerless model DS-VWC555-3X2 and shall be located where indicated on the plans. Assembly

and installation shall be done according to instructions provided by the manufacturer.

119.21"

(3028mm)

114.66"

(2912mm)

99.52"

(2528mm)

31.94"

(811mm)

39.28"

(998mm)

12.14"

(308mm)

FRONT VIEW SIDE VIEW

COMPATIBILITY FORMULA

ADAPTER BRACKET SIDE VIEW

± 0.63” (16mm)

Height and Depth

Adjustment

5.91"

(150mm)

7.87"

(200mm)

11.81"

ADAPTER

PLP

PLATE

(300mm)

13.78"

(350mm)

15.75"

(400mm)

0.63"

(16mm)

0.63"

(16mm)

Display width must be ≥39.75”

Display height must be no < 31.94”

Two display widths + hole pattern width must be <114.65”

119.21"

(3028mm)

114.66"

(2912mm)

99.52"

(2528mm)

31.94"

(811mm)

39.28"

(998mm)

12.14"

(308mm)

FRONT VIEW SIDE VIEW

COMPATIBILITY FORMULA

ADAPTER BRACKET SIDE VIEW

± 0.63” (16mm)

Height and Depth

Adjustment

5.91"

(150mm)

7.87"

(200mm)

11.81"

ADAPTER

PLP

PLATE

(300mm)

13.78"

(350mm)

15.75"

(400mm)

0.63"

(16mm)

0.63"

(16mm)

Display width must be ≥39.75”

Display height must be no < 31.94”

Two display widths + hole pattern width must be <114.65”

2ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

Parts List: 202-1526 (FINAL ASSEMBLY)

Part Description Quantity Part Number

Avertical support 2 145-1543

Badapter brackets 12 145-1711

Chorizontal support 3 145-1382

Dshelf 1 145-1361

E5” caster 4 600-0026

F1/4” at washer 48 540-9440

GM8 x 25mm phillips screw 16 520-1031

H5/16 at washer 16 540-9406

I5/16 split washer 16 540-9405

J1/4-20 x 3.5” hex head screw 48 520-1656

K1/4-20 nylock nut 48 530-9413

L.38 OD x .06 LG nylon washer 24 590-2233

M18” mesh sleeve 6 600-1014

NM8 x 16mm phillips screw 24 520-9257

OM6 x 12mm phillips screw 24 520-1128

P4mm allen wrench 6 560-9646

Qcable tie 12 560-9711

Rtube cap 2 590-1289

SM5 x 10mm socket pin screw (not used) 12 520-1164

T#14 fender washer (not used) 24 540-1008

Ulower front cover 1 145-1505

Vlower back cover 1 145-1384

Wupper cover 2 145-1754

Xrail connection bracket 4 145-1503

Yhorizontal rail 4 145-1447

Zside cover 2 145-1362

AA M5 x 10mm phillips screw 24 520-1233

BB at washer 24 540-9400

CC lock washer 24 540-1035

DD decorative screw 12 520-2326

EE spacer 4 590-1136

FF self-drilling screw 3 520-1320

GG connection bracket 2 145-1504

HH M6 x 16mm phillips screw 36 520-9274

Before beginning, make sure you have all parts shown

3ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

IH KL M

N O P QR

4ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

UVW

AA BB CC

DD EE FF

5ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

Assembling Cart

1Attach two horizontal supports (C) to vertical support (A) using eight 1/4-20 x 3.5" hex head screws (J),

1/4" SAE washers (F) and 1/4-20 nylock nuts (K).

2Attach horizontal supports (C) to second

vertical support (A) using eight 1/4-20 x 3.5" hex

head screws (J), 1/4" SAE washers (F) and 1/4-20

nylock nuts (K).

3Attach horizontal support (C) to vertical supports (A)

using eight 1/4-20 x 3.5" hex head screws (J),

1/4" SAE washers (F) and 1/4-20 nylock nuts (K).

JFK

6ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

4Attach four swivel casters (E) to vertical supports (A) using sixteen M8 x 25 mm pan phillips screws (G),

split washers (I) and 5/16" SAE at washers (H).

5Attach two rail brackets (Y) together using two rail connection brackets (X) with eight M5 x 10 mm pan phillips

screws (AA), lock washers (CC), and at washers (BB).

BB CC

7ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

X = HEIGHT OF DISPLAY

DISPLAY HEIGHT

DISTANCE

EQUALS

DISPLAY

HEIGHT

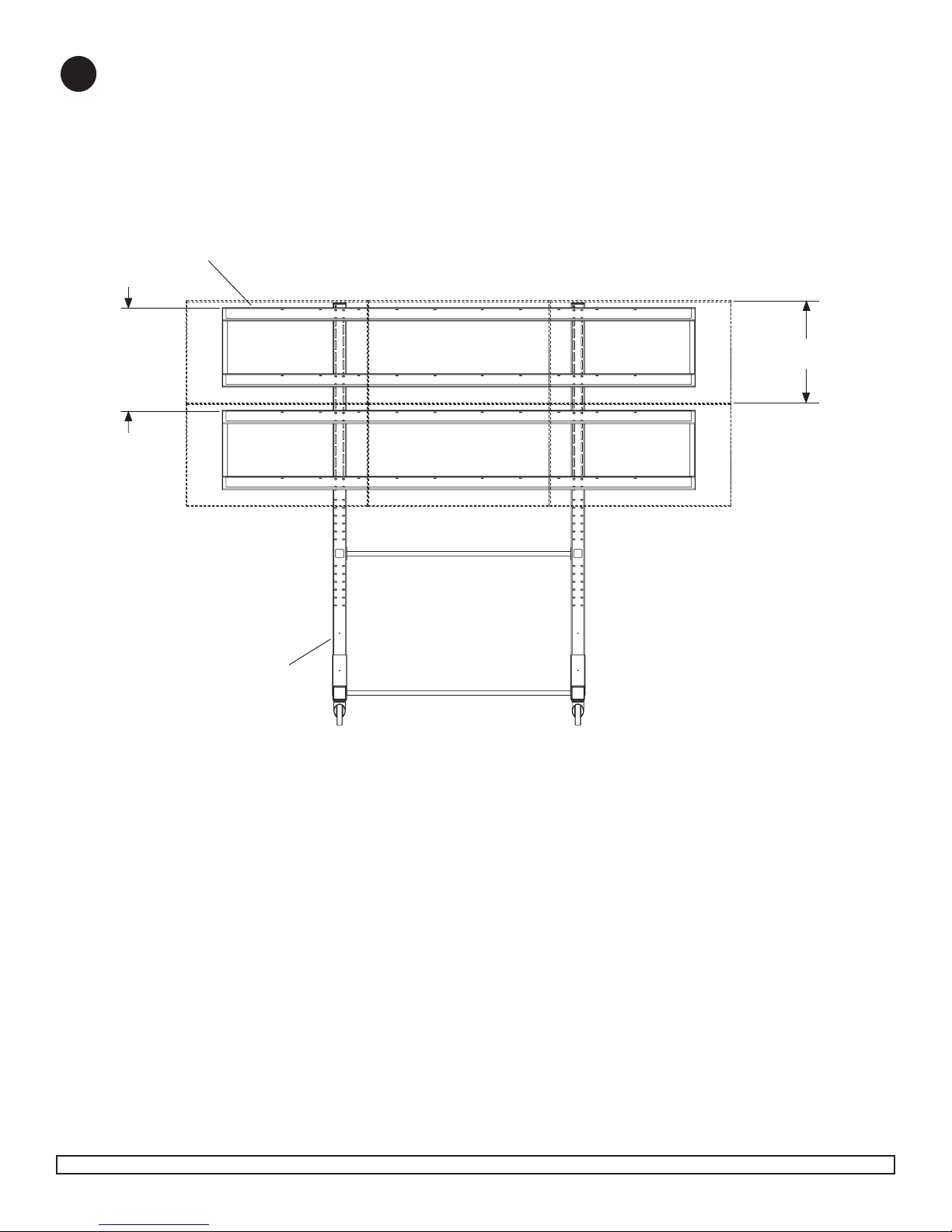

1. Locate the position of the lower horizontal rail assemblies and attach to vertical supports (A).

2. Use display height to determine location of upper horizontal rail assemblies,

NOTE: Horizontal rail assemblies must be secured using sixteen 1/4-20 x 3.5" hex head screws (J).

Determine position of horizontal rails assemblies using the formula below.

UPPER HORIZONTAL RAIL

LOWER HORIZONTAL RAIL

HORIZONTAL RAIL ASSEMBLY

8ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

7Attach two horizontal rails assemblies onto vertical supports (A) using 16 1/4-20 x 3.5" hex head screws (J), 1/4"

SAE washers (F) and 1/4-20 nylock nuts (K) as shown in detail 2. Make sure that horizontal rail

assemblies are level then tighten all 1/4-20 x 3.5" hex head screws (J). Place two tube caps (R) into tops of vertical

supports (A) as shown in detail 2.

DETAIL 2

CABLE MANAGEMENT

8NOTE: Display cables can be covered using

18" mesh sleeve (M) before securing.

Display cables can be secured to horizontal

rails assemblies using cable ties (Q) as needed

through slots in horizontal rails (Y).

SLOT

9ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

9NOTE: Connection brackets (GG) orientation.

Place connection brackets (GG) onto rail connection brackets (X) as shown below.

FRONT OF DISPLAY CART

RIGHT SIDE

LEFT SIDE

10 ISSUED: 04/24/2013 SHEET #: 125-9433

Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112.

FRONT

BACK

AA CC BB

Attach connection brackets (GG) onto rail connection brackets (X) as shown below.

Secure one connection brackets (GG) with four M5 x 10 mm phillips screws (AA), lock washers (CC), and

at washers (BB) as shown below. Repeat step for remaining connection bracket (GG).

9-1
