Installation and Assembly: Tray Style Projector Mount

Models: PSMU-PRS, PSMU-PRS-S, PSMU-PRS-W

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

Maximum Load Capacity: 30 lb (13.6 kg)

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

2 of 11

NOTE: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

•stud ﬁnder ("edge to edge" stud ﬁnder is recommended)

•phillips screwdriver

•drill with 5/16", 3/8", and 5/32" drill bits

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer service at 1-800-865-2112.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

• Never exceed the Maximum Load Capacity of 30 lb (13.6 kg).

• If mounting to wood ceiling joists, make sure that mounting screws are anchored into the center of the joists. Use of

an "edge to edge" stud ﬁnder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

WARNING

Accessories

•Lightweight Adjustable Suspended Ceiling Kit (CMJ 500)

•Lightweight Suspended Ceiling Kit (CMJ 455)

•Accessory Pack for CMJ 455 (ACC 455)

•Lightweight Cathedral Ceiling Plate (ACC 912)

•Unistrut or Structural Ceiling Plates (CMJ 300, CMJ 310)

•Anti-Vibration Ceiling Plates (ACC 845)

•I-Beam Clamps (ACC 558, ACC 559)

•Truss Ceiling Adapter (ACC 557)

•Unistrut Adapter (ACC 550)

•Escutcheon Ring (ACC 640)

•Round Ceiling Plate (ACC 570)

•Cord Wrap (ACC 852, ACC 852W, ACC 852S)

•3/4" Pipe Reducer (ACC 913)

•Fixed Length 1 1/2" Extension Columns

(EXT models)

•Adjustable Length 1 1/2" Extension Columns

(ADJ models)

•Extension Column Stabilizer Kit (ACC 050)

•Extension Column Connector (ACC 109)

•1/2" Threaded Rod (ACC 820)

•Threaded Rod Adapter (ACC 810)

Installations:

To Wood Joist Finished Ceilings,

Exposed Wood Joists, or Wood Beam Ceilings ......................................................................................... page 5

To Concrete Ceilings ..................................................................................................................................... page 6

To Threaded Rod, or Extension Columns.................................................................................................... page 7

Projector Alignment:

Adjusting Roll Pitch and Yaw ..................................................................................................................... page 11

IMPORTANT! Turn to the appropriate page for your ceiling installation.

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

3 of 11

NOTE: Actual parts may appear slightly different than illustrated.

IMPORTANT! Read entire instruction sheet before you start installation and assembly.

Before you start check the parts list below to make sure all of the parts shown are included.

Parts List

Description Qty. PSMU-PRS PSMU-PRS-S PSMU-PRS-W

projector mount assembly 1 055-1963 055-4963 055-2963

Btray 1 055-0725 055-0725-S 055-0725-W

Clock plug 1 3022-502 3022-502 3022-502

Dthumb screw 1 560-0106 560-0106 560-0106

E#10-32 X 3/8 serrated washer head socket pin screw 2 520-1151 520-2151 520-2151

Fspacer 12 540-9416 540-9416 540-9416

Gbushing 4 590-1116 590-1116 590-1116

Hsquare nut 4 530-1022 530-1022 530-1022

Iwasher 4 540-1025 540-1025 540-1025

J1/4 X 3/8 socket pin 4 520-1109 520-1109 520-1109

KM3 X 16mm serrated washer head socket pin screw 4 510-1083 510-1083 510-1083

LM3 X 25mm serrated washer head socket pin screw 4 510-1127 510-1127 510-1127

MM4 X 16mm serrated washer head socket pin screw 4 510-1087 510-1087 510-1087

M4 X 25mm serrated washer head socket pin screw

510 1082

M4 X 2

5mm serrate

was

soc

et p

n screw

1082

OM4 X 35mm serrated washer head socket pin screw 4 510-1097 510-1097 510-1097

PM5 X 16mm serrated washer head socket pin screw 4 510-1161 510-1161 510-1161

QM5 X 25mm serrated washer head socket pin screw 4 510-1122 510-1122 510-1122

RM6 X 20mm serrated washer head socket pin screw 4 510-9554 510-9554 510-9554

SM6 X 30mm serrated washer head socket pin screw 4 510-1067 510-1067 510-1067

T4 mm T-WRENCH 1 560-1718 560-1718 560-1718

U2mm allen wrench 1 560-1097 560-1097 560-1097

wood screw 2 5S1-015-C03 5S1-015-C04 5S1-015-C04

Wconcrete anchor 2 590-0320 590-0320 590-0320

key 1 0000-322 0000-322 0000-322

#10-32 X 1/4" socket pin screw 1 520-1196 520-2196 520-2196

Zconnection block 1 580-1065 580-4065 580-4065

NOTE: Assembled to tray assembly (B)

EFG

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

4 of 11

Remove the lock plug (C) by turning the key counterclockwise. Open the top cover and attach connection block (Z)

to tray (B) using two #10-32 x 3/8" serrated washer head socket pin screws (E) as shown.

NOTE: Make sure that the connection block shoulder is facing the back of projector.

CONNECTION

BLOCK SHOULDER

BACK OF

PROJECTOR

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

5 of 11

WOOD JOIST

FRONT OF MOUNT

WOOD JOIST

ﬁgure 2.2

ﬁgure 2.1

Place projector mount assembly (A) on ceiling as a template and mark the center of the two mounting holes. Make

sure that the mounting holes are in the center of the wood joist. Drill two 5/32" (4 mm) dia. holes to a minimum

depth of 2.5" (64 mm). Attach projector mount assembly (A) with two #14 X 2.5" (6 mm x 64 mm) wood screws (V)

and two ﬂat washers (I) as shown in ﬁgure 2.1 or ﬁgure 2.2 depending on joist orientation.

Note: Mounting slots on projector mount assembly (A) allow for 30° (±15°) of swivel adjustment before fully

securing wood screws (V).

Tighten wood screws (V) using 3/8" (10 mm) socket wrench until projector mount assembly (A) is ﬁrmly attached.

Installation To Wood Joist Ceilings

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all

attached hardware and components.

• Tighten wood screws so that projector mount assembly is ﬁrmly attached, but do not overtighten. Overtightening

can damage the screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud ﬁnder

is highly recommended.

• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-

ers are responsible to provide hardware for other types of mounting situations.

WARNING

Skip to step 6

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

6 of 11

Place projector mount assembly (A) on ceiling as a

template and mark the center of the two mounting

holes. Drill two 5/16" (8 mm) dia. holes to a minimum

depth of 2.5" (64 mm). Attach projector mount assembly

(A) using two concrete anchors (W), two ﬂat washers

(I), and two #14 x 2.5" wood screws (V) as shown.

NOTE: Mounting slots on projector mount assembly

allow for 30° (±15°) of swivel adjustment before fully

securing wood screw.

Tighten wood screws (V) using 3/8" (10 mm) socket

wrench, phillips screwdriver until projector mount

assembly (A) is ﬁrmly attached.

Skip to step 6

Installation to Concrete Ceilings

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

WARNING

• Tighten wood screws ﬁrmly, but do not overtighten.

Overtightening can damage screws, greatly reducing

their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Always attach concrete anchors directly to load-

bearing concrete.

• Never attach concrete anchors to concrete covered

with plaster, drywall, or other ﬁnishing material. If

mounting to concrete surfaces covered with a ﬁnish-

ing surface is unavoidable, the ﬁnishing surface

must be counterbored as shown below. Be sure con-

crete anchors do not pull away from concrete when

tightening screws. If plaster/drywall is thicker than

5/8", custom fasteners must be supplied by installer.

WARNING

FRONT OF

MOUNT

Drill holes and insert anchors (W).

Place plate (A) over anchors (W) and secure with screws (V).

Tighten all fasteners.

concrete

surface

CUTAWAY VIEW

INCORRECT CORRECT

plaster/

drywall

plaster/

drywall

concrete concrete

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

7 of 11

Thread two 3/8-16 hex thin nylon-insert locknuts (not included) on two 3/8-16 threaded rods (not included) to the

desired height of projector mount assembly. Attach projector mount assembly (A) to two 3/8-16 threaded rods using

two 3/8-16 hex thin nylon-insert locknuts as shown in ﬁgure 4.1 or ﬁgure 4.2.

Skip to step 6.

Installation to Extension Column

Screw projector mount assembly (A) onto extension column (sold separately) as shown in ﬁgure 5.1. Tighten

swivel stop screw against extension column or reducer using 4 mm allen wrench (T).

NOTE: Swivel stop screw is used to jam against threads of extension column or reducer to prevent any excess

movement of projector mount assembly (A). Do not overtighten screw; overtightening screw will damage threads

making it difﬁcult to separate products.

SWIVEL STOP SCREW

1 1/2" EXTENSION COLUMN

(SOLD SEPARATELY)

3/8 -16 HEX THIN

NYLON-INSERT

LOCKNUT

(NOT INCLUDED)

FRONT OF

MOUNT

FRONT OF

MOUNT

ﬁg. 4.1 ﬁg. 4.2

BACK OF MOUNT

3/8 -16 HEX THIN

NYLON-INSERT

LOCKNUT

(NOT INCLUDED)

ﬁg. 5.1

3/8 -16 THREADED ROD

(NOT INCLUDED)

3/8 -16 HEX THIN NYLON-

INSERT LOCKNUT

(NOT INCLUDED)

3/8 -16 THREADED ROD

(NOT INCLUDED)

3/8 -16 HEX THIN NYLON-

INSERT LOCKNUT

(NOT INCLUDED)

Installation to Threaded Rod

(Professional installation only)

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

8 of 11

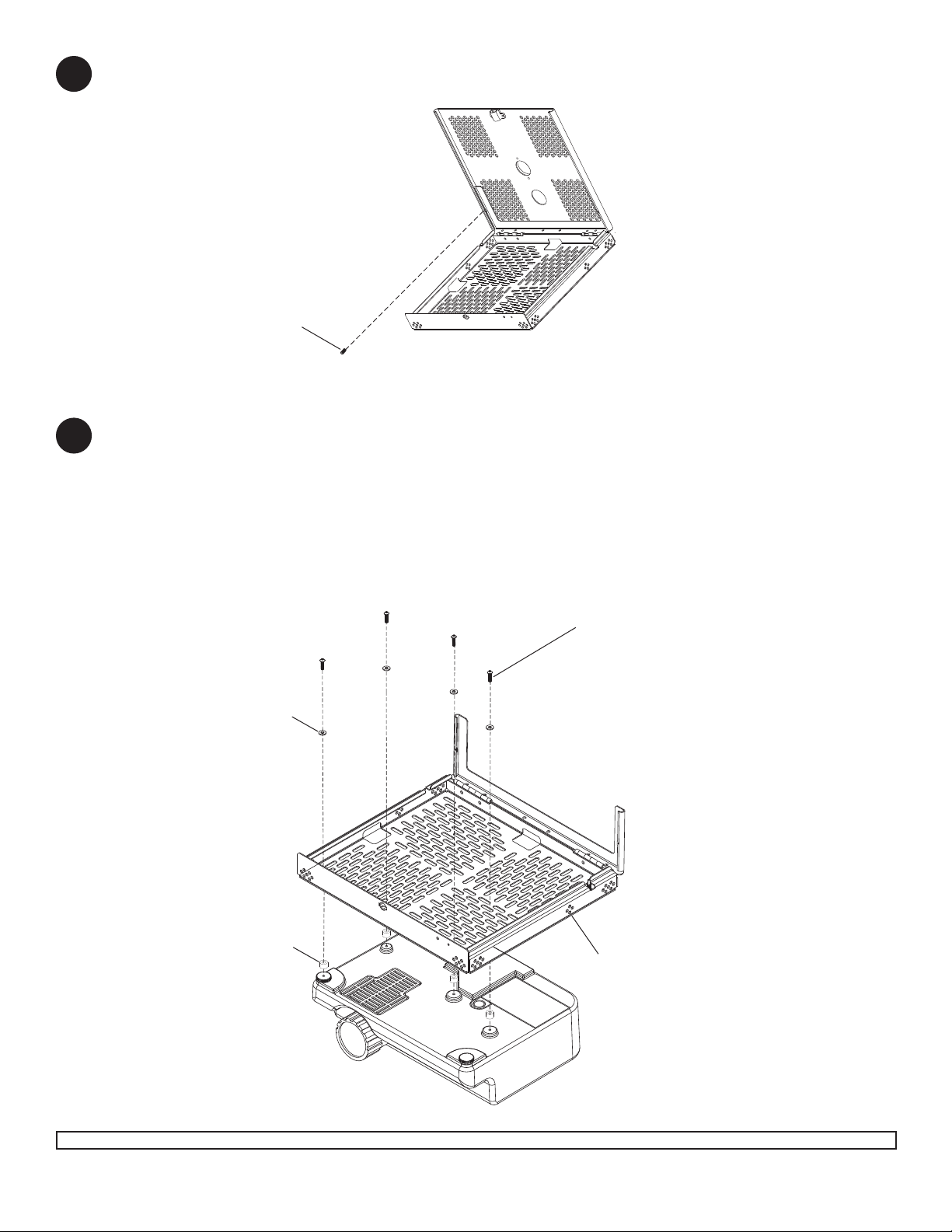

Open the mount and remove thumb screw (D) as shown. NOTE: The upper tray of the mount will now slide off

of the lower tray.

Flip projector upside down. Attach lower tray to the bottom of the projector using appropriate number of screws (K, L,

M, N, O, P, Q, R or S), washers (I) and spacers (F) as shown. Use 4 mm allen wrench (T) to tighten screws.

IMPORTANT: If projector does not have at least three mounting holes, do not use this tray assembly.

NOTE: Some projectors have feet which can be removed and the corresponding threaded insert can be used for a

mounting hole.

NOTE: Projector may differ slightly in appearance.

Installation of Projector

PROJECTOR

LOWER

TRAY

K,L,M,N,

O,P,Q,R

or S

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

9 of 11

Slide upper tray into the lower tray as shown.

UPPER

TRAY

LOWER

TRAY

Attach thumb screw (D) to mount as shown to lock the upper tray to the lower tray.

UPPER

TRAY

LOWER

TRAY

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112

10 of 11

Close the mount and insert the lock plug (C) and key (X) as shown. Turn lock plug clockwise until tightly secure.

NOTE: To remove key (X), key slot must be in the horizontal position. This may require that you back off 1/4 turn.

IMPORTANT: Key (X) is neccesary for projector removal. Store it in a safe place.

Slide connection block (Z) into projector mount assembly (A). Tighten captive screw to secure projector to projector

mount assembly (A).

CAPTIVE SCREW

BACK VIEW

• Do not lift more weight than you can handle! Use additional man power or mechanical lifting equipment to

safely handle placement of the projector!

WARNING

PROJECTOR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels peerless-AV Support et étagère

peerless-AV

peerless-AV MOD-FW2KIT300 Manuel utilisateur

peerless-AV

peerless-AV MOD-WP2 Manuel utilisateur

peerless-AV

peerless-AV SR598E Manuel utilisateur

peerless-AV

peerless-AV HT642-003 Mode d’emploi

peerless-AV

peerless-AV DS-VW655-2X2 Manuel utilisateur

peerless-AV

peerless-AV MOD-CPF2 Manuel utilisateur

peerless-AV

peerless-AV SmartMount SF632 Manuel utilisateur

peerless-AV

peerless-AV KIP542B Manuel utilisateur

peerless-AV

peerless-AV ACC340 Mode d’emploi

peerless-AV

peerless-AV EWP-OH85F Manuel utilisateur

peerless-AV

peerless-AV DS-S555-4X3 Manuel utilisateur

peerless-AV

peerless-AV PR565 Manuel utilisateur

peerless-AV

peerless-AV WMJ018 Manuel utilisateur

peerless-AV

peerless-AV PRGS-UNV Manuel utilisateur

peerless-AV

peerless-AV SR560G Manuel utilisateur

peerless-AV

peerless-AV DS-MBZ942L-2X1 Manuel utilisateur

peerless-AV

peerless-AV DS-LEDL27-7X6 Manuel utilisateur

peerless-AV

peerless-AV Smart-Mount SP850-UNL Manuel utilisateur

peerless-AV

peerless-AV ACC557 Manuel utilisateur

peerless-AV

peerless-AV SMARTMOUNT SP850 Manuel utilisateur

peerless-AV

peerless-AV DS-VW765-LAND Manuel utilisateur

peerless-AV

peerless-AV SMARTMOUNT STL670 Manuel utilisateur

peerless-AV

peerless-AV DS-MBY947L-3X1 Manuel utilisateur

peerless-AV

peerless-AV DS-VW765-PQR Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur

peerless-AV PSMU-PRS Mode d’emploi

Manuels Support et étagère populaires d'autres marques
