Peerless-AV DS-S560-2X2 Manuel utilisateur

12014-07-29 #:009-9087-6 (2020-01-14)

ENG

DS-S560-2X2

46" - 60"

(117 -152 cm)

500 lb

(227 kg)

MAX

22014-07-29 #:009-9087-6 (2020-01-14)

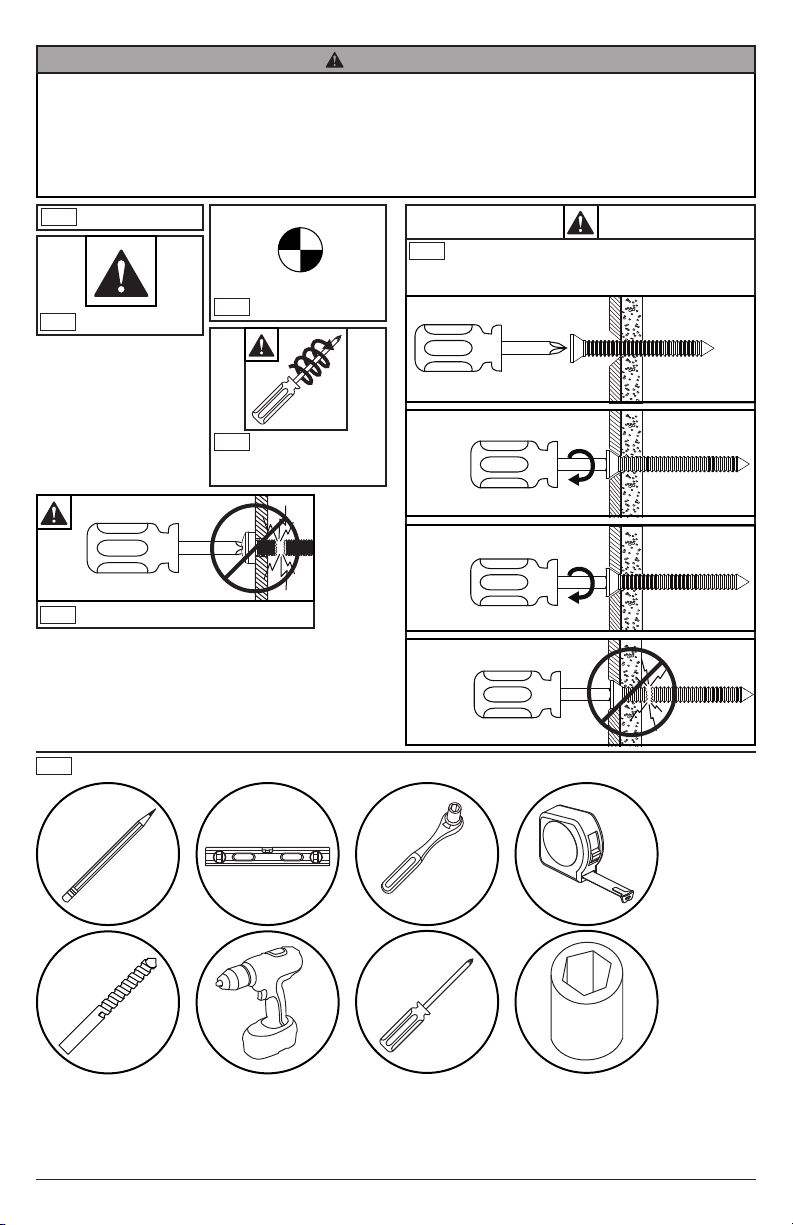

Symbols

ENG

WARNING

ENG

Screws must get at

least three full turns

and t snug.

ENG

Do not overtighten screws.

ENG

Tools Needed for Assembly.

ENG

To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

ENG

Display center.

ENG

3/8"

(10mm)

3/8"

(10mm)

ENG - This product is designed to be installed on solid concrete. Hardware is included for solid concrete

installation. Before installing make sure the supporting surface will support the combined load of the equipment

and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product

may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to

safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could

lead to product failure or personal injury. Be careful not to pinch ngers when operating the mount. For support

please call customer care at 1-800-865-2112.

WARNING

32014-07-29 #:009-9087-6 (2020-01-14)

This page intentionally left blank.ENG

42014-07-29 #:009-9087-6 (2020-01-14)

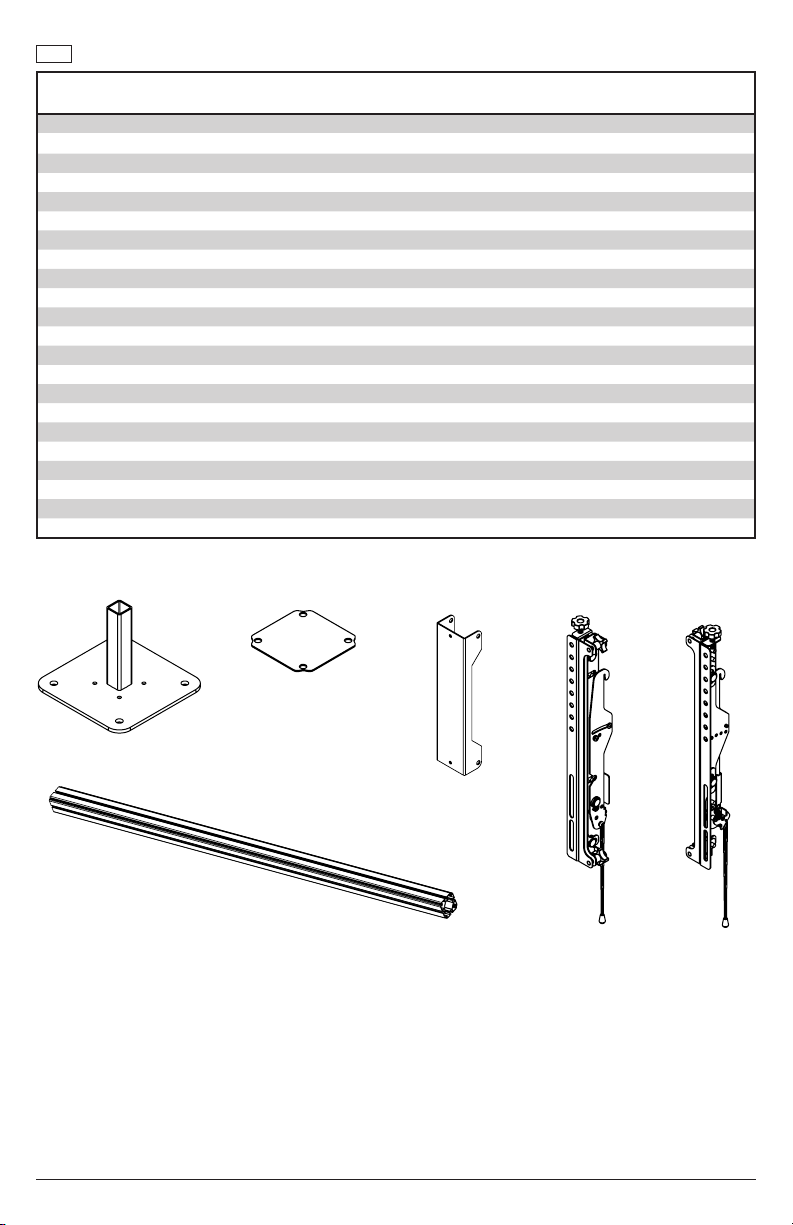

Parts List

Part #

Description Qty

Apedestal 2 147-T1426

Bcolumn 2 146-T1131

Ccover 2 145-T1809

Dvertical support bracket 4 145-T1806

Eleft adaptor bracket 4 146-1609

Fright adaptor bracket 4 146-1608

Gcomputer cover 1 145-T1930

Hcomputer shelf 1 145-T1931

Idual cross support 2 146-T1905

Jcord bracket 4 146-T1321

Kknob 4 560-1160

LM8 x 16mm socket button screw 40 520-9527

MM8 square nut 16 530-1066

Ncover clip 8 590-0317

OM5 x 10mm type-f, socket pin screw 10 520-1164

P1/4" power bit 1 560-0263

Q5mm allen wrench 1 560-9640

Rnylon shoulder washer 16 590-2233

SM6 x 12mm socket pin screw 16 520-1050

T4mm allen wrench 1 560-9646

UM6 x 35mm screw 8 520-0717

Vrawl bolt #6913 8 5M9-381-H03

Parts (Before beginning, make sure you have all parts shown below).

C (2)

cover

B (2)

column

D (4)

vertical support

bracket

A (2)

pedestal F (4)

right adaptor

bracket

E (4)

left adaptor

bracket

ENG

52014-07-29 #:009-9087-6 (2020-01-14)

G (1)

computer cover

J (4)

cord

bracket

I (2)

dual cross

support

L (40)

M8 x 16mm

M (16)

M8 square nut

N (8)

cover clip

O (10)

M5 x 10mm

P (1)

1/4" power bit

Q (1)

5mm allen

wrench

nylon shoulder

washer

R (16)

M6 x 12mm

S (16)

4mm allen

wrench

T (1)

H (1)

computer shelf

rawl bolt

V (8)

M6 x 35mm

U (8)

K (4)

knob

62014-07-29 #:009-9087-6 (2020-01-14)

U (4)

72014-07-29 #:009-9087-6 (2020-01-14)

2-1

2-2

L (6)

M (4)

D (4)

1/8"

(3mm)

1/8"

(3mm)

TIGHTEN

CONNECTING

HARDWARE

DISPLAY

HEIGHT

82014-07-29 #:009-9087-6 (2020-01-14)

3-1 3-2

x2 x2

J (2)

K (2)

TIGHTEN

CONNECTING

HARDWARE

TOP VIEW

N (4)

92014-07-29 #:009-9087-6 (2020-01-14)

ENG - When installing Peerless mounts on a concrete oor, the oor must be at least 8" thick with a minimum

compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster,

drywall, or other nishing material.

WARNING

10 2014-07-29 #:009-9087-6 (2020-01-14)

V (8)

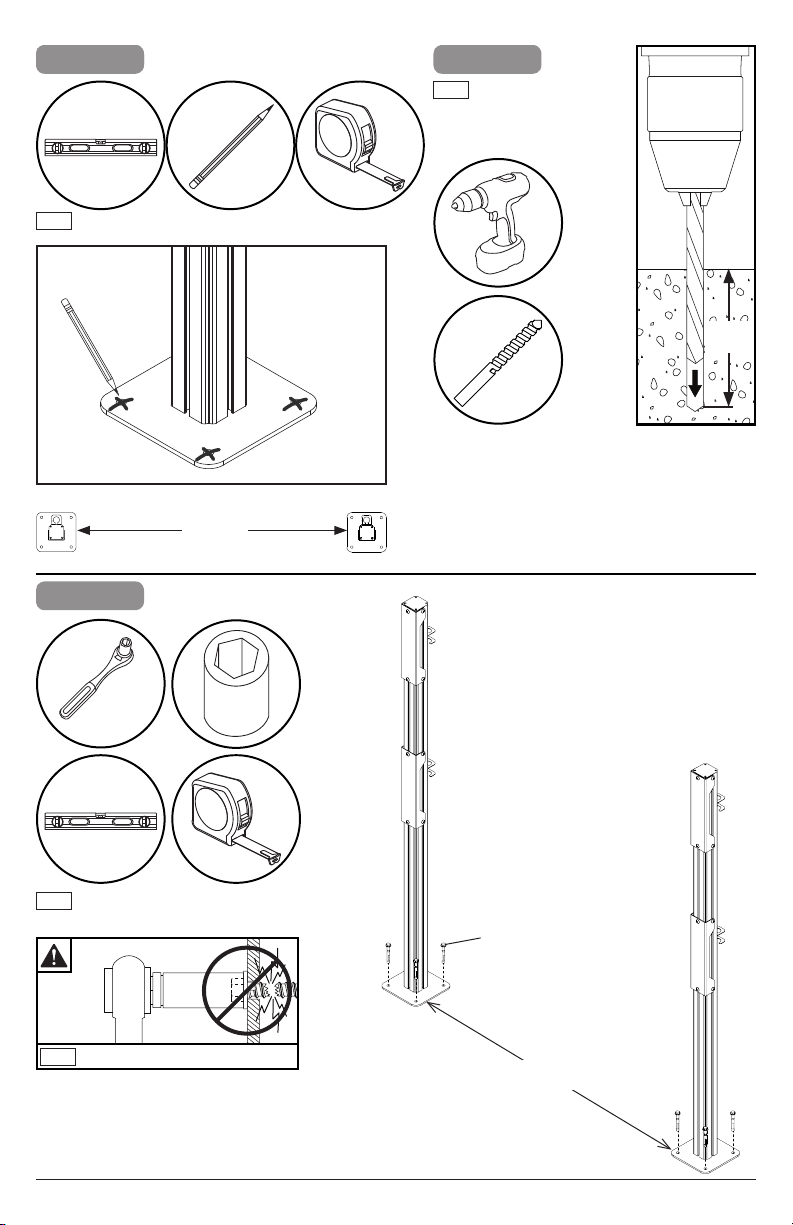

4-1

Align base. Mark mounting holes.

ENG

4-3

Align base. Install using concrete anchors

provided.

ENG

3/8"

(10mm)

55.00"

(1397mm)

ENG Maximum 35 ft • lb (47 N.M.).

55.00"

(1397mm)

4-2

Drill mounting holes into

supporting surface

(3" (76mm) minimum

depth required).

ENG

3/8"

(10mm)

(76mm)

3/8"

(10mm)
