PeakTech 1240 Manuel utilisateur

PeakTech

® 1240/1245/1255/

1260/1270/1275

Operation manual

igital Oscilloscopes

1. Safety Precautions

This product complies with the requirements of the following European Community Directives: 2004/108/EG

(Electromagnetic Compatibility) and 2006/95/EG (Low Voltage) as amended by 2004/22/EG (CE-Marking).

Overvoltage category II; pollution degree 2.

To ensure safe operation of the equipment and eliminate the danger of serious injury due to short-circuits

(arcing), the following safety precautions must be observed. Damages resulting from failure to observe these

safety precautions are exempt from any legal claims whatever.

* Do not use this instrument for high-energy industrial installation measurement.

* Do not place the equipment on damp or wet surfaces.

* Do not exceed the maximum permissible input ratings (danger of serious injury and/or destruction of the

equipment).

* The meter is designed to withstand the stated max voltages. If it is not possible to exclude without that

impulses, transients, disturbance or for other reasons, these voltages are exceeded a suitable presale

(10:1) must be used.

* Disconnect test leads or probe from the measuring circuit before switching modes or functions.

* Check test leads and probes for faulty insulation or bare wires before connection to the equipment.

* To avoid electric shock, do not operate this product in wet or damp conditions.

* Conduct measuring works only in dry clothing and rubber shoes, i. e. on isolating mats.

* Never touch the tips of the test leads or probe.

* Comply with the warning labels and other info on the equipment.

* The measurement instrument is not to be to operated unattended.

* Do not subject the equipment to direct sunlight or extreme temperatures, humidity or dampness.

* Do not subject the equipment to shocks or strong vibrations.

* Do not operate the equipment near strong magnetic fields (motors, transformers etc.).

* Keep hot soldering irons or guns away from the equipment.

* Allow the equipment to stabilize at room temperature before taking up measurement (important for exact

measurements).

* Do not input values over the maximum range of each measurement to avoid damages of the

instrument.

* Periodically wipe the cabinet with a damp cloth and mid detergent. Do not use abrasives or solvents.

* The meter is suitable for indoor use only

* Warning:

To avoid fire or electrical shock, when the oscilloscope input signal connected is more than 42V peak

(30Vrms) or on circuits of more than 4800VA, please take note of below items:

- Only use accessory insulated voltage probes and test lead.

- Check the accessories such as probe before use and replace it if there are any damages.

- Remove probes, test leads and other accessories immediately after use.

- Remove USB cable which connects oscilloscope and computer.

- Do not apply input voltages above the rating of the instrument because the probe tip voltage will directly

transmit to the oscilloscope. Use with caution when the probe is set as 1:1.

- Do not use exposed metal BNC or banana plug connectors.

- Do not insert metal objects into connectors.

-91-

* Do not store the meter in a place of explosive, inflammable substances.

* Do not modify the equipment in any way

* Do not place the equipment face-down on any table or work bench to prevent damaging the controls at the

front.

* Opening the equipment and service – and repair work must only be performed by qualified service personal

* Measuring instruments don’t belong to children hands.

Cleaning the cabinet

Prior to cleaning the cabinet, withdraw the mains plug from the power outlet.

Clean only with a damp, soft cloth and a commercially available mild household cleanser. Ensure that no water

gets inside the equipment to prevent possible shorts and damage to the equipment.

2. Safety Terms and Symbols

2.1. Safety Terms

Terms in this manual. The following terms may appear in this manual:

Warning: Warning indicates the conditions or practices that could result in injury or loss of life.

Caution: Caution indicates the conditions or practices that could result in damage to this

product or other property.

Terms on the product: The following terms may appear on this product:

Danger: It indicates an injury or hazard may immediately happen.

Warning: It indicates an injury or hazard may be accessible potentially.

Caution: It indicates a potential damage to the instrument or other property might occur.

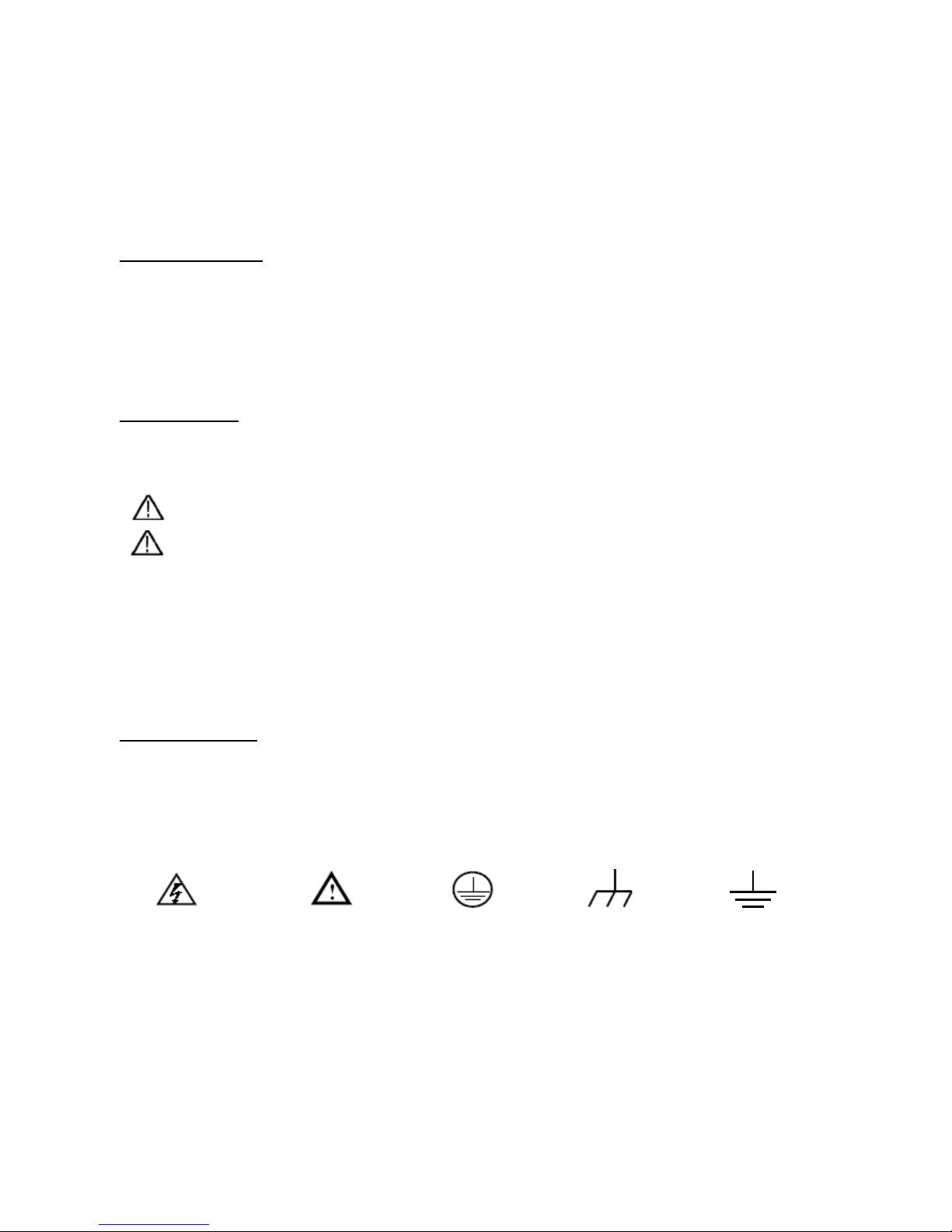

2.2. Safety Symbols

Symbols on the product. The following symbol may appear on the product:

Hazardous

Voltage

Refer to

Manual

Protective Earth

Terminal Chassis Ground Test Ground

-92-

3. General Characteristics

Modell PeakTech

1240

PeakTech

1245

PeakTech

1255

PeakTech

1260

PeakTech

1270

PeakTech

1275

Bandwidth 60 MHz 100 MHz 100 MHz 200 MHz 300 MHz 300 MHz

Sample rate

(max) 500 MSa/s 1 GSa/s 2 GSa/s 2 GSa/s 2,5 GSa/s 3,2 GSa/s

* Dual channel, 10M points on each channel for the Record length;

* Autoscale function;

* 8 inch high definition TFT display (800 x 600 pixels);

* Built-in FFT function;

* Pass/Fail Function, optically isolated Pass/Fail output;

* Waveform record and playback;

* VGA output;

* Various triggering function;

* USB communication ports and LAN interface;

* Super capacity lithium battery (Optional);

* Built-in English and German help system;

* Multiple language user interfaces (english, german, spanish, … ).

3.1. Introduction to the Structure of the Oscilloscope

When you get a new-type oscilloscope, you should get acquainted with its front panel at first and this digital

storage oscilloscope is no exception. This chapter makes a simple description of the operation and function of

the front panel of the oscilloscope, enabling you to be familiar with the use of the oscilloscope in the shortest

time.

3.1. Front panel

This oscilloscope offers a simple front panel with distinct functions to users for their completing some basic

operations, in which the knobs and function pushbuttons are included. The knobs have the functions similar to

other oscilloscopes. The 5 buttons (F1 ~ F5) in the column on the right side of the display screen or in the row

under the display screen (H1 ~ H5) are menu selection buttons, through which, you can set the different

options for the current menu. The other pushbuttons are function buttons, through which, you can enter

different function menus or obtain a specific function application directly.

-93-

Fig. 1

1. Power on/off

2. Display area

3. Power indication light

Green light: Indicating Oscilloscope connects with AC Power, and the battery is in full (if there is

battery inside Oscilloscope).

Yellow light: Indicating Oscilloscope connect with AC Power and the battery is in charging (if there is

battery inside Oscilloscope).

Dim: Only powered by battery without connecting AC Power.

4. Control (key and knob) area

5. Probe Compensation: Measurement signal(5V/1KHz) output

6. EXT Trigger Input

7. Signal Input Channel

8. Menu off

-94-

1. 3.2. 4.

6.7.

3.3. Left side panel

Fig. 2 Left side panel

1. Power switch:“―” represents power ON; “○” represents power OFF.

2. AC power input jack

3.4. Right side panel

Fig. 3 Right side panel

1. USB Host port: It is used to transfer data when external USB equipment connects to the oscilloscope

regarded as “Host equipment”. For example: upgrading software by USB flash disk

needs to use this port.

2. USB Device port: It is used to transfer data when external USB equipment connects to the oscilloscope

regarded as “Device equipment”. For example: to use this port when connect PC to the

oscilloscope by USB.

3. VGA port: To connect the oscilloscope with a monitor or a projector as VGA output.

4. LAN: To integrate this oscilloscope into a network.

-95-

3.5. Rear Panel

Fig. 4 Rear Panel

1. The port of trigger signal output & Pass/Fail output

2. Handle

3. Air vents

4. Foot stool (can adjust the tilt angle of the oscilloscope)

5. Ground connection

-96-

4.5.4.

3.6. Control (key and knob) area

Fig. 5 Keys Overview

1. Menu option setting: H1~H5

2. Menu option setting: F1~F5

3. Menu off : turn off the menu

4. Mknob(Multipurpose knob)

5. Function key area: Total 12 keys

6. Vertical control area with 3 keys and 4 knobs.

“CH1 MENU” and “CH2 MENU” correspond to setting menu in CH1 and CH2, “Math” key refer to math

menu, the math menu consists of six kinds of operations, including CH1-CH2, CH2-CH1, CH1+CH2,

CH1*CH2, CH1/CH2 and FFT. Two “VERTICAL POSITION” knob control the vertical position of

CH1/CH2, and two “VOLTS/DIV” knob control voltage scale of CH1, CH2.

7. Horizontal control area with 1 key and 2 knobs.

“HORIZONTAL POSITION” knob control trigger position, “SEC/DIV” control time base, “HORIZ MENU”

key refer to horizontal system setting menu.

8. Trigger control area with 3 keys and 1 knob.

“TRIG LEVEL” knob is to adjust trigger voltage. Other 3 keys refer to trigger system setting.

-97-

1. 2. 3.

4. 5.

6. 7. 8.

3.7. User interface introduction

Fig. 6 Illustrative Drawing of Display Interfaces

1. Waveform Viewing Area.

2. The Trigger State indicates the following information:

Auto: The oscilloscope is under the Automatic mode and is collecting the waveform under the

non-trigger state.

Trig: The oscilloscope has already detected a trigger signal and is collecting the after-triggering

information.

Ready: All pre-triggered data have been captured and the oscilloscope has been already ready for

accepting a trigger.

Scan: The oscilloscope captures and displays the waveform data continuously in the scan mode.

Stop: The oscilloscope has already stopped the waveform data acquisition.

3. The purple pointer indicates the horizontal trigger position, which can be adjusted by the horizontal

position control knob.

4. The pointer indicates the trigger position in the internal memory.

5. The two yellow dotted lines indicate the size of the viewing expanded window.

6. It shows present triggering value and displays the site of present window in internal memory.

7. It shows setting time (see “27.2.1 “Config” on page 137)

8. It indicates that there is a U disk connecting with the oscilloscope.

9. Indicating battery power status (see “27.2.2. “Display” on page 138).

10. The red pointer shows the trigger level position for CH1.

11. The waveform of CH1.

12. The positions of two purple dotted line cursors measurements.

13. The yellow pointer shows the trigger level position for CH2.

14. The waveform of CH2.

15. The frequency of the trigger signal of CH1.

-98-

16. The frequency of the trigger signal of CH2.

17. It indicates the current function menu.

18/19. It shows the selected trigger type:

Rising edge triggering

Falling edge triggering

Video line synchronous triggering

Video field synchronous triggering

The reading shows the trigger level value of the corresponding channel.

20. The reading shows the window time base value.

21. The reading shows the setting of main time base.

22. The readings show current sample rate and the record length.

23. It indicates the measured type and value of the corresponding channel. “F” means frequency, “T”

means cycle, “V” means the average value, “Vp” the peak-peak value, “Vk” the root-mean-square

value, “Ma” the maximum amplitude value, “Mi” the minimum amplitude value, “Vt” the Voltage value

of the waveform’s flat top value, “Vb” the Voltage value of the waveform’s flat base, “Va” the

amplitude value, “Os” the overshoot value, “Ps” the Preshoot value, “RT” the rise time value, “FT” the

fall time value, “PW” the +width value, “NW” the -Width value, “+D” the +Duty value, “-D” the -Duty

value, “PD” the Delay A B value and “ND” the Delay A B value.

24. The readings indicate the corresponding Voltage Division and the Zero Point positions of the

channels.

The icon shows the coupling mode of the channel.

“—” indicates the direct current coupling

“~” indicates the AC coupling

“ ” indicates GND coupling

25. It is cursor measure window, showing the absolute values and the readings of the two cursors.

26. The yellow pointer shows the grounding datum point (zero point position) of the waveform of the CH2

channel. If the pointer is not displayed, it shows that this channel is not opened.

27. The red pointer indicates the grounding datum point (zero point position) of the waveform of the CH1

channel. If the pointer is not displayed, it shows that the channel is not opened.

Note:

If a M -symbol appears in the menu, it indicates you can turn the M knob to set the current menu.

4. How to implement the General Inspection

After you get a new oscilloscope, it is recommended that you should make a check on the instrument

according to the following steps:

1. Check whether there is any damage caused by transportation.

If it is found that the packaging carton or the foamed plastic protection cushion has suffered serious

damage, do not throw it away first till the complete device and its accessories succeed in the electrical

and mechanical property tests.

-99-

Autres manuels pour 1240

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels PeakTech Équipement de test

PeakTech

PeakTech 1210 Manuel utilisateur

PeakTech

PeakTech 1280 Manuel utilisateur

PeakTech

PeakTech 2695 Manuel utilisateur

PeakTech

PeakTech 5500 Manuel utilisateur

PeakTech

PeakTech 1335 Manuel utilisateur

PeakTech

PeakTech 1115 Manuel utilisateur

PeakTech

PeakTech 3725 Manuel utilisateur

PeakTech

PeakTech P 3441 Manuel utilisateur

PeakTech

PeakTech 9020A Manuel utilisateur

PeakTech

PeakTech 2020 GN Manuel utilisateur

PeakTech

PeakTech 3690 Manuel utilisateur

PeakTech

PeakTech 4395 Manuel utilisateur

PeakTech

PeakTech 4165 Series Manuel utilisateur

PeakTech

PeakTech 1206 Manuel utilisateur

PeakTech

PeakTech 2755 Manuel utilisateur

PeakTech

PeakTech 1245 Manuel utilisateur

PeakTech

PeakTech 8010 Manuel utilisateur

PeakTech

PeakTech 1286 Manuel utilisateur

PeakTech

PeakTech 5600 Manuel utilisateur

PeakTech

PeakTech 1200 Manuel utilisateur

PeakTech

PeakTech 3265 Manuel utilisateur

PeakTech

PeakTech 5002 Manuel utilisateur

PeakTech

PeakTech 1220 Manuel utilisateur

PeakTech

PeakTech 1205 Manuel utilisateur

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur
