PCE-CT 25FN Coating Thickness Gauge

User Manual

User manuals in various languages (français,

italiano, español, português, nederlands, türk, polski,

русский, 中文) can be found by using our

product search on: www.pce-instruments.com

Last change: 16 October 2020

v1.0

English

Contents

1Safety notes........................................................................................... 1

2Specifications........................................................................................2

2.1 Technical specifications ................................................................................................... 2

2.2 Delivery scope.................................................................................................................. 2

3System description............................................................................... 3

3.1 Device.............................................................................................................................. 3

3.2 Display and function keys................................................................................................. 4

4Operation ............................................................................................... 5

4.1 Insert / replace battery...................................................................................................... 5

4.2 Make a measurement....................................................................................................... 5

4.3 Zero calibration ................................................................................................................ 5

4.4 Settings............................................................................................................................ 5

5Troubleshooting....................................................................................6

6Contact................................................................................................. 6

7Disposal ................................................................................................. 6

1 Safety notes

Please read this manual carefully and completely before you use the device for the first time. The

device may only be used by qualified personnel and repaired by PCE Instruments personnel.

Damage or injuries caused by non-observance of the manual are excluded from our liability and

not covered by our warranty.

•The device must only be used as described inthis instructionmanual. If used otherwise,

this can cause dangerous situations for the user and damage to the meter.

•The instrument may only be used if the environmental conditions (temperature, relative

humidity, …) are within the ranges stated in the technical specifications. Do not expose

the device to extreme temperatures, direct sunlight, extreme humidity or moisture.

•Do not expose the device to shocks or strong vibrations.

•The case should only be opened by qualified PCE Instruments personnel.

•Never use the instrument when your hands are wet.

•You must not make any technical changes to the device.

•The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,

no abrasives or solvents.

•The device must only be used with accessories from PCE Instruments or equivalent.

•Before each use, inspect the case for visible damage. If any damage is visible, do not

use the device.

•Do not use the instrument in explosive atmospheres.

•The measurement range as stated in the specifications must not be exceeded under

any circumstances.

•Non-observance of the safety notes can cause damage to the device and injuries to

the user.

We do not assume liability for printing errors or any other mistakes in this manual.

We expressly point to our general guarantee terms which can be found in our general terms of

business.

If you have any questions please contact PCE Instruments. The contact details can be found at

the end of this manual.

2 Specifications

2.1 Technical specifications

Ferromagnetic metals

Non-ferromagnetic metals

Measuring principle

Magnetic induction

Eddy current

Measurement range

0 ... 1500 µm

Accuracy

±(3 % + 1 µm)

Resolution

0 ... 100 µm: 0.1 µm;

>100 µm: 1 µm

Calibration

User calibration is supported

Statistical functions

Number of measurements, average value, minimum, maximum

Units of measurement

µm, mm, mils

Measuring area

Diameter 20 mm

Material thickness of

substrate

0.30 mm

0.05 mm

Radius convex

5 mm

Radius concave

25 mm

Measuring frequency

max. 2 measurements per second

Power supply

9 V block battery

Operating conditions

-10 °C ... +50 °C

20 % ... 90 % RH, non-condensing

Storage conditions

-10 °C ... +60 °C

20 % ... 90 % RH, non-condensing

Dimensions

143 mm x 85 mm x 39 mm

Weight

100 g

Material

ABS

2.2 Delivery scope

1 x coating thickness gauge PCE-CT 25FN

1 x calibration set

•Fe zero standard

•NFe zero standard

•calibration foil 49 µm

•calibration foil 100 µm

•calibration foil 254 µm

•calibration foil 503 µm

•calibration foil 984 µm

1 x 9 V block battery

1 x user manual

3 System description

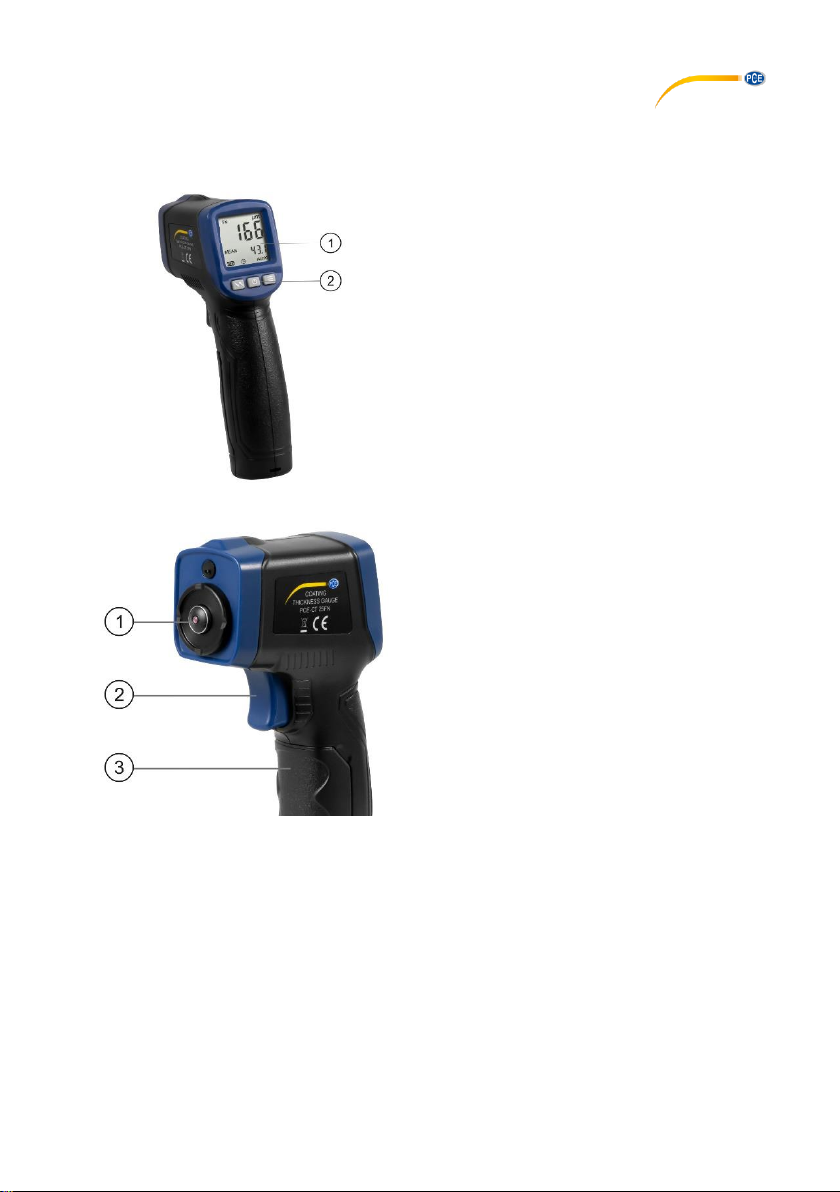

3.1 Device

1. Display

2. Keypad

1. Sensor with contact surface

2. Trigger

3. Battery compartment cover

3.2 Display and function keys

1. Material Fe or N

2. Current statistics display

3. Battery charge level

4. Automatic power off

5. Current unit of measurement

6. Measured value

7. Statistical value for (2)

8. Automatic sensor selection

Key functions

Key

Press and release

Press and hold

Change µm, mm, mils

Deleting the statistical values

Display backlight on/off

Device on/off

Changing the statistics display

Start of zero calibration

4 Operation

4.1 Insert / replace battery

- Open the battery compartment cover on the front of the handle (the cover can be unfolded)

- Connect new 9 V block battery

- Insert the battery and close the cover.

If the battery icon indicates a low battery level, the battery must be replaced. A lack of voltage

affects the stability and reliability of the device.

4.2 Make a measurement

Ensure that the measuring surface is large enough, that the material thickness and, in the case

of curved objects, the radius of curvature are in accordance with the specifications of the unit.

Switch on the meter by pressing and holding the key in the middle. When switching on the meter,

do not place its contact surface on metals - keep at least 2 cm distance from metals. Otherwise,

"0L" will be displayed while the meter is placed on the metal detectedduring start-up and incorrect

readings will be displayed when placed on other surfaces.

Place the circular contact surface of the device as perpendicular as possible to the measuring

location. The surface of the sensor which is mounted on a spring should rest on the test surface

evenly. Apply the trigger. A short beep sounds and the measured value appears in the display.

4.3 Zero calibration

It is recommended to perform a zero calibration regularly to increase the accuracy of the

measurements. Prepare an uncoated sample (one each for ferromagnetic (Fe) and non-

ferromagnetic (N) metals) or use the zero standards supplied.

With the meter switched on, press the right key until you hear a double beep and the text "ZERO"

appears and flashes on the display. Place the sensor contact surface of the tester vertically on

the sample and apply the trigger. It beeps briefly and the word "ZERO" appears in the display.

Briefly press the right key to finish the calibration process.

4.4 Settings

Display backlight

Pressing and releasing the middle key switches the display backlight on or off.

Change units

Press and release the left key to switch between the units µm, mm, mils.

Display and delete statistical values

Press and release the right key to switch between the display of the MEAN value, NO count,

minimum value MIN and maximum value MAX. The instrument can save 80 values. When you

continue measuring, the oldest value is overwritten. After switching off the meter, the values are

deleted. You can also delete the values by pressing and holding the left key.

Auto Power Off

The unit switches off if no key has been pressed for 3 minutes or if the battery is low. An acoustic

signal sounds before the unit is switched off. If you press the trigger for a new measurement

immediately after the sound or press one of the keys briefly, the statistical data is retained.

5 Troubleshooting

Display "OL“

“OL" appears on the display if the measurement range is exceeded (coating thicker than 1.5

mm). This device can only measure coatings up to 1.5 mm. For thicker coatings, a different

meter will be required.

“OL" also appears if the contact surface of the device was closer than 2 cm to metals. Restart

the meter while keeping a sufficient distance.

Imprecise measured values, no display

Remove the battery and reinsert it after waiting at least 5 seconds. If this does not help or if

inserting a new battery does not help, you can reset the instrument to factory settings. To do this,

switch off the device and then press the key in the middle until AS appears on the display. When

you release thekey, the device is reset to factory settings. Then check themeasurement accuracy

with the zero standards from the calibration set. If necessary, perform the zero calibration

described in chapter 4.3.

6 Contact

If you have any questions, suggestions or technical problems, please do not hesitate to contact

us. You will find the relevant contact information at the end of this user manual.

7 Disposal

For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament

applies. Due to the contained pollutants, batteries must not be disposed of as household waste.

They must be given to collection points designed for that purpose.

In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use

them or give them to a recycling company which disposes of the devices in line with law.

For countries outside the EU, batteries and devices should be disposed of in accordance with

your local waste regulations.

If you have any questions, please contact PCE Instruments.
