Manual

HVAC Meter PCE-910 / PCE-917

Version 2.0

Date of creation: 02.09.2015

Date of last change: 17.05.2016

Manual

Contents

1Introduction ............................................................................................................. 3

2Safety notes ............................................................................................................. 3

3Specifications .......................................................................................................... 4

4System description ................................................................................................. 5

5Instructions .............................................................................................................. 6

5.1 Measurement.............................................................................................................................. 6

5.2 Auto Power Off ........................................................................................................................... 6

5.3 RS-232 data interface................................................................................................................. 6

5.4 Battery replacement ................................................................................................................... 6

6Disposal ................................................................................................................... 6

7Contact ..................................................................................................................... 7

7.1 PCE Instruments UK .................................................................................................................. 7

7.2 PCE Americas ............................................................................................................................ 7

Manual

1 Introduction

Thank you for purchasing a PCE-910 / PCE-917 from PCE Instruments.

This differential pressure meter is especially suitable for measuring pressure and thus carrying out

preventive maintenance in hydraulic or pneumatic systems, but it can also be used in the areas of HVAC,

medical technology, pneumatics, computer applications and laboratory measurements. It is suitable for

air, non-corrosive liquids and gases. It can even be used under adverse conditions as its case is resistant

to dust and water. A silicon component prevents liquids to enter the device as well as the sensor. High-

precision measurement results are ensured as the device is controlled by a micro processor.

The differential pressure meter is calibrated at the factory and a calibration certificate from a calibration

laboratory can be ordered separately for an extra charge. The certificate has a check protocol and

contains the name of the company, which means that it can be incorporated into the company's pool of

internal test tools according to ISO standards.

2 Safety notes

Please read this manual carefully and completely before you use the device for the first time. The device

may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no

warranty of damages or injuries caused by non-observance of the manual.

- The device may only be used in the approved temperature range.

- The case should only be opened by qualified personnel of PCE Instruments.

- The instrument should never be placed with the user interface facing an object (e.g. keyboard side on a

table).

- You must not make any technical changes to the device.

- The appliance should only be cleaned with a damp cloth / use only pH-neutral cleaner.

This manual is published by PCE Instruments without any guarantee.

We expressly point to our general guarantee terms which can be found in our general terms of business.

If you have any questions please contact PCE Instruments.

Manual

3 Specifications

Model

PCE-910

PCE-917

PSI

Range

±29.00

101.50

Resolution

0.01

0.05 / 0.1

Mbar

Range

±2000

±7000

Resolution

inH2O

Range

±802.0

±2800

Resolution

0.5

mH2O

Range

±20.40

±70.00

Resolution

0.01

0.05

inHg

Range

±59.00

±206.0

Resolution

0.02

0.1

mmHg

Range

±1500

±5250

Resolution

Torr

Range

Resolution

Pa / kPa

Range

Resolution

atm

Range

±1.974

±6.905

Resolution

0.001

0.005

kg/cm²

Range

±2.040

7.000

Resolution

0.001

0.005

Accuracy

±2 % (full range)

Reproducibility

±1 %

Measurement

sequence

0.8 s

Min- Max- Peak- Hold

Yes

Interface

RS-232

Power supply

1 x 9 V battery PP3

Material of case

plastic

Dimensions of case

180 x 72 x 32 mm

Weight

210 g

Manual

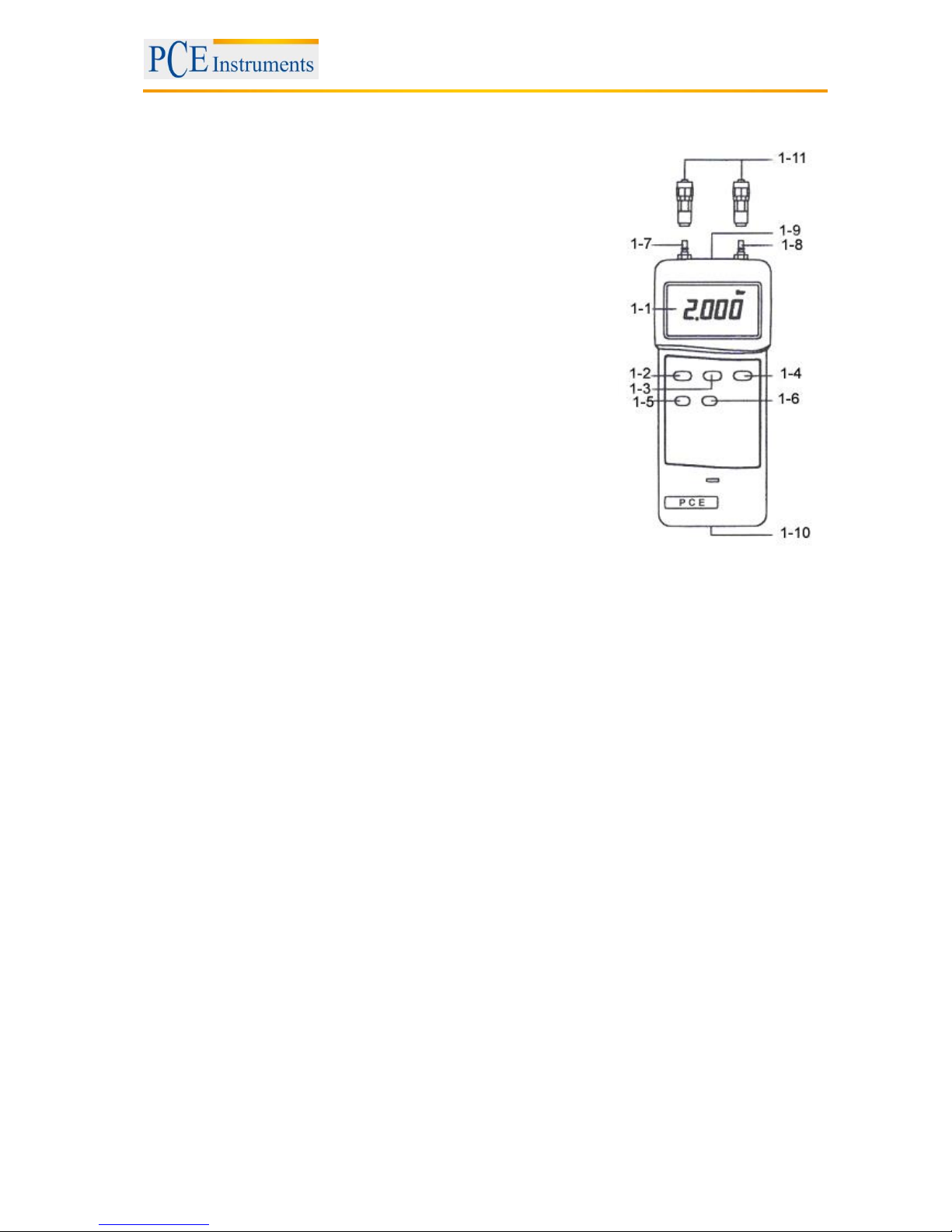

4 System description

1-1 Display

1-2 On / Off key

1-3 HOLD key

1-4 ZERO key

1-5 MAX / MIN key

1-6 UNIT selection key

1-7 Connection for hose adaptor 1

1-8 Connection for hose adaptor 2

1-9 RS-232 interface

1-10 Battery compartment

1-11 Fast-action plug for hose adaptor

Manual

5 Instructions

5.1 Measurement

Switch on the device by means of the On / Off key (1-2).

Select the desired pressure unit (mbar, mmHg, …) by pressing the UNIT key (1-6).

Carry out a zero setting by pressing the ZERO key (1-4).

Place the two fast-action plugs (1-11) on the adaptor connections (1-7 and 1-8).

The display will now show a number.

Attention: When the pressure on connection 1 (1-7) is lower than the pressure on connection 2 (1-8), a

negative measurement result will be indicated. If it is the other way round, a positive pressure will be

displayed.

When you press HOLD (1-3) during a measurement, the current measurement value will be held in the

display and the HOLD icon will be displayed. When you press the HOLD key (1-3) again, the value will

disappear and the current measurement results will be shown again.

When you press MAX / MIN (1-5), the REC icon will appear in the display and the lowest, as well as the

highest value of a series of measurement will be recorded. When you wish to read out the maximum

value, press the MAX / MIN key (1-5) again. The maximum value along with the MAX icon will be

displayed. By pressing the MAX / MIN key (1-5) again, you will be able to see the minimum value along

with the MIN symbol in the display. You can deactivate this function by pressing and holding the MAX /

MIN key (1-5) for 2 to 3 seconds.

5.2 Auto Power Off

To save energy, the device has an Auto Power Off function. The meter will switch off automatically after

10 minutes of inactivity. This function will be disabled as soon as the display shows the REC icon for

continuous measurement.

5.3 RS-232 data interface

By means of the integrated interface jack (1-9) and the optionally available software kit (cable + software),

you can transfer your measurement results directly to a PC or laptop.

5.4 Battery replacement

Replace the 9 V battery when the low battery indicator LBT appears on the left-hand side of the display.

Remove the battery compartment cover from the back of the device with slight pressure, using your

fingernails. Then remove the used battery and replace it by a new one. Push the cover back on.

6 Disposal

For the disposal of batteries, the 2006/66/EC directive of the European Parliament applies. Due to the

contained pollutants, batteries must not be disposed of as household waste. They must be given to

collection points designed for that purpose.

In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or

give them to a recycling company which disposes of the devices in line with law.

If you have any questions, please contact PCE Instruments.

Manual

7 Contact

If you have any questions about our range of products or measuring instruments please contact PCE

Instruments.

7.1 PCE Instruments UK

By post:

PCE Instruments UK Ltd.

Units 12/13 Southpoint Business Park

Ensign Way, Southampton

Hampshire

United Kingdom, SO31 4RF

By phone:

02380 987 035

7.2 PCE Americas

By post:

PCE Americas Inc.

711 Commerce Way

Suite 8

Jupiter

33458 FL

USA

By phone:

561 320 9162
