PayFacto PAX A35 Manuel de l'opérateur
PAX A35
Installation and Configuration Guide
May, 2022
Contents
Introduction........................................................................................................................................................ 3
Terminal Overview ............................................................................................................................................ 4
A35 Terminal Overview................................................................................................................................ 4
Terminal Hardware ....................................................................................................................................... 5
A35 Communication Ports............................................................................................................................ 6
Terminal Setup and Configuration..................................................................................................................... 7
Connect the Multi-Function Cable................................................................................................................ 7
Power On the Terminal ............................................................................................................................... 10
Configure the Terminal Display Language................................................................................................. 11
Configuring the Terminal Network Connections........................................................................................ 13
Configuring the Terminal Ethernet Connection.......................................................................................... 14
Configuring the Terminal Wi-Fi Connection .............................................................................................. 15
Working with the Terminal .............................................................................................................................. 17
Powering the Terminal On or Off ............................................................................................................... 17
Terminal Input Options ............................................................................................................................... 18
Card Payment Options ................................................................................................................................ 19
PAX A35 Configuration and Installation
Copyright© 2021 PayFacto Inc. Page 3of20
Introduction
The PAX A35countertop payment terminal is perfect for retail and restaurant applications. Thissetup
guide describes the following topics:
A35 Terminal Overview
•
Terminal Hardware
•
A35 Communication Ports
•
◦
◦
◦
◦
◦
◦
Initial terminal configuration
Connect the Multi-Function Cable
Power On the Terminal
Configure the Terminal Display Language
Configuring the Terminal Network Connections
Configuring the Terminal Ethernet Connection
Configuring the Terminal Wi-Fi Connection
•
◦
◦
◦
Working with the terminal
Powering the Terminal On or Off
Terminal Input Options
Card Payment Options
•
PAX A35 Configuration and Installation
Copyright© 2021 PayFacto Inc. Page 4of20

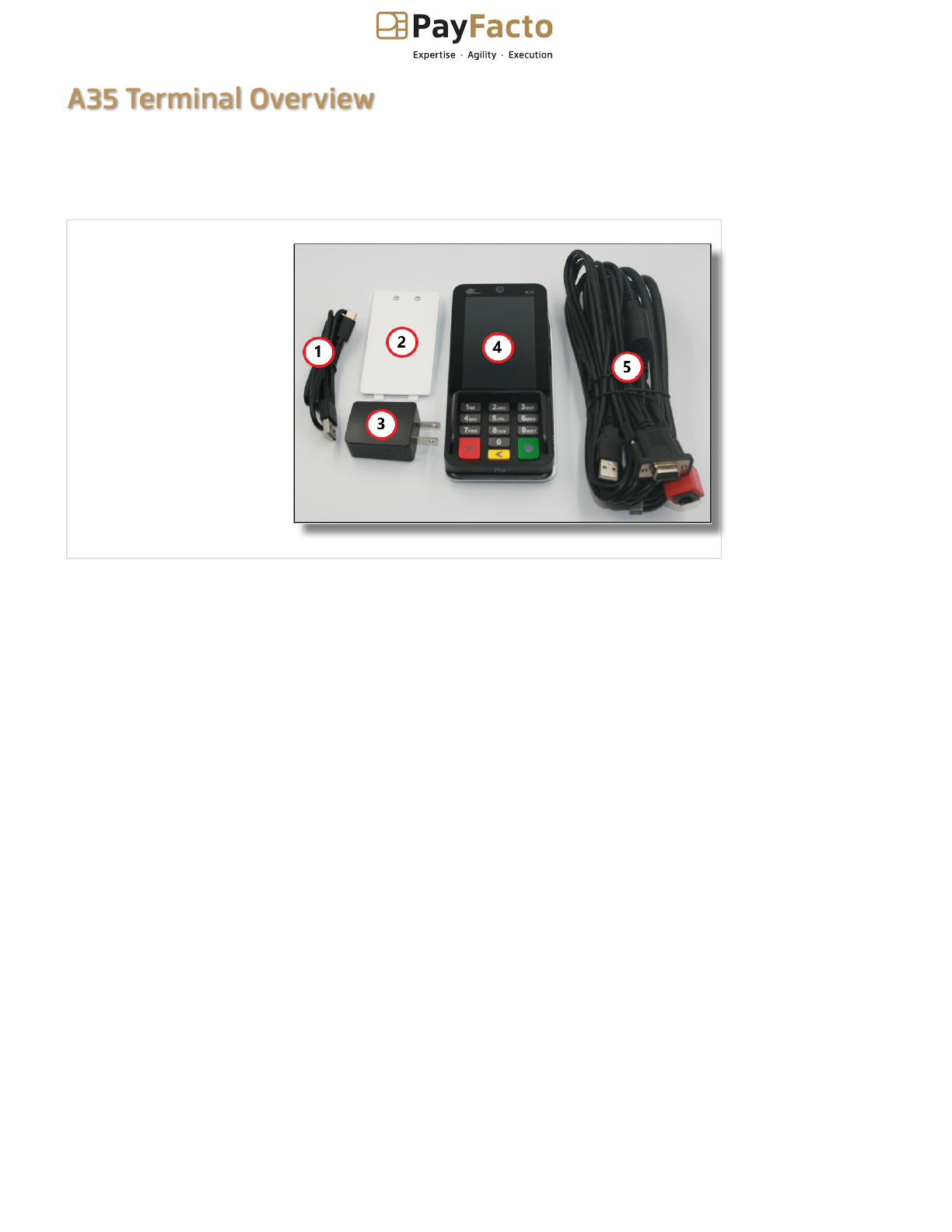

A35 Terminal Overview
This document will introduce you to your payment terminal as well as guide you through the process of
preparing and configuring it in order to quickly begin processing payments.
Your PAX A35 payment processing terminal comes with the following:
USB Type-C power
cord
1.
Back cover
2.
AC power adapter
3.
Payment terminal
4.
Multi-function
cable
5.
PAX A35 Configuration and Installation
Copyright© 2021 PayFacto Inc. Page 5of20

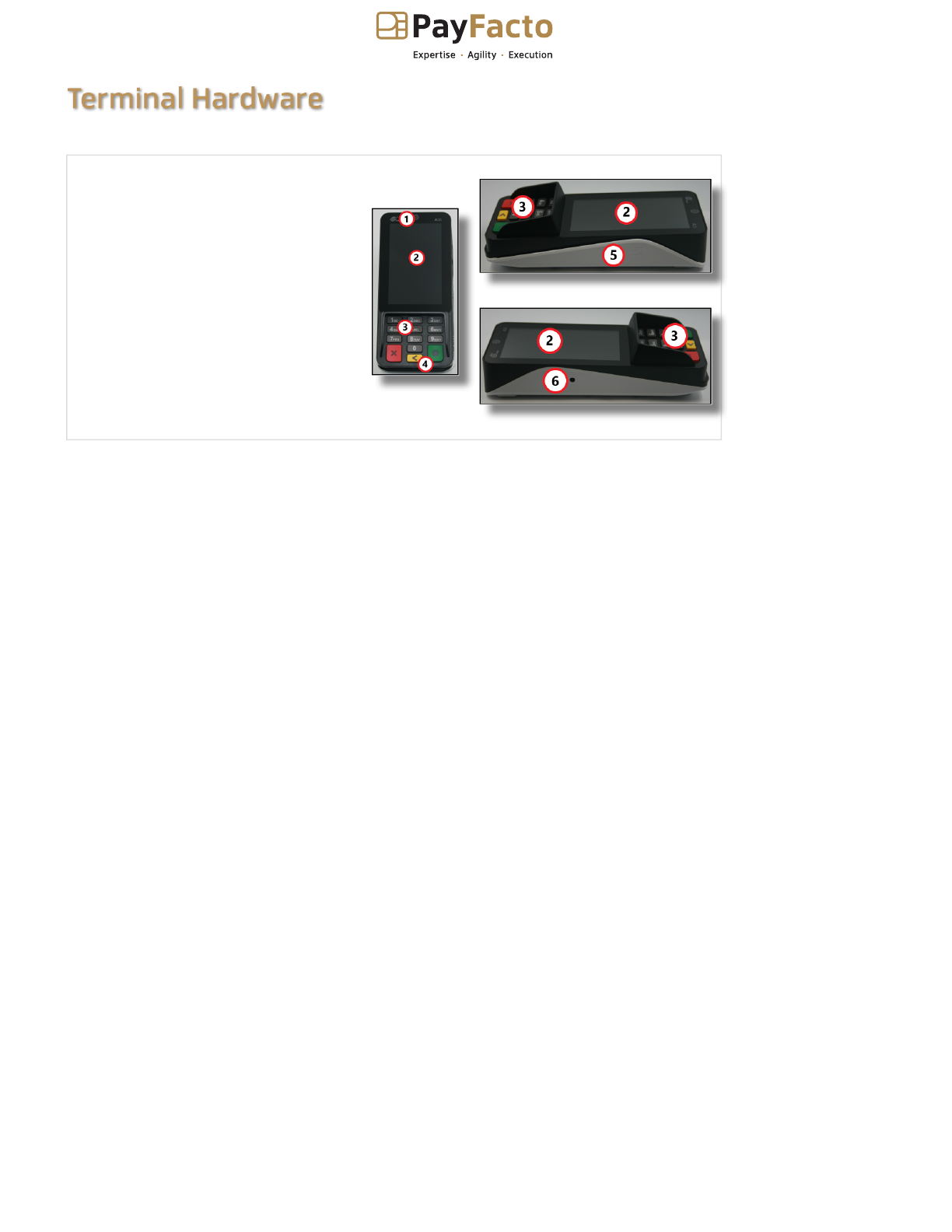

Terminal Hardware
The following illustrations show the location of the main terminal features and hardware:
Front-facing camera (not
used)
1.
Color touchscreen /
Contactless payment
reader
2.
Physical keypad
3.
Chip card reader
4.
Magnetic stripe reader
5.
3.5mm audio jack
6.
PAX A35 Configuration and Installation
Copyright© 2021 PayFacto Inc. Page 6of20
A35 Communication Ports
There are multiple communication ports available through the multi-function cable. The cable allows you
to connect the terminal to:
Wired network using the Ethernet
connector, including Power over
Ethernet (PoE) if available
1.
POS system using the DB9 RS-232
connector
2.
External USB host using the USB
connector
3.
PAX A35 Configuration and Installation
Copyright© 2021 PayFacto Inc. Page 7of20
1.
Connect the Multi-Function Cable
The terminal uses a multi-function cable to provide access to the supported connections. Countertop
terminals generally require AC power and Ethernet connections. Your configuration may also include a
connection to a POS system.
To connect the multi-function cable:
On the back of the terminal at the top, use a #1 Phillips screwdriver to loosen the two screws securing
thecover.
NOTE: You do not need to remove the screws from the
cover; they are designed to remain attached.
PAX A35 Configuration and Installation
Copyright© 2021 PayFacto Inc. Page 8of20
2.
3.
4.
Remove the cover from the back of the terminal and locate the USB Type-C plug between the slots for
the MicroSD and SAM cards.
Insertthemulti-functioncable’sUSBType-Cconnectorintotheterminal’scorrespondingplug.
After you connect the multi-function cable to the terminal, make sure that the strain relief sleeve is
seated in the slot at the top of the terminal.
NOTE: You can move the strain relief sleeve along the
multi-function cable to position it correctly.
PAX A35 Configuration and Installation
Copyright© 2021 PayFacto Inc. Page 9of20
5. Re-install the cover and tighten the two screws to complete the cable installation.
PAX A35 Configuration and Installation
Copyright© 2021 PayFacto Inc. Page 10of20
1.
2.
3.
4.
Power On the Terminal
The terminal does not have a dedicated power on/off button; it turns on automatically when you connect it to
an AC power source and turns off when disconnected from a power source.
To power on the terminal:
After you connect the multi-function cable to the terminal and secure the back cover, turn the terminal
over.

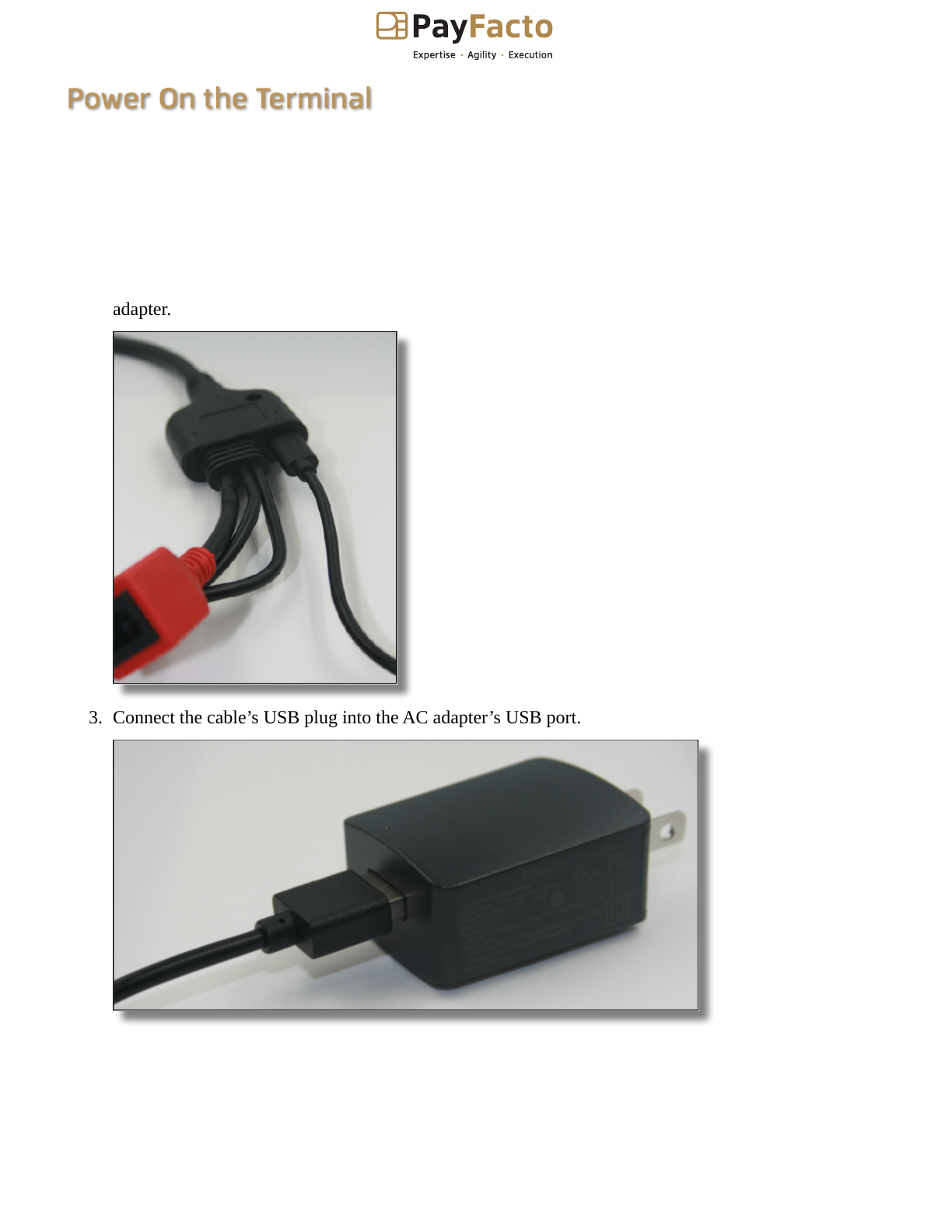

Insertthepowercord’sUSBType-Cplugintheopenportonthemulti-functioncable’sjunction
adapter.
Connectthecable’sUSBplugintotheACadapter’sUSBport.
Plug the adapter into an AC outlet. The terminal powers on automatically and makes a sound to
indicate it is starting.
