Partner SP-1000-C Manuel utilisateur

POS Terminal

SP-1000-C

User Manual

This publication, including all photographs, illustrations and software, is protected under international

reproduced without written consent of the author.

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no

representations or warranties with respect to the contents hereof and specifically disclaims any implied

warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of the

manufacturer to notify any person of such revision or changes.

Trademark recognition

All product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to

ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not

expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment.

Declaration of conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

This device may not cause harmful interference, and

This device must accept any interference received, including interference that may cause undesired operation.

About this manual

This manual is intended for system administrators who are familiar with setting up a new system and

installing an operating system.

The manual consists of the following sections:

Chapter 1 Getting Started: This section covers unpacking and checking the

package contents, and identifying components.

Information on connecting peripheral devices, and

powering on is also provided.

Chapter 2 BIOS Setup Utility: The BIOS chapter provides information on navigating

and changing settings in the BIOS Setup Utility.

Chapter 3 Upgrading Components: This section provides information on upgrading

components.

Appendix: The appendix covers troubleshooting, information

on having the SP-1000-C serviced, and technical

specications.

Safety information

Before installing and using the SP-1000-C, take note of the following precautions:

• Read all instructions carefully.

• Do not place the unit on an unstable surface, cart, or stand.

• Do not block the slots and opening on the unit, which are provided for ventilation.

• Do not push objects in the ventilation slots as they may touch high voltage components and result in

shock and damage to the components.

• Only use the power source indicated on the marking label. If you are not sure, contact your dealer or the

Power Company.

• The unit uses a three-wire ground cable, which is equipped with a third pin to ground the unit and

prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of

plug, contact your electrician to replace your obsolete outlet.

• Do not place anything on the power cord. Place the power cord where it will not be in the way of foot

traffic.

• Follow all warnings and cautions in this manual and on the unit case.

• When replacing parts, ensure that your service technician uses parts specified by the manufacturer.

• Avoid using the system near water, in direct sunlight, or near a heating device.

WARNING

The system uses a 3V CR2032 battery mounted on the mainboard to

keep time. There is a risk of explosion if the wrong battery type is used

when replacing. Dispose of used batteries according to local ordinance

regulations.

CAUTION

The USB ports can be damaged if care is not taken when connecting

devices. Ensure USB devices are correctly inserted.

Plugging a phone line into the LAN port (RJ-45 connector) can damage

the connector. Take care only plug an RJ-45 connector into the LAN port.

Revision history

Version 1.0, April 2011

iii

TABLE OF CONTENTS

CHAPTER 1 GETTING STARTED................................................ 1

Unpacking the machine .................................................................................1

Checking the package contents ....................................................................2

Identifying components .................................................................................3

Connecting peripheral devices.......................................................................6

Connecting a cash drawer .............................................................................7

Powering the machine on and off...................................................................8

Mounting the SP-1000-C on the wall .............................................................9

CHAPTER 2 BIOS SETUP...........................................................11

About the Setup Utility .................................................................................11

Entering the Setup Utility ........................................................................12

BIOS navigation keys ..............................................................................12

Using BIOS .............................................................................................13

Main Screen.................................................................................................14

SATA Port 1/ 2..........................................................................................15

Intel Settings ................................................................................................16

CPU Control Sub-Menu ...........................................................................17

PCH Control Sub-Menu ...........................................................................18

PCI Express Control Sub-Menu...............................................................19

LPC Control Sub-Menu............................................................................20

SIO Control Sub-Menu ............................................................................21

H/W Monitor Sub-Menu ...........................................................................23

AMT Sub-Menu........................................................................................24

Keyboard Feature Sub-Menu ..................................................................25

Security Settings ..........................................................................................26

Boot Settings................................................................................................27

Exit Menu .....................................................................................................28

CHAPTER 3 UPGRADING COMPONENTS............................... 31

Safety and precautions ...............................................................................31

Before you begin .........................................................................................32

Upgrading the hard drive..............................................................................33

APPENDIX .................................................................................. 35

Troubleshooting ...........................................................................................35

Tips for Troubleshooting...............................................................................35

The Power-On Self Test ...............................................................................35

Beep Errors at POST ...................................................................................35

Beep Message Errors at POST ...................................................................36

General Problems .......................................................................................37

Having the SP-1000-C Serviced .................................................................38

Specications...............................................................................................39

CHAPTER 1

GETTING STARTED

This chapter describes the procedures from unpacking the SP-1000-C, to powering it on. The following topics

are described.

• Unpacking the machine on page 1

• Checking the package contents on page 2

• Identifying components on page 3

• Connecting peripheral devices on page 6

• Connecting a cash drawer on page 7

• Powering the machine on and off on page 8

• Mounting the SP-1000-C on the wall on page 9

Unpacking the machine

The machine and cable accessories are packed in a cardboard carton with foam padding for protection during

shipping.

Figure 1.1 Unpacking the

machine

Carefully unpack the machine and keep the packing materials. If you need to ship it in the future, repack it as

shown in Figure 1.1.

2 CHAPTER 1 GETTING STARTED

Checking the package contents

After you unpack the device check that the following items are included.

If any item is missing or appears damaged, contact your dealer immediately.

SP-1000-C

Adapter Power Cable

Driver CD with drivers and

the user manual PDF le.

Identifying components

This section describes the parts and connectors on the machine.

1 2

Figure 1.2 Front-right view

Component Description

1 15-inch TFT LCD

2 LED Power Indicator

3 IO Panel

4 HDD Compartment

5 Power Button

3 54

Front-right view

4 CHAPTER 1 GETTING STARTED

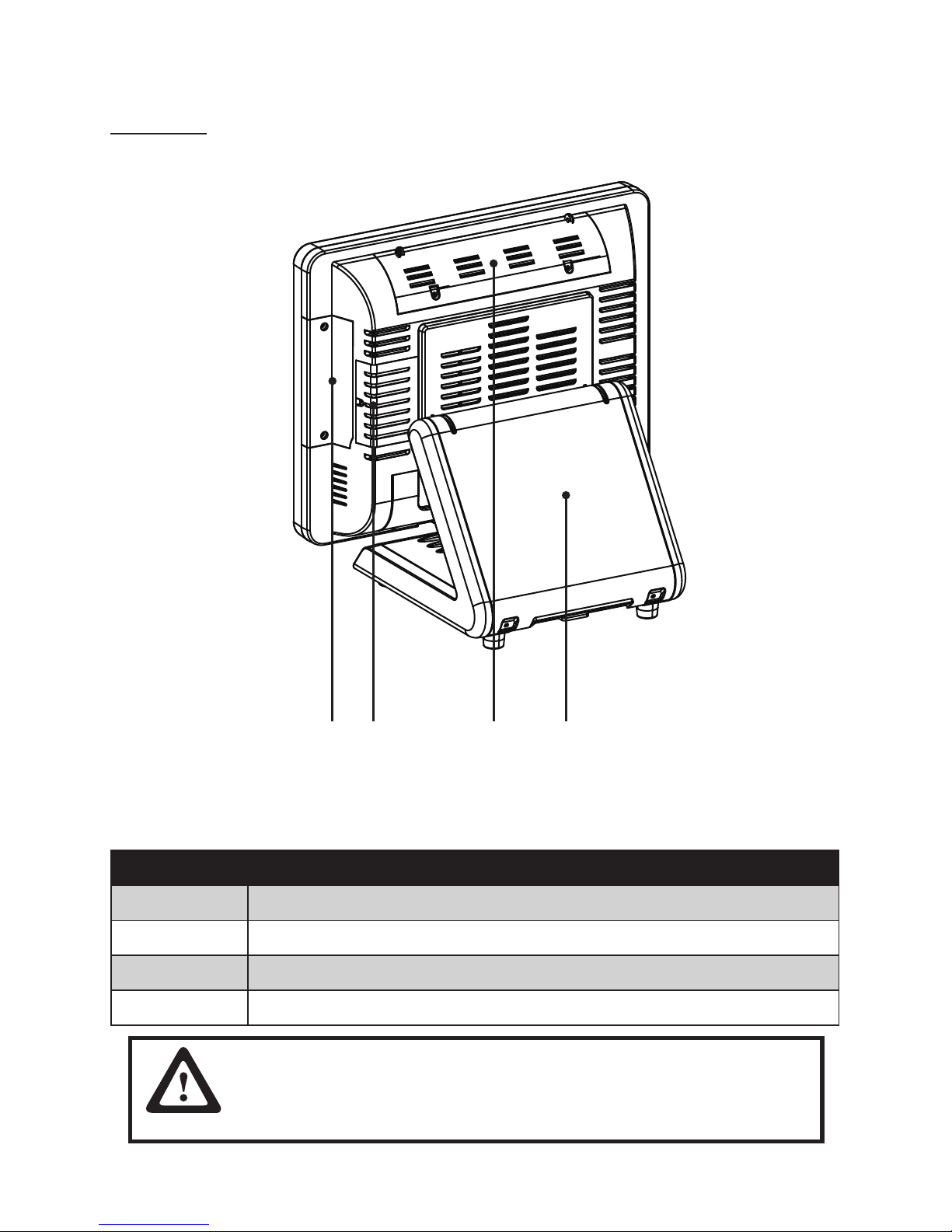

Rear view

1 2 3 4

Figure 1.3 Rear view

Component Description

1 MSR (optional) Slot

2 HDD Compartment (for wall mounting)

3 VFD Customer Display (optional) Slot

4 Cable Compartment

CAUTION

Do not block the air vents. No obstructions in 5 cm from the vents.
