Parker DINCon II Instructions de montage
Parker DINCon II, DINPres II,
& DINTemp II Modules
Installation, Operating & Maintenance Instructions
2
Parker Hannifin Corporation has a continuous policy of product development and although the Company reserves the right to
change specification, it attempts to keep customers informed of any alterations. This publication is for general information only and
customers are requested to contact your local Parker Sales Representative for detailed information and advice on a product’s
suitability for specific applications. All products are sold subject to the company’s Standard conditions of sale.
DINCon II™ DINPres II™ and DINTemp II™ are registered trademarks of Parker Hannifin Corporation.
3
Contents
Introduction ................................................................................................................................. 6
Calibration .................................................................................................................................. 6
Warranty ..................................................................................................................................... 7
Standards ................................................................................................................................... 7
Installation & Start-Up ................................................................................................................. 7
Maintenance & Cleaning ............................................................................................................. 7
DIN II Module Specifications ....................................................................................................... 8
Installation ................................................................................................................................ 11
Operating Instructions............................................................................................................... 14
Modbus Register List ................................................................................................................ 16
DINCon II Registers .................................................................................................................. 16
DINPres II Registers ................................................................................................................. 20
DINTemp II Registers ............................................................................................................... 25
Revision History:
Rev. # Date Author Description
A 4/25/2019 A. Dawson Initial release, based on original SciLog DIN Module
Manual
4
Precautions
READ this manual BEFORE operating or servicing this equipment.
FOLLOW these instructions carefully.
SAVE this manual for future reference.
DO NOT allow untrained personnel to operate, clean, inspect, service or tamper with
this equipment.
ALWAYS DISCONNECT this equipment from the power source before cleaning or
performing maintenance.
Contact your local Parker Division for parts, information and service.
WARNING
DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING,
SERVICING, CLEANING OR REMOVING THE FUSE. FAILURE TO DO
SO COULD RESULT IN BODILY HARM AND/OR PROPERTY DAMAGE.
CAUTION
OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC
SENSITIVE DEVICES.
WARNING
ONLY PERMIT QUALIFIED PERSONNEL TO SERVICE THIS
EQUIPMENT. EXERCISE CARE WHEN MAKING CHECKS, TEST AND
ADJUSTMENTS THAT MUST BE MADE WITH POWER ON. FAILING TO
OBSERVE THESE PRECAUTIONS CAN RESULT IN BODILY HARM.
WARNING
FOR CONTINUED PROTECTION AGAINST SHOCK HAZARD, CONNECT
TO PROPERLY GROUNDED OUTLET ONLY. DO NOT REMOVE THE
GROUND PRONG.
CAUTION
USE ONLY CLASS 2 LISTED EXTERNAL 24 VDC POWER SUPPLY WITH
THESE DEVICES.
5
Précautions
LISEZ ce manual AVANT de faire fonctionner ou d’entretenir cet équipment.
SUIVEZ attentivement ces instructions.
CONSERVEZ ce manuel pour future référence.
NE LAISSEZ PAS du personnel non qualifié utiliser, nettoyer, inspecter, entretenir, réparer ou
manipuler cet équipement.
DÉBRANCHEZ TOUJOURS cet équipement de la source de courant avant de nettoyer ou
d’exécuter l’entretien.
APPELEZ PARKER pour pièces détachées, renseignements et entretien.
ATTENTION
DÉBRANCHEZ TOUT COURANT DE CETTE UNITÉ AVANT DE FAIRE
L’INSTALLATION, D’EFFECTUER L’ENTRETIEN, LE NETTOYAGE OU
AVANT DE RETIRER LE FUSIBLE. NE PAS OBSERVER CES
PRÉCAUTIONS RISQUERAIT DE CAUSER DES BLESSURES
CORPORELLES OU/ET D’ENDOMMAGER L’
É
QUIPEMENT.
PRUDENCE
SOYEZ PRUDENT LORSQUE VOUS MANIPULEZ DES APPAREILS
SENSIBLES À L’ÉLECTROSTATIQUE.
ATTENTION
ONLY PERMIT QUALIFIED PERSONNEL TO SERVICE THIS
EQUIPMENT. EXERCISE CARE WHEN MAKING CHECKS, TEST AND
ADJUSTMENTS THAT MUST BE MADE WITH POWER ON. FAILING TO
OBSERVE THESE PRECAUTIONS CAN RESULT IN BODILY HARM.
ATTENTION
POUR ASSURER UNE PROTECTION CONTINUE CONTRE UNE
DÉCHARGE ÉLECTRIQUE, BRANCHEZ UNIQUEMENT SUR UNE PRISE
CORRECTEMENT RELIÉE Á LA TERRE. NE RETIREZ PAS LA FICHE DE
TERRE.
PRUDENCE
N'UTILISER QUE DE L'ALIMENTATION ÉLECTRIQUE 24 VDC
EXCLUSIVE DE CLASSE 2 AVEC CES DISPOSITIFS.
6
Introduction
You will find the DINCon II, DINPres II and DINTemp II Modules and sensors easy to use. The state-of-
the-art hardware and software design of the DIN Module and sensor combination allows you to
measure and document the conductivity, pressure or temperature of many filtration / separation
processes. With proper maintenance, the DIN II Modules will provide many years of excellent service
and performance.
Please read the following instructions carefully!
Inspections: Remove the products carefully from the shipping container. Check the contents against
the purchase order to verify that all parts are included and undamaged.
Please do the inspection now, even if the products are not used immediately. Many carriers must
receive damage claims within seven days of delivery. Please retain all packing material so unit may be
shipped safely, if necessary.
Customer Service:
Parker Hannifin Corporation
Bioscience Filtration Division
2340 Eastman Avenue
Oxnard, California, USA 93030
toll free: 877 784 2234
phone: +1 805 604 3400
fax: +1 805 604 3401
email: [email protected]
www.parker.com/bioscience
Parker Hannifin Manufacturing Ltd
Bioscience Filtration Division
Durham Road
Birtley, Co. Durham
DH3 2SF, England
phone +44 (0)191 4105121
fax +44 (0)191 4105312
email: [email protected]
www.parker.com/bioscience
Parker customer service personnel will be able to serve you more efficiently if you have the following
information:
Serial number and model name of the equipment
Installation procedure being used
Concise list of symptoms
List of operating procedures and conditions in use when problem arose
Calibration
The DIN II Modules are calibrated devices and are calibrated with test equipment that is traceable to SI
through NIST.
A Calibration Certificate is included with each unit and has a one year expiration date.
It is highly recommended that the Module be calibrated on an annual basis or more often if your
Metrology Department deems it necessary.
Parker Bioscience Filtration provides this Calibration Service, complete with a new certificate, showing
the “as found” and “as left” data.
Contact your local Parker Bioscience Filtration Territory Manager if a quote is needed for this service.
Onsite calibration can be arranged.
7
Warranty
Country specific information can be found at: www.parker.com/termsandconditions
Standards
EN 61326-1:2006, Class B
EN 61010-1:2010 Ed.3+ C1; C2
Conforms to UL STD 61010-1:2012 Ed.3+ R: 29Apr2016
Certified to CSA STD C22.2 No 61010-1-12:2012 Ed.3+U1;U2
Caution: The maximum recommended pressure for the sensors is 60 psi.
If this is exceeded, problems with leakage and functionality can occur.
Installation & Start Up
Installation of the DINCon
II, DINPres
II, and DINTemp II Modules must be carried out only by trained
personnel in accordance with the relevant regulations and this operation manual.
Make sure that the technical specifications and input ratings of the single-use sensors are observed.
See the appropriate Sensor Specifications page.
The protection provided by this equipment may be impaired if the single-use sensors are used in a
manner inconsistent with this manual or for purposes not specified by the manufacturer.
Maintenance & Cleaning
The Parker DIN II Modules are maintenance free. The single-use Parker sensors come pre-calibrated
from the factory and require no maintenance.
To remove dust, dirt and stains, the outer surfaces of the DIN II Modules may be wiped using a soft,
non-fluffing cloth moistened with water. If required, you may also use a mild detergent or 2-propanol.
The single-use sensors may be sanitized with 0.1 Molar NaOH, or 2-propanol. They may be autoclaved
up to 2 times, or gamma-irradiated with exposure up to 45 kGy.
8
Hardware
Specifications – All Modules
Dimensions W: 0.875¨ (2.2 cm); Height 4.0¨ (10.2 cm); D: 4.75¨ (12.1 cm)
Weight 0.3 lb. (0.14 Kg)
Enclosure Molded Plastic
Electrical
Power 24 VDC, 250 mA. Use only Class 2 External Power Supply
Battery CR1216, used for internal clock, not user serviceable
I/O Port Top 8 pin Terminal Block, numbered from rear:
1: +24 VDC 2: 24 VDC Return 3: N/C 4: Signal GND (COM)
5: RS-232 RX 6: RS-232 TX 7: RS-485 A 8: RS-485 B
I/O Port – 2 RJ45, Ethernet Connection
I/O Port - 3 USB Connection
Software
I/O Port
Bottom
14 Pin Sensor Connection, DINCon has 1, DINPres and
DINTemp have 3.
DISPLAY Power Status LED, Sensor Status LED’s
Modbus Modbus RTU via RS-232
Modbus RTU via RS-485
Modbus RTU via USB
Modbus TCP via Ethernet
Environmental
Temperature 4 – 60° C
Altitude Up to 2000 Meters
IP Rating IP20, Indoor dry environments, unit is wipe-down only
Rel. Humidity 0 – 95%
Voltage Fluctuation allowed: +/- 10%
Pollution Degree: 2
9
Installation
Overview:
The DINCon II, DINPres II, and DINTemp II Modules are designed to be installed as
part of a control system inside a control cabinet that has a 24 VDC source available and
has Modbus communication protocol capability.
The DIN II Modules are installed on standard DIN II rail. They are usually mounted with
the red locking tab located at the bottom of the unit. This places the Power and
Communication connections at the top of the Module and the Sensor connections at the
bottom. They may be mounted upside-down if that proves useful.
Wiring Power and Communication:
Connect 24 Volts DC, 250 mA power to Pins 1 (+) and 2 (-) of the 8 pin terminal block.
(Note - pin 1 is at the rear, nearest the DIN rail.)
All data acquisition is via Modbus registers in either RTU or ASCII. The available
physical layers are RS-232, RS-485, Ethernet and USB. The recommended physical
layer for installation of multiple units is Modbus/RTU over RS-485 with Modbus/TCP via
Ethernet a close second.
For RS-232, connect to the following: Pin 4 = Signal Ground, Pin 5 = RX, Pin 6 = TX.
For RS-485, connect to the following: Pin 7 = RS485-A, Pin 8 = RS485-B.
For Ethernet connect an Ethernet cable to the provided RJ45 jack.
For USB connect to the provided USB Type A jack.
Pin 1: +24VDC
Pin 2: Common
Pin 3: Not Connected
Pin 4: Si
g
nal Ground
Pin 5: RS-232 RX
Pin 6: RS-232 TX
Pin 7: RS-485
A
Pin 8: RS-485 B
USB
RJ45 Ethernet
DIN
II
Rail
10
Connecting Sensors:
All sensors, SciCon II for use with the DINCon II Module, SciPres II for use with the
DINPres II Module, and SciTemp II for use with the DINTemp II Module are disposable
flow through sensors that are purchased separately from Parker and come pre-
calibrated.
The sensors connect to a provided cable that has an Amphenol bulkhead watertight
connector on the sensor end and a 14 pin connector on the other end that plugs into a
matching port on the bottom of the Module. The DINCon II has only one port, and uses
only one SciCon II Sensor. The DINPres II and DINTemp II have 3 ports, can support
up to 3 SciPres II or SciTemp II Sensors, and they are referred to as P1 – P3 or T1 – T3
beginning with P1 and T1 at the rear, or the closest connector to the DIN rail. These
cables are 12” long providing flexibility in where the bulkhead fittings are installed on the
control cabinet.
These cables ship with a ferrite clamp included that should be attached and secured to
the cable as shown below: (anywhere along the cable is fine.)
Sensor 1
Sensor 2
Sensor 3

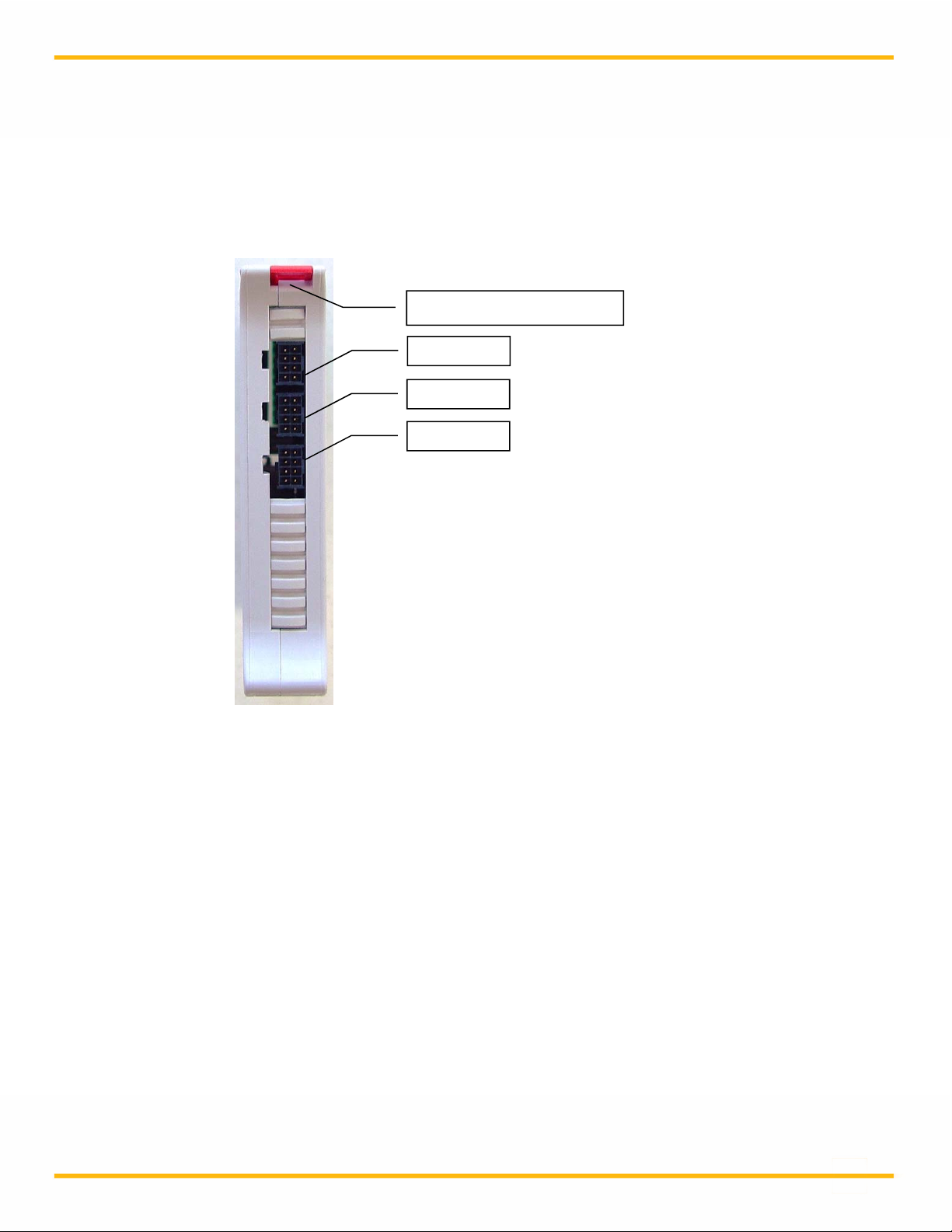

DIN II Rail locking clip
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Parker Unité de contrôle
Parker
Parker TFP Series Manuel utilisateur
Parker
Parker CK-6D Mode d’emploi
Parker
Parker P33 Guide de configuration rapide
Parker
Parker Sporlan B5D Series Guide de l'utilisateur
Parker
Parker PSSNACM12A Instructions d'installation et d'entretien
Parker
Parker D1FV EE Series Manuel utilisateur
Parker
Parker 2B4 Series Manuel utilisateur
Parker
Parker CK-6D Manuel utilisateur
Parker
Parker 7121Z028 Instructions de montage
Parker
Parker U Series Caractéristiques techniques
Parker
Parker D1VW -SC Series Manuel utilisateur
Parker
Parker D1FB EE Series Manuel utilisateur
Parker
Parker DP-V1 Manuel utilisateur
Parker
Parker IQAN-XC21 Manuel utilisateur
Parker
Parker D*1VW*EE Series Manuel utilisateur
Parker
Parker PQDXXA-Z10 Manuel d'installation et d'exploitation
Parker
Parker PSST8M23A Instructions d'installation et d'entretien
Parker
Parker B5 Manuel utilisateur
Parker
Parker Autoclave Engineers 10V Series Manuel utilisateur
Parker
Parker CK5-DN Manuel utilisateur
Manuels Unité de contrôle populaires d'autres marques
Festo
Festo Compact Performance CP-FB6-E Manuel de la liste des pièces
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur
JS Automation
JS Automation MPC3034A Manuel utilisateur
JAUDT
JAUDT SW GII 6406 Series Guide rapide
Spektrum
Spektrum Air Module System Manuel utilisateur
BOC Edwards
BOC Edwards Q Series Manuel utilisateur
