Effective: July 2018 IPDE-IOM-NEEDLE-VALVE-BALL-VALVE

Effective: REV A : July 2023

Installation and Operation Manual

Needle Valves & Ball Valves

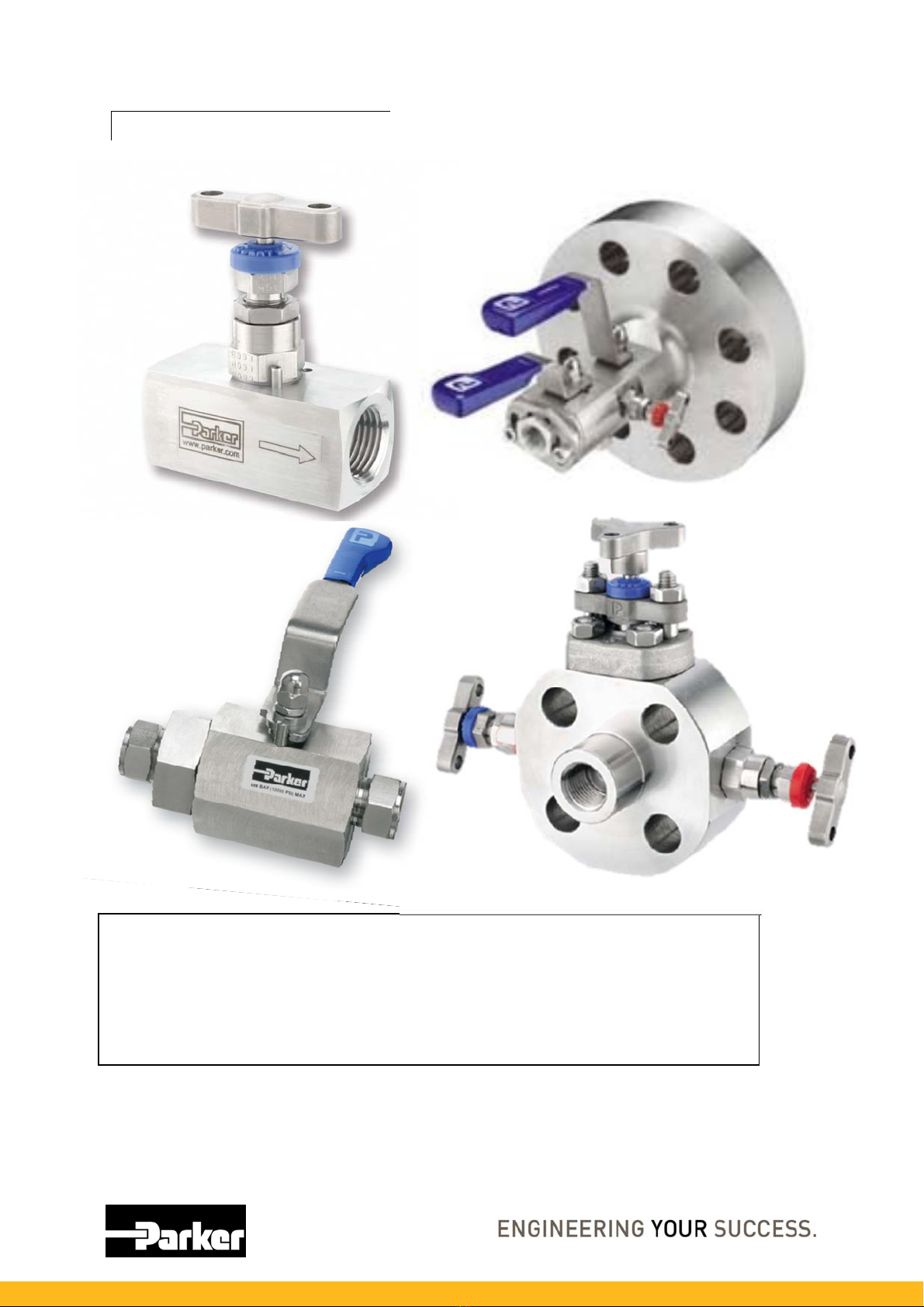

Note - These Instructions apply to Parker Products that utilise Needle and Ball Valves such

as the ones shown above

Page 1 of 7

ECO-0438955

REV:A

Installation and Operation Manual

Needle Valves & Ball Valves

Parker Hannifin

Parker Hannifin (IPDE)

Riverside Road, Barnstaple, Devon, EX31 1NP United Kingdom

Telephone: (01271) 313131

E-mail: [email protected]

IDENTIFICATION OF HAZARDS

NEVER adjust valves under pressure.

NEVER slacken or remove any valve parts under pressure.

NEVER use any mechanical aids i.e. wrenches, extensions to operate handles.

NEVER carry ball valves by the handle.

NEVER obscure valve body marking.

NEVER remove end connectors.

INSTALLATION

Wear suitable PPE before installation and follow appropriate site safety procedures.

Before installation, ensure that all valves are in the closed position.

H Series Manifolds & Needle Valves:

Needle valves supplied with weld connections will generally be supplied, unless specified and/or

agreed with customer, fully assembled. Prior to welding Parker recommend removing the Head

Assembly from the body to protect from heat. The valve body should be welded into the system

following the appropriate welding procedures. To prevent ingress of foreign contaminants into the

valve body, the Head Assembly hole and thread must be protected. After welding the Head Assembly

can be reassembled into the valve body:

1. Ensure the spindle is fully retracted by holding the valve head unit and turning handle (1)

counter clockwise until stop if felt.

2. Place stainless steel washer (8) into body recess at the top of the body thread. Apply suitable

lubricant to stainless steel thread (6) prior to assembling the valve head to the body.

3. Tighten bonnet hexagon (6) into valve body to 108Nm (6000 Psi / 414 Bar) Standard Head

Assembly *

122Nm (10,000 Psi / 689 Bar) High Pressure Head Assembly - Designated HP *

* Note - Monoflanges use Standard Head Assembly and Pro-Bloc use High Pressure Head

Assembly.

4. Place rolled locking pin into the nearest one of the 2 Ø3mm holes to the bonnet hexagon and

insert until fully located.

Hi-Pro Ball Valve:

Care should be taken to ensure that the end connector (1) is firmly held by an appropriate spanner /

wrench (size varies depending on size of valve) to prevent any movement when assembling or

disassembling pipe or tube connections.

Flanged Products:

Refer to the appropriate installation standard for the flange specification in question.

Page 2 of 7

ECO-0438955

REV:A

Installation and Operation Manual

Needle Valves & Ball Valves

NPT: Use standard practice for NPT taper threads. Use an appropriate thread tape or sealant to

prevent galling.

A-lok/CPI: See separate instruction sheet supplied with A-lok products. For full instruction and best

practice on fabrication and installation of tube and A-lok/CPI tube fittings, scan the QR code below. *

When fitting A-lok/CPI, care should be taken to ensure that the end connector (1) (fig1) is firmly held

by an appropriate spanner / wrench (the size varies depending on the size of valve) to prevent any

movement when assembling or disassembling pipe or tube connections.

O-Lok: Take care to not damage the captive O-ring. For full instructions on O-lok assembly and

installation, please refer the O-lok section on page 55 of our Tube Assembly Guide which can be

found by scanning the QR link below. *

*For text versions of these QR codes, please See ‘Further Information’ at the end of this guide.

HANDLING AND STORAGE

Handling

Parker Products that utilise Needle and Ball Valves may be heavy. Ensure that local manual handling

requirements are followed.

Do not lift or carry by the operating handles, as this may cause damage.

Storage

There is no specified shelf-life.

Boxed products should be stored in a covered area, preferably indoors, and away from excessive

moisture, heat, or airborne contaminants.

The use of desiccant or corrosion inhibitors is not required during normal storage periods.

Page 3 of 7

ECO-0438955

REV:A

Installation and Operation Manual

Needle Valves & Ball Valves

OPERATION

H Series Screwed Head/Bonnet:

To close: Rotate the handle (1) Clockwise until a positive stop is felt up to a maximum torque of 6Nm.

To open: Rotate the handle (1) Counter Clockwise until the backstop is located. The valve will be in its

fully open position after approximately 3 turns of the handle

H Series Outside Screw & Yoke Head:

To close: Rotate the handle (1) Clockwise until a positive stop is felt up to a maximum torque of 6Nm.

To open: Rotate the handle (1) Counter Clockwise until the backstop is located. The valve will be in its

fully open position after approximately 3 turns of the handle.

Page 4 of 7

ECO-0438955

REV:A

Installation and Operation Manual

Needle Valves & Ball Valves

Hi-Pro Ball Valve:

To close: Operate the handle (17) until it is at 90° from the valve body centreline.

To open: Operate the handle (17) until it is in line with the centreline of the body and reaches the stop

pin.

Movement is limited to 90° by a mechanical stop pin.

Ball valves should always be fully open or fully closed. Do not leave in a mid-position.

Page 5 of 7

ECO-0438955

REV:A

Installation and Operation Manual

Needle Valves & Ball Valves

MAINTENANCE

H Series Screwed Head/Bonnet:

CAUTION: Adjustment of the gland must be carried out at zero pressure

1. Fully close the valve by turning the handle (1) in a clockwise direction to stop lightly on seat

2. (max. 2 Nm).

3. Open the valve one full turn by rotating the handle (1) in a counter clockwise direction.

4. Loosen gland lock nut (4).

5. Tighten gland nut (3) to 11 Nm

6. Re-tighten gland lock nut (4) to 25 Nm.

Page 6 of 7

ECO-0438955

REV:A

Installation and Operation Manual

Needle Valves & Ball Valves

H Series Outside Screw & Yoke Head:

CAUTION: Adjustment of the gland must be carried out at zero pressure

1. Fully close the valve by turning the handle (1) in a clockwise direction to stop lightly on seat

(max. 2 Nm).

2. Open the valve one full turn by rotating the handle in a counter clockwise direction.

3. The two bridge-nuts (3) on either side of the spindle must be tightened evenly, keeping the

bridge parallel to the body, to a torque of 5Nm.

Hi-Pro Ball Valve:

Parker Hi-Pro Ball Valves are not user-serviceable.

Page 7 of 7

ECO-0438955

REV:A

Installation and Operation Manual

Needle Valves & Ball Valves

FURTHER INFORMATION

Dust Cap colours on Needle Valves signified below:

Ball Valve Cv values:

10mm bore: 6.4

15mm bore: 15

20mm bore: 31

25mm bore: 39

Needle Valve Cv values

Bar Stock Needle valves: 0.35

Bar Stock Needle valves with 6mm bonnet seats: 0.5

Rising plug valves: 1.8

(Note, these are generic values for our range and may vary for specific items/connections. If in doubt,

please contact our technical support)

Text versions of QR codes

https://qr.parker.com/203785 Tube Fitting Installation Manual (A-lok/CPI)

https://qr.parker.com/203784 Tube Assembly (O-lok: please refer to page 55)

Technical Support: [email protected]m
