Parker D31FBxEE Series Manuel utilisateur

Bulletin MSG11-5715-706/UK

Pilot Operated

Proportional DC Valve

Operating instructions

Series D*1FB*EE

Design series 13

II 2 G c T4 Gb

-20 °C ≤Ta≤+40 °C

D*1FB*EEXG371

-20 °C ≤Ta≤+60 °C

Parker Hanniﬁn

Manufacturing Germany GmbH & Co. KG

Industrial Systems Division Europe

Gutenbergstr. 38

41564 Kaarst, Germany

Tel.: (+49) 181 99 44 43 0

E-mail: valvesisde@parker.com

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

WARNING - USER RESPONSIBILITY

FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED

HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY

DAMAGE.

This document and other information from Parker-Hanniﬁn Corporation, its subsidiaries and

authorized distributors provide product or system options for further investigation by users having

technical expertise.

The user, through its own analysis and testing, is solely responsible for making the ﬁnal selection

of the system and components and assuring that all performance, endurance, maintenance,

safety and warning requirements of the application are met. The user must analyze all aspects

of the application, follow applicable industry standards, and follow the information concerning

the product in the current product catalog and in any other materials provided from Parker or its

subsidiaries or authorized distributors.

To the extent that Parker or its subsidiaries or authorized distributors provide component or

system options based upon data or speciﬁcations provided by the user, the user is responsible for

determining that such data and speciﬁcations are suitable and sufﬁcient for all applications and

reasonably foreseeable uses of the components or systems.

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

3Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

Contents Page

0. EC declaration of conformity 4

1. Introduction 8

Ordering code 9

Technical data 10

Characteristic curves 11

Pilot oil 12

Dimensions 13

Name plate 15

2. Safety instructions 15

Symbols 15

Marking, name plates 15

Work on the valve 15

3. Important information 16

Correct use 16

Common instructions 16

Liability 16

Storage 16

4. Installation 17

Scope of delivery 17

Installation 17

Electrical connection 17

Operation limits 17

Pressure ﬂuids 17

5. Operating instructions 20

Electronic control system 20

Air bleeding of hydraulic system 20

Filter 20

Flushing 20

6. Maintenance 20

Coil replacement 20

7. Troubleshooting 22

A1 Extract from standards/directives 23

A2 User guide – Solenoid 25

A3 Type-examination certiﬁcate – Solenoid 26

A4 Declaration of conformity – Solenoid 40

A5 Mounting instruction cable gland 41

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

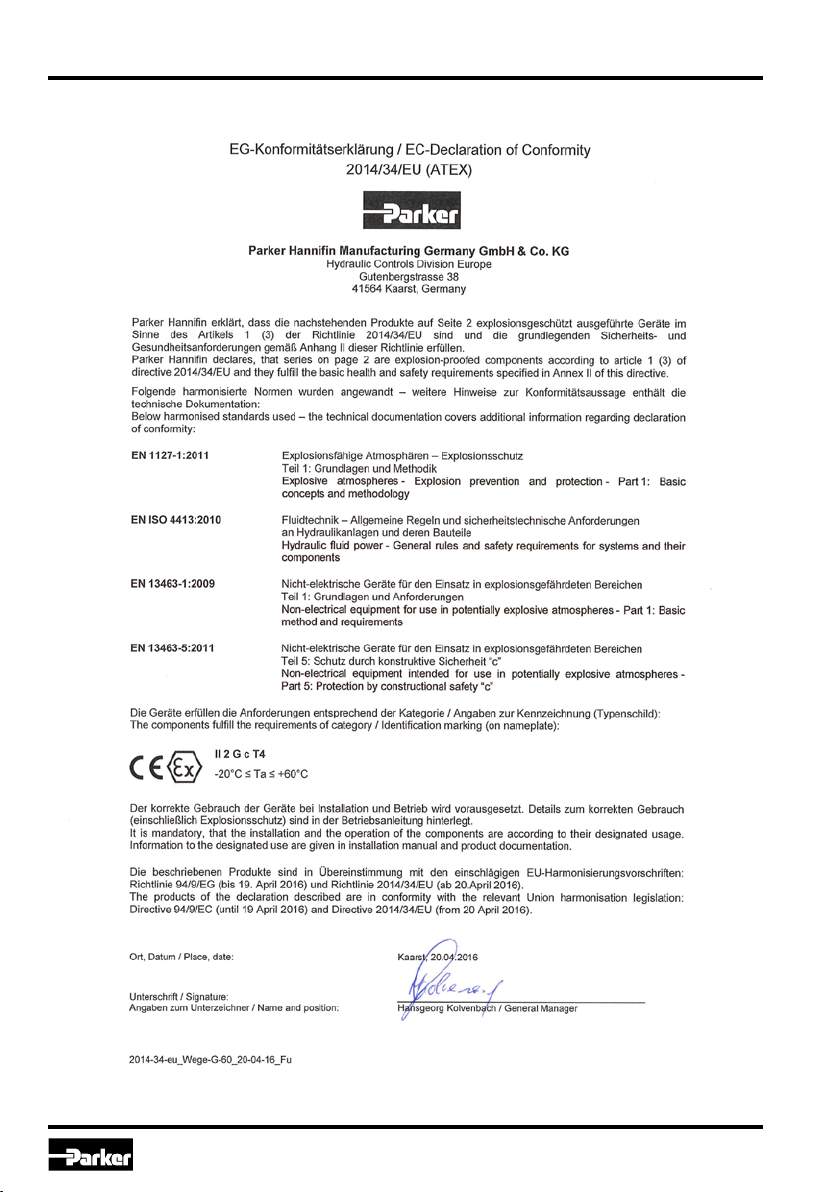

0. EC declarations of conformity

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

5Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

7Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

1. Introduction

The new series of pilot operated proportional direc-

tional valves D*1FB*EE comes in 4 sizes:

D31FB*EE – NG10 (CETOP 05)

D41FB*EE – NG16 (CETOP 07)

D91FB*EE – NG25 (CETOP 08)

D111FB*EE – NG32 (CETOP 10)

The D*1FB*EE series with explosion proof so-

lenoids is based on the standard D*1FB series.

The speciﬁc solenoid design allows the usage in

hazardous environments.

The explosion proof class is

Ex e mb IIC T4 Gb

for use in zone 1 and 2 (conform to ATEX).

Additionally the solenoids are IECEx compliant.

The parameters can be saved, changed and dupli-

cated in combination with the digital power ampli-

ﬁer PWD00A-400 (to be used in an explosion proof

cabinet or outside of the hazardous area).

The valve parameters can be edited with the com-

mon ProPxD software.

Features

• Progressive ﬂow characteristics for sensitive

adjustment of ﬂow rate

• High ﬂow capacity

• Optional: coil to permit ambient temperature up

to +60 °C, modiﬁcation XG371

D31FB

D91FB*EE

D91FB D111FB

D91VW

D41FB

a 0 b

A B

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

9Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

Ordering code

Code Spool type

E01

E02

B31

QB= QA /2

B32

QB= QA /2

Code Spool position

Code Seals

N NBR

V FPM

Code Nominal size

3 NG10 / CETOP 05

4 NG16 / CETOP 07

9 1) NG25 / CETOP 08

11 NG32 / CETOP 10

Code Flow [l/min]

at Dp = 5 bar per metering edge

D31 D41 D91 D111

B – 100 2) – –

C 75 2) 130 2) – –

D 90 – – –

E 120 – 250 2) –

F – 200 – –

H – – 400 –

L – – – 1000

Code Inlet Drain

1 Internal External

2 External External

4 Internal Internal

5 External Internal

1) With enlarged connections Ø 32 mm

2) Not for spool type B31 and B32

valve

Flow Valve

accessories

Solenoid

description

Pilot

connection

Dynamics

standard

NG06

pilot

Spool

type

Size Design

series

(not required

for ordering)

SealProportional

control

Spool

position

Explosion

proof

Connection

Explosion proof

with cable glands

Ex e mb IIC T4 Gb

+ IECEx

conformity

B1 F E 0D EE

Modi-

ﬁcation

Code Modiﬁcation

omit Standard

XG371 Coil to permit ambient

temperature up to +60 °C

Code Solenoid

description

K 12 V / 2.3 A

J 24 V / 1.15 A

J*XG371 24 V / 1.0 A

Pilot Operated Proportional DC Valve

Series D*1FB*EE Explosion Proof

Operating Instructions

Parker Hanniﬁn Corporation

D_1FB-EE 5715-706UK.indd 11.01.19

Technical data

General

Design Pilot operated DC valve

Actuation Proportional solenoid

Size NG10 (CETOP05) NG16 (CETOP07) NG25 (CETOP08) NG32 (CETOP10)

Mounting interface DIN 24340 / ISO 4401 / CETOP RP121 / NFPA

Mounting position unrestriced

Ambient temperature [°C] -20...+40; XG371: -20...+60

MTTFDvalue [years] 75

Weight [kg] 9.4 12.8 20.3 69.3

Hydraulic

Max. operating pressure [bar]

[bar]

Pilot drain internal: P, A, B, X 350; T, Y 185

Pilot drain external: P, A, B, T, X 350; Y 185

Fluid Hydraulic oil as per DIN 51524...535, other on request

Fluid temperature [°C] -20...+40; XG371: -20...+60

Viscosity

permitted [cSt] /

recommended [cSt] /

[mm2/s]

20...400

30...80

Filtration ISO 4406; 18/16/13

Nominal ﬂow at Dp=5 bar

per control edge * [l/min] 75/90/120 130/200 250/400 1000

Leakage at 100 bar [ml/min] 100 200 600 1000

Pilot supply pressure [bar]

[bar]

min. 30 (+ T/Y pressure), max. 350

optimal dynamics at 50

Pilot ﬂow at 100bar [l/min] <0.5 <1.2 <1.2 <1.2

Pilot ﬂow, step response [l/min] 2.0 1.9 4.5 18

Static / Dynamic

Step response at 100% step [ms] 50 75 100 180

Hysteresis [%] <5

With electrical connections the protective conductor (PE W) must be connected according to the relevant regulations.

* Flow rate for different Dp per control edge: Qx= QNom. · √Dpx

DpNom.

Electrical characteristics

Duty ratio [%] 100

Protection class , Ex e mb IIC T4 Gb, IP66 (plugged and mounted correctly)

Solenoid Code K J J*XG371

Supply voltage [V] 12 24 24

Current consumption [A] 2.3 1.15 1.0

Resistance [Ohm] 3.0 12.0 12.0

Solenoid connection Box with M20x1.5 entry for cableglands. Solenoid identiﬁcationas per ISO 9461.

Wiring min. [mm²] 3 x 1.5 recommended

Wiring lenght max. [m] 50 recommended
