Explosion Proof Electric Actuated

Shut-Off/ Flow Regulating

Needle Valve

Operation and Maintenance Manual

Catalog: 02-9342ME January 2017

Parker Autoclave Engineers

Instrumentation Products Division

Erie, PA USA

www.autoclave.com | Cat. 02-9342ME

Model #

Serial #

Table of ConTenTs page

1.0 Introduction .......................................................................................................... 2

2.0 Meaning of Safety Words...................................................................................... 2

 3.0 TechnicalSpecication ......................................................................................... 2

4.0 Drawings .............................................................................................................. 3

5.0 Installation ........................................................................................................... 3

6.0 Service ................................................................................................................. 4

Section 1.0

Introduction

The Parker Autoclave Engineers Electric Flow Control valves are

designed to operate up to 60,000 psi depending on the model

number. The valves are "fail-as-is" meaning the valve maintains

its last position on signal or power failure.

Section 2.0

Meaning of Safety Words

A safety related message is identied by a safety alert symbol

and a signal word to indicate the level of risk involved with a

particular hazard. The denitions of the three signal words are

as follows:

indicates a potentially hazardous

situation which, if not avoided, could result

in death or serious injury.

indicates a potentially hazardous

situation which, if not avoided, may result

in minor or moderate injury.

WARNING

CAUTION

Section 3.0

Technical Specication

Electrical Power

Power Required: 24 VDC/72 Watt Maximum

Input Impedance: 250 Ohms (4-20 mA input)

Environmental

Atmosphere: NEC CLASS I, DIV 1, GROUP B,C,D

Operating Tempertaure (Actuator): -40º to 85º C

Maximum Weight: See drawing.

Dimensions: See drawing.

Personnel:

Installation must be carried out by qualied personnel

familiar with all pertinent wiring practices, codes, and safety

procedures.

Read this manual in its entirety prior to any attempt to

install, operate, or perform maintenance on the

Electric Flow Control Valve.

If you are unsure of how to proceed, please contact Parker

Autoclave Engineers Service Department at (814) 860-5700

or fax us at (814) 860-5811.

CAUTION

Internal dip switches are factory set. Do not adjust switches

unless directly advised in Section 6 (Service) of

this manual.

CAUTION

Parker Autoclave Engineers

Instrumentation Products Division

Erie, PA USA

www.autoclave.com | Cat. 02-9342ME

Section 4.0

Drawings

VALVE SERIES DRAWING

1/8"10V AE003953

1/4"10V AE003954

3/8"10V AE003955

1/2"10V AE003956

1/4"SW AE003957

3/8"SW AE003958

1/2"SW AE003959

1/4"20SM AE003960

3/8"20SM AE003961

9/16"20SM AE003962

1/48"30VM AE003963

3/8"30VM AE003964

9/16"30VM AE003965

1/8"60VM AE003966

3/8"60VM AE003967

9/16"60VM AE003968

Section 5.0

Installation

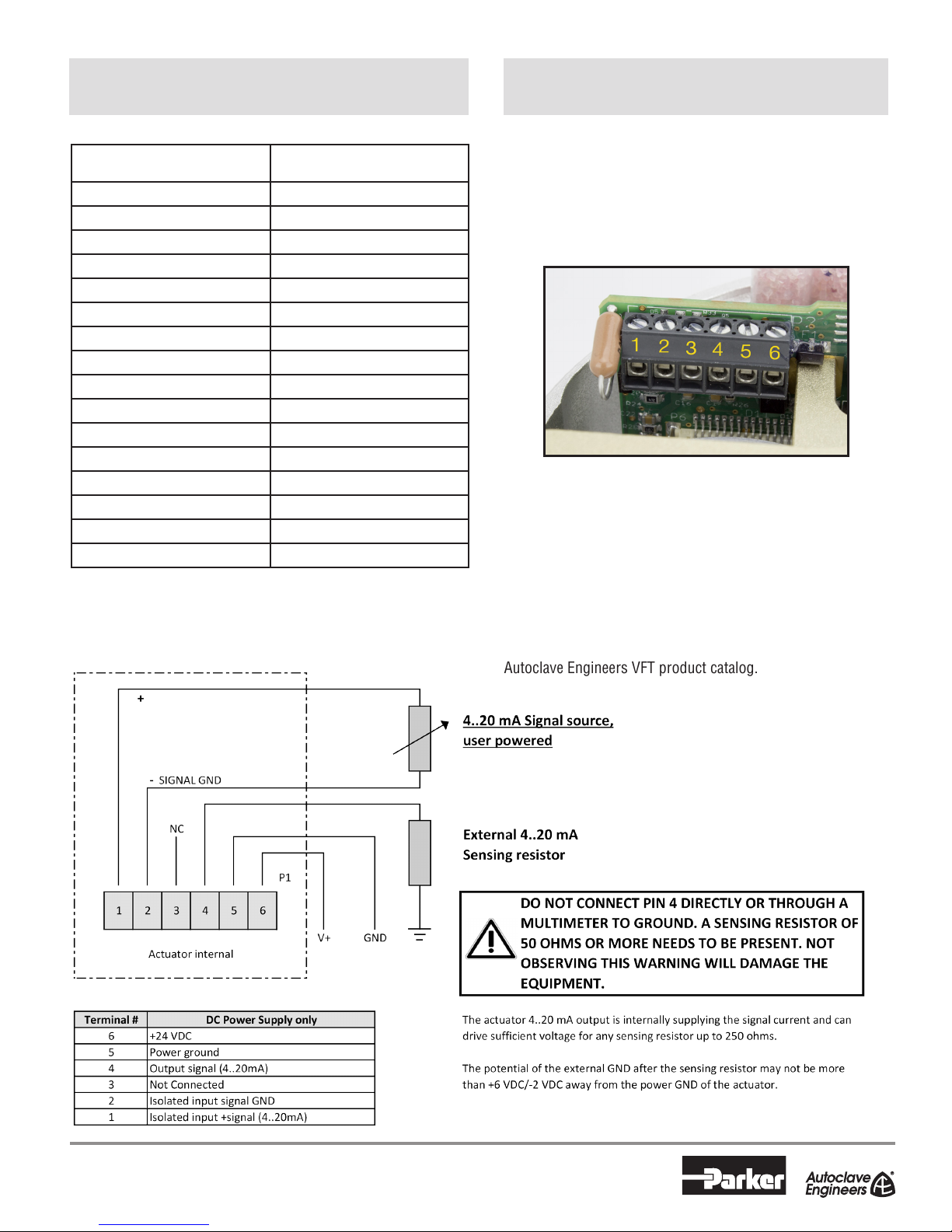

Electrical Wiring:

The actuator comes with a female 1/2" NPT connection for the

user to connect their electrical piping. It is the responsibility

of the user to connect to the actuator in a way that meets their

hazardous location codes. The electrical wiring is connected at

the terminal block as indicated on photo and schematic below.

Signal Positioning:

A 4-20mA signal corresponds to a 0-100% open position.

A 4.0mA signal directs the valve to a fully closed position.

When a 20mA signal is given the valve is fully opened a full

5 turns. The relationship between the signal and the valve

position is linear.

High Pressure Plumbing:

Refer to the Tools and Installation section of the Parker

Autoclave Engineers VFT product catalog.

Wiring schematic:

ISO-9001 Certifie

Switches 1 through 11 are factory set and will vary

depending on the valve type.

Do not adjust switches 1 through 11.

CAUTION

Parker Hannin Manufacturing Ltd.

Instrumentation Products Division, Europe

Industrial Estate Whitemill

Wexford, Republic of Ireland

PH: 353 53 914 1566

FAX: 353 53 914 1582

Instrumentation Products Division

Autoclave Engineers Operation

8325 Hessinger Drive

Erie, Pennsylvania 16509-4679 USA

PH: 814-860-5700 FAX: 814-860-5811

www.autoclave.com

WARNING

FAILURE, IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY

AND PROPERTY DAMAGE.

This document and other information from Parker Hannin Corporation, its subsidiaries and authorized distributors provide product and/or system options for further investiga-

tion by users having technical expertise. It is important that you analyze all aspects of your application and review the information concerning the product or system in the current

product catalog. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible

for making the nal selection of the products and systems and assuring that all performance, safety and warning requirements of the application are met. The products described

herein, including without limitation, product features, specications, designs, availability and pricing, are subject to change by Parker Hannin Corporation and its subsidiaries at any

time without notice.

Offer of Sale

The items described in this document are available for sale by Parker Hannin Corporation, its subsidiaries or its authorized distributors. Any sale contract entered by Parker will be

governed by the provisions stated in Parker's standard terms and conditions of sale (copy available upon request).

Section 6.0

Service

For valve maintenance or packing leaks refer to the Manual Valves Operation and Maintenance Manual (Catalog# 02-0024ME).

RE-ZERO THE VALVE AFTER MANUAL ADJUSTMENT. REMOVE THE TOP COVER AND APPLY POWER TO THE ACTUATOR AND

CYCLE DIP SWITCH 12 FROM OFF TO ON AND BACK TO OFF. VERIFY THAT THE VALVE STARTS TO MOVE. THE VALVE WILL

RUN UNTIL IT COMPLETELY CLOSES. IT IS NOW READY FOR OPERATION.

For service, contact the Parker Autoclave Engineers’ Representative in your area or phone Parker Autoclave Engineers’ Support

Services at 1-814-860-5703.
