8540-A2-GN10-00 October 1997

HotWire 8540 Digital Subscriber Line (DSL) Card

Installation Instructions

Document Number 8540-A2-GN10-00

October 1997

What is a 8540 DSL Card?

A Digital Subscriber Line (DSL) 8540 card is a circuit card assembly (CCA) that

contains four Rate Adaptive Digital Subscriber Line (RADSL) ports, an Ethernet

interface to the Internet Service Provider (ISP), and a processor. The processor

controls the RADSL ports and forwards the packet traffic to and from the Ethernet

and DSL interfaces. When the 8540 DSL card is used in a HotWire 8600 or 8800

DSL Access Multiplexer (DSLAM) chassis and connected to HotWire 5100/5200

series Remote Termination Units (RTU), it provides high-speed Internet or

Intranet access over traditional twisted-pair telephone wiring.

!HANDLING PRECAUTIONS FOR

STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive components from damage

due to electrostatic discharge (ESD) during normal operation. When

performing installation procedures, however, take proper static control

precautions to prevent damage to equipment. If you are not sure of the

proper static control precautions, contact your nearest sales or service

representative.

Package Checklist

Verify that your package contains the following:

DSL CCA

Warranty card

Tools Required

Small- to medium-size flat-blade screwdriver to install the DSL card.

496-15104

2 8540-A2-GN10-00

October 1997

Technical Specifications

Specifications Criteria*

Size 10.4 inches (L) x 11.15 inches (H) x .8 inches (W)

Weight Approx. 1.4 lbs.

Approvals

Safety Certifications Refer to the equipment’s label for approvals on product.

Power The DSL card contains a DC-to-DC converter that

requires –48V power input. The –48V power is

distributed through the HotWire DSLAM backplane.

Maximum Power Dissipation = 18 watts

Physical Environment

Operating temperature

Storage temperature

Relative humidity

Shock and vibration

32°to 122°F (0°to 50°C)

–4°F (–20°C) to 158°F (70°C)

5% to 85% (noncondensing)

Withstands normal shipping and handling.

* Criteria of technical specifications are subject to change without notice.

Planning the DSL Card Installation

Review the following list to help plan for the installation.

Obtain the applicable cables; refer to the next section,

Cables You Need

Make sure the HotWire DSLAM chassis is installed and power is supplied to

the chassis.

After the DSL card is installed, there are configuration instructions that must

be performed before you can begin to use the DSL cards for Internet or

Intranet connectivity. Refer to the

HotWire DSLAM for 8540 and 8546 DSL

Cards User’s Guide

, Document No. 8000-A2-GB20, for more detailed

configuration procedures.

8540-A2-GN10-00 October 1997

Cables You Need

The following customer-provided cables are used with this product:

HPlug-ended Telco 50-pin cable for connection from the HotWire DSLAM Line

port to the CO POTS splitter shelf, Main Distribution Frame (MDF), or other

demarcation point.

HOne 8-pin modular UTP (Unshielded twisted Pair) CAT5 cable for each

connection from a LAN/WAN port associated with a 8540 DSL card in the

HotWire DSLAM chassis to the Ethernet hub or switch.

CAUTION:

Use of any non-twisted pair wiring arrangements, such as jumpers, can

cause reduction in overall DSL reach performance, even over short

distances. Please refer to the Special Notice shipped with the

HotWire 8800/8600 DSLAM.

Refer to

Pin Assignments

on page 9 for pinouts.

Installing 8540 DSL Cards

Use a small- to medium-size flat-blade or Phillips screwdriver to install the

8540 DSL card.

When using a . . . Install the DSL card into . . .

HotWire 8600 DSLAM base chassis Slot 2 or 3 (Slot 1 of the HotWire 8600

DSLAM base chassis must contain a

Management Communications

Controller (MCC) card.)

HotWire 8600 DSLAM expansion chassis Slot 1, 2, or 3

HotWire 8800 DSLAM chassis Any one of the first 18 slots (i.e., Slot 1

through 18)

An 8540 DSL card can be installed, removed, and replaced from a HotWire

DSLAM chassis without service disruption (i.e., you can replace a card without

powering down the chassis and disrupting service to the other cards in the

chassis).

NOTE:

When installing the 8540 DSL card, you will need to remove the filler plate

before proceeding.

Do not discard unused filler plates. Each slot in the chassis must contain a

circuit card or a filler plate. Store all unused filler plates in a safe place. You

may need to use the filler plates to cover open slots in the chassis at a later

time.

4 8540-A2-GN10-00

October 1997

"Procedure

To install an 8540 DSL card:

1. Remove the filler plate from the desired slot.

2. Insert the 8540 DSL card into this slot:

— For a HotWire 8600 DSLAM chassis – hold the 8540 DSL card

horizontally with component side facing up and insert it into the left and

right card guides.

INPUT

48VDC CLASS 2 OR

LIMITED PWR SOURCE

RTN48V

AAB B

T5A

250V

LAN/WAN SLOT

POSITION

STACK

ALM A

DC FUSES

DC PWR

FAN

OUT SERIAL MCC 1

MANAGEMENT

LINE

97-15374-01

SYSTEM

Alrm

Test

Col

ETHERNET

RADSL

8000

SYSTEM

Alrm

Test

Col

ETHERNET

DSL PORT

— For a HotWire 8800 DSLAM chassis

–

hold the 8540 DSL card vertically

with component side facing right and insert it into the top and bottom card

guides.

ALARMS

Major MinorFanBA

POWER

MCC

SYSTEM

Alm

Test

ETHERNET

Coll

97-15328

MGT

SERIAL

MGT

10BT ALARM

SLOTS 1 - 6

SLOTS 7-12

SLOTS 13-18

LINES

-48V (A)

-48V INPUT

-48V (B)

RET (A)

RET (B)

FR GND

246810 12 14 16 18

13579

11 13 15 17

LAN/WAN SLOT

Slot 1

DSL

SYSTEM

Alm

Test

ETHERNET

Coll

DSL PORT

DSL Card

8540-A2-GN10-00 October 1997

3. Slide the 8540 DSL card into the slot until the power and network connectors

seat firmly in the mating connectors on the backplane.

CAUTION:

Do not force the 8540 DSL card into the slot. If it does not seat properly,

remove the card and reinstall it. If it still does not seat properly, call

service.

The 8540 DSL card performs a power-up self-test. All of the LEDs turn ON

and OFF briefly. When the self-test is completed successfully, the SYSTEM

OK LED will turn ON. Make sure the SYSTEM OK indicator on the DSL card

faceplate is ON (winking green).

4. If the LED is not ON, refer to the

Troubleshooting

chapter of the appropriate

HotWire DSLAM Installation Guide.

5. Secure the DSL card by fastening the screws at each end of the faceplate.

NOTE:

The 8540 DSL cards may be replaced without system disruption (i.e., you

can remove and re-install a card without powering down the HotWire DSLAM

chassis and disrupting service to the other cards). To remove an 8540 DSL

card from the HotWire DSLAM chassis, unfasten the screws on both ends of

the faceplate. Then, simply push the ejector handles outward and slide the

card out.

When swapping the old 8540 DSL card with a new 8540 DSL card, it is

important to note that the 8600 DSLAM retains the Media Access Control

(MAC) address, also referred to as the physical address. This means that the

new DSL card will have the same MAC address as the old one.

6 8540-A2-GN10-00

October 1997

Connecting to a POTS Splitter or an MDF

You can connect the HotWire DSLAM chassis containing the 8540 DSL card to a

POTS splitter shelf, MDF, or other demarcation point.

NOTE:

If you are connecting the HotWire DSLAM to a CO POTS splitter, this

procedure assumes that the CO POTS splitter shelf is already installed. For

information on how to install the CO POTS splitter, refer to the

HotWire POTS

Splitter Central Office Installation Instructions,

Document No. 5020-A2-GN10.

"Procedure

To connect the HotWire DSLAM chassis containing the 8540 DSL card to a POTS

splitter shelf or MDF:

1. Plug the Telco 50-pin cable into the appropriate LINE port on the front panel

of the chassis:

—On a HotWire 8600 DSLAM chassis:

97-15480-01

INPUT

48VDC CLASS 2 OR

LIMITED PWR SOURCE

RTN48V

AAB B

T5A

250V

LAN/WAN SLOT

POSITION

STACK

ALM A

DC FUSES

T4A, MIN. 48V 5

DC PWR

FAN

OUT SERIAL MCC 1

MANAGEMENT

LINE

SYSTEM

Alrm

Test

Col

ETHERNET

MCC

8000

SYSTEM

Alrm

Test

Col

ETHERNET

DSL PORT

RADSL

8546

SYSTEM

Alrm

Test

Col

ETHERNET

DSL PORT

RADSL

8546

Anchor

Mount

Telco 50-Pin

Connector

8540-A2-GN10-00 October 1997

—On a HotWire 8800 DSLAM chassis:

SLOTS 13-18

SLOTS 7-12

SLOTS 1-6

97-15325

Anchor Mount

Telco 50-Pin

Connector

LINES

SLOTS 1-6

LINES

Shorter

Telco

Captive Screw

2. Replace the longer Telco cable captive screw with a shorter connector

captive screw, which is provided with the HotWire DSLAM chassis.

3. Insert a cable tie (provided with HotWire DSLAM chassis) through the tie

mount to hold the Telco 50-pin connector in place. If more than one Telco

cable is being connected, replace the existing cable tie with a single tie to

span the two or three connectors.

4. Make sure the other end is connected to the appropriate POTS splitter shelf,

MDF, or demarcation point.

Refer to

Pin Assignments

on page 9 for pinouts.

NOTE:

If you are connecting the Telco 25-pair, 50-pin cable to an MDF without a

POTS splitter in the line, a converter may be necessary for terminating the

other end of the cable on a punchdown block before cross-connecting to an

MDF.

8 8540-A2-GN10-00

October 1997

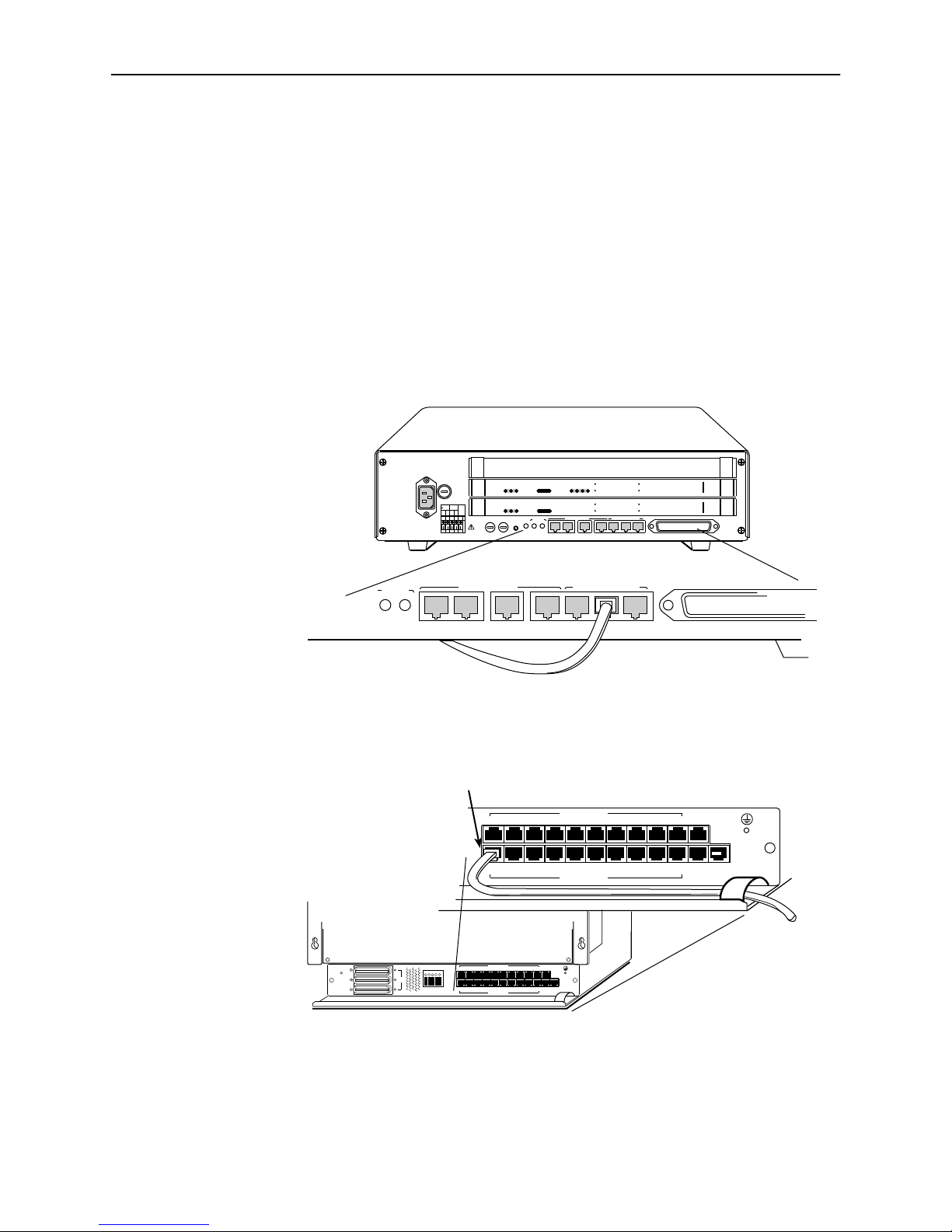

Connecting the DSL Cards to the Ethernet Hubs or Switches

"Procedure

To connect the 8540 DSL cards to the Ethernet hubs or switches:

1. Plug the end of an 8-pin modular cable into the appropriate LAN/WAN SLOT

port of the chassis. For example, if you want to connect to the LAN/WAN port

of an 8540 DSL card, insert the 8-pin modular cable in LAN/WAN Slot #2.

2. Plug the other end of the cable into your Ethernet hub or switch connector.

Refer to

Pin Assignments

on page 9 for pin assignments.

—On a HotWire 8600 DSLAM chassis:

97-15375-01

LAN/WAN SLOT

DC PWR

OUT SERIAL MCC 1

MANAGEMENT

INPUT

48VDC CLASS 2 OR

LIMITED PWR SOURCE

RTN48V

AAB B

T5A

250A

LAN/WAN SLOT

POSITION

STACK

ALM A

DC FUSES

T4A, MIN. 48V 5

DC PWR

FAN

OUT SERIAL MCC 1

MANAGEMENT

LINE

SYSTEM

Alrm

Test

Col

ETHERNET

MCC

8000

SYSTEM

Alrm

Test

Col

ETHERNET

DSL PORT

RADSL

8546

SYSTEM

Alrm

Test

Col

ETHERNET

DSL PORT

RADSL

8546

To Hub Connector

—On a HotWire 8800 DSLAM chassis:

MGT

SERIAL

MGT

10BT ALARM

SLOTS 1 - 6

SLOTS 7-12

SLOTS 13-18

LINES

-48V (A)

-48V INPUT

-48V (B)

RET (A)

RET (B)

FR GND

246810 12 14 16 18

1357911 13 15 17

LAN/WAN SLOT 20

LAN/WAN SLOT

MGT

SERIAL

MGT

10BT ALARM

246810 12 14 16 18

13579

11 13 15 17

LAN/WAN SLOT 20

LAN/WAN SLOT

PORT 1

97-15385

97-15449

Pin 1 Pin 8

8540-A2-GN10-00 October 1997

Pin Assignments

HotWire 8600 DSLAM LAN/WAN Connector Pinouts

The 8-pin modular interface for the LAN/WAN 10BaseT connection on a HotWire

8600 DSLAM chassis has the following pin assignments:

Pin Number Use

1TX Data +

2TX Data –

3RX Data +

4 Reserved

5 Reserved

6RX Data –

7 Reserved

8 Reserved

97-15526

10 8540-A2-GN10-00

October 1997

HotWire 8600 DSLAM Telco 50-pin Connector Pinouts for DSL Loops

and POTS Splitters

The Telco 50-pin receptacle on the front panel provides the two-wire loop

interface from each 8540 DSL port to either the POTS Splitter shelf or, if the

loop is not being shared with POTS, then to the MDF. The following table lists

the pin assignments for each of these interfaces.

NOTE:

When the 8600 chassis is the base chassis, the MCC is installed in Slot 1

and the Tip and Ring wiring for Slot 1 is not active.

Also, pins 13 through 25 and 38 through 50 of all HotWire 8600 chassis

are not used.

CONNECTOR

(8540 DSL Slot, Port #) CONNECTOR PINS

(Tip, Ring)

Slot 1, Port 1 1, 26

Slot 1, Port 2 2, 27

Slot 1, Port 3 3, 28

Slot 1, Port 4 4, 29

Slot 2, Port 1 5, 30

Slot 2, Port 2 6, 31

Slot 2, Port 3 7, 32

Slot 2, Port 4 8, 33

Slot 3, Port 1 9, 34

Slot 3, Port 2 10, 35

Slot 3, Port 3 11, 36

Slot 3, Port 4 12, 37

Autres manuels pour 8540

Table des matières

Autres manuels Paradyne Matériel réseau

Paradyne

Paradyne Hotwire 5216 Manuel utilisateur

Paradyne

Paradyne ACCULINK 3151 CSU Manuel utilisateur

Paradyne

Paradyne Fan Tray 8820-S2-900 Manuel utilisateur

Paradyne

Paradyne 4000E Manuel utilisateur

Paradyne

Paradyne JetFusion Integrated Access Device Manuel utilisateur

Paradyne

Paradyne Comsphere 3510 Manuel utilisateur

Paradyne

Paradyne Hotwire 8785 Manuel utilisateur

Paradyne

Paradyne 7915-A1 E1 SDSL Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3800 Series Mode d’emploi

Paradyne

Paradyne 8540 Manuel utilisateur

Paradyne

Paradyne Comsphere 3510 Manuel utilisateur

Paradyne

Paradyne Hotwire 5446 Manuel utilisateur

Paradyne

Paradyne Hotwire 5620 Manuel utilisateur

Paradyne

Paradyne HotWire 7924 Manuel utilisateur

Paradyne

Paradyne Hotwire 5446 Manuel utilisateur

Paradyne

Paradyne Hotwire 7996 Instructions d'utilisation d'origine

Paradyne

Paradyne DC Power Entry Module 8820-S1-906 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 6700 Series Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel de la liste des pièces

Paradyne

Paradyne ACCULINK 3160 Manuel

Paradyne

Paradyne Single T1 Network Access Module (NAM)... Manuel utilisateur

Paradyne

Paradyne FrameSaver SLV 9626 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Guide de l'utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
