12000E IP Broadband Loop Carrier

Installation Instructions

Document Number IPD1-A2-GZ40-10

July 2005

Contents

Software and Firmware License Agreement ...................................................... 1

Introduction ........................................................................................................ 3

Unpacking and Inspecting the Equipment ......................................................... 3

Installation Options ............................................................................................ 4

Installing Your Management Module .................................................................. 6

Installing Your Interface Module(s) ..................................................................... 9

Establishing Your Uplink Connections ............................................................... 14

Connecting Your Subscriber Lines ..................................................................... 15

Configuration and Management ........................................................................ 18

Product Documentation Online .......................................................................... 18

Fan Module ........................................................................................................ 19

Specifications ..................................................................................................... 20

Important Safety Instructions ............................................................................. 21

Warranty, Sales, Service, and Training Information ........................................... 23

Software and Firmware License Agreement

The terms and conditions of this License Agreement (the “Agreement”) will apply

to the software and/or firmware (individually or collectively the “Software”)

incorporated into the Paradyne product (the “Product”) purchased by you and any

derivatives obtained from the Software, including any copy of either. If you have

ONCE YOU HAVE READ THIS LICENSE AGREEMENT AND AGREE TO ITS

TERMS, YOU MAY USE THE SOFTWARE AND/OR FIRMWARE INCORPORATED

INTO THE PARADYNE PRODUCT. BY USING THE PARADYNE PRODUCT YOU

SHOW YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE AGREEMENT.

IN THE EVENT THAT YOU DO NOT AGREE WITH ANY OF THE TERMS OF THIS

LICENSE AGREEMENT, PROMPTLY RETURN THE UNUSED PRODUCT IN ITS

ORIGINAL PACKAGING AND YOUR SALES RECEIPT OR INVOICE TO THE

LOCATION WHERE YOU OBTAINED THE PARADYNE PRODUCT OR THE

LOCATION FROM WHICH IT WAS SHIPPED TO YOU, AS APPLICABLE, AND YOU

WILL RECEIVE A REFUND OR CREDIT FOR THE PARADYNE PRODUCT

PURCHASED BY YOU.

2July 2005 IPD1-A2-GZ40-10

executed a separate written agreement covering the Software supplied to you

under this purchase, such separate written agreement shall govern.

Paradyne Corporation (“Paradyne”) grants to you, and you (“Licensee”) agree to

accept a personal, non-transferable, non-exclusive, right (without the right to

sublicense) to use the Software, solely as it is intended and solely as incorporated

in the Product purchased from Paradyne or its authorized distributor or reseller

under the following terms and conditions:

1. Ownership: The Software is the sole property of Paradyne and/or its licensors.

The Licensee acquires no title, right or interest in the Software other than the

license granted under this Agreement.

2. Licensee shall not use the Software in any country other than the country in

which the Product was rightfully purchased except upon prior written notice to

Paradyne and an agreement in writing to additional terms.

3. The Licensee shall not reverse engineer, decompile or disassemble the

Software in whole or in part.

4. The Licensee shall not copy the Software except for a single archival copy.

5. Except for the Product warranty contained in the manual, the Software is

provided “AS IS” and in its present state and condition and Paradyne makes

no other warranty whatsoever with respect to the Product purchased by you.

THIS AGREEMENT EXPRESSLY EXCLUDES ALL OTHER WARRANTIES,

WHETHER EXPRESS OR IMPLIED, OR ORAL OR WRITTEN, INCLUDING

WITHOUT LIMITATION:

a. Any warranty that the Software is error-free, will operate uninterrupted in

your operating environment, or is compatible with any equipment or

software configurations; and

b. ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT

LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS

FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT.

Some states or other jurisdictions do not allow the exclusion of implied

warranties on limitations on how long an implied warranty lasts, so the above

limitations may not apply to you. This warranty gives you specific legal rights,

and you may also have other rights which vary from one state or jurisdiction to

another.

6. In no event will Paradyne be liable to Licensee for any consequential,

incidental, punitive or special damages, including any lost profits or lost

savings, loss of business information or business interruption or other

pecuniary loss arising out of the use or inability to use the Software, whether

based on contract, tort, warranty or other legal or equitable grounds, even if

Paradyne has been advised of the possibility of such damages, or for any

claim by any third party.

7. The rights granted under this Agreement may not be assigned, sublicensed or

otherwise transferred by the Licensee to any third party without the prior

written consent of Paradyne.

8. This Agreement and the license granted under this Agreement shall be

terminated in the event of breach by the Licensee of any provisions of this

Agreement.

IPD1-A2-GZ40-10 July 2005 3

9. Upon such termination, the Licensee shall refrain from any further use of the

Software and destroy the original and all copies of the Software in the

possession of Licensee together with all documentation and related materials.

10. This Agreement shall be governed by the laws of the State of Florida, without

regard to its provisions concerning conflicts of laws.

Introduction

Paradyne's 12000E IP Broadband Loop Carrier (BLC) provides a high capacity

and native IP Ethernet foundation for a variety of feature-rich multi-service access

multiplexer modules.

The 12000E BLC is engineered for efficient, high-speed IP data transport in a

compact, fully fault-tolerant chassis. It features a high capacity backplane

delivering up to 48 Gbps throughput and providing a non-blocking architecture for

even the highest bandwidth broadband access technologies, such as ADSL2+.

The 12000E BLC supports single or dual redundant uplink, management, and

switching modules. In redundant mode, both modules can be connected to the

dual backplanes with redundant modular backhaul/uplink ports to support 10/100

Ethernet, GigE (Copper or fiber), T1/E1, and dual bonded T1/E1 uplink modules.

For flexibility of installation the 12000E has removable mounting brackets that can

be placed in increments of 1.45” up to 9.28” from the front of the chassis, allowing

for multiple installation options in either 19" or 23" equipment racks.

Unpacking and Inspecting the Equipment

HANDLING PRECAUTIONS FOR

STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive components from damage

due to electrostatic discharge (ESD) during normal operation. When

performing installation procedures, however, take proper static control

precautions to prevent damage to equipment. If you are not sure of the

proper static control precautions, contact your nearest sales or service

representative.

The following components should be included in the shipping container:

1 – 12000E with 1 fan module and 12 slot covers

4 – Rubber Bumper Screws

2 – Rack Mount Brackets (either 19" or 23", as ordered)

10 – #6 Phillips Bracket Screws

8 – #10 Phillips Rack Screws

8 – #12 Phillips Rack Screws

4July 2005 IPD1-A2-GZ40-10

If there is visible damage, do not attempt to connect the device. Contact your sales

representative.

Installation Options

The 12000E BLC is designed for installation in a Restricted Access area where

admittance is limited to trained and authorized service personel. It may be

installed on a tabletop or in a rack.

Installation on a Tabletop

Insert the four provided rubber bumper screws into the mounting holes at the

bottom of the 12000E chassis for surface grip and airflow. Position and secure all

connecting cables such that they will not become a tripping hazard or pull loose

from the chassis. Ensure that the air supply vents around the top and bottom

edges of the chassis are not blocked.

12000E BOTTOM VIEW

RUBBER BUMPER

SCREW

Side Top

Front Rear

IPD1-A2-GZ40-10 July 2005 5

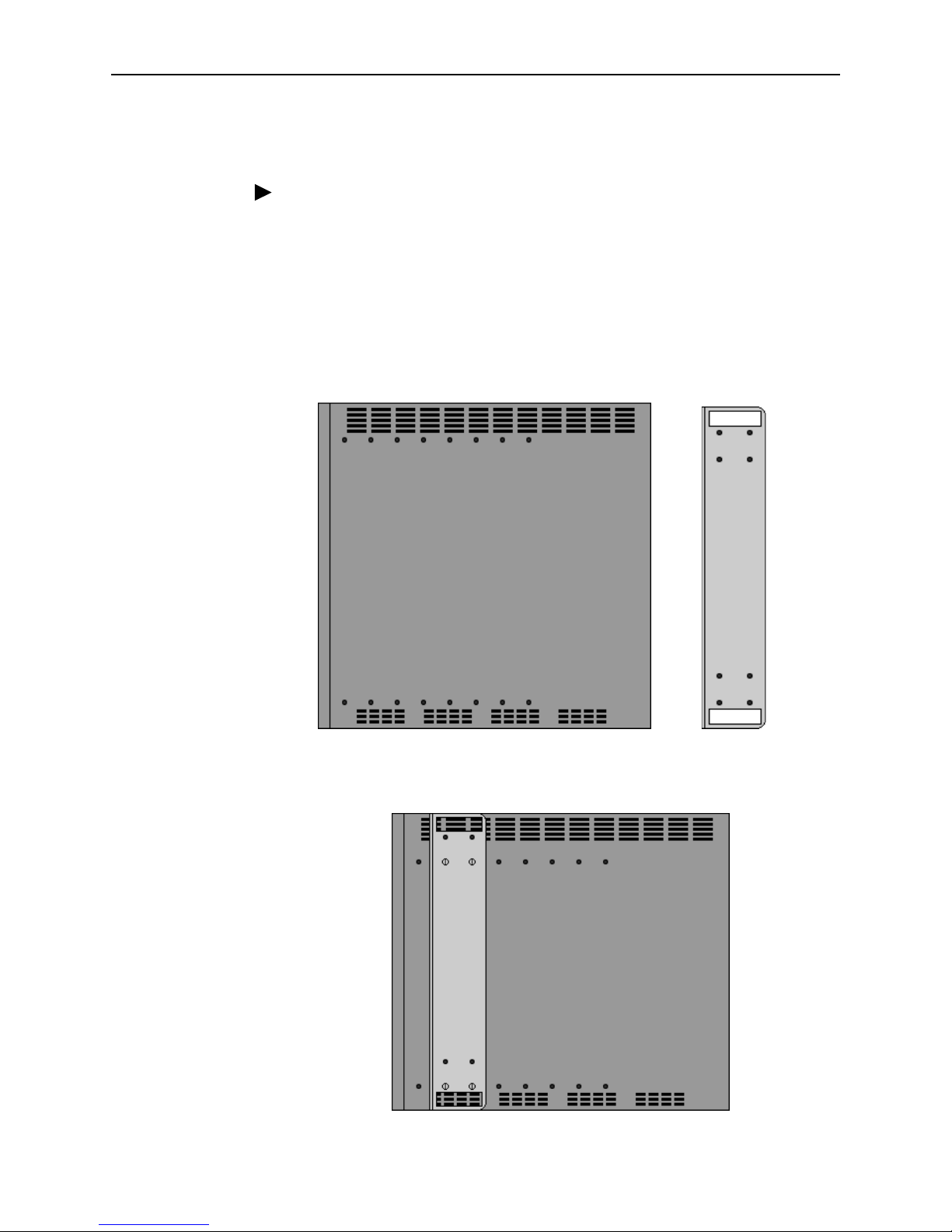

Installing in a Rack

Procedure

1. Using a Phillips screwdriver, attach the two provided rack mount brackets to

the sides of the 12000E with eight of the ten provided bracket screws. There

are seven position options for the rack brackets; position them as best suited

to the space available for your chassis on the rack being utilized.

12000E SIDE VIEW RACK MOUNT

BRACKET

Front Rear

6July 2005 IPD1-A2-GZ40-10

2. Mount the chassis onto the rack and secure the rack mount brackets to the

sides of the rack using one of the two provided sets of eight rack screws

(whichever size fits the rack being utilized).

3. Check the rack for stability, ensuring that installation of the 12000E has not

caused the rack to become top-heavy. Position and secure all connecting

cables such that they will not become a tripping hazard or pull loose from the

chassis.

Installing Your Management Module

A management module provides the functional control for the 12000E BLC; the

BLC cannot function without one. There are several different models available for

purchase. Refer to www.paradyne.com for further information, or contact your

sales representative.

Installing a Management Module

An uplink module provides the upstream network connection for the12000E BLC;

a management module cannot function without one. Depending on the

management module model that you plan to install in your 12000E, you will need

either a Media Interface Module (MIM) or an Uplink Interface Module (UIM). Only

one uplink module is required for operational purposes, however two uplink

modules may be installed, one in each port of the management module, if

redundancy is desired. Refer to your management module and/or uplink module

installation instructions for further information.

CAUTION:

If a slot cover is removed from a management module uplink port, it must be

replaced with an uplink module. DO NOT OPERATE A 12000E BLC WITH A

MANAGEMENT MODULE THAT HAS AN OPEN UPLINK PORT.

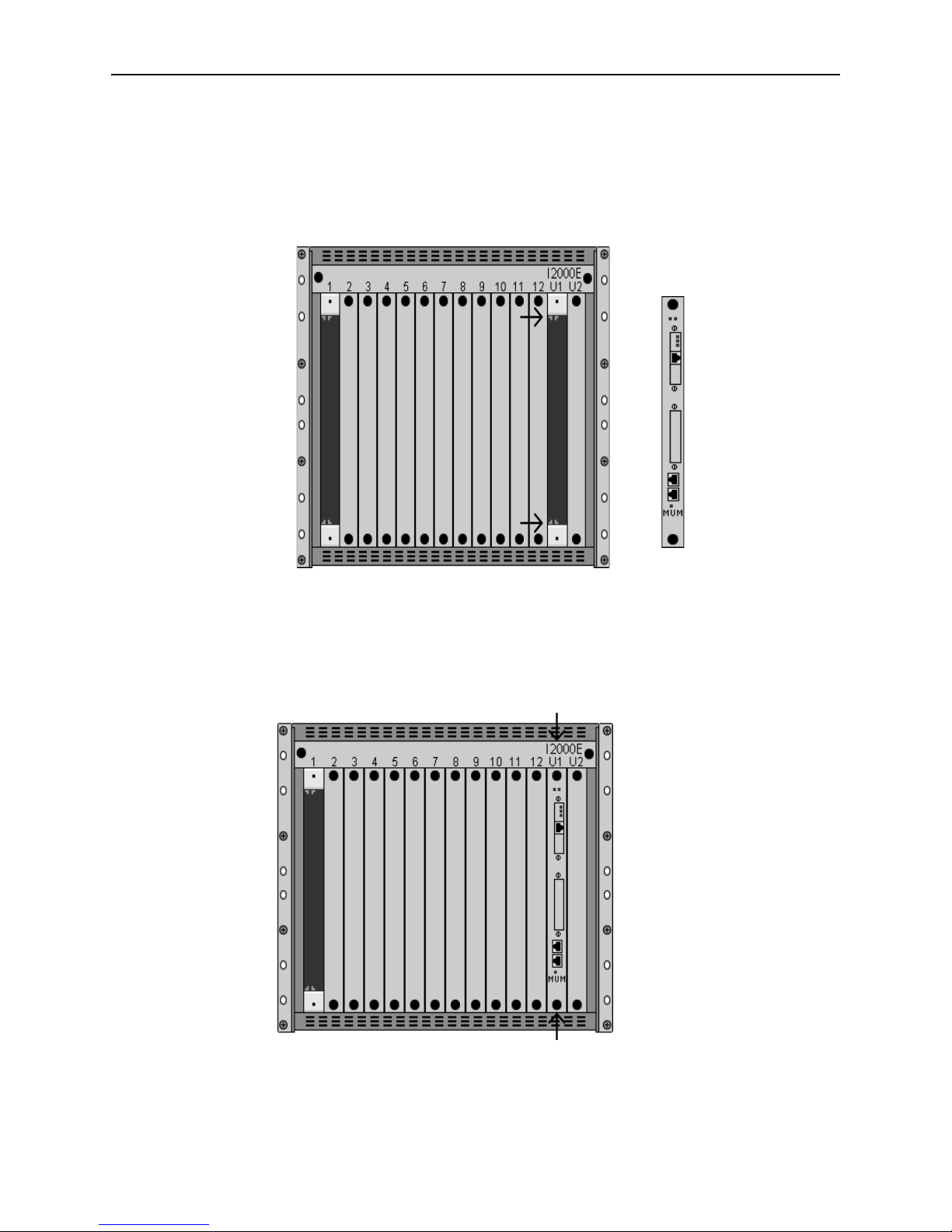

12000E FRONT VIEW

IPD1-A2-GZ40-10 July 2005 7

Procedure

1. Select a slot for installation. The 12000E is a fourteen slot chassis: slots 1–12

are reserved for interface modules and slots U1–U2 are reserved for

management modules. Although the 12000E is shipped with Port U1 open,

your management module can be installed in either Port U1 or Port U2. Only

one management module is required for operational purposes. However, two

management modules may be installed if redundancy is desired: one in Slot

U1 and one in Slot U2.

CAUTION:

If the slot cover is removed from Slot U2, it must be replaced with a

management module. DO NOT OPERATE YOUR 12000E WITH AN

EMPTY MODULE SLOT.

Management Module Slots

8July 2005 IPD1-A2-GZ40-10

2. With the management module printed circuit board (PCB) facing right and the

management module model name upright, align the upper and lower edges of

the PCB with the slot module guides.

3. Slide the management module firmly into the chassis. Tighten the fastening

screws on the management module faceplate.

MANAGEMENT

MODULE

Slot Module Guides

Fastening Screws

IPD1-A2-GZ40-10 July 2005 9

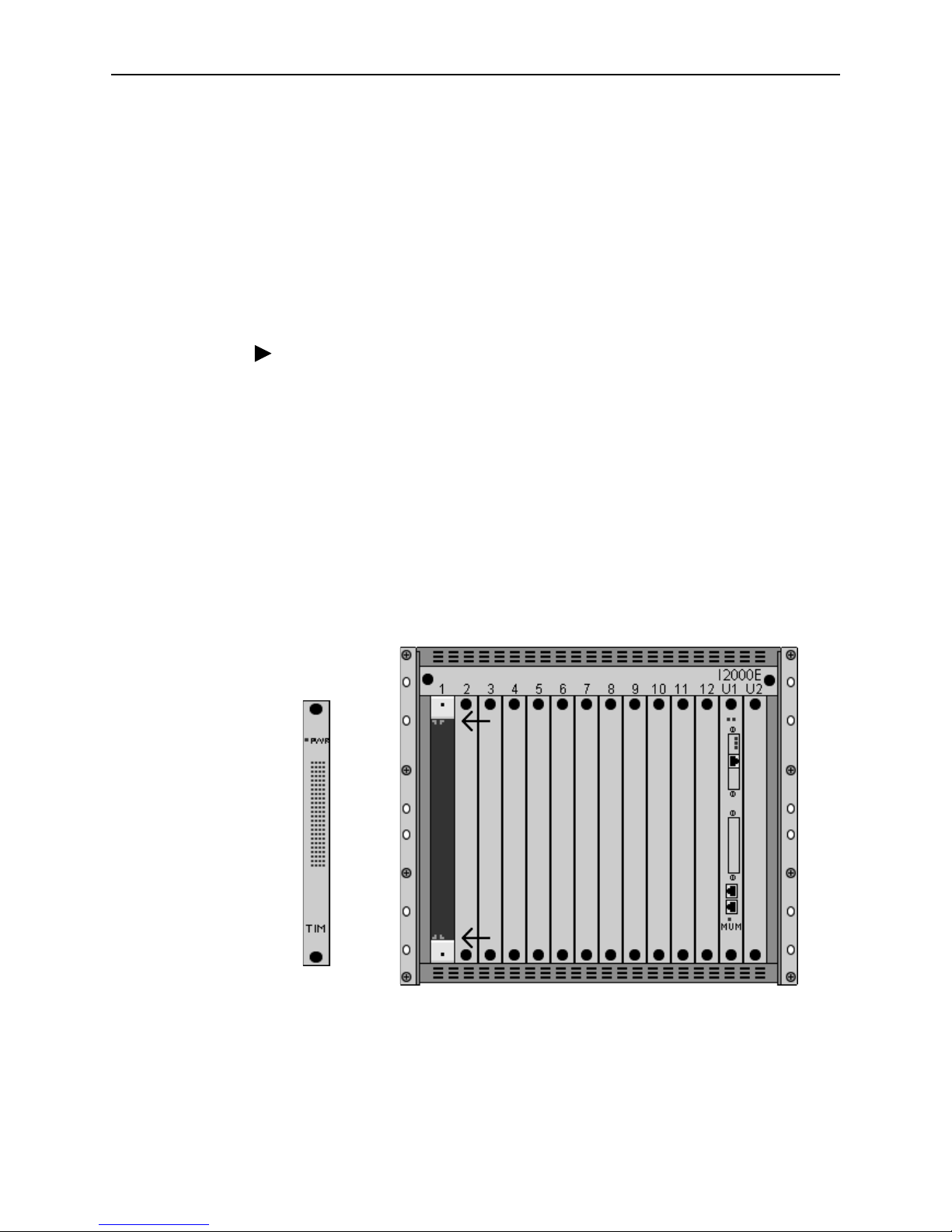

Installing Your Interface Module(s)

Interface modules provide the subscriber connections for an 12000E; up to twelve

interface modules may be installed in the 12000E (slots 1–12). There are a variety

of models available for purchase; contact your sales representative for further

information or visit www.paradyne.com for a list of available products. Any

combination of interface module models may be installed in an 12000E as long as

they are supported by the model type and version number of your management

module; refer to the Release Notes for your particular management module model

for compatibility information.

Procedure

1. Select a slot for installation. Although the 12000E is factory shipped with Slot 1

open, interface modules may be installed in any slot, 1–12.

CAUTION:

If a slot cover is removed from slot 2–12, it must be replaced with an

interface module. DO NOT OPERATE YOUR 12000E WITH AN EMPTY

MODULE SLOT.

2. With the interface module PCB facing right and the interface module model

name upright, align the upper and lower edges of the PCB with the slot

module guides.

INTERFACE

MODULE

Slot Module Guides

10 July 2005 IPD1-A2-GZ40-10

3. Slide the interface module firmly into the chassis. Tighten the fastening screws

on the interface module faceplate.

Fastening Screws

Autres manuels pour 12000E

Table des matières

Autres manuels Paradyne Matériel réseau

Paradyne

Paradyne HotWire 7924 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3800PLUS Manuel

Paradyne

Paradyne ACCULINK 317x E1 Manuel

Paradyne

Paradyne JetFusion 2208 Manuel utilisateur

Paradyne

Paradyne 8540 Manuel utilisateur

Paradyne

Paradyne FrameSaver SLV 9124 Manuel d'utilisation et d'entretien

Paradyne

Paradyne Hotwire 6210 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel utilisateur

Paradyne

Paradyne ACCULINK 316x Manuel

Paradyne

Paradyne ACCULIN 3364 Manuel

Paradyne

Paradyne JetFusion Integrated Access Device Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel de la liste des pièces

Paradyne

Paradyne 3172 Manuel

Paradyne

Paradyne 4929 DSLAM Manuel utilisateur

Paradyne

Paradyne 3163 Manuel utilisateur

Paradyne

Paradyne Comsphere 3510 Manuel d'exploitation et d'entretien

Paradyne

Paradyne JetFusion 2008 Manuel utilisateur

Paradyne

Paradyne HotWire 7924 Manuel utilisateur

Paradyne

Paradyne BitStorm IP DSLAM 1900 Manuel du produit

Paradyne

Paradyne COMSPHERE 3800PLUS Mode d’emploi

Paradyne

Paradyne COMSPHERE 3610 Manuel d'exploitation et d'entretien

Paradyne

Paradyne Hotwire 8775 Manuel utilisateur

Paradyne

Paradyne Fan Tray 8820-S2-900 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
