FrameSaver®NP

Installation & Quick Reference Guide

FrameSaver NP Models 64+, 100, 110 and 120

Document Number 980-000-0272B

August 2000

This Quick Reference Guide provides an overview on how to install a FrameSaver NP

Model 64+, 100, 110 or 120 unit. This includes making the physical connections be-

tween the unit, network, DTEdevice(s),and telephone line. It also tells youhow to find

more detailed information about your FrameSaver NP.

Product Documentation on the World Wide Web

We provide complete product documentation online. This lets you search the docu-

mentation for specific topics and print only what you need, reducing the waste of sur-

plus printing. It also helps us provide timely product update information and maintain

competitive prices for our products.

Complete documentation for these products is available at www.paradyne.com.

Select Library

→

Technical Manuals

→

FrameSaver NP (NetPath) Frame Relay Digital Access Units

Select the appropriate document from the documentation list:

FrameSaver NP 64+ User’s Manual - Installation Guide, Publication # 980-001-0221

FrameSaver NP 100 User’s Manual - Installation Guide, Publication # 980-001-0210

FrameSaver NP 110 User’s Manual - Installation Guide, Publication # 980-001-0240

FrameSaver NP 120 User’s Manual - Installation Guide, Publication # 980-001-0230

116

Getting Started

Before installing or starting to use the FrameSaver NP, you should:

•Install the User’s Manual - Installation Guide so that you can access all the

installation, configuration, and operating information about the unit.

•Print sections you may want to reference.

User’s Manual - Installation Guide

The manual is in PDF file format. Your PC should be using Microsoft Windows 3.1 or

above, and have Adobe Acrobat Reader installed for browsing or printing this manual.

Adobe Acrobat Reader may be obtained free from Adobe Systems Incorporated, from

their Web Site at www.adobe.com.

Using Adobe Acrobat Reader

Adobe Acrobat Reader is used just as you would most word processing or text editing

programs. Start Adobe Acrobat Reader and open the file containing the FrameSaver

NP User’s Manual - Installation Guide. You can simply scroll through the pages, or

use the Bookmarks along the left side to move around the manual or the tables in the

front of the manual.

To print the manual or a selection of pages, select Print... from the File menu and then

select the range of pages you wish to print. Select OK to begin printing.

Ordering a Hard Copy of the User’s Manual

Contact ParadyneCorporation atthe address on the back of thisGuide to obtain a print-

ed copy of a FrameSaver NP User’s Manual - Installation Guide. Always specify the

“latest revision” for each publication number:

Safety Instructions

Before proceeding with the installation, carefully read the Equipment Interference No-

tice, Important Safety Instructions and Preface sections of the FrameSaver NP User’s

Manual - Installation Guide.

Contact your service representative, distributor or sales representative to order cables.

FrameSaver NP 110 Cable List

Description Part No.

T1 or DSX network cable, RJ-48, twisted pair 135-982-0006

Dial Line (POTS) cable, RJ-11 connector 135-007-7200

ISDN BRI network cable, RJ-49 connector 135-981-0006

Console cable (to AUX2), DB-9 connector 135-000-0464

Console cable (to AUX2), DB-25 connector 135-007-0400

AUX Port to router console port cable, DB-25 connector 135-008-0400

AUX Port to Cisco router console port, RJ-45 type connector 135-990-0006

Contact your service representative, distributor or sales representative to order cables.

Before You Begin

Ensure you have the following:

•A dedicated, grounded, circuit breaker protected power outlet within six feet of

the FrameSaver NP unit.

•A suitable location for the unit that is clean, well-lit, ventilated and free from

environmental extremes.

•One to two feet of clearance for cable connections to the unit.

Package Checklist

Verify that the packaging contains the following:

•FrameSaver NP unit

•Unit power cord or AC Power Pack with cord

•If ordered, optional wall-mount or rack-mount bracket assembly.

In addition, you will need Input/Output cables if not already supplied. These cables are

listed for each FrameSaver NP Model on pages 13 - 15 of this guide.

Mounting the FrameSaver NP

FrameSaver NP units come equipped with rubber feet for table or shelf-top placement.

Optional adapter brackets are available for wall mounting (Model 64+ includes wall-

mount key-holes in its base) and standard 19" or 24" rack mounting. To attach and

mount adapter brackets, follow the instructions supplied with the mounting adapters.

Allow sufficient space for cooling and access to the front panel indicators for trouble-

shooting in all installations.

FrameSaver NP 100 (120) Cable List

Description Part No.

T1 network cable, RJ-48, twisted pair (NP 100 only) 135-982-0006

Dial Line (POTS) cable, RJ-11 connector (NP 100 only) 135-007-7200

ISDN BRI network cable, RJ-49 connector (NP 100 only) 135-981-0006

EIA-530 Data Port (DTE) cable (NP 100 only) 135-002-0400

EIA-530A Data Port (DTE) cable (NP 100 only) 135-003-0400

ITU-X.21-NS Data Port (DTE) cable (NP 100 only) 135-005-0400

ITU-V.35 Data Port (DTE) cable (NP 100 only) 135-001-0400

ITU-V.35 Data Port (DTE) cable to Cisco router serial port,

HD-60 connector (NP 100 only)135-006-0400

Console cable (to AUX2), DB-9 connector 135-000-0464

Console cable (to AUX2), DB-25 connector 135-007-0400

AUX Port to router console port cable, DB-25 connector 135-008-0400

AUX Port to Cisco router console port, RJ-45 type connector 135-990-0006

ITU-V.35 Compliant network cable (NP 120 only) 135-001-0480

ITU-X.21-NS network cable (NP 120 only) 135-005-0480

ITU-V.35 Compliant User Port cable (NP 120 only) 135-002-0480

EIA-530 User Port cable (NP 120 only) 135-003-0480

EIA-530A User Port cable (NP 120 only) 135-004-0480

14 3

Power Up a FrameSaver NP 64+

Make Power Connections

1. Plug the 2-pin keyed and locking connector at the end of the cord from the AC

Power Pack into the right-most pins of the 4-pin Power Connector located on the

rear of the FrameSaver NP 64+, just to the right of the alert marking.

CAUTION

The power connectors are keyed and fit easily together

when oriented correctly with the locking clip toward the

top of the unit. Do not force the connectors together.

CAUTION

The 2-pin keyed plug fits easily into the two RIGHT-SIDE pins of the 4-pin

Power Connector, and must only be inserted there. The FrameSaver NP

unit will be damaged if the plug is forced into the other side.

Contact your service representative, distributor or sales representative to order cables.

DATA PORT

SEE

USERS

MANUAL

POWER

PAC

N1234 5 6 7 8 9101112

DLCI

x1x100 x10

DIGITS

2-Pin

Connector

from

Power Pack

Plug into RIGHT side

Pins ONLY

Blocking Safety Plug

(Remove only when installing optional

Power Control Unit)

FrameSaver NP 64+ Cable List

Description Part No.

DDS network cable, RJ-48, twisted pair 135-982-0006

Dial Line (POTS) cable, RJ-11 connector 135-007-7200

ISDN BRI network cable, RJ-49 connector 135-981-0006

EIA-232 Data Port (DTE) cable 135-000-0400

EIA-530 Data Port (DTE) cable 135-002-0400

EIA-530A Data Port (DTE) cable 135-003-0400

ITU-X.21-NS Data Port (DTE) cable 135-005-0400

ITU-V.35 Data Port (DTE) cable 135-001-0400

ITU-V.35 Data Port (DTE) cable to Cisco router serial port,

HD-60 connector 135-006-0400

Console cable (to AUX2), DB-9 connector 135-000-0464

Console cable (to AUX2), DB-25 connector 135-007-0400

AUX Port to router console port cable, DB-25 connector 135-008-0400

AUX Port to Cisco router console port, RJ-45 type connector 135-990-0006

134

FrameSaver NP 110 Specifications 2. Plug the Power Pac at the other end of the power cord into an AC outlet.

3. The unit will go through the following power-up sequence:

FrameSaver NP 64+ Power-Up Sequence

If the LED indications are not as described above, refer to Section 5, “Diagnostics” of

the FrameSaver NP 64+ User’s Manual - Installation Guide.

If operation looks normal, unplug the FrameSaver NP before making input/output con-

nections.

If an optional Power Control Unit (PCU) is to be installed with this FrameSaver NP,

refer to the instructions provided with the PCU and install it now.

Proceed to Making Network and Input/Output Connections on page 9 of this guide.

Item Description

Dimensions Table Top (with rubber feet):

3.5" H x 10.5" W x 12.0"D.

Wall Mount (with removable wall mounting bracket):

10.5" H x 12.0" W x 3.5" D.

Rack Mount (with removable rack mounting adapter):

5.25" H x 19.0" W ( or 24.0" W ) x 12.0" D.

Weight As normally packaged including carton and accessories: 8 lbs.

Unit alone (without packaging and accessories): 6 lbs.

Operating

Range Temperature: 0 to 50 degrees C. operating.

Relative Humidity: 5 to 95% non-condensing.

Altitude: 10,000 ft. max. operating,

50,000 ft. max. non-operating.

Shock and Vibration: As normally encountered during shipping

and handling.

Power

Requirements AC Input 100 - 240 VAC, 50 - 60 Hz., 5.0A max.

0.5A max. for the unit’s internal power requirements.

4.5 A max. for device (if any) connected to the Switched AC

Output.

Fused - 5A/250V Slow Blow, 5x20mm.

Switched AC Output: max, 250 VAC, 4.5 A.

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,

REPLACE FUSE ONLY WITH THE SAME TYPE AND

RATING.

ATTENTION:

POUR NE PAS COMPROMETTRE LA PROTECTION

CONTRE LE RISQUE D’INCENDIE REMPLACER PAR UN

FUSIBLE DE MEMES TYPE ET CARACTERISTIQUE

NOMINALES.

Regulatory

Compliance UL - 1950, Third Edition and CAN/CSA C22.2 No. 950-95,

Third Edition, FCC Part 15, Class A Digital Device,

Canada’s ICES003, Class A Digital Device, FCC Part 68

Basic FrameSaver NP 64+ FrameSaver NP 64+ with ISDN

POWER LED lights and stays on.

READY LED may flash several times,

then remain OFF during self-test

(approximately 45 seconds).

READY and ISDN READY LEDs

may flash several times, then remain

OFF during self-test (approximately 45

seconds).

READY LED is ON steady after

completion of self-test. READY and ISDN READY LEDs are

ON steady after completion of self-test.

The DDS ALARM and FR MGMT. LEDs should not be flashing together.

All other LED indications should be ignored at this time.

512

Power Up a FrameSaver NP 100

Power Connections

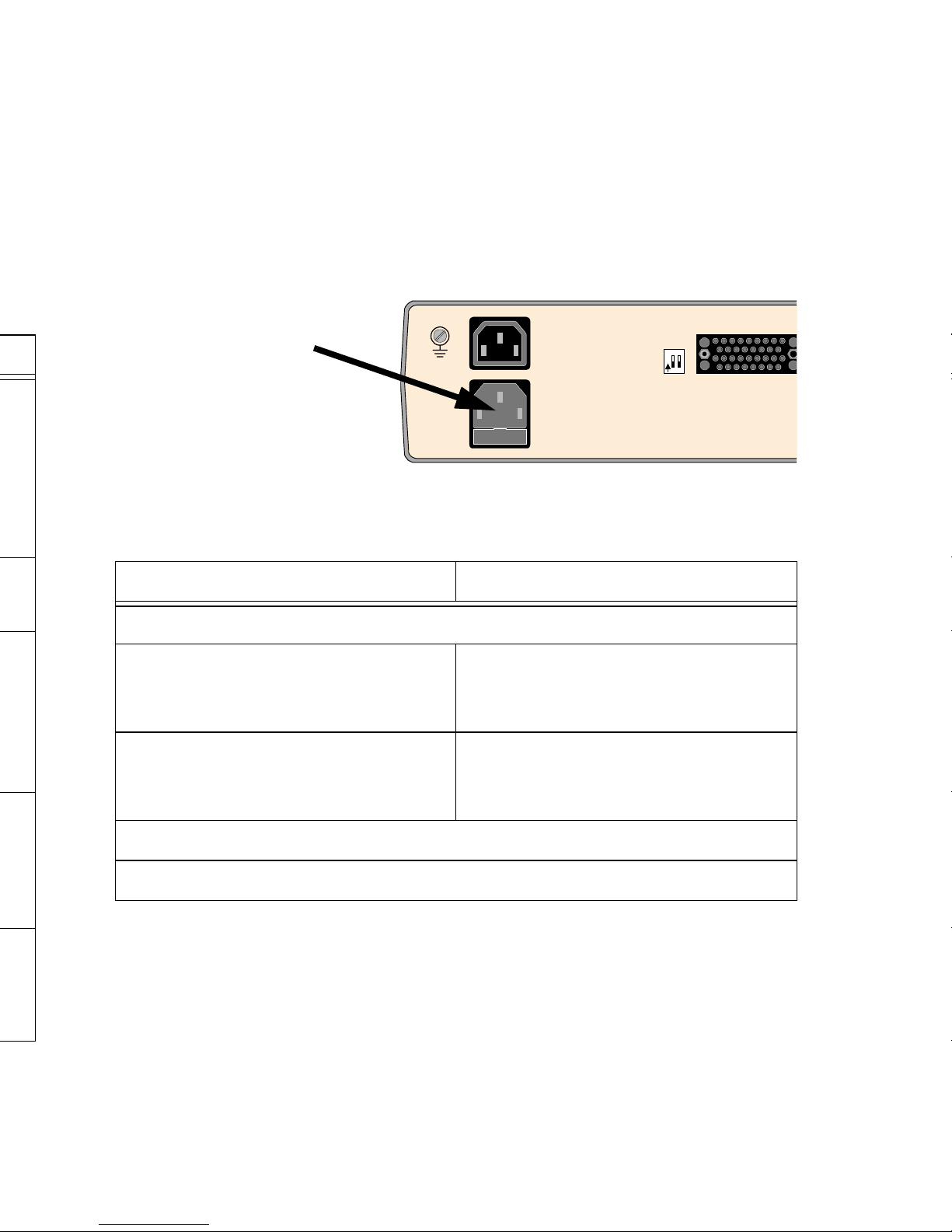

1. Plug the IEC 320 end of the Power Cord into the connector on the rear of the

FrameSaver NP.

2. Plug the other end of the

Power Cord into an AC outlet.

3. The unit will go through the following power-up sequence

FrameSaver NP 100 Power-Up Sequence

If the LED indications are not as described above, refer to Section 5, “Diagnostics” of

the FrameSaver NP 100 User’s Manual - Installation Guide. If operation looks nor-

mal, unplug the FrameSaver NP before making input/output connections.

If an optional Power Control Unit (PCU) is to be installed with this FrameSaver NP,

refer to instructions provided with the PCU and install it now.

Proceed to Making Network and Input/Output Connections on page 9 of this guide.

FrameSaver NP 100 (120) Specifications

Basic FrameSaver NP 100 FrameSaver NP 100 with ISDN

POWER LED lights and stays on.

READY LED flashes during self-test

(approximately 60 seconds). READY and ISDN READY LEDs

flash during self-test (approximately 60

seconds).

READY LED is ON steady after

completion of self-test. READY and ISDN READY LEDs are

ON steady after completion of self-test.

The T1 ALARM and FR MGMT. LEDs should not be flashing together.

All other LED indications should be ignored at this time.

DATA PO

CONFIGURATION

N123456789101112 O

N12

FUSE

2A/250V

SLOW BLOW

5x20mm

90-250 VAC

.5A

50-60 Hz

CONTROL

OUTPUT

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,

REPLACE ONLY WITH SAME TYPE AND RATING OF FUSE.

"CAUTION"

Item Description

Dimensions Table Top (with rubber feet):

3.5" H x 10.5" W x 12.0"D.

Wall Mount (with removable wall mounting bracket):

10.5" H x 12.0" W x 3.5" D.

Rack Mount (with removable rack mounting adapter):

5.25" H x 19.0" W ( or 24.0" W ) x 12.0" D.

Weight As normally packaged including carton and accessories: 8 lbs.

Unit alone (without packaging and accessories): 6 lbs.

Operating

Range Temperature: 0 to 50 degrees C. operating.

Relative Humidity: 5 to 95% non-condensing.

Altitude: 10,000 ft. max. operating,

50,000 ft. max. non-operating.

Shock and Vibration: As normally encountered during shipping

and handling.

Power

Requirements 90 - 250 VAC, 50 - 60 Hz.,15 Watts max.

(100 - 240 VAC for FrameSaver NP 120)

Fused - 2A/250V Slow Blow, 5x20mm.

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,

REPLACE FUSE ONLY WITH THE SAME TYPE AND

RATING.

ATTENTION:

POUR NE PAS COMPROMETTRE LA PROTECTION

CONTRE LE RISQUE D’INCENDIE REMPLACER PAR UN

FUSIBLE DE MEMES TYPE ET CARACTERISTIQUE

NOMINALES.

Regulatory

Compliance FrameSaver NP 100: UL - 1459, Third Edition and CAN/CSA

C22.2 No. 225-M90; FCC Part 15, Class A Digital Device;

FCC part 68;Canada’s ICES003, Class A Digital Device

FrameSaver NP 120: UL-1950; CAN/CSA C22.2 No. 225-M90;

FCC Part 15, Class B Digital Device; Canada’s ICES003,

Class A Digital Device; EN 60950; EN 50082-1:1992;

EN 55022:1995; EMI: EN 55022 Class B

611

AC Power Connector

IEC 320 (male)

Making DROP/DSX Option Connections (FrameSaver NP 110 only)

FrameSaver NP 110 units equipped with optional DROP/DSX adapters have addition-

al connectors on the rear panel for the DROP and DSX Ports. The DROP Port supports

the ITU-V.35 interface and the DSX Port is aT1 Network interface.

FrameSaver NP 64+ Specifications

Power Up a FrameSaver NP 110

Power Connections

1. Plug the IEC 320 end of the Power Cord into the connector on the rear of the

FrameSaver NP 120.

2. Plug the other end of the Power

Cord into an AC outlet.

3. The unit will go through the following power-up sequence

FrameSaver NP 110 Power-Up Sequence

If the LED indications are not as described above, refer to Section 5, “Diagnostics” of

the FrameSaver NP 110 User’s Manual - Installation Guide. If operation looks nor-

mal, unplug the FrameSaver NP before making input/output connections.

If the unit is to supply switched power to another device, plug that device’s power cord

into the Switched AC Out connector now.

Proceed to Making Network and Input/Output Connections on page 9 of this guide.

Item Description

Dimensions Table Top (with rubber feet):

3.0" H x 8.5" W x 11.5" D.

Wall Mount (with removable wall mounting bracket):

8.5" H x 11.5" W x 3.0" D.

Rack Mount (with removable rack mounting adapter):

3.5" H x 19.0" W ( or 24.0" W ) x 11.5" D.

Weight As normally packaged including carton and accessories: 6 lbs.

Unit alone (without packaging and accessories): 4 lbs.

Operating

Range Temperature: 0 to 50 degrees C. operating.

Relative Humidity: 5 to 95% non-condensing.

Altitude: 10,000 ft. max. operating,

50,000 ft. max. non-operating.

Shock and Vibration: As normally encountered during

shipping and handling.

Power

Requirements AC Power Pack (transformer/plug module).

Input = 90 - 130 VAC, 0.2 A max., 60 Hz.

Output = 22 VAC, 30 VA.

Cable: 2-conductor, with 2-pin keyed locking connector,

7 ft. length.

Regulatory

Compliance UL - 1459, Third Edition and CAN/CSA C22.2 No. 225-M90

FCC Part 15, Class A Digital Device

Canada’s ICES003, Class A Digital Device

FCC Part 68

Basic FrameSaver NP 110 FrameSaver NP 110 with ISDN

UNIT POWER LED lights and stays on.

UNIT READY LED flashes during

self-test (approximately 60 seconds). UNIT READY and ISDN READY

LEDs flash during self-test

(approximately 60 seconds).

UNIT READY LED is ON steady after

completion of self-test. UNIT READY and ISDN READY

LEDs are ON steady after completion

of self-test.

NETW ALARM and UNIT FRM MGMT LEDs should not be flashing together.

All other LED indications should be ignored at this time.

USER PORT

FUSE

5A/250V

SLOW BLOW

5x20mm

100-240 VAC

50-60 Hz

N12

FOR CONTINUED

PROTECTION

AGAINST RISK

OF FIRE,

REPLACE ONLY

WITH SAME TYPE

AND RATING

OF FUSE.

"CAUTION"

SWITCHED

AC OUT

250VAC

4.5A MAX

1 2

AC Power Connector

IEC 320 (male)

Power Up a FrameSaver NP 120

Power Connections

1. Plug the IEC 320 end of the Power Cord into the connector on the rear of the

FrameSaver NP.

2. Plug the other end of the Power

Cord into an AC outlet.

3. The unit will go through the following power-up sequence

FrameSaver NP 120 Power-Up Sequence

If the LED indications are not as described above, refer to Section 5, “Diagnostics” of

the FrameSaver NP 120 User’s Manual - Installation Guide. If operation looks nor-

mal, unplug the FrameSaver NP before making input/output connections.

If an optional Power Control Unit (PCU) is to be installed with this FrameSaver NP,

refer to instructions provided with the PCU and install it now.

Proceed to Making Network and Input/Output Connections on the next page of this

guide.

Making Network and Input/Output Connections

CAUTION

Be sure you remove AC power from the FrameSaver NP

before attaching input and output cables.

All connectors are located on the FrameSaver NP’s rear panel.

Make all the necessary connections using the cables listed for that model.

CAUTION

Use caution when connecting to an AUX Port. AUX Port

connectors are similar to the Network connectors.

Accidental connection of either of the AUX Ports to a

Network facility may damage the AUX Port electrical

interface.

NOTES:

1. FrameSaver NP 64+, 100, and 120 Data and User Ports support numerous

electrical interface types; ITU-V.35, EIA-530, EIA-530-A, ITU-X.21-NS and

EIA-232 (FrameSaver NP 64+ only). The Data Port connector is a DB-44 high

density female. The adapter cables listed for each model are used to convert from

the DB-44 to the appropriate connector type for the interface selected. The adapter

cable also includes a special wiring pattern at the DB-44 connector, which

automatically sets the port to the desired interface type. Refer to the tables on

pages 13 - 15 of this guide for cable ordering information if necessary.

2. FrameSaver NP 110 User and Data Ports are configured for ITU-V.35 Interface.

3. FrameSaver NP 120 is designed for use in networks where it is not directly

connected to the local PTT’s (non-U.S.) facilities. All the Network connections are

made to the customer’s Private Network.

Making ISDN Option Connections

FrameSaver NP units equipped with optional ISDN adapters have additional connec-

tors on the rear panel for ISDN Line(s) and ISDN Data Port (DTE). The ISDN Data

Port supports the same electrical interface types and uses the same connector as the

base unit Data Port.

FrameSaver NP 120

POWER LED lights and stays on.

READY LED flashes during self-test (approximately 30 seconds).

READY LED is ON steady after completion of self-test.

The NETWORK ALARM and FR MGMT. LEDs should not be flashing together.

Refer to User’s Manual - Installation Guide if they are.

All other LED indications should be ignored at this time.

USER POR

CONFIGURATION

N1234 5 6 7 8 9101112 O

N12

CONTROL

OUTPUT

FUSE

2A/250V

SLOW BLOW

5x20mm

100-240 VAC

.5A

50-60 Hz

FOR CONTINUED PROTECTION AGAINST

RISK OF FIRE, REPLACE ONLY WITH

SAME TYPE AND RATING OF FUSE.

"CAUTION"

AC Power Connector

IEC 320 (male)
