Paradox K656 Touch Sense Manuel utilisateur

K656 Touch Sense

LCD Keypad

User Guide

Table of Contents

Overview ................................................ 5

Areas ................................................... 11

Arming ................................................. 12

Disarming ............................................ 16

User Codes and Labels ......................... 18

Programming User Settings ................... 24

Trouble Display ..................................... 31

Remote Control Feedback .................... 34

Voice Dialer / SMS ................................ 35

Testing and Maintenance ...................... 37

Fire and Burglar Alarms ........................ 39

Index..................................................... 47

Overview Page 5

Chapter 1: Overview

Introduction

The K656 Touch Sense Keypad provides touchpad

technology with simplified menu-driven navigation.

Whether arming or disarming your system, bypassing

zones, or viewing the system status, the menu-driven

prompts guide you every step of the way. This sleek,

innovative keypad makes using your security system

easier than ever.

Features

• Touch sense keys with LED backlighting

• Streamlined, compact design

• Zone alarm display

• Simplified remote control programming

•32-characterblueLCDscreen

• Available in multiple languages

• Assign to one or more areas

• 1 addressable zone input and 1 PGM output

• Independently set chime zones

• One-touch action buttons

• Three keypad-activated panic alarms

• Adjustable backlight, contrast, and scroll speed

Your security system uses advanced technology which

will provide you with reliable security protection and

powerful features that are easy to use. Since you will

communicate your instructions to the system through

your keypad, please read this manual carefully and have

your installer explain basic system operation.

Technical Specifications

• Voltage: 12 to 16VDC

•Current:70mAmax.

• Temperature: 0°C to 50°C

Page 6 Overview

K656 Overview

Auditory Feedback (Beep Tones)

When you enter information on the keypad, the keypad

will guide you with beep tones to communicate the

acceptance or rejection of your commands.

Confirmation Beep: When a command (e.g., arming/

disarming) is successful, or when the system switches to a

new status/mode, the keypad emits a fast beep (“BEEP-

BEEP-BEEP-BEEP-BEEP”).

Rejection Beep: When the system reverts to a previous

status, or when a command is incorrectly entered, the

keypad emits a long beep (“BEEEEEEEP”).

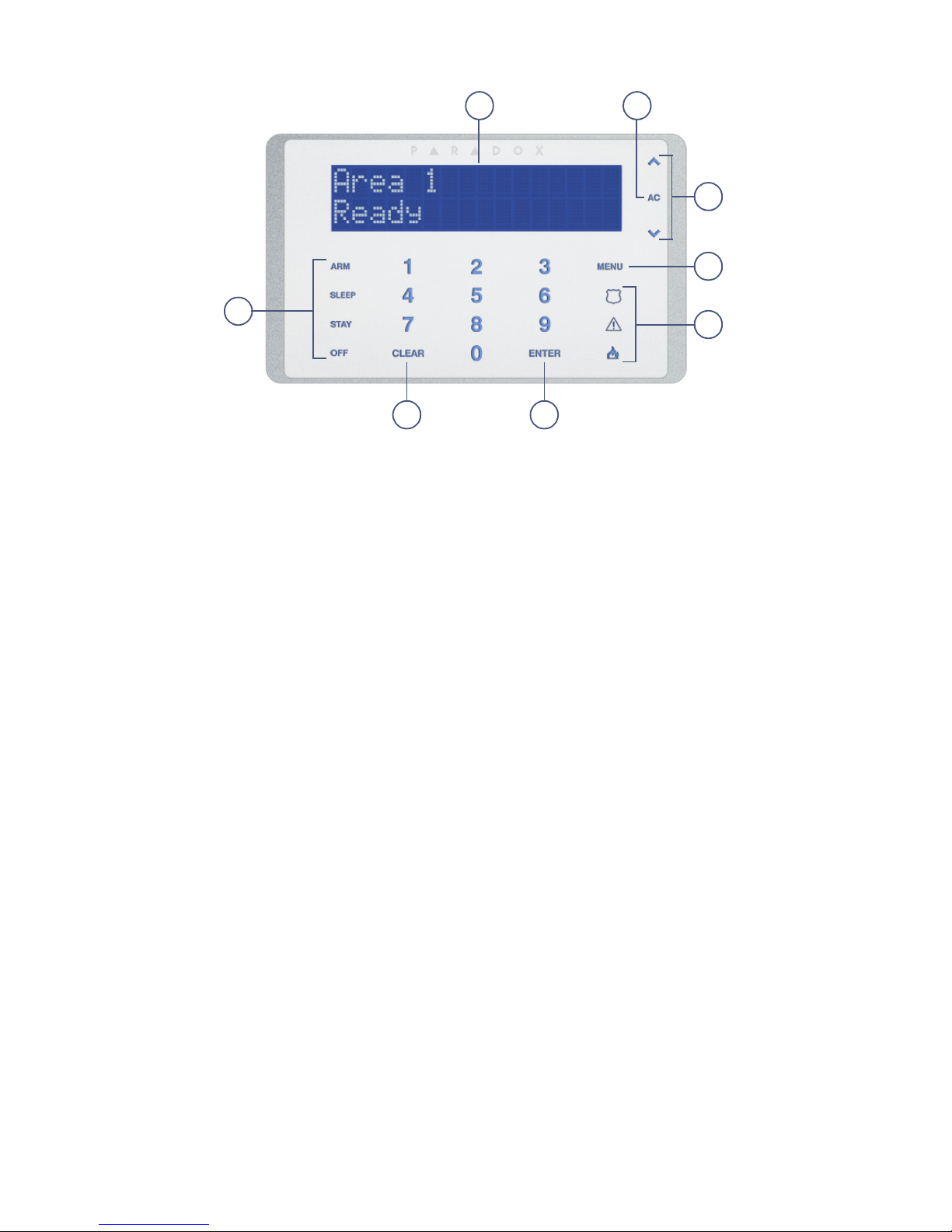

1) 32-character blue LCD screen

2) System AC power status indicator

3) Arrow keys - use to scroll the menu options

4) Main menu key

5) Panic keys (police, medical, and fire)

6) Enter key - saves current data, accesses sub-menus, or

exits the current menu

7) Clear key - erases current data entry or reverts to the

preceding step

8) One-touch arm keys (press and hold for 3 seconds to

perform action: arm, sleep*, stay, disarm)

* Reserved for future use.

Overview Page 7

Setting Time & Date

To set the time and date:

1) Press [MENU]> [9] SETTINGS > [2] TIME AND DATE.

2) Enter your user code.

3) To change the time, place the cursor under the

number you want to change by using the []button

and enter the time.

NOTE: To change the time between 12-hour and 24-hour

format, contact your installer.

4) To change the date, place the cursor under the

number you want to change and enter the correct

date according to year/month/day.

5) Press [ENTER]to save and exit.

Keypad Settings

You can modify the following keypad settings to suit your

needs.

•Scroll Speed: The amount of time that a message will

remain on the screen before moving to the next

message.

•Key Brightness: The intensity of the keypad buttons.

• Key Sensitivity: The sensitivity of the keypad buttons

•LCD Brightness: The intensity of the keypad screen.

•LCD Contrast: The contrast of the keypad screen

•Mute:When keypad mute is enabled, only

confirmation, rejection, and key-press beeps are

audible.

• Dim Intensity: The amount the screen will dim

following the Dim Delay

• Dim Delay: The display will dim after a delay between

0 (no dimming) and 255 seconds

•About: Shows keypad serial number, firmware version

and language version

Page 8 Overview

Figure 1: Modifying Keypad Settings

Press [MENU]

Scroll Speed

Press [1]

[]and []To

increase or decrease

the numbers

Press [CLEAR]

to exit

Key Brightness

Press [2]

Key Sensitivity

Press [3]

LCD Brightness

Press [4]

LCD Contrast

Press [5]

Mute

Press [6]

Dim Intensity

Press [7]

Dim Delay

Press [8]

About

Press [9]

[9] SETTINGS

[5] KEYPAD

Press [MENU]

Overview Page 9

Confidential Mode

Your installer can program keypads not to display the

status of your system automatically by changing the

keypad to Confidential Mode.

In Confidential Mode:

• The zones and status messages will NOT be displayed

•Theindicatorlightswill NOT illuminate

• Depending on how your keypad was programmed by

your installer, you must either press a button or enter

your user code to illuminate the indicator lights and

return to Normal Mode.

Programmable Outputs (PGMs)

Your system includes PGMs (programmable outputs) that

can be programmed by your installer. A PGM is triggered

when a predetermined event or series of events occurs in

your system. PGMs can be programmed to reset smoke

alarms, turn on light switches, open or close garage doors

and much more. Ask your installer about this useful

feature.

Programming Chime Zones

You can program the keypad to emit a rapid, intermittent

beep tone whenever designated zones are opened or

only when opened between certain hours. These zones

are referred to as Chime Zones. Your installer can also

program your Chime zones to beep upon closure.

To program chime zones:

1) Press [MENU]> [6] CHIMING.

2) Enter your user code.

3) Press [1] to chime a zone. Enter the number

corresponding to the zone to be chimed, or use the

[]

and

[]

buttons to scroll the list of zones. Press

the

[ENTER]button to chime or unchime the zone that

appears on the screen. Press

[

CLEAR

]

to save.

Press the [2] button to set the time period a chimed

zone will beep. Enter the time that the chimed zone(s)

Page 10 Overview

will start beeping when opened (HH:MM). Enter the

time that the chimed zone(s) will stop beeping when

opened (HH:MM).

4) Press

[

CLEAR

]

to exit chime programming.

Panic Alarms

Your system can be programmed to send an alarm to your

monitoring station to request help from the police, a

medical facility, the fire department, or a telephone

number of your choosing. To generate a panic alarm,

press and hold the panic buttons displayed in Table 1.

Your installer can program the alarm to be either silent or

audible.

Table 1: Panic Buttons

Command Functions

You will only need to use the Command Functions upon

your installer’s or monitoring station's request. Only the

System Master Code or user codes with the Master

feature enabled will be able to access these functions.

To access the Command Functions, press [MENU]> [9]

SETTINGS > [6] COMMANDS.

Panic Alarm Types Panic Buttons

Emergency Panic Press & hold

Auxiliary Panic Press & hold

Fire Panic Press & hold
