TM70 (7”) / TM50 (5”) Touchscreen Keypads

Installation Manual

Installation

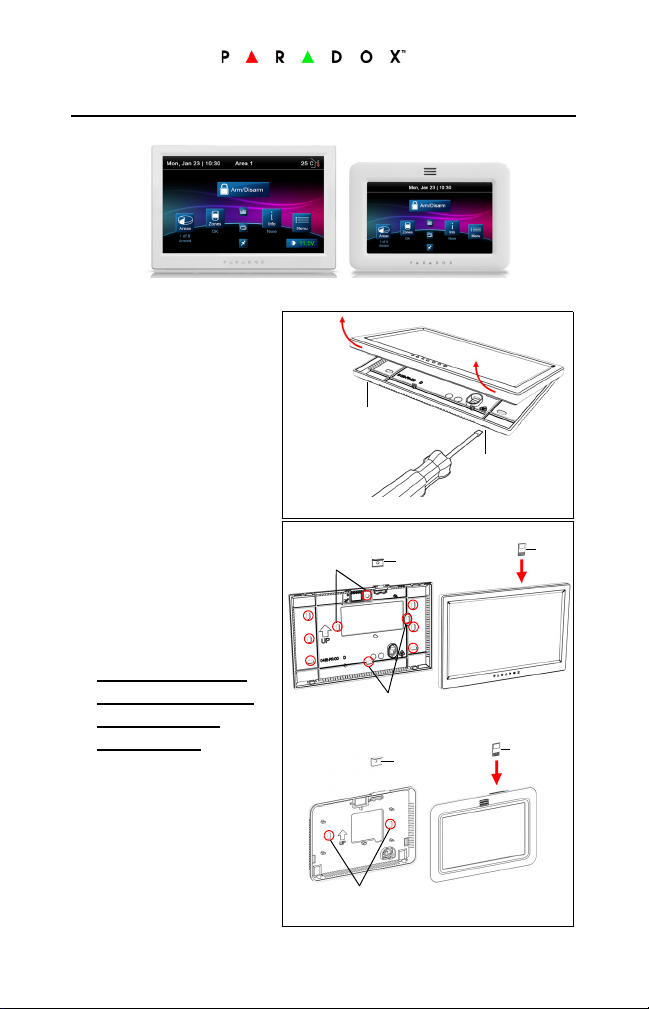

Figure 1

Tab

Location

Tab

Location

1. Separate the top

assembly from the back

plate. Insert a flathead

screwdriver into the tab

located, as shown in

Figure 1.

Card

SD Card Cover

when needed

2. Mount the back plate

to the wall or to a gang

box using appropriate

screws. Ensure that

the UP arrow on the

back plate is in the up

position.

Note: We recom-

mend to feed the

TM70 with 18

gauge wire.

Card

SD Card Cover

when needed

TM70

TM50

Gang Box

Figure 2

TM70 TM50

TM7050-EI00 | 02/2017 PARADOX.COM

3. Make sure the SD card is installed properly and locked with text

facing backward to wall/connections facing to the front, as shown

in Figure 2.

4. Secure the wire plug to the PCB socket the wires as per the color

code to match the Paradox keypad bus code. The blue wire is key-

pad zone input.

Note: We recommend to feed the TM70 with 18 gauge wire.

5. Attach the SD card cover if needed, then attach top to back top

hooks first then lock the bottom as per Figure 1. The SD card can

be removed if necessary with a flat screw from the top if the metal

cover is not attached or by opening the keypad for loading pic-

tures.

6. Power up the bus and verify that the voltage is higher than 11.5V

(displayed at the bottom right of the main screen as well as the

boot sequence screen).

Technical Specifications

TM70 TM50

Power Input 9 to 15 VDC

Consumption 250mA at max brightness

+ 80mA sounder

150mA at max brightness

+ 80mA sounder

Wire Connection 18 Gauge 18 Gauge recommended,

22 Gauge

Display 7” 800 x 480 5” 480 x 272

Dimensions 17.7 x 11.4 x 1.5 cm

(7 x 4.5 x 0.6 in.)

14.2 x 9.5 x 1.4 cm

(5.6 x 3.75 x 0.56 in.)

Humidity 5-90%

Indoor Temp. Yes

SD Card 4GB; 2GB free

Input Zone

Tamper Built-in, Cover and Wall

Compatibility Swan, EVO, Spectra

Remote Upgrade Swan only

Jpeg Download Swan via Bus, EVO/Spectra SD Card

Auto Dim Yes

Chime Yes

Warranty: For complete warranty information on this product, please

refer to www.paradox.com/terms. Specifications may change

without prior notice.
