221 LEG PRESS ADAPTER KIT
CLASSH
PART # 7031101
REV. B Revision: 03/05/01
USER’S GUIDE
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
FOR 220 GYM SYSTEM
Version: 221101
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
j
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
IMPORTANT SAFETY INFORMATION
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Gym Layout.....................4
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Parts list..........................5
Assembly Instructions.....5-10
General Maintenance.......11
Warranty Statement..........12
Product Services..............13
Insert-Registration Card
©
IMPORTANT NOTES
Please note:
Tools Required forAssembly
* Thank you for purchasing the ParaBody 221 Leg PressAdapter Kit. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
* 9/16” wrench
* Ratchet with 9/16” sockets
* Adjustable wrench
* Tape measure
3

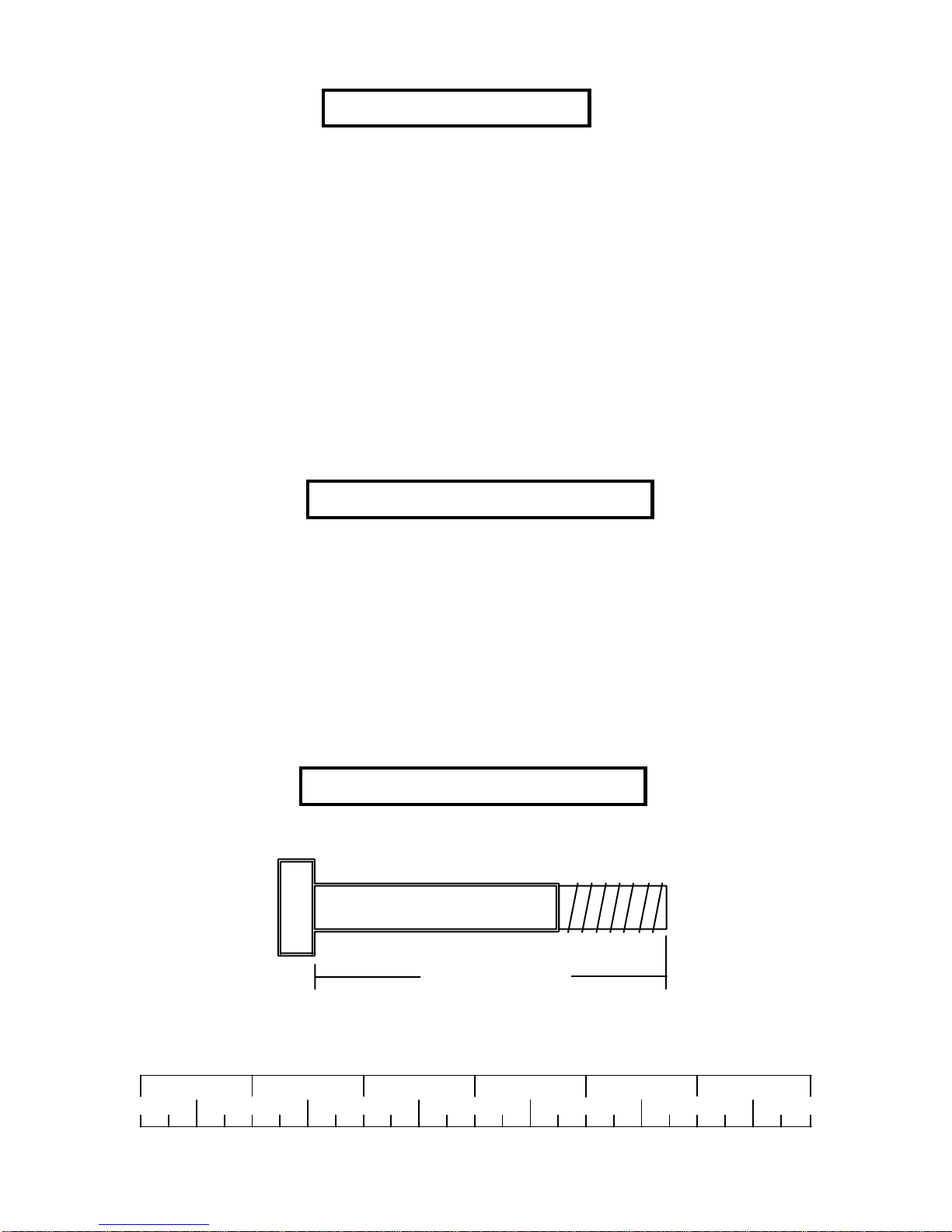

NOTE:BOLTLENGTH IS MEASURED FROMTHEUNDERSIDE OFTHEHEADOFTHEBOLT.
BOLT LENGTH RULER:
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
Bolt Length Ruler
0123456
1/2 1/2 1/2 1/2 1/2 1/2
BOLT LENGTH
Minimum Required Usable Space
Length = 82 inches (208.5 cm) 6’ 10”
Width = 71 inches (180.5 cm) 5’11”
Height = 83 inches (211 cm) 6’ 11”

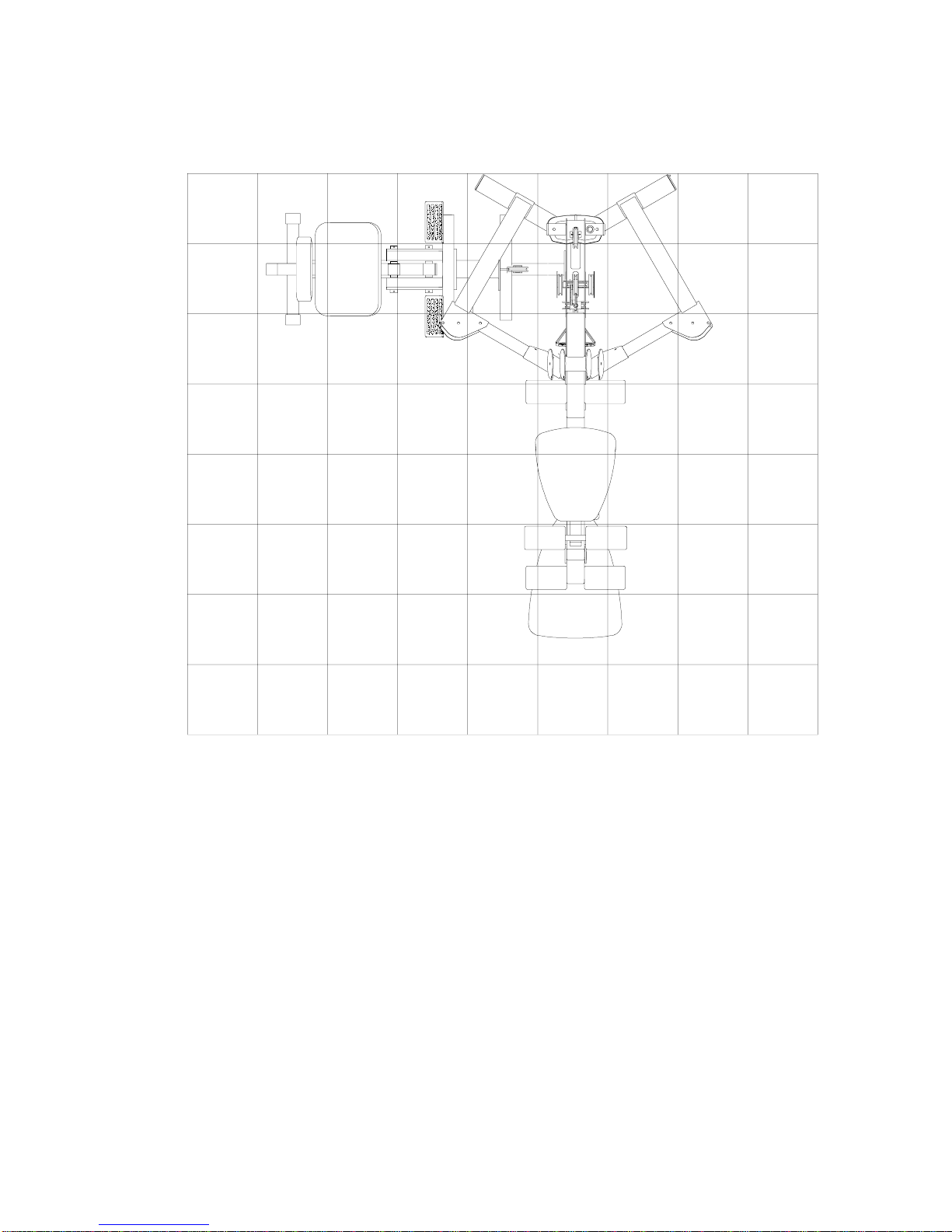

1 Square = 1’ X 1’
4
Length = 82 inches (208.5 cm) 6’ 10”
Width = 108 inches (180.5 cm) 9’ 0”
9’1’ 2’ 3’ 4’ 5’ 6’ 7’ 8’
1’
7’
6’
5’
4’
3’
2’
Dimensions Including Leg Press (optional)
8’

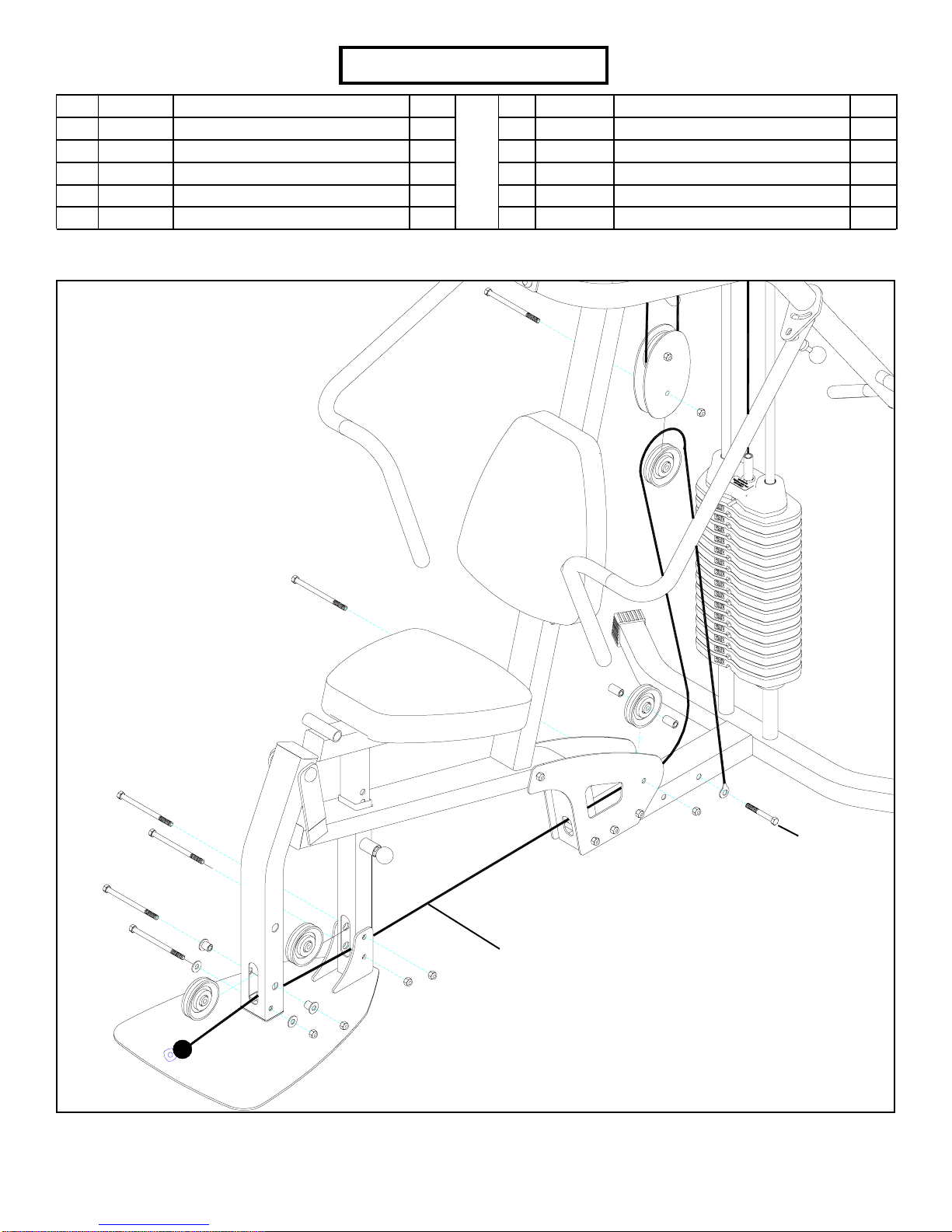

PARTS LIST
5
PART #
70309
7014202
3116201
6467001
3108102
KEY
1
2
3
4
5
QTY
1
1
1
2
1
PART #
3102501
3102802
3102924
3102904
3102906
DESCRIPTION
3/8” WASHER
3/8” LOCKNUT
3/8 X 1-3/4” BOLT
3/8 X 3” BOLT
3/8 X 4” BOLT
QTY
7
4
1
2
2
DESCRIPTION
FRONT LEG
LEG CABLE
3-1/2” PULLEY
2” COVER CAP
QUICK DISCONNECT LINK
KEY
6
7
8
9
10
NOTE: The LEG PRESS ATTACHMENT (100) must be assembled before connecting it to the
PARABODY 220 GYM SYSTEM and can be attached to either side of the 220 GYM SYSTEM
FIGURE 1

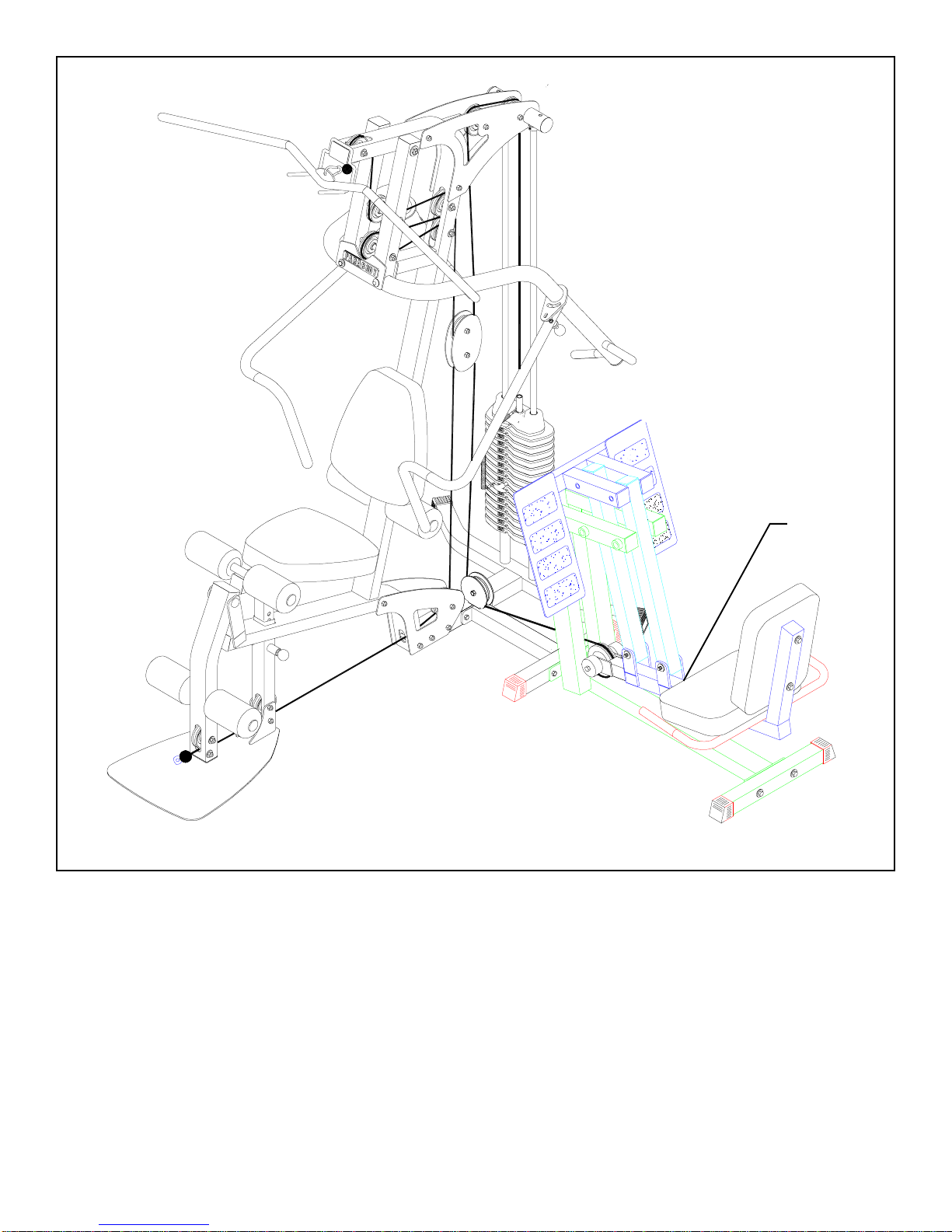

STEP 1:
• Remove the LEG CABLE by removing the bolts shown in FIGURE 1. Discard the old LEG CABLE and the bolt holding the CABLE
to the base.
DISCARD!
DISCARD!
6
0123456
1/2 1/2 1/2 1/2 1/2 1/2

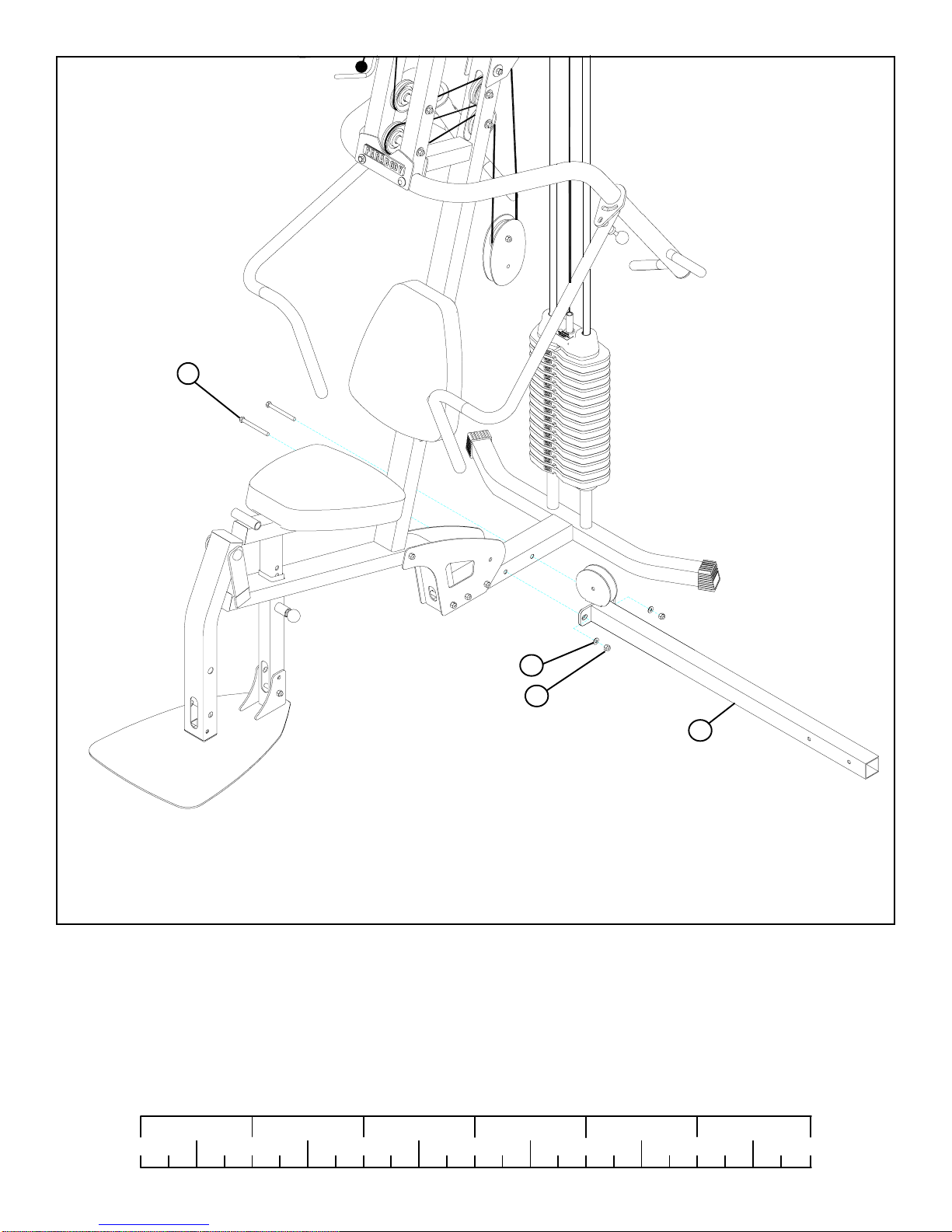

• Slide two 2” COVER CAPS (4) over the FRONT LEG (1) as shown in FIGURE 2
FIGURE 2
STEP 2:
• SECURELY assemble the FRONT LEG (1) to the 220 Gym System using two 3/8 X 4” BOLTS (10), one previously removed
3/8” WASHER, three 3/8” WASHERS (6), one previously removed 3/8” LOCK NUT and one 3/8” LOCK NUT (7) as shown in
FIGURE 2.
10 3/8 X 4”
7
6
4
FIGURE 3
STEP 3:

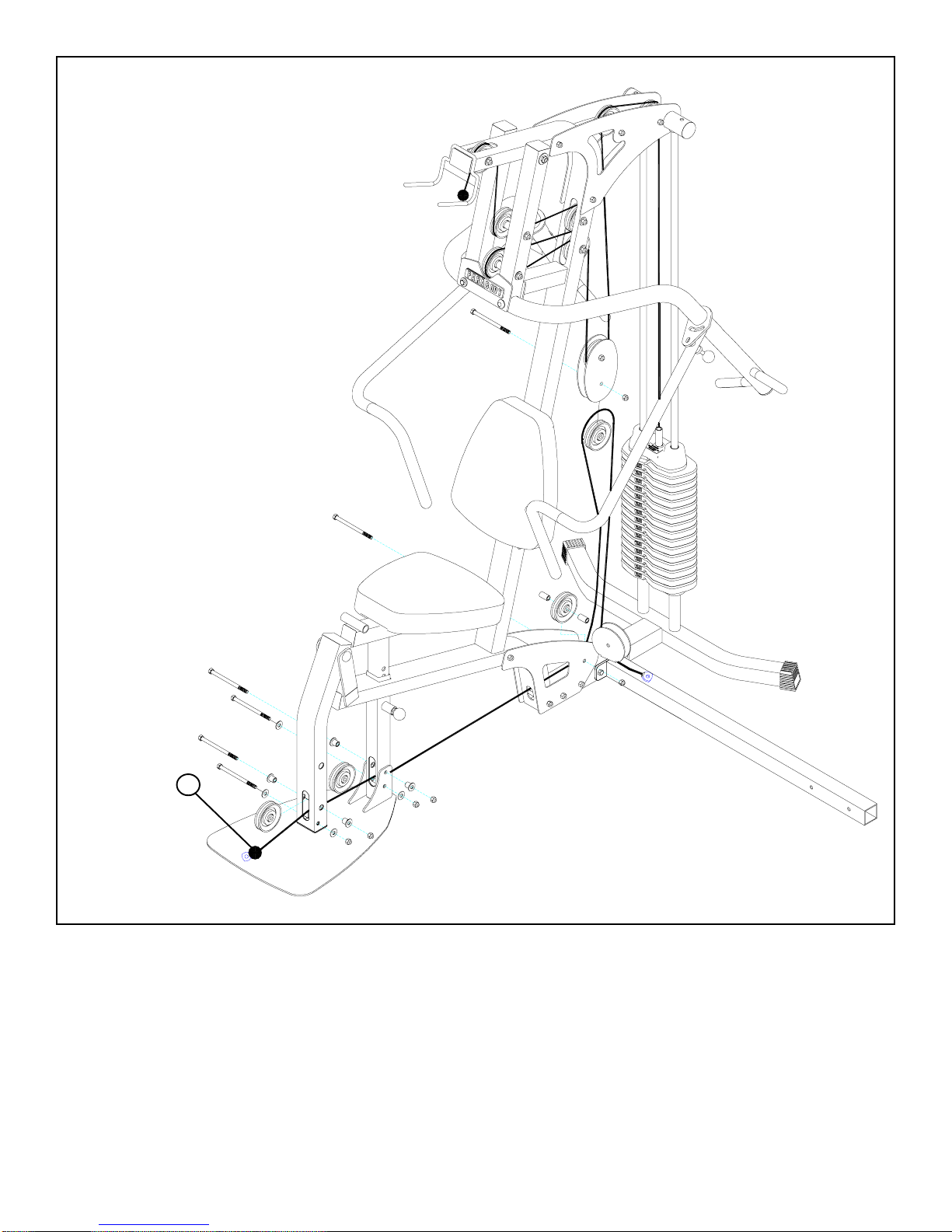

• Assemble the new LEG CABLE (2) using the previously removed bolts as shown in FIGURE 3. (NOTE: Make sure the LEG
CABLE is running in the grooves of all pulleys and above the retaining bolts.)
7
2
FIGURE 4
STEP 4:
8
1
7
3

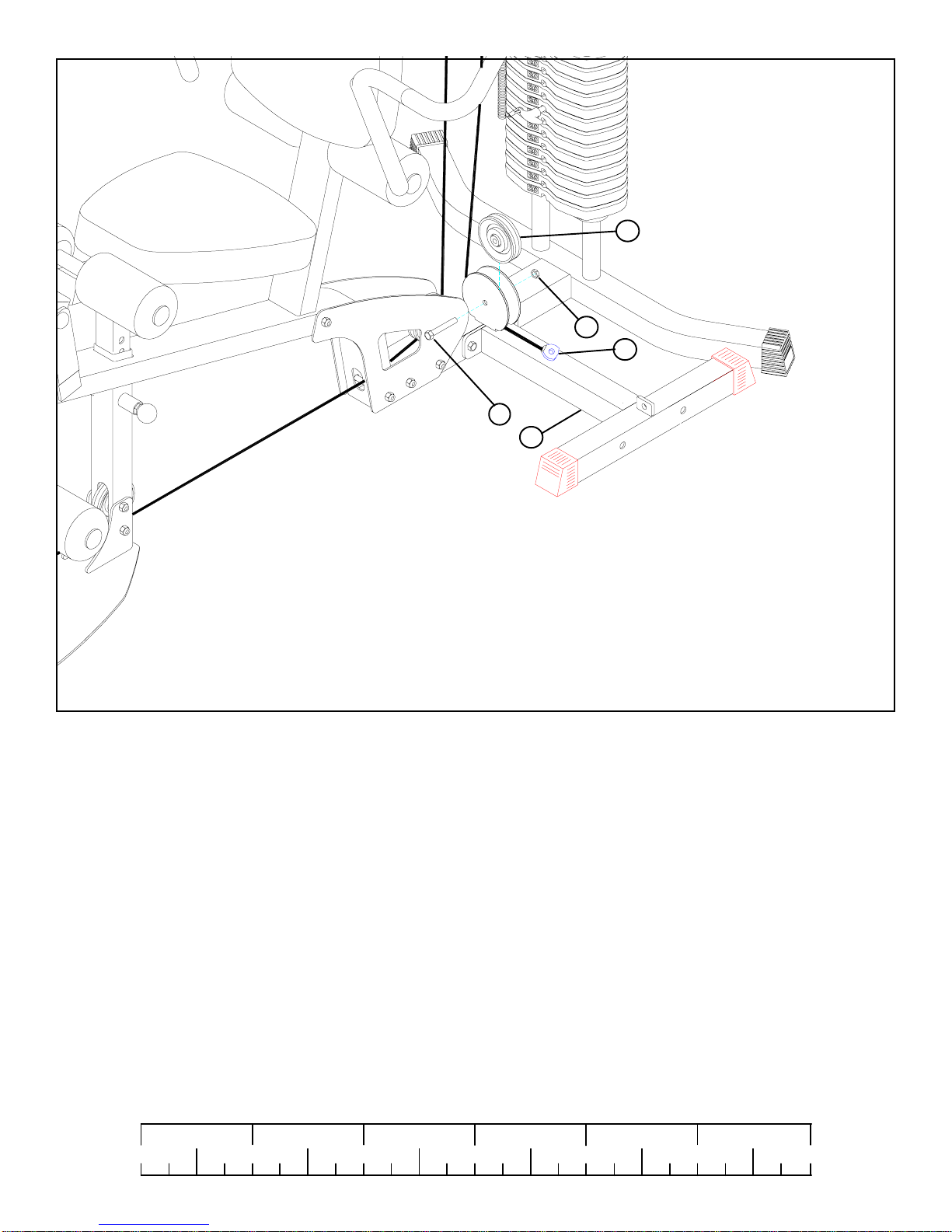

• SECURELY assemble one 3-1/2” PULLEY (3) to the FRONT LEG (1) using one 3/8 X 1-3/4” BOLT (8) and one 3/8” LOCK NUT
(7). See FIGURE 4.
2
3/8 X 1-3/4” 8
0123456
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 5
STEP 5:
9

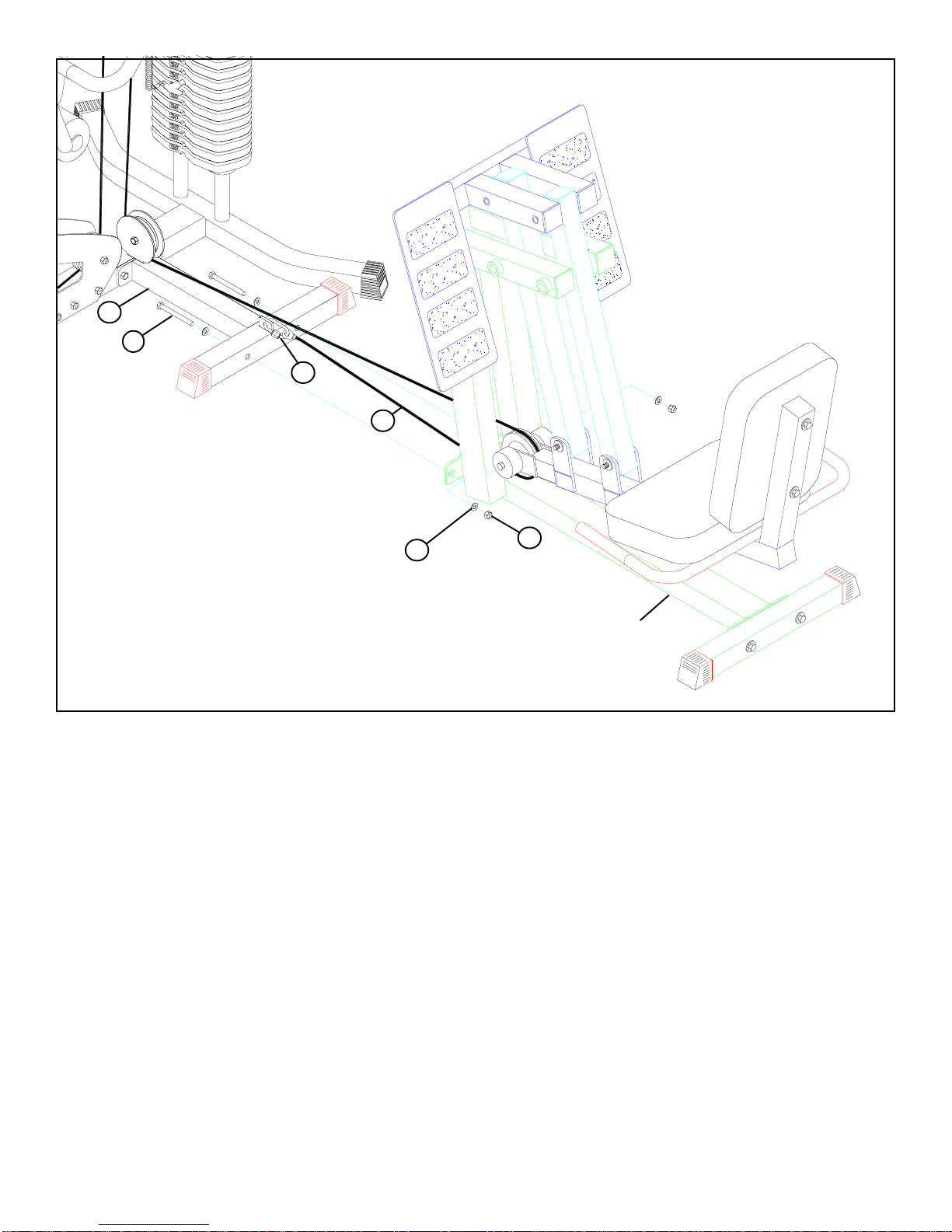

• Route LEG CABLE (2) around the 3-1/2” PULLEY on the LEG PRESS as shown in FIGURE 5. (NOTE: Pulley may need to be
temporarily removed.)
• SECURELY attach the 100 LEG PRESS to the FRONT LEG (1) using two 3/8” X 3” BOLTS (9), four 3/8” WASHERS (6), and
two 3/8” LOCK NUTS (7). See FIGURE 5.
• Attach the end of the LEG CABLE (2) to the QUICK DISCONNECT LINK (5). See FIGURE 5.
• SECURELY tighten the QUICK DISCONNECT (5) to the tab on the FRONT LEG (1) as shown in FIGURE 5.
3/8 X 3” 9
2
5
1
6
100 LEG PRESS
7
FIGURE 6
STEP 6:
• The 100 LEG PRESS is equipped with a spring pin adjustment to accommodate different sized users and allow easy entry and exit
from the machine. To use, you must slightly push against the foot plates to take tension off the pin.
• Before setting the correct amount of tension in the cables, push the HEAD PLATE down, insert the WEIGHT SELECTOR PIN,
and perform several repetitions at the leg press station. This will relax the cable system and prevent the HEAD PLATE from
lifting up.
THIS CONCLUDES THE ASSEMBLY OF THE 221 LEG PRESS ADAPTER KIT
10
ThankyouforpurchasingtheParabody221 Leg PressAdapterKit.Ifunsureofproper use of equipment, call
yourlocalParabody distributor or call theParabodycustomerservice department at (800) 328-9714.
SPRING PIN
• If CABLE ADJUSTMENT is needed, adjust the 100 LEG PRESS into the last adjustment hole (so the LEG PRESS is spread out)
and reference the 220 GYM SYSTEM assembly instructions.
