Panasonic EYFMA2CR Manuel utilisateur

© Panasonic corporation 2019. All rights reserved.

Unauthorized copying and distribution is a violation

of law.

Order Number PTD1905E02AE

Cordless Impact Driver / Cordless Impact Wrench

Model No. EYFMA2CR

Model No. EYFMA2PR

Model No. EYFLA9CR

Model No. EYFLA9PR

Model No. EYFLA7AR

Model No. EYFLA8AR

Model No. EYFLA8CR

Model No. EYFLA8PR

Europe

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 8

5 Exploded View and Replacement Parts List ----------- 10

Please file and use this manual together with the service manual for Model No. EYFLA9C, EYFMA2C,

EYFLA9P, EYFMA2P, order No. PTD1902E58CE and EYFLA7A, EYFLA8A, EYFLA8P, order No.

PTD1902E59AE.

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3

3 Troubleshooting Guide

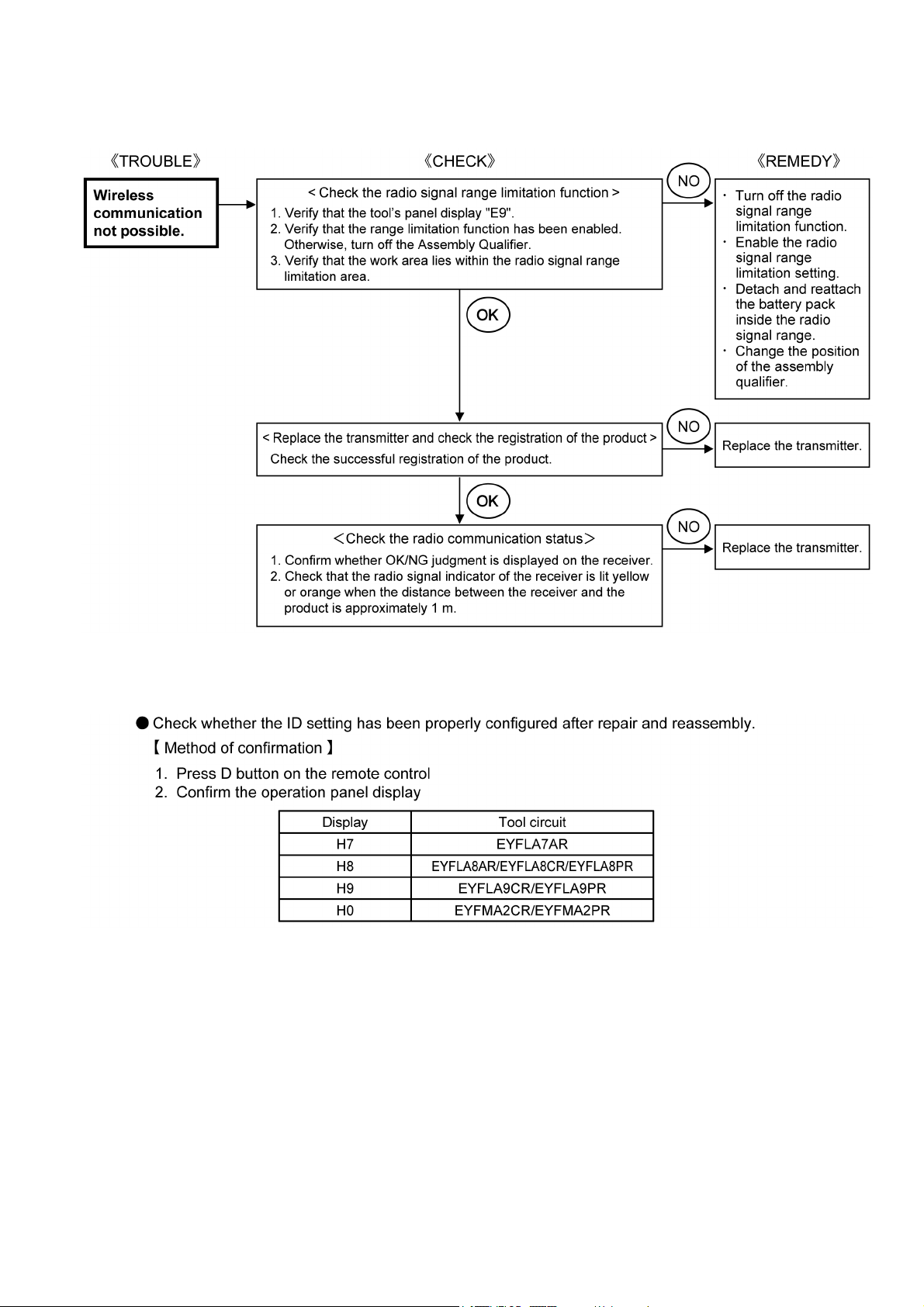

3.1. Troubleshooting Guide

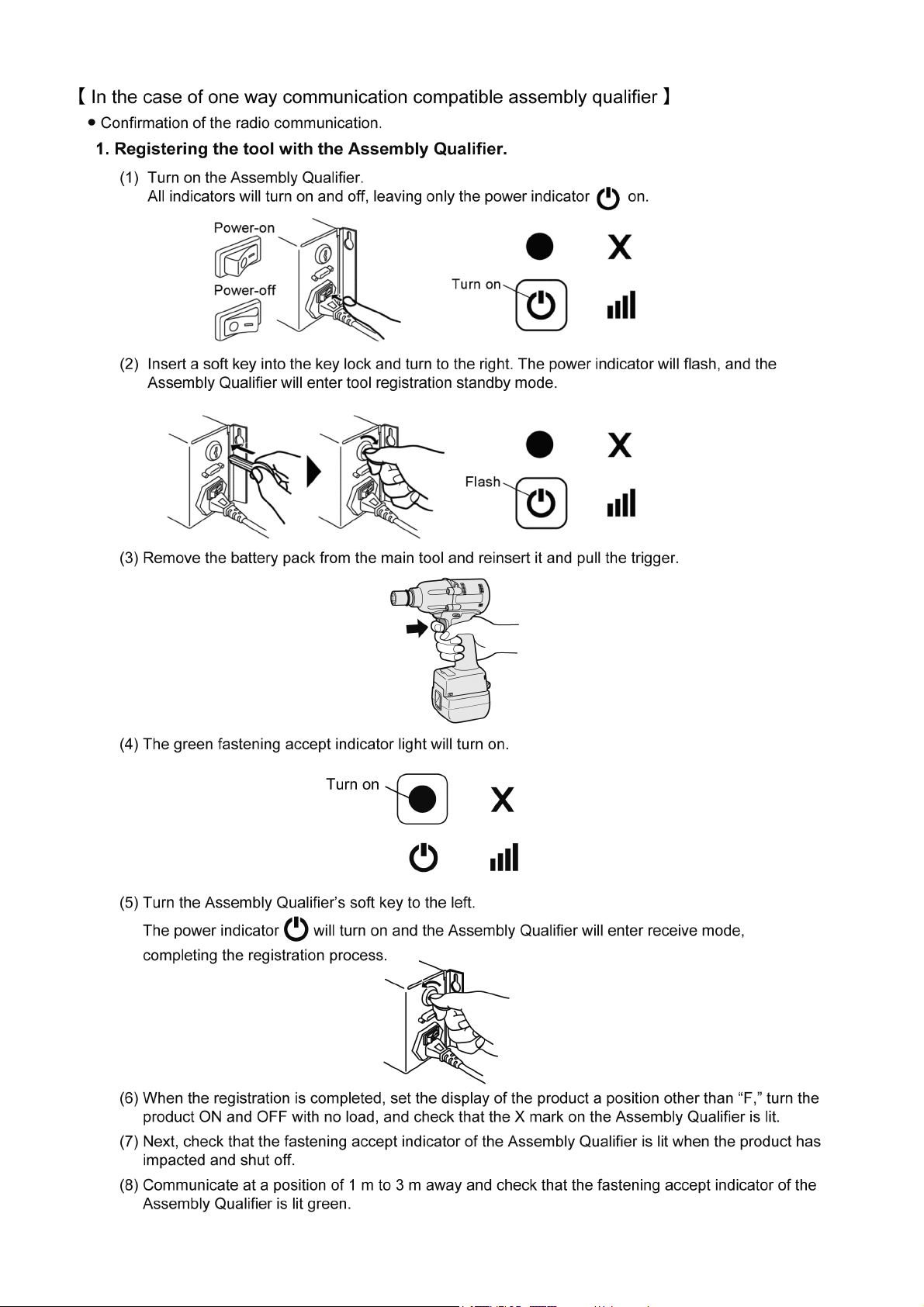

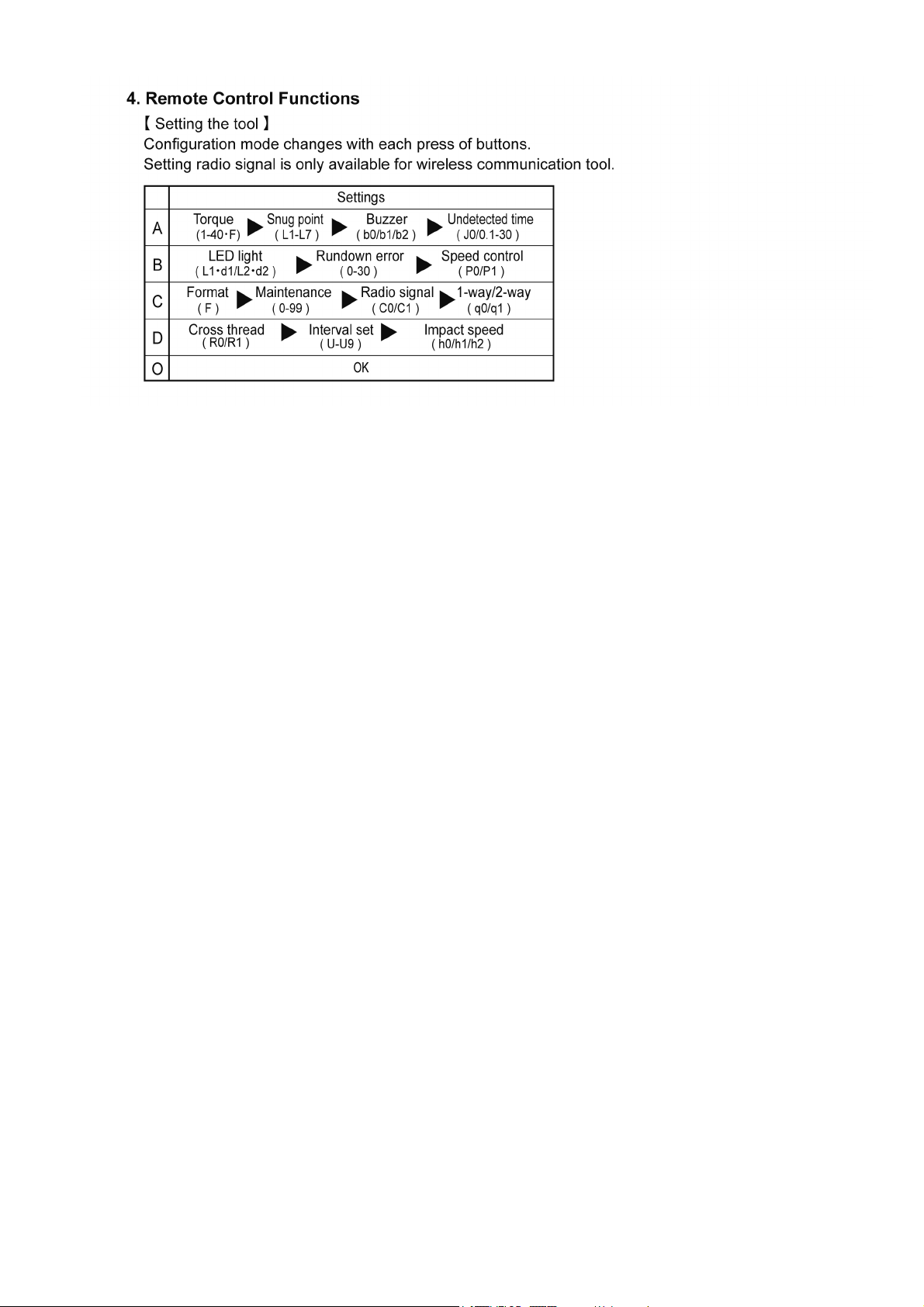

3.2. Trial Operation (after checking Troubleshooting Guide)

3.2.1. Operation

4

5

6

7

3.2.2. Integrity

• With the switch activated, shake the tool back and forth and up and down and verify that its sound does not change excessively.

• Verify that there is no dirt, scratching, or other damage on the tool’s exterior from the repair process.(Check the shaft cover

assembly carefully for surface scratches since it is made of aluminum.)

8

4 Disassembly and Assembly Instructions

*To reduce the risk of injury, always remove battery pack before removing/installing the tool.

4.1. How to remove the module assembly.

4.2. Checking and setting the Module assembly's DIP switches.

9

4.3. Wiring and Assembly Points.

Model No. : EYFMA2CR Exploded View

5 Exploded View and Replacement Parts List
