Panasonic WVPS11B - CAMERA DRIVE UNIT Manuel utilisateur

Camera Drive Unit

WV-PS11B

Before attempting to connect or operate this product,

please read these instructions completely.



WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

The lightning flash with arrowhead

symbol, within an equilateral triangle, is

intended to alert the user to the pres-

ence of uninsulated "dangerous volt-

age" within the product's enclosure that

may be of sufficient magnitude to con-

stitute a risk of electric shock to per-

sons.

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important oper-

ating and maintenance (servicing)

instructions in the literature accompa-

nying the appliance.

The serial number of this product may be found on the bot-

tom of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of your

purchase to aid identification in the event of theft.

Model No. WV-PS11B

Serial No.

Warning:

This equipment generates and uses radio frequency energy

and if not installed and used properly, i.e., in strict accor-

dance with the instruction manual, may cause harmful

interference to radio communications. It has been tested

and found to comply with the limits for a Class A computing

device pursuant to Subpart J of Part 15 of FCC Rules,

which are designed to provide reasonable protection

against such interference when operated in a commercial

environment.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER SER-

VICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PER-

SONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SA 1965

SA 1966

For U.S.A

Caution:

Before attempting to connect or operate this prod-

uct, please read the label on the bottom.

-1-

CONTENTS

PREFACE ......................................................................................................................................................................... 2

FEATURES ....................................................................................................................................................................... 2

PRECAUTIONS ................................................................................................................................................................ 3

MAJOR OPERATING COMPONENTS AND THEIR FUNCTIONS .................................................................................... 4

CONNECTIONS ............................................................................................................................................................... 5

SPECIFICATIONS ............................................................................................................................................................ 9

-2-

PREFACE

The Panasonic Camera Drive Unit WV-PS11B is spe-

cially designed to drive specified cameras such as WV-

BP70 or WV-CP100.

This simple system is specially designed for surveil-

lance and security needs at offices, factories, schools,

hospitals, public or residential buildings, etc.

FEATURES

• Stable DC power is supplied to the specified cam-

era by a regulator in the camera drive unit.

• A single coaxial cable connects the specified cam-

era and camera input of the camera drive unit.

• Three signals, video, DC power and vertical drive

pulses, are carried by a single coaxial cable (used

with the WV-BP70 or WV-CP100 camera.).

• Audio signals can be transmitted from the speci-

fied camera to the camera drive unit (used with the

WV-CP100 or WV-CF20 camera.).

• VD/SYNC input and output connectors for synchro-

nizing in the parallel operation.

• Built-in protection circuit protects the appliance in

case of wrong connection.

-3-

PRECAUTIONS

• Do not block the ventilation opening or slots on the

cover to prevent the appliance temperature from

rising.

• Do not attempt to disassemble the appliance.

To prevent electric shock, do not remove screws or

covers. There are no user-serviceable parts inside.

• Handle the appliance with care.

Do not abuse the appliance. Avoid striking, shak-

ing, etc. It could be damaged by improper han-

dling or storage.

• Do not expose the appliance to rain or moisture.

Avoid trying to operate it in wet areas.

Take immediate action if ever the unit becomes

wet. Turn the power off and refer servicing to quali-

fied service personnel. Moisture can damage the

appliance, and cause danger due to electric

shock.

• Do not use strong or abrasive detergents when

cleaning the appliance body.

Use a dry cloth to clean the unit when dirty. In case

the dirt is hard to remove, use a mild detergent and

wipe gently.

• Do not drop any metallic parts through slots.

This action could damage the appliance perma-

nently. Turn the power off immediately and refer

servicing to qualified service personnel.

• Use the appliance under conditions where temper-

atures are within –10°C - +50°C (14°F - 122°F), and

humidity is below 90%. The input power source is

120V AC 60 Hz.

Do not operate the appliance in an extreme envi-

ronment where is out of its specified temperature or

humidity range, or power source ratings.

-4-

MAJOR OPERATING COMPONENTS AND THEIR FUNCTIONS

CAMERA

IN VIDEO

OUT AUDIO

OUT VD/SYNC

IN VD/SYNC

OUT

SIGNAL

GND

CAUTION

USE WITH SPECIFIED EQUIPMENT SEE

ITS MANUAL BEFORE CONECTING.

POWER

OFF

qPower On/Off Switch (POWER, ON/OFF)

This switch is used to turn the camera drive unit

and connected specified camera power on or off.

The indicator lights up when the power of the cam-

era drive unit is on.

wCamera Input Connector (CAMERA IN)

This connector accepts either a color or B/W com-

posite video signal from the specified camera. It

also supplies DC power and vertical drive pulses

or synchronizing signals to the camera, and

receives video and audio signal from the camera.

eVideo Output Connector (VIDEO OUT)

The video signal of the specified camera is provid-

ed at this connector for input into the video monitor.

rAudio Output Connector (AUDIO OUT)

The audio signal of the specified camera is provid-

ed at this connector for input into the video monitor

(used with the WV-CF20 or WV-CP100 camera.).

tVD/SYNC Input Connector (VD/SYNC IN)

The VD (Vertical Drive) pulse or VS (Video Sync)

signal is supplied to this connector for synchroniz-

ing the system.

yVD/SYNC Output Connector (VD/SYNC OUT)

The VD (Vertical Drive) pulse or VS (Video Sync)

signal is provided at this connector for synchroniz-

ing other system component.

-5-

CONNECTIONS

Cautions:

• Set the POWER switch of the camera drive unit to OFF (l) during connections. If the power of the camera drive

unit is ON during connections, the protection circuit that protects it in case of wrong connection will operate and

prevent the camera from functioning.

• Connect only a specified camera, WV-BP70, WV-CF20 or WV-CP100. If another camera is connected, the cam-

era drive unit will not operate due to activation of the protection circuit.

CAMERA

IN VIDEO

OUT AUDIO

OUT VD/SYNC

IN VD/SYNC

OUT

SIGNAL

GND

CAMERA IN

AUDIO OUT

Camera Drive Unit

WV-PS11B

VIDEO OUT

Monitor

Camera

-6-

CAMERA

IN VIDEO

OUT AUDIO

OUT VD/SYNC

IN VD/SYNC

OUT

SIGNAL

GND

CAMERA

IN VIDEO

OUT AUDIO

OUT VD/SYNC

IN VD/SYNC

OUT

SIGNAL

GND

654321

CAMERA IN

VD/SYNC

Camera Drive Unit

WV-PS11B

VIDEO OUT

Monitor

Camera

CAMERA IN Camera Drive Unit

WV-PS11B

VIDEO OUT

Monitor

VTR

-7-

1. Connect the coaxial cable between the camera

and CAMERA IN connector of the camera drive

unit. The approximate maximum cable length is as

follows:

Coaxial DC R/1000 ft. of Maximum

Cable Type Inner Conductor Cable Length

RG-59/U Less than 30 Ω200 m (660 ft.)

RG-6/U Less than 12 Ω500 m (1650 ft.)

The maximum DC resistance of the cable between

the camera and camera drive unit is 20 Ω.

2. Connect the coaxial cable between the video moni-

tor and VIDEO OUT connector of the camera drive

unit. The approximate maximum cable length is as

follows:

Type of

coaxial cable RG-59/U

(3C-2V) RG-6/U

(5C-2V) RG-11/U

(7C-2V)

Recommended

Maximum

cable length

(m)

(ft)

250

825

500

1,650

600

1,980

Note:

If the length of the coaxial cable between the

camera drive unit and the video monitor

exceeds the distance shown in the above

table, a cable loss compensator should be

used between the camera drive unit and the

video monitor.

3. After connecting the specified camera to the cam-

era drive unit, connect the audio cable between the

monitor and AUDIO OUT connector of the camera

drive unit.

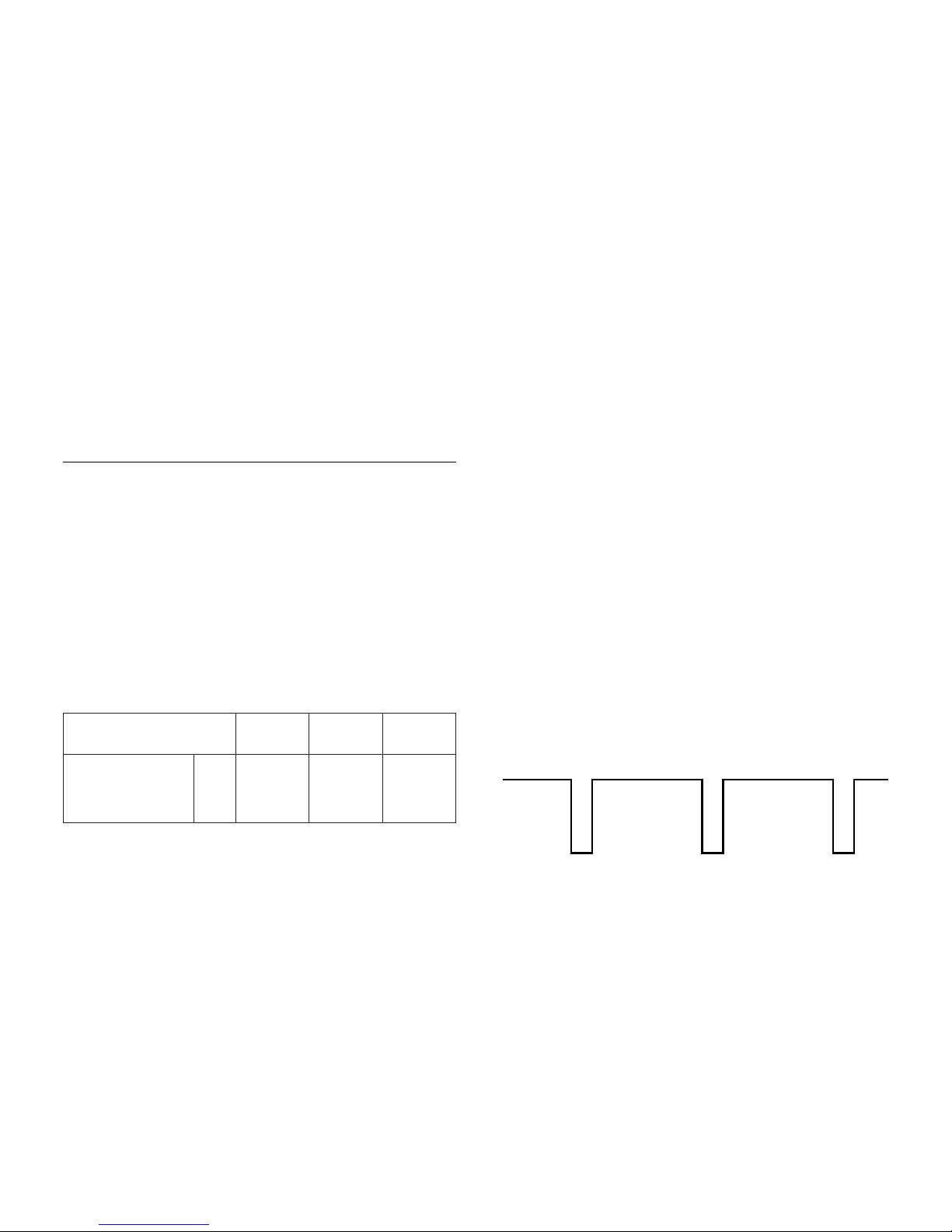

External VD/SYNC Signal

Signal Level

The VD/SYNC IN connector accepts the VD or VS syn-

chronizing signal for external synchronization.

• VD: 4 V[p-p] / 75 Ω

WV-BP70

WV-CP100

Signal to

VD/SYNC

Connected

Camera

-8-

• Composite Sync: 4 V[p-p] /75 Ω

Composite

signal VD signal Composite

signal

No signal VD signal Composite

signal

Relation between VD/SYNC IN and VD/SYNC

OUT

The signal from the VD/SYNC OUT connector differs

according to the connected camera and the signal sup-

plied to the VD/SYNC IN connector of this unit.

The signal supplied from VD/SYNC OUT is as follows:

Accuracy of vertical signal

Vertical frequency: 59.940052 Hz ± 0.00161 Hz

• VS: 1 V[p-p] /75 Ω
