Panasonic PAN1326C2 Manuel utilisateur

Wireless Connectivity

PAN1326C2

Bluetooth®Basic Data Rate and Low Energy Module

Quick Start Guide

Rev. 1.0

PAN1326C2 Bluetooth Module

Quick Start Guide Rev. 1.0 Page 2 of 20

Overview

Panasonic’s new PAN1326C2 is a Host Controller

Interface (HCI) Bluetooth®Radio Frequency (RF)

module that brings Texas Instruments™ seventh

generation Bluetooth core integrated circuit, the

CC2564C, to an easy-to-use module format. The

PAN1326C2 is Bluetooth 5 compliant and it offers

best-in-class RF performance with about twice the

range of other Bluetooth Low Energy (LE) solutions.

Panasonic’s tiny footprint technology has produced a

module of only 85.5 mm². The module is designed to

accommodate PCBs pad pitch of 1.3 mm and as few

as two layers for easy implementation and

manufacturing. The module has been designed to be

100 percent pin compatible with previous

generations of Texas Instruments based Bluetooth

HCI modules.

Features

•Bluetooth 5 compliant up to the HCI layer

•Best-in-class Bluetooth RF performance (Tx, Rx

sensitivity, blocking)

•Dimensions: 9 mm × 9.5 mm × 1.8 mm

•Based upon Texas Instruments CC2564C

•Interfaces: UART, GPIO, PCM

Characteristics

•Bluetooth 5

•Receiver sensitivity: -90 dBm

•Output power: 8 dBm

•Power supply: 1.7 V to 4.8 V

•Power consumption: Tx 40 mA

•Operating temperature range: -40 °C to 85 °C

Block Diagram

Chip

Antenna



Texas InstrumentsTM

CC2564C

Bluetooth HCI Chip

UART

GPIOs

Audio PCM/I2C

Reset



32 kHz input



VCC 3.3 V



LPF



PAN1326C2

Bluetoothâ5 Module

BR/EDR/LE



Crystal

26 MHz



PAN1326C2 Bluetooth Module

Quick Start Guide Rev. 1.0 Page 3 of 20

By purchase of any of the products described in this document the customer accepts the document's

validity and declares their agreement and understanding of its contents and recommendations. Panasonic

Industrial Devices Europe GmbH (Panasonic) reserves the right to make changes as required at any time

without notification.

This document is copyrighted. Reproduction of this document is permissible only if reproduction is without

alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Do not

disclose it to a third party.

This Quick Start Guide does not lodge the claim to be complete and free of mistakes.

The information contained herein is presented only as guidance for Product use. No responsibility is

assumed by Panasonic for any infringement of patents or any other intellectual property rights of third

parties that may result from the use of Product. No license to any intellectual property right is granted by

this document, whether express or implied, by estoppel or otherwise.

Description of hardware, software, and other information in this document is only intended to illustrate the

functionality of the referred Panasonic product. It should not be construed as guaranteeing specific

functionality of the product as described or suitable for a particular application.

Any provided (source) code shall not be used or incorporated into any products or systems whose

manufacture, use or sale is prohibited under any applicable laws or regulations.

Any outlined or referenced (source) code within this document is provided on an “as is” basis without any

right to technical support or updates and without warranty of any kind on a free of charge basis according

to § 516 German Civil Law (BGB) including without limitation, any warranties or conditions of title, non

infringement, merchantability, or fitness for a particular purpose. Customer acknowledges that (source)

code may bear defects and errors.

The third party tools mentioned in this document are offered by independent third party providers who are

solely responsible for these products. Panasonic has no responsibility whatsoever for the performance,

product descriptions, specifications, referenced content, or any and all claims or representations of these

third party providers. Panasonic makes no warranty whatsoever, neither express nor implied, with respect

to the goods, the referenced contents, or any and all claims or representations of the third party providers.

To the maximum extent allowable by Law Panasonic assumes no liability whatsoever including without

limitation, indirect, consequential, special, or incidental damages or loss, including without limitation loss of

profits, loss of opportunities, business interruption, and loss of data.


PAN1326C2 Bluetooth Module




Quick Start Guide Rev. 1.0 Page 4 of 20

Table of Contents
1About This Document.........................................................................................................................5
1.1 Purpose and Audience ..............................................................................................................5
1.2 Revision History.........................................................................................................................5
1.3 Use of Symbols .........................................................................................................................5
1.4 Related Documents...................................................................................................................6
2Overview..............................................................................................................................................7
3Setting up the Toolchain....................................................................................................................8
3.1 Installing “CC2564CMSP432BTBLESW1”.................................................................................8
3.2 Installing “Code Composer Studio”............................................................................................8
3.3 Starting “Code Composer Studio”..............................................................................................9
4Setting up the Demo.........................................................................................................................11
4.1 Loading the Demo ...................................................................................................................11
4.2 Connecting the Evaluation Board............................................................................................13
4.3 Flashing the Code ...................................................................................................................13
4.4 Setting up “iBeacon (Bluetooth Low Energy)”..........................................................................14
4.5 Setting up “SPP (Bluetooth Classic)“.......................................................................................15
5Restricted Use...................................................................................................................................19
5.1 Life Support Policy...................................................................................................................19
5.2 Restricted End Use..................................................................................................................19
6Contact Details..................................................................................................................................20
6.1 Contact Us...............................................................................................................................20
6.2 Product Information .................................................................................................................20



PAN1326C2 Bluetooth Module 1 About This Document

Quick Start Guide Rev. 1.0 Page 5 of 20

1 About This Document

1.1 Purpose and Audience

This Quick Start Guide provides details on how to start developing applications on the

Panasonic PAN1326C2 module:

•Installing toolchain,

•Setting up the demo “iBeacon (Bluetooth Low Energy)” demo by using Panasonic

development kit and receive beacon data in app, and

•Setting up the demo “SPP (Bluetooth Classic)” by using Panasonic development kit and

transmit strings from terminal to application via PAN1326C2.

It is intended for research and developement engineers.

The product is referred to as “the PAN1362C2” or “the module” within this document.

1.2 Revision History

Revision

Date

Modifications/Remarks

1.0

2021-05-31

First version

1.3 Use of Symbols

Symbol

Description

Note

Indicates important information for the proper use of the product.

Non-observance can lead to errors.

Attention

Indicates important notes that, if not observed, can put the product’s functionality

at risk.

Tip

Indicates useful information designed to facilitate working with the software.

[chapter number]

[chapter title]

Cross reference

Indicates cross references within the document.

Example:

Description of the symbols used in this document 1.3 Use of Symbols.

✓

Requirement

Indicates a requirement that must be met before the corresponding tasks can be

completed.

➔

Result

Indicates the result of a task or the result of a series of tasks.



PAN1326C2 Bluetooth Module 1 About This Document

Quick Start Guide Rev. 1.0 Page 6 of 20

Symbol

Description

This font

GUI text

Indicates fixed terms and text of the graphical user interface.

Example:

Click Save.

Menu > Menu item

Path

Indicates a path, e.g. to access a dialog.

Example:

In the menu, select File > Setup page.

This font

File names, userinput

Indicates file names or messages and information displayed on the screen or to

be selected or entered by the user.

Examples:

pan1760.c contains the actual module initialization.

Enter the value Product 123.

This font

Systemoutput

Indicates messages and information displayed on the screen.

Example:

The message Failed to save your data is displayed.

Key

Indicates a key on the keyboard.

Example:

Press F10 .

1.4 Related Documents

For related documents please refer to the Panasonic website 6.2 Product Information.



PAN1326C2 Bluetooth Module 2 Overview

Quick Start Guide Rev. 1.0 Page 7 of 20

2 Overview

Panasonic’s new PAN1326C2 is a Host Controller Interface (HCI) Bluetooth RF module that

brings Texas Instrument’s seventh generation Bluetooth core integrated circuit, the CC2564, to

an easy-to-use module format. The PAN1326C2 is Bluetooth 5 compliant and it offers

best-in-class RF performance with about twice the range of other Bluetooth LE solutions.

Panasonic’s tiny footprint technology has produced a module of only 85.5 mm². The module is

designed to accommodate PCBs pad pitch of 1.3 mm and as few as two layers for easy

implementation and manufacturing. The module has been designed to be 100 percent pin

compatible with previous generations of Texas Instruments based Bluetooth HCI modules.

For related documents please refer to 6.2 Product Information.



PAN1326C2 Bluetooth Module 3 Setting up the Toolchain

Quick Start Guide Rev. 1.0 Page 8 of 20

3 Setting up the Toolchain

The following guide is based on a Windows 64-Bit desktop version and CCSTUDIO single file

installation.

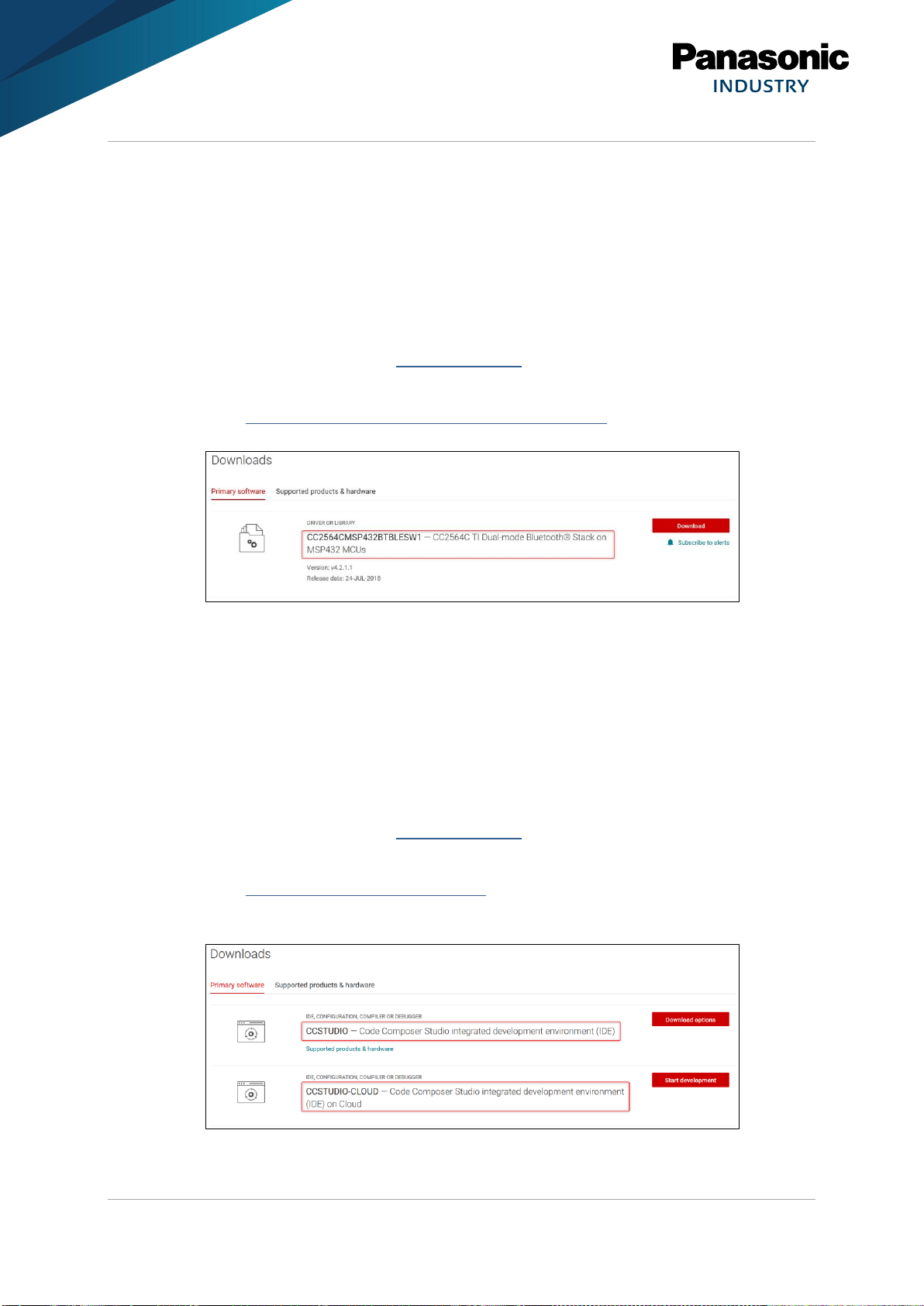

3.1 Installing “CC2564CMSP432BTBLESW1”

The following requirement must be met:

✓Account at Texas Instruments (https://www.ti.com)

1. Go to https://www.ti.com/tool/CC2564CMSP432BTBLESW and download

CC2564CMSP432BTBLESW1.

2. Start and install the downloaded file setup.exe.

The executable file has installed all the necessary drivers, libraries, and code examples

to develop Bluetooth applications on MSP432 MCUs.

Now the “CC2564CMSP432BTBLESW1” is installed.

3.2 Installing “Code Composer Studio”

The following requirement must be met:

✓Account at Texas Instruments (https://www.ti.com)

1. Go to https://www.ti.com/tool/CCSTUDIO and download the “Code Composer Studio“.

There are two options available, the desktop version (CCSTUDIO) and cloud version

(CCSTUDIO-CLOUD).



PAN1326C2 Bluetooth Module 3 Setting up the Toolchain

Quick Start Guide Rev. 1.0 Page 9 of 20

CCSTUDIO can be downloaded as “single file” or “on-demand”. If you

do not want interference with your installed anti-virus program, then it

is recommended to use the single file installer.

2. Extract the downloaded file CCS10.x.x.xxxxx_win64 and locate the file

ccs_setup_10.x.x.xxxxx.exe in the extracted folder.

3. Start and install the setup.

If you want to install specific devices to save disk space, choose Recommended

Installation, otherwise choose Full Installation.

4. Select the component SimpleLink MSP432 low power + performance MCUs (1) for

applications with PAN1326C2 and TI EVK (Texas Instruments evaluation kit).

5. Click Next > (2) and complete the setup by following the instructions. Leave the debug

probes selection as it is.

Now the “Code Composer Studio” is installed.

3.3 Starting “Code Composer Studio”

Before starting programming, always update “Code Composer Studio” and the

compilers to the newest version.

The following requirements must be met:

✓The “CC2564CMSP432BTBLESW1“ is installed 3.1 Installing

“CC2564CMSP432BTBLESW1”.

✓The “Code Composer Studio“ is installed 3.2 Installing “Code Composer Studio”.



PAN1326C2 Bluetooth Module 3 Setting up the Toolchain

Quick Start Guide Rev. 1.0 Page 10 of 20

1. Start Code Composer Studio.

2. Choose the location for your workspace.

The path to your workspace must include only alphanumeric

characters to avoid compiler errors in some examples.

The default workspace by “Code Composer Studio” includes always

an underline “_”. Change the name of the workspace or create a new

one without special characters.

3. Click the tab Help (1) > Check for Updates (2) to update “Code Composer Studio” and

the compilers to the newest version.

➔The updating process will start.

4. After the updating process is completed: Go to the page Getting Started and click

Import Project.

Alternatively click the tab File > Open Project from File System.

Choose only projects from the folder “Code Composer Studio”

because “Code Composer Studio”ist used.

Table des matières

Autres manuels Panasonic Unité de contrôle

Panasonic

Panasonic CF-BAC02GU Manuel utilisateur

Panasonic

Panasonic Aquarea PAW-HPM1 Mode d’emploi

Panasonic

Panasonic CF-BAU0512U Manuel utilisateur

Panasonic

Panasonic PAN1322-SPP Manuel utilisateur

Panasonic

Panasonic GPKS162CUD - CONTROL UNIT Manuel utilisateur

Panasonic

Panasonic CATU9000U - AV CTRL AMP Manuel utilisateur

Panasonic

Panasonic AW-RC600 Manuel utilisateur

Panasonic

Panasonic EBL512 G3 5000 Manuel technique

Panasonic

Panasonic WVPS11B - CAMERA DRIVE UNIT Manuel utilisateur

Panasonic

Panasonic AJ-EC3P Manuel utilisateur

Panasonic

Panasonic VBHN240SE10 Manuel utilisateur

Panasonic

Panasonic CF-BAJ0256U Manuel utilisateur

Panasonic

Panasonic WH-ADC0309H3E5 Manuel utilisateur

Panasonic

Panasonic WX-CC412BP Manuel utilisateur

Panasonic

Panasonic Photovoltaic Module HIT VBHN SJ25 Series Manuel utilisateur

Panasonic

Panasonic CARICAM AU-VSHL2G Manuel utilisateur

Panasonic

Panasonic AFP0HC32ET Manuel utilisateur

Panasonic

Panasonic CF-BAV0512U Manuel utilisateur

Panasonic

Panasonic GP-KH232CUE Manuel utilisateur

Panasonic

Panasonic SF-C13 Manuel utilisateur

Panasonic

Panasonic AJRC10G - REMOTE CONTROL UNIT Manuel utilisateur

Panasonic

Panasonic AK-UCU500P Manuel utilisateur

Panasonic

Panasonic PAN4620 Manuel utilisateur

Panasonic

Panasonic FP0R Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
