Outback Cuisine Manuel utilisateur

Gas Barbecues

Assembly and Operating Instructions for

Outback® Cuisine and Outback® Connoisseur Gas Barbecues

EN (Europe)

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance.Failure to follow instructions

could result in death, serious bodily injury, and/orproperty loss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply atthe gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

• Retain these instructions for future reference.

• Leak testannually, and whenever the gas bottle is removed or replaced.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. Ifodour continues,discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

Photographs are not to scale.

Specifications subject to

change without prior notice.

Pre-Assembled Component

Quantity varies according to modelpurchased

 Appearance, size, and constructionmay differ according to modelpurchased

Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details onhardware, please see ‘Hardware Reference Diagram’.

CODE PART QTY Outback®

Cuisine Outback®

Connoisseur

HOOD

A1 Hood Handle 1  

A2 Hood 1  

A3 Hinge Pin 2  

A4 Hinge Pin Clip 2  

A5 Heat Indicator with Nuts 1  

A6 Warming Basket 1  

BODY

B1 Barbecue Body 1  

B2 Burner 4 6

B3 Burner Clip 4 6

B4 Control Panel 1  

B5 Knob 4 6

B6 Drip Tray 1  

B7 Drip Pan 1  

B8 Foil Liner 1  

B9 Briquette Basket 2 

B10 Briquettes 2  

B11 Griddle 1 

B12 Grill 2 

TROLLEY

C1 Side Burner 1  

C2 Side Burner Grill 1  

C3 L/H Side Burner Shelf with Lid 1  

C4 Tool Hook 1  

C5 R/H Side Shelf 1  

C6 Towel Rail 1  

C7 Hose (if supplied) 

C8 L/H Panel 1  

C9 Divider 1 

C10 R/H Panel 1  

C11 Top Panel 1  

C12 Back Panel 1  

C13 Bottom Panel 1  

C14 L/H Door 1  

C15 R/HDoor 1  

C16 Door Handle 2  

C17 Magnet Strip 2  

C18 Caster 2  

C19 Lockable Caster 2  

C20 Heat Shield 1  

C21 Mounting Bracket 1  

C22 Ignition Assembly 1  

C23 Support 1 

ROTISSERIE

D1 Rotisserie Handle 1  

D2 Fork 2  

D3 Spit Rod 1  

D4 Motor 1  

D5 L/H Bracket 1  

D6 R/HBracket 1  

HARDWARE

E1 Screw, M6x15 28  

E2 Nut, M6 22  

E3 Bolt, M6x90 8  

E4 Washer 8  

E5 Spacer 8  

E6 Wing Nut, M6 8  

E7 Screw, M5x10 4  

E8 Nut, M5 4  

Outback® Cuisine Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details onhardware, please see ‘Hardware Reference Diagram’.

B11 B12

B10

C8 C10

C14

C19

C4 C6

C11

C23

C12

C13

C17

C15

C16

C20

C21

C22

D5 D6

C18

Outback® Connoisseur Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details onhardware, please see ‘Hardware Reference Diagram’.

B11 B12

B10

C8 C10

C14

C19

B3B1

C4 C6

C11

C12

C13

C17

C15

C16

C20

C21

C22

D5 D6

C18

Hardware Reference Diagram

Specifications subject to change without prior notice.

E3, E4, E5, E6 E1, E2

E1 E7, E8

Assembly

IMPORTANT!

• Tools Required: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric

spanner set

• The assembly of this barbecue requires 2 people.

• Carefully unpack the trolleybox and remove all internal packaging beforecommencing assembly.

• Carefully unpack the body box and remove all internal packaging before commencing assembly. All

loose items including the grills/griddle,briquette baskets and warming basket must be removed from the

body.

• Whilst everycare is taken in the manufacture of this product, care must be taken during assemblyin

case sharp edges are present.

Attachthe L/H Panel (C8) to the Bottom Panel (C13) using the Screws (E1)and Nuts (E2).

Attachthe R/H Panel (C10)to the Bottom Panel (C13)using the Screws (E1) and Nuts (E2).

* A sticker on the

panels indicates the

position for easy

assembly.

L/H

L/H R/H

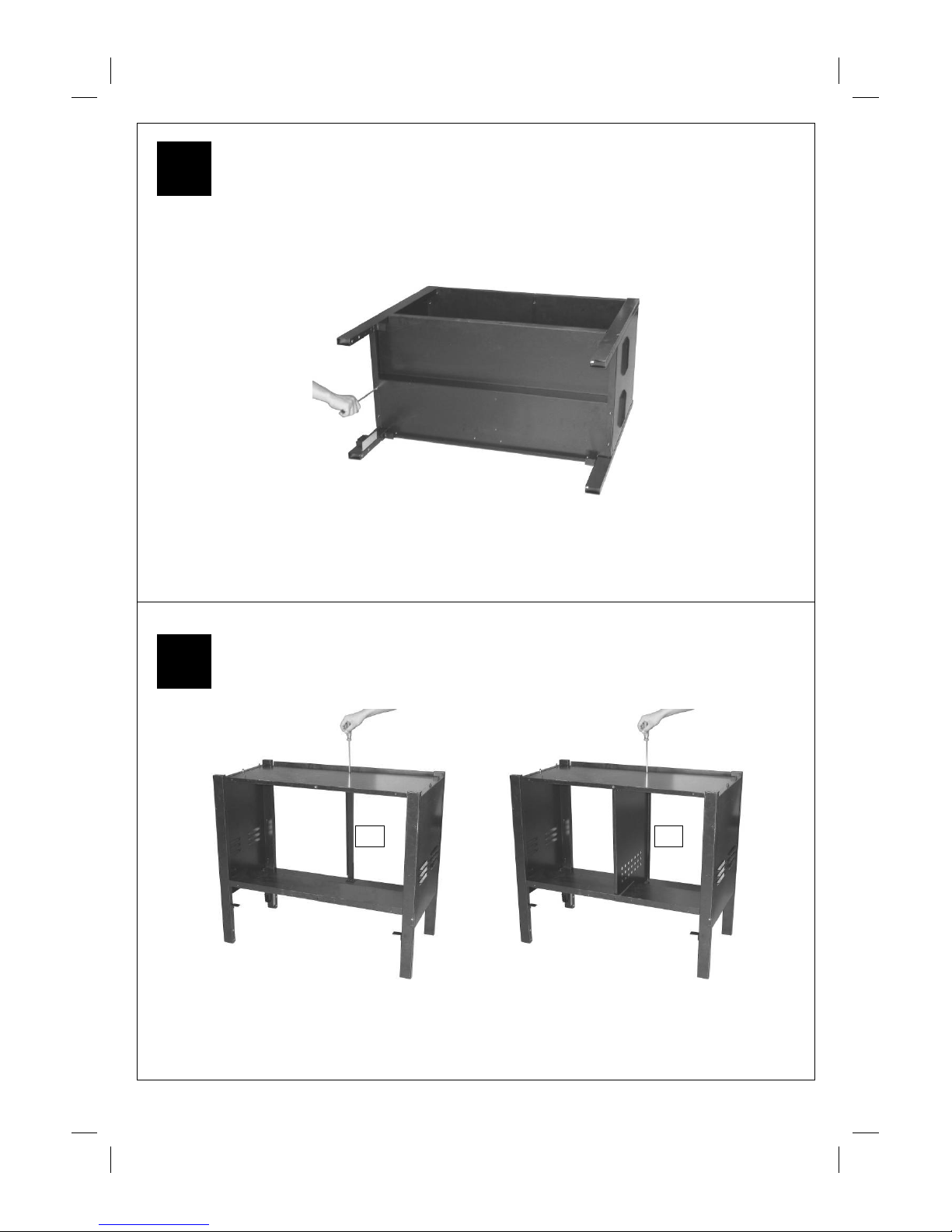

Attachthe Top Panel (C11) to the L/H (C8) and R/H (C10) Panels with the Screws (E1) and

Nuts (E2).

Cuisine Users: Attach the Support(C23) between the Top and Bottom Panels using the Screws (E1) and

Nuts (E2).

Connoiseur Users: Attach the Divider(C9) between the Top and Bottom Panels using the Screws (E1)

and Nuts (E2).

L/H R/H

C23

Cuisine Connoisseur

Attachthe Back Panel (C12) to the assembled portionof the cabinet using the Screws (E1).

Screwthe Casters (C18) into the L/H Panel and the Lockable Casters (C19) into the R/H

Panel.

L/H

R/H

L/H R/H

Remove the Screws from the L/HPanel. Attach the L/H Side Burner Shelf

(C3) to the L/H Panel by replacing the Screws.

Remove the Screws from the R/H Panel. Attach the R/H Side Shelf

(C5) to the R/H Panel by replacing the Screws.

Insert Spacers (E5) into holes in the sidewall of the bodyand turn 90 degrees to lock inplace.

Carefully lay the Barbecue Body (B1) onto the supports on the cabinet. WARNING: DO NOT RELEASE

THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN PROPERLY SEATED. THIS MAY

RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.

Attach the bodyby inserting the Bolt (E3) through the leg of the side panel and then through the Spacer

(E5) which has been previously inserted into the sidewall of the body. Place the Washer (E4) over the

bolt (E3) and protruding part of the Spacer (E5) and secure with the Wing Nut (E6). Repeat for all 8

bolts.

Connect the wires to the Ignition Assembly(C22)as shown on the next page.
