OPTI-UPS PS650D Manuel utilisateur
www.opti-ups.com
USER MANUAL
PS-D Line interactive UPS
PS650D / PS1000D / PS1500D / PS2000D
PS1000D-RM / PS1500D-RM
PS1000D-RT / PS1500D-RT / PS2000D-RT
PS3000D-RT / PS5000D-RT / PS7500D-RT / PS10000D-RT
PS3000DL / PS5000DL / PS7500DL
1
Uninterruptible Power Supply
CONTENTS
1. INTRODUCTION .............................................……........ 2
2. SAFTY INSTRUCTION...................……...…………….... 3
3. SYSTEM DESCRIPTION..........................……......…..... 7
4. OUTLINE DESCRIPTION..............................……......... 9
5. CABLE CONNECTION...................……...……………..... 22
6. OPERATION ................................................……........... 23
7. TROUBLE SHOOTING GUIDE.......................…….....… 28
8. OPERATION MODES OF THE UPS ..............……........ 30
9. COMPUTER INTERFACE ...........................……........... 32
10. SPECIFICATIONS…………………........…………..…..... 33
2
1. INTRODUCTION
1.1 General Description
The continuity of electrical power is an essential requirement for critical load
operations. The Uninterruptible Power System (UPS) is designed to meet the
user‘s need of present computer, server and the equipment of office automation
that make the UPS more compact and less noisy.
To choose the UPS as your equipment protector is a wise investment because it
supplies reliable, pure and stable power at affordable price.
1.2 Key features
zLine-interactive Sine-wave Topology
zIntelligent Charger w/PFC
zDetachable Dot-Matrix LCD Panel ( 1K and above)
zCompact Size
zRack/Tower Convertible ( 3K and above)
zIntelligent Fan Speed Control
zIntegrate with Generator Set
zHot Swappable Battery ( Rack model)
zMultiple Interface Options ( 1K and above)
zCold Start
3
1.3 Important Notices
To be sure that the UPS will be operated correctly, the following items should be
noticed:
1. Read instructions carefully before operating the UPS.
2. UPS power connect instruction should be followed.
3. Please don‘t open the case to prevent danger.
4. If the UPS will be stored for long period, the battery must be charged once
every 60 days.
5. Retain the load within the rating of UPS to prevent faults.
6. Handle unusual events according to the trouble-shooting guide.
7. Keep the UPS clean and dry.
2. SAFTY INSTRUCTION
2.1 Transporting
1. Disconnect all power cables if necessary.
2. Be careful not to damage the UPS while transporting.
3. Don‘t move the UPS upside down.
4. Please transport the UPS system only in the original packaging (to protect
against shock and impact).
4
2.2 Positioning
1. Do not put the UPS on rugged or declined surface.
2. Do not install the UPS system near water or in damp environments.
3. Do not install the UPS system where it would be exposed to direct sunlight or
near heat.
4. Do not block off ventilation openings in the UPS system’s housing and don’t
leave objects on the top of the UPS.
5. Allow a minimum distance of 10 cm in the rear and two sides of the UPS for
ventilation.
6. Keep the UPS far away from heat emitting sources.
7. Do not expose it to corrosive gas.
8. Ambient temperature : 0℃- 40℃
2.3 Installation
1. Connect the UPS system only to an earthed shockproof socket outlet.
2. Do not connect domestic appliances such as hair dryers or office equipment
which would overload the UPS system (e.g. laser printers) to UPS output
sockets.
3. Place cables in such a way that no one can step on or trip over them.
5
2.4 Operation
1. Do not disconnect the mains cable on the UPS system or the building wiring
socket outlet during operations since this would cancel the protective earthing of
the UPS system and of all connected loads.
2. The UPS has its own internal power source (batteries). The output terminals
may be live even when the UPS is not connected to the AC supply.
3. Ensure that no fluids or other foreign objects can enter the UPS system.
2.5 Maintenance and Service
1. Caution - risk of electric shock.
Even after the unit is disconnected from the mains power supply (building wiring
socket outlet), components inside the UPS system are still connected to the
battery and are still electrically live and dangerous. Before carrying out any kind
of servicing and/or maintenance, disconnect the batteries and verify that no
current is present.
2. Only persons adequately familiar with batteries and with the required
precautionary measures may exchange batteries and supervise operations.
Unauthorized persons must be kept well away from the batteries.
6
3. Batteries may cause electric shock and have a high short-circuit current. Please
take the precautionary measures specified below and any other measures
necessary when working with batteries:
- remove wristwatches, rings and other metal objects
- use only tools with insulated grips and handles.
4. When changing batteries, install the same number and same type of batteries.
5. Do not attempt to dispose of batteries by burning them. This could cause battery
explosion.
6. Do not open or destroy batteries. Escaping electrolyte can cause injury to the
skin and eyes.
7
3. SYSTEM DESCRIPTION
3.1 Front Panel Description for LCD Model
1. LCD Display: This indicates the UPS operation information, including UPS
status, input/output voltage, input/output frequency, battery voltage, battery
capacity left, output load, inside temperature, and the times of history events.
2. Up-key: Use to select upward the UPS status on LCD Display.
3. Down-key: Use to select downward the UPS status on LCD Display. In battery
operation mode, press it with Up-key at the same time to disable the buzzer.
8
4. Enter-Key: It is pressed with the Down-key to turn on the UPS, with the Up-key
to turn off the UPS. Beside, it is pressed to confirm and enter the item selected.
5. Fault LED (red): To indicate the UPS is in fault condition because of inverter
shutdown or over-temperature.
6. Warning LED (yellow): To indicate the UPS is in the status of overload, bypass
and battery back-up.
7. Normal LED (green): To indicate the UPS is operating normally.
8. ON/TEST/MUTE key: It should be pressed with the control key simultaneously
to switch on UPS, do UPS auto-test in normal AC mode and turn off the buzzer
in battery operation.
9
4. OUTLINE DESCRIPTION

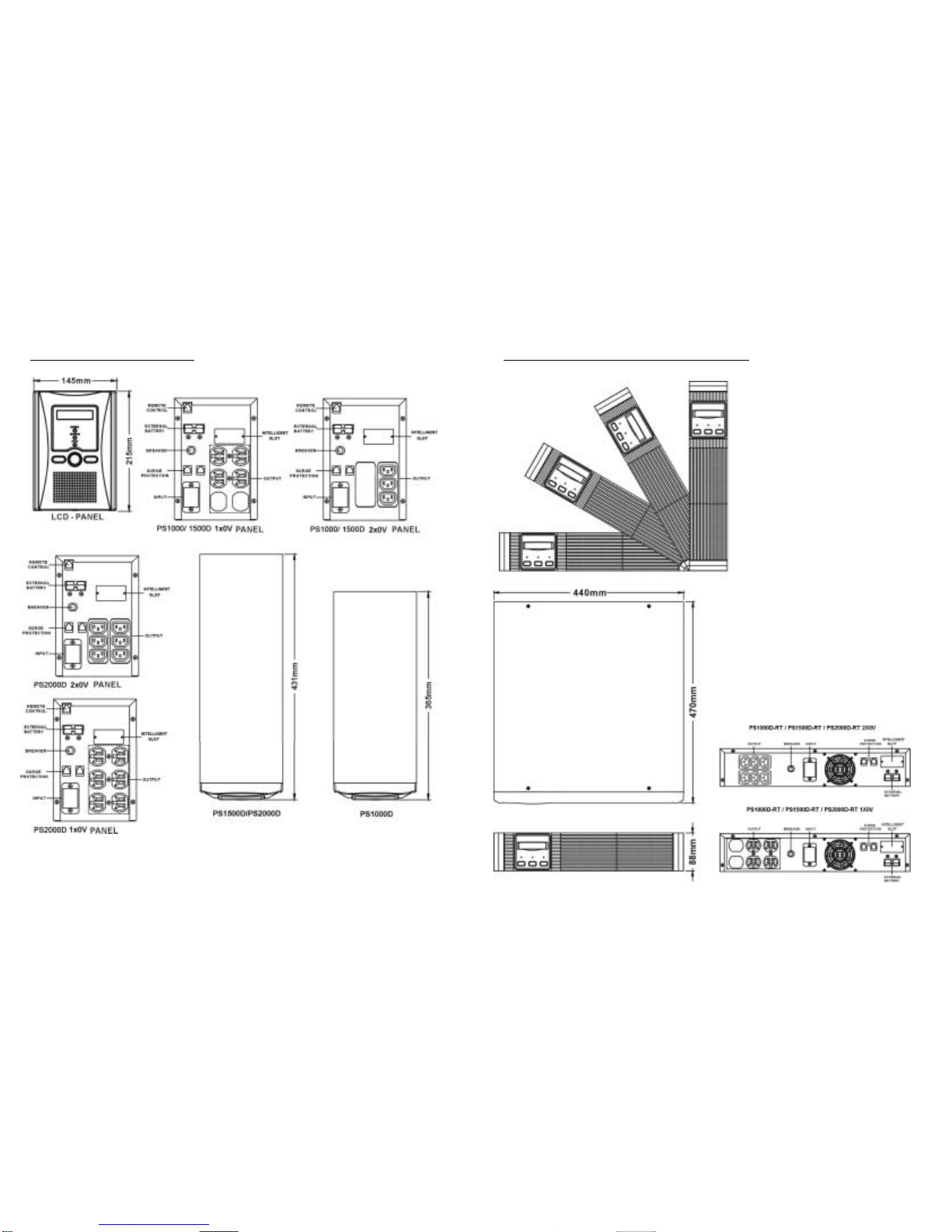

4.1 Case Outline
PS650D
10
PS1000D / PS1500D / PS2000D
11
PS1000D-RT / PS1500D-RT / PS2000D-RT (2U)
12
PS3000D-RT / PS3000DL Rack & Tower Convertible Unit (3U)
13
PS5000D-RT Rack & Tower Convertible Unit (3U)
14
PS7500D-RT / PS10000D-RT / PS5000DL / PS7500DL Rack & Tower
Convertible Unit (3U)
15
4.2 Back View Description
PS650D
1. USB Interface Port 4. Output Socket (NEMA 5-15R
or IEC320)
2. Remote Control (optional) 5. Breaker
3. RJ11 Surge Protection (optional) 6. Input Socket
16
PS1000D / PS1500D / PS2000D
1. RS-232 Interface Port 5. Output Socket
2. Intelligent Slot (SNMP, optional) 6. External Battery Socket ( L )
3. RJ11 Surge Protection 7. Breaker
4. Remote Control 8. Input Socket
17
PS1000D-RM / PS1500D-RM (1U)
1. RS-232 Interface Port 4. Output Socket (NEMA 5-15R or
IEC320)
2. Intelligent Slot (SNMP, optional) 5. Breaker
3. Remote Control (optional) 6. Input Socket
18
PS1000D-RT / PS1500D-RT / PS2000D-RT (2U)
1. RS-232 Interface Port 6. Fan
2. Intelligent Slot (SNMP, optional) 7. External Battery Socket ( L )
3. RJ11 Surge Protection 8. Breaker
4. Remote Control (optional) 9. Input Socket
5. Output Socket (NEMA 5-15R or IEC320)
19
PS3000D-RT / PS3000DL Convertible Unit (3U)
1. RS-232 Interface Port 6. Fan
2. Intelligent Slot (SNMP, optional) 7. External Battery Socket ( L )
3. RJ11 Surge Protection 8. Breaker
4. Remote Control (optional) 9. Input Socket
5. Output Socket (NEMA 5-15R or IEC320)
