2021/10/12 04:32 1/9 Olympus BH-2 Microscope Motor Drive Installation

Applied Scientiﬁc Instrumentation - https://asiimaging.com/docs/

Olympus BH-2 Microscope Motor Drive

Installation

Motor Drive Installation

This procedure steps you through the installation and alignment of the ASI motor drive onto the

Olympus BH-2 microscope. The following tools are required for this procedure:

Small knife or screwdriver

2.5 mm Allen wrench ( Provided )

3.0 mm Allen wrench ( Provided )

1.5 mm Allen wrench ( Provided )

3/32 mm Allen wrench ( Provided )

5/64 mm Allen wrench ( Provided )

7/64 mm Allen wrench ( Provided )

9/64 mm Allen wrench ( Provided )

1/16 mm Allen wrench ( Provided )

Preparing The Microscope

In this part of the procedure the left ﬁne focus knob will be removed from the microscope:

Prior to removing left ﬁne focus knob, the microscope stage should be fully lowered. To do this,

release the lock by rotating fully counter-clockwise the lock ring behind the left coarse focus knob,

then rotate the coarse knob to lower the stage all the way down.

Note: the terms left and right refer to the sides of the

microscope as viewed from the front.

Last update: 2021/09/23 17:15 oly_bh2_zdrive_installation https://asiimaging.com/docs/oly_bh2_zdrive_installation

https://asiimaging.com/docs/ Printed on 2021/10/12 04:32

1) Carefully slip the knife point into the inside edge of the left ﬁne focus knob end and pry out the

20mm black disk that covers the ﬁne focus knob attachment screw.

2) Remove the left ﬁne focus knob by ﬁrst removing the attachment screw using the 2.5mm hex

wrench then pulling the knob oﬀ of the ﬁne focus shaft. It will be necessary to hold the right ﬁne focus

knob while removing the screw to prevent the shaft from turning.

3) After the knob has been removed insure that the wave washer is still located on the brass clutch

assembly on the focus shaft. If the washer has stuck to the ﬁne focus knob that was removed place it

as shown on to the focus shaft.

Installing the Drive and Back plate assembly

Locate the motor drive, the back plate and the brass clutch plate.

2021/10/12 04:32 3/9 Olympus BH-2 Microscope Motor Drive Installation

Applied Scientiﬁc Instrumentation - https://asiimaging.com/docs/

Back Plate

Drive Assembly

In this step we will install the ASI backplate and motor drive assembly as a unit. The ASI backplate will

be installed and clamped to the back of the microscope as shown only after the motor drive is

clamped onto the ﬁne focus shaft of the microscope. Before installing the backplate and drive

assembly loosen but do not remove the horizontal and vertical adjustment screws. When these

screws are loosened the motor drive should move freely about in the horizontal and vertical

adjustment axis.

Alternatively the drive and the back plate can be installed separately. In this installation the drive is

removed from the back plate by removing the horizontal adjustment screw.

Horizontal adjustment screw

Last update: 2021/09/23 17:15 oly_bh2_zdrive_installation https://asiimaging.com/docs/oly_bh2_zdrive_installation

https://asiimaging.com/docs/ Printed on 2021/10/12 04:32

Vertical adjustment screws

Installing the Drive & Brass Clutch Plate

Use the 7/64 Allen wrench to loosen the clamp that is located on the ASI drive shaft. This clamp is

located at the end of the drive shaft as it protrudes out of the black encoder cover. Once the clamp is

loose slide it back towards the encoder and slide the brass clutch plate onto the ASI drive shaft. The

clutch plate should slide onto the drive shaft with the milled out portion pointing away from the

encoder. While holding the right ﬁne focus knob slide the motor drive and back plate assembly in

towards the microscope, when the ASI drive shaft is close enough, position the hollow end of the drive

shaft (protruding from the black encoder) over the ﬁne focus shaft on the microscope. Orient the

motor assembly so that the two shafts are aligned, and then push the motor assembly onto the

microscope. If you do not hold the right ﬁne focus knob the microscope’s ﬁne focus shaft may be

pressed over towards the right of the microscope. If this happens simply push the right ﬁne focus

knob in towards the microscope to push the shaft back.

Press the drive onto the microscope until the side of the back plate assembly slides against the side

of the microscope, or if installing the drive and back plate separately: push the drive on until the tab

on the adjustment bar seats into the grove on the back plate. While holding the drive in place with

one hand use a screw driver to press the clamp against the brass clutch plate and press the brass

plate against the wave washer and focus shaft. Hold this in place and use the 7/64 inch hex wrench to

securely tighten the clamp. Note The Clamp Must Be Securely Tightened or the drive and

clutch may slip.

2021/10/12 04:32 5/9 Olympus BH-2 Microscope Motor Drive Installation

Applied Scientiﬁc Instrumentation - https://asiimaging.com/docs/

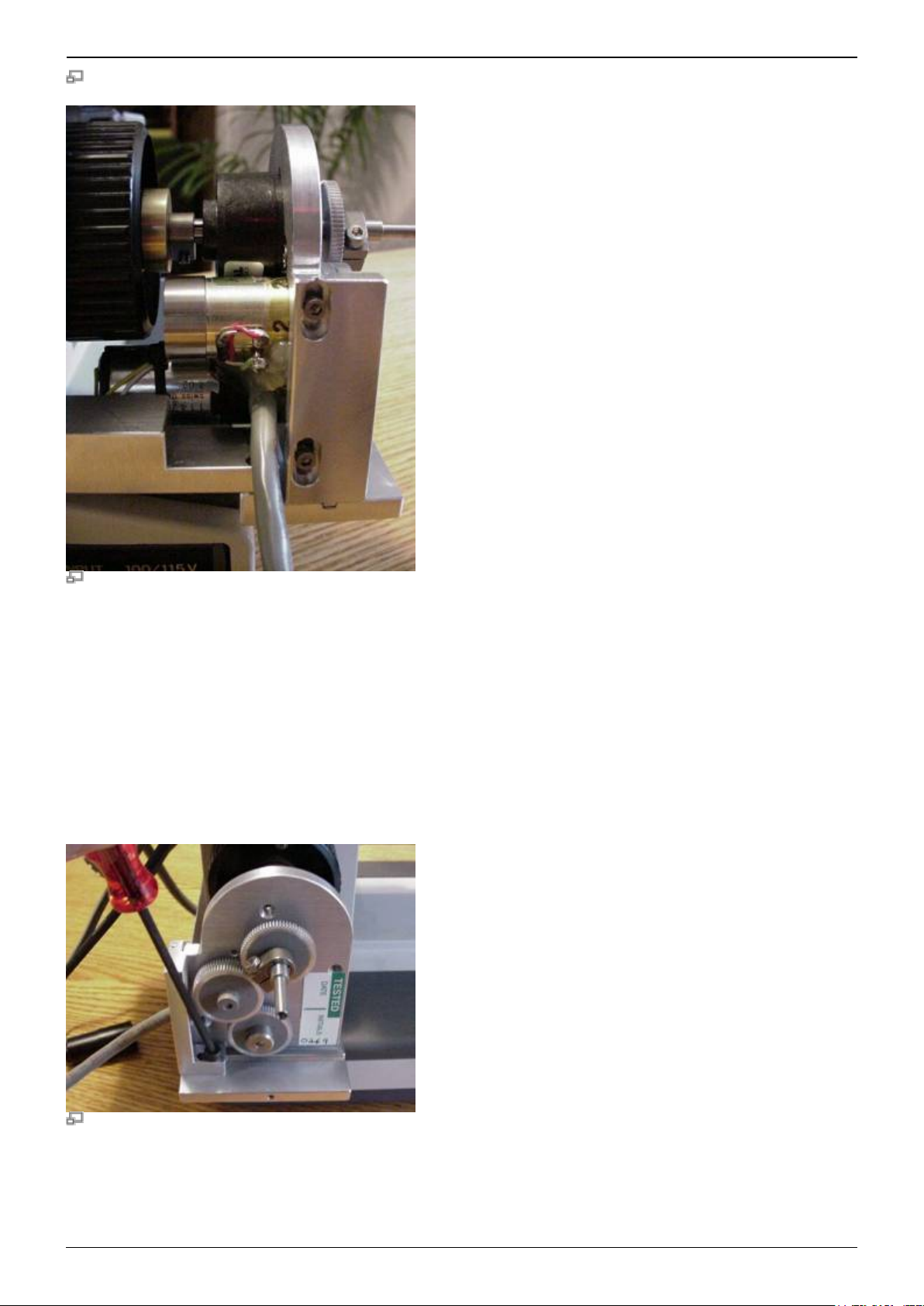

Slide ASI drive over ﬁne focus shaft

Press clamp & clutch plate ﬁrmly against microscope

Last update: 2021/09/23 17:15 oly_bh2_zdrive_installation https://asiimaging.com/docs/oly_bh2_zdrive_installation

https://asiimaging.com/docs/ Printed on 2021/10/12 04:32

Securely Tighten Clamp

Clutch & Drive Securely Tightened

Aligning the drive

After installing & securing the drive and brass clutch plate to the focus shaft of the microscope the

back plate can be positioned and secured. Position the back plate to a point midway along the slots

for the two vertical adjustment screws and secure it in place by tightening the set screw to depress

2021/10/12 04:32 7/9 Olympus BH-2 Microscope Motor Drive Installation

Applied Scientiﬁc Instrumentation - https://asiimaging.com/docs/

the clamp on side of the microscope.

Position back plate so that vertical adjustment screws are midway in slots

Use the 5/64” Allen Wrench to tighten the Base plate clamp at a point where the vertical adjustment

screws are midway in the slots

After securing the back plate check for proper drive alignment be rotating the right ﬁne focus knob.

The drive is usually self aligning and when properly aligned no drag is felt, other then that caused by

the gears, while rotating the ﬁne focus knob. When the dive is in a position of proper alignment use

the 5/32 Allen wrench to tighten the horizontal, and vertical adjustment screws at the position where

minimum drag is felt.

Recheck for minimum drag on the ﬁne focus shaft by turning the right ﬁne focus knob. If there is any

drag felt at any particular point while rotating the right ﬁne focus knob repeat the alignment

procedure by loosening the horizontal, and vertical adjustment screws and repositioning the drive.

The drive is usually self aligning , and if realignment is necessary loosen the horizontal, and z vertical

adjustment screws and move the drive so that is slides into its natural position and then tighten the

Last update: 2021/09/23 17:15 oly_bh2_zdrive_installation https://asiimaging.com/docs/oly_bh2_zdrive_installation

https://asiimaging.com/docs/ Printed on 2021/10/12 04:32

two adjustment screws with the 5/32 allen wrench.

Step 6 - Installing the cover & left ﬁne focus knob

Remove the two screws from the edges of the drive assembly. Locate the ASI cover plate. Place it in

position over the motor drive assembly and secure it with the screws just removed. Place the left ﬁne

focus knob over the protruding end of the drive shaft and secure it in place with the original screw

using the 2.5 mm allen wrench. Install the 20mm black disk that covers the ﬁne focus knob

attachment screw. This 20mm black disk was removed in step #1.

Connecting the motor drive to the controller and computer

Please refer to the wiring drawings and diagrams given in the manual

Tools Needed: Small slotted screw driver.

1) Locate the drive cable. Connect one end of the drive cable to the pigtail extending from the motor

drive near the microscope and the other end to mating connector on the back of the Microscope

Focus Controller, or MS-2000 unit labeled “Drive”. Secure the cable to the drive by tightening the

screws at each end of the connector.

2) Locate the computer interconnect cable. Connect one end to the mating connector on the back of

the controller labeled “Serial In”. Connect the other end to the appropriate serial output connector on

your computer. .

3) Plug in the power cord / power supply

This completes the steps necessary to interconnect the ASI motor drive, focus controller and

computer. Please refer to the operation section of this manual before using the unit

zdrive, olympus, bh-2

2021/10/12 04:32 9/9 Olympus BH-2 Microscope Motor Drive Installation

Applied Scientiﬁc Instrumentation - https://asiimaging.com/docs/

From:

https://asiimaging.com/docs/ - Applied Scientiﬁc Instrumentation

Permanent link:

https://asiimaging.com/docs/oly_bh2_zdrive_installation

Last update: 2021/09/23 17:15
