MC2000 Moisture Analyzer Series EN-1

1. INTRODUCTION

1.1 Safety Precautions

For safe and dependable operation of this moisture Analyzer,

please comply with the following safety precautions:

Use the Analyzer exclusively for determination of

moisture in samples. Improper operation of the Analyzer

can endanger personnel and cause property damage.

If the Analyzer is used in a manner not specified in this

manual, the protection provided may be impaired.

Do not operate the Analyzer in hazardous, wet or

unstable environments.

Do not make any modifications to the Analyzer.

Please remove the batteries if the Analyzer will not be

used for extended periods.

Service should be performed only by authorized

personnel.

Please note that changes or modifications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

2. INSTALLATION

2.1 Package Contents

Moisture Analyzer

Container

200g weight

Instruction Manual

Cover

Brush

4 AA Batteries

USB cable

Bag

2.2 Selecting the Location

Operate the analyzer on a firm, level surface.

Avoid locations with rapid temperature changes, excessive humidity

and vibrations.

EN-2 MC2000 Moisture Analyzer Series

2.3 Installation

a. Remove the battery cover.

b. Install the 4 batteries according to the “+/-”symbol on the battery cover.

c. Before measurement, please perform a weight calibration first. Please

see section 4.1 for details.

3. OPERATION

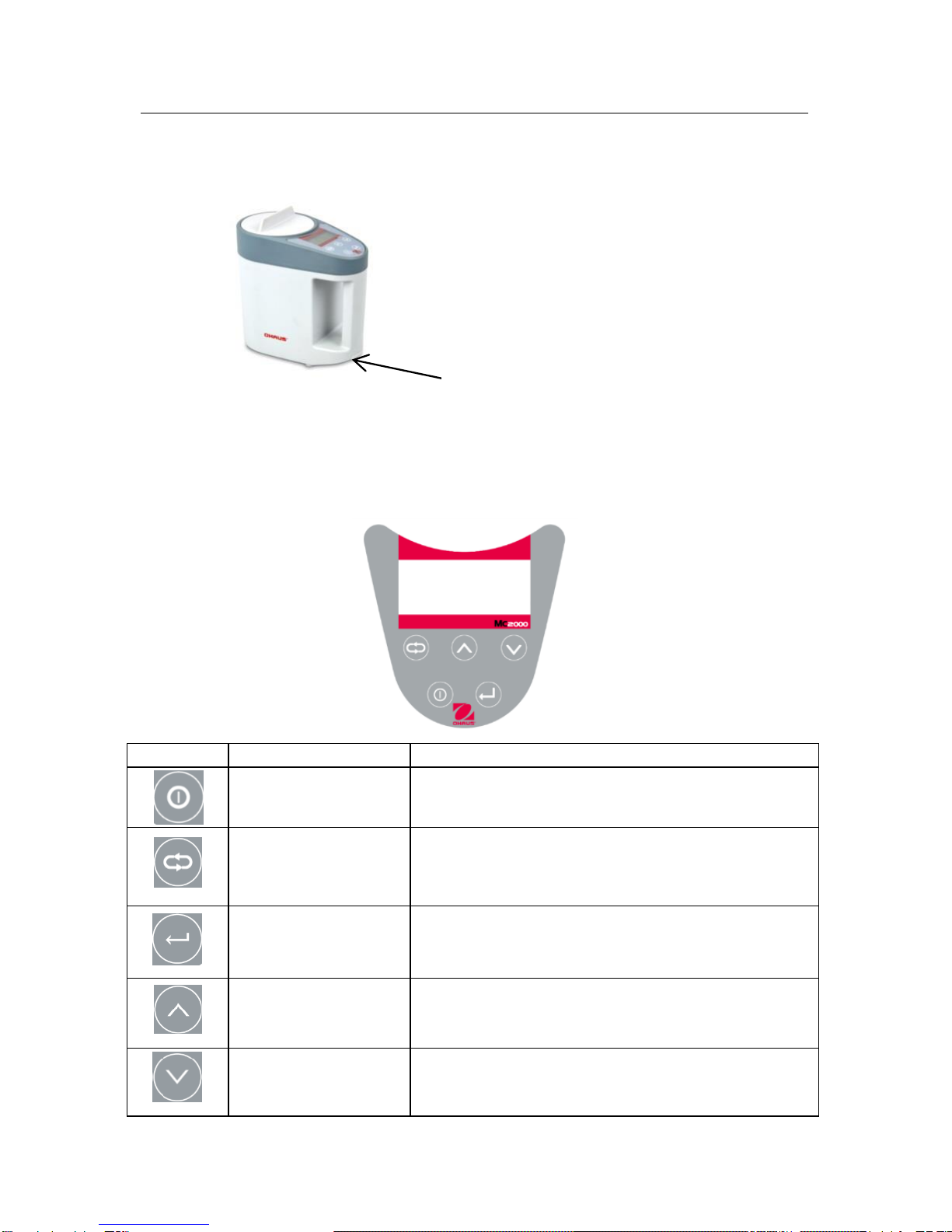

3.1 Controls

Button:

Name:

Functions:

Start / Stop

On (short press)

Off (long press)

Category / Setup

Factory Reset

Load category / Measurement (short press)

Category Setup (long press)

Factory Reset (long press)

Enter / Adjust

Enter / Accept / Mean value (short press)

Adjust (long press)

Up / Weight /

Calibration

Increase / Weight (short press)

Weight Calibration (long press)

Density (short press)

Down

Decrease / Temperature (short press)

Battery Cover

MC2000 Moisture Analyzer Series EN-3

3.2 Display

Category Code

Percent Moisture

Compensate

Density

Mean Value

Calibration

Category Setup

Temperature

Weight

EN-4 MC2000 Moisture Analyzer Series

3.3 Operation Modes

3.3.1 How to Perform a Test

1. Press button and the instrument starts self-check.

2. Press and buttons to choose the category code of the respective

sample to be measured (refer to section 8, category code list, for details),

press button to enter measurement mode.

3. Fill the sample grain into the empty container.

4. Remove the funnel from container.

5. Remove excess grain with cover.

6. Place the container over the moisture analyzer and press the release

button on the container.

7. Without pressing any key, the analyzer will automatically start the

measurement and the moisture value will be displayed after about 5

seconds.

Fill the sample grain

(use full container)

Remove the funnel

Place the container

over the analyzer

Press the release button

Show results automatically

Remove excess grain

with cover

MC2000 Moisture Analyzer Series EN-5

1. Please remove any dirt, sand or metal impurities from the

sample before starting the test.

2. In order to get accurate results, please ensure that the sample

and instrument are at the same temperature level.

3. In order to get accurate results, for large particle size sample

(for example corn), please test several times and get the

mean value.

4. In order to get accurate results, please clean the container

after each test. Especially for high moisture level

samples.

5. In order to get accurate results, please fill the whole container

with sample.

3.3.2 Standby Mode

When the instrument is installed batteries and the display is off, the device is

in Standby mode.

Start (Short press) Turns on the display, self-check and enters

category mode. The category code is showed on the display

“C##”.

Stop (Long press) Re-enters standby mode. (off)

3.3.3 Category Mode

Category (Short press) Changes modes to load category, show “C##”

on display.

Up (Short press) Select the category code.

Down (Short press) Select the category code.

Category (Short press) Load category parameter and exit to

measurement mode.

3.3.4 Measurement Mode

Category (Short press) Changes modes to measurement, show

“0.0%”on display.

Up (Short press) Shows sample weight value (after moisture

measurement)

Up (Press twice) Shows the density of sample (after moisture

measurement)

Down (Short press) Shows the temperature value of sample (after

moisture measurement)

Enter (Short press) Shows mean moisture value and delete the

previous measurement result (after at least two

measurements)

EN-6 MC2000 Moisture Analyzer Series

3.3.5 Adjust Mode

Adjust (Long press) Enters adjust mode.

Up (Short press) Increase adjust value.

Down (Short press) Decrease adjust value.

Category (Short press) Save and enter measurement mode.

Enter (Short press) Save and enter measurement mode.

4. ADJUST

4.1 Weight Calibration

Before using the analyzer for the first time, we recommend to calibrate it.

1. Put the instrument on a level surface, remove top cover and empty the

instrument.

2. Press button, changes mode to measurement

3. Long press button until “0.0”is flashing.

4. Place a 200g calibration mass on the sensor (top of red cone).

5. Remove the mass when “200”is shown on the display.

6. Press button to exit.

4.2 Adjustment

Because of different surroundings and weather, the results will have metrical

discrepancy. The adjustment function will help to reduce the deviation.

1. Long press button to enter the adjust mode. The display will show

current moisture value. When the moisture value disappears, release

button. The display will show current adjust value, for example “0.0”.

2. Press and buttons to increase or decrease the adjust value.

3. Press or button to save the value and exit to the measurement

mode.

This function is designed only to adjust the metrical discrepancy

caused by surroundings and weather. Any improper adjustment

should be avoided.

MC2000 Moisture Analyzer Series EN-7

4.3 Category Setup

Create a new grain in category. Prepare the samples of this new category with

3 or 4 different moisture content levels (for example, prepare 15%, 20% and

25% moisture levels of a new grain.)

Note: Check the Moisture level of the sample with a Moisture Balance (e.g.

MB45) and then compare the result with the MC2000. Adjust any differences

of the result.

1. Press button, enter category mode.

2. Press or button to select desired category code to setup.

3. Long press button until display shows “-1-”, the instrument is in the

setup mode.

4. Fill the sample with lowest moisture content level (for example: 15%) in

the container. Press "release" button on the container and the result will

be displayed. If the result is different from 15%, press and

buttons to adjust the moisture result to 15%. Press button to save

the result and the instrument will show “-2-”.

5. Pour out the sample and the display will show the category code.

6. Fill the sample with middle level of moisture content (for example: 20%)

in the container. Press "release" button on the container and the result

will be displayed. If the result is different from 20% press and

buttons to adjust the moisture result to 20%. Press button to save

the result and the instrument will show “-3-”.

7. Pour out the sample and the display will show the category code.

8. Fill the sample with highest level of moisture content (for example: 25%)

in the container. Press "release" button on the container and the result

will be displayed. If the result is different from 25% press and

buttons to adjust the moisture result to 25%. Press the "Enter" button to

save the result, press button to exit setup mode. Or fill another

sample to setup "-4-" point.

9. Determiner the moisture level of these samples to verify this new

category.

EN-8 MC2000 Moisture Analyzer Series

1. Please check points 3-8 in section 3.3.1 for detailed

information about the measurement process.

2. The test order to build up a new category is from low

moisture level standard sample to high level (for example

test 15% level sample first, then 20% and then 25%...).

3. We recommend the difference of moisture level between

each standard sample to be around 5%. And the whole

moisture range of these standard samples should be within

the real object range (for example 15%, 20% and 25%).

5. FACTORY RESET

1. Enter category mode.

2. Long press button, till display shows “-1-”and “C##”.

This function will delete all the adjustments and new categories

created by user.

6. MAINTENANCE

1. After each test, clean the container with a brush.

2. Please remove the batteries from analyzer in case of transit or storage.

7. GRAINMATE SOFTWARE

1. By using GrainMate PC application software tool, the grain category

contents in MC2000 can be downloaded to PC and then transferred to

another unit by connecting the PC and MC2000 with USB cable.

2. The GrainMate Software and instruction manual can be found here:

www.ohaus.com->SUPPORT->Software and Drivers.

8. SPECIFICATIONS

Model

MC2000

Moisture range (%)

3% - 45%

Readability (%)

0.1%

Repeatability (%)

0.2%

Sample volume

220 ml

Temperature range

0℃-50℃

Display results

% Moisture, Weight, Density, Statistics

Power

4 AA Battery

Capacity of Category

Autres manuels pour MC2000

Table des matières

Langues :

Autres manuels OHAUS Instrument de mesure

OHAUS

OHAUS MC2000 Manuel utilisateur

OHAUS

OHAUS MB45 Manuel utilisateur

OHAUS

OHAUS CKW Manuel d'utilisation et d'entretien

OHAUS

OHAUS i-DT33P Manuel utilisateur

OHAUS

OHAUS starter 3100 Manuel utilisateur

OHAUS

OHAUS TD52 Manuel utilisateur

OHAUS

OHAUS D52 Manuel utilisateur

OHAUS

OHAUS a-AB33M1 Manuel utilisateur

OHAUS

OHAUS MB35 Manuel utilisateur

OHAUS

OHAUS ST20C-A Manuel utilisateur

OHAUS

OHAUS Defender 3000 Manuel utilisateur

OHAUS

OHAUS ST300D-B Manuel utilisateur

OHAUS

OHAUS ST Series Manuel utilisateur

OHAUS

OHAUS Defender 5000 TD52XW Manuel utilisateur

OHAUS

OHAUS i-DT33P Manuel utilisateur

OHAUS

OHAUS STARTER 2100 Manuel utilisateur

OHAUS

OHAUS ST300-G Manuel utilisateur

OHAUS

OHAUS Defender 2000 Series Manuel utilisateur

OHAUS

OHAUS ST20M Series Manuel utilisateur

OHAUS

OHAUS MB90 Manuel utilisateur

OHAUS

OHAUS Ranger 3000 Series Manuel utilisateur

OHAUS

OHAUS ST Series Manuel utilisateur

OHAUS

OHAUS MC2000 Manuel utilisateur

OHAUS

OHAUS 7000 Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
