OHAUS TD52 Manuel utilisateur

TD52 Indicator

USB Host Option

(For Wireless Communication Option)

Instruction Manual

Interfaz de host USB

(Para conexiones inalá mbricas)

Manual de instrucciones

Interface hô te USB

(Pour connexion sans fil)

Manuel d’instruction

USB Host-Schnittstelle

(fü r drahtlose Verbindung)

Bedienungsanleitung

Interfaccia Host USB

(Per collegamento wireless)

Manuale di Istruzioni

Opcjonalny Port USB Host

(Umożliwia podłączenie dongla WiFi, pamięci USB, skanera kodów kreskowych)

Instrukcja Obsługi

USB ホストインターフェイス

取扱説明書

USB Host Option

(For Wireless Communication Option)

사용 설명서

USB 主设备选件

（用于无线连接）

使用说明书

EN-1

INTRODUCTION

This Interface Kit is for use with Ohaus TD52 products.

KIT CONTENTS

INTERFACE INSTALLATION

For TD52P version

1. Separate the indicator from the base by loosening load cell cable male connector.

Remove the Interface option cover.

Load cell cable male connector

Interface option cover

EN-2

2. Break off the rib of the interface option cover as shown.

3. Connect the 9 pin USB Host Board Cable to the main board connector.

4. Install the USB Host Board. Secure it with the 2 screws.

Cable

Main board

connector

Rib

Boss Post 2, 4

EN-3

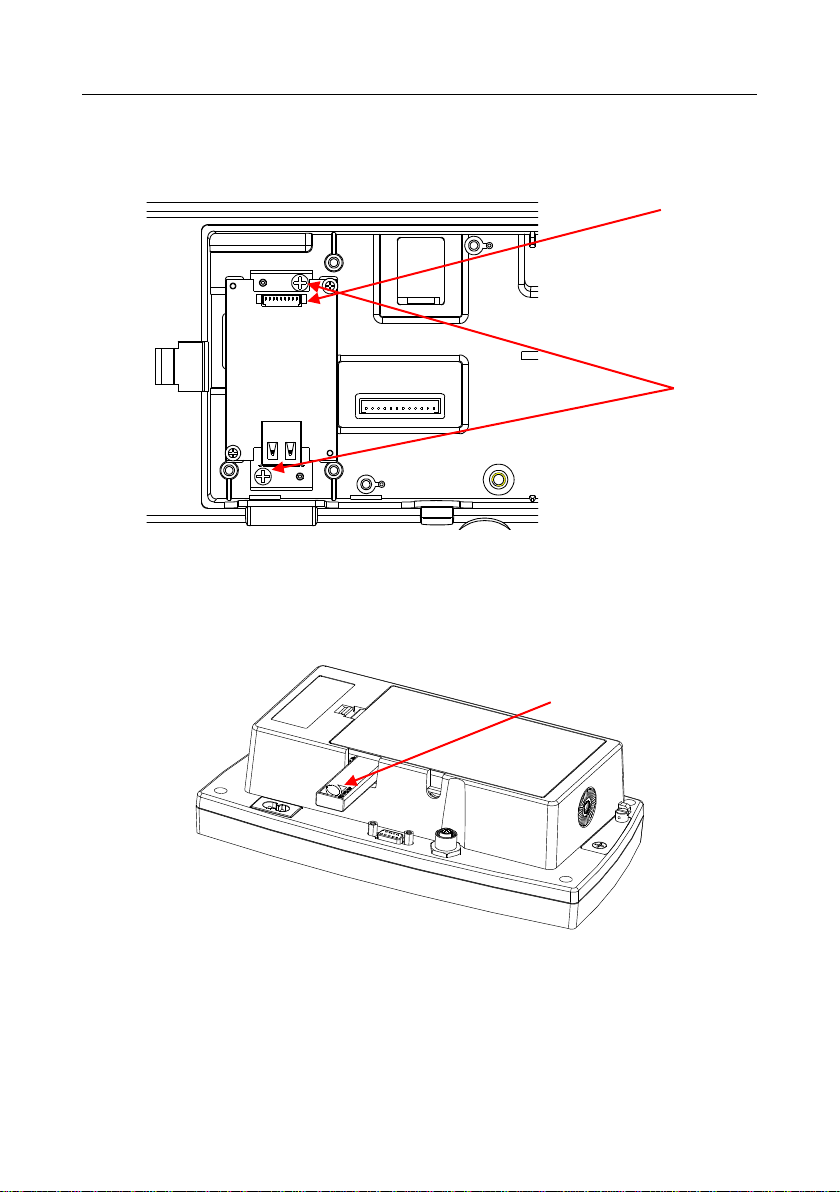

5. Connect the USB Host Cable to the 9 Pin connector on the option board.

6. Plug the USB Flash Drive, the Barcode Scanner or the RFID device in and put the interface

optional cover back to the indicator. To use the USB Flash Drive, we recommend to use

the USB storage capacity less than or equal to 32G and the size of the drive within 60mm x

22mm x 12mm.

Bolts

9 Pin

connector

USB Flash Disk,

Barcode Scanner or

RFID

or RFID

EN-4

For TD52XW version:

1. Remove the 6 sealing screws to open the rear housing. Remove the M25 hole plug as

shown.

2. Rotate the rear housing down away from the front housing as shown.

Bolts

M25 hole plug

Load cell cable male

connector

EN-5

3. Connect 9 pin USB Host Board Cable to the main board connector.

4. Install the USB Host Board. Secure it with 2 screws. (Note: Boss Post is 2 and 4.)

Cable

Main board connector

Boss Post 2, 4

EN-6

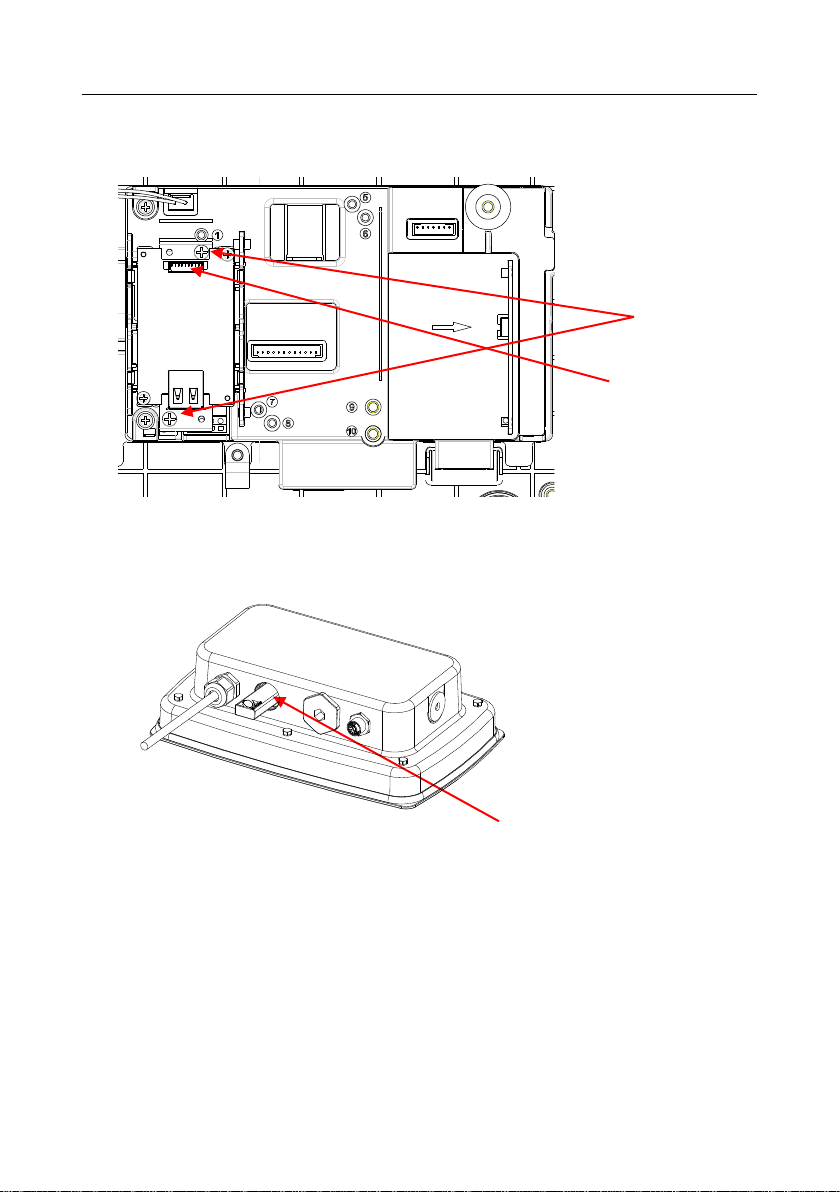

5. Connect the USB Host Cable to the 9 Pin connector on the option board.

6. Put the rear housing back to the front housing. Fasten 6 screws bolts (Torque is

1.8N*m± 0.5). If you insert a USB flash drive, plug in the USB Flash Drive, through M25

hole.

Screw

9 Pin connector

USB Flash Drive

EN-7

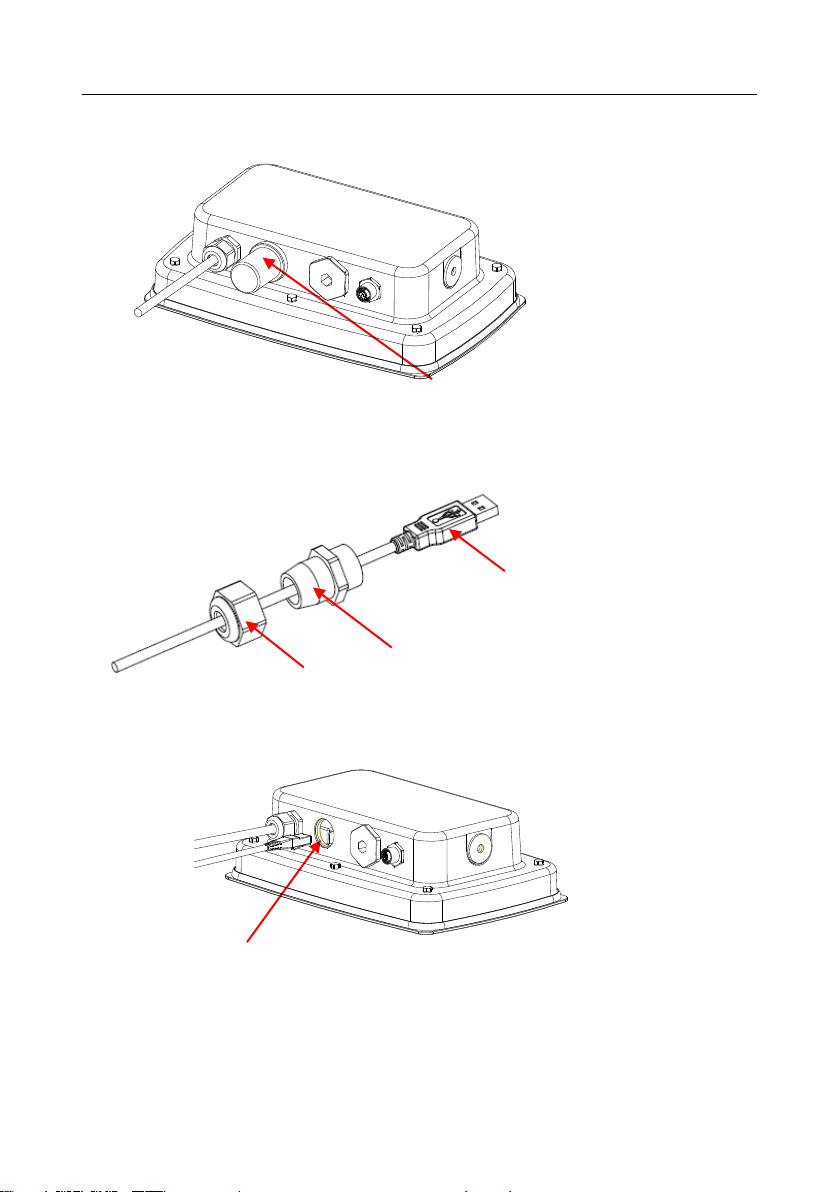

7. Fasten the USB Device Cover if you are using a USB Flash Drive

8. If you insert a Barcode Scanner or RFID cable, disassemble the cable gland by loosening the

cap nut and removing the rubber seal. Pass the cable through the cap nut; then spread the

rubber seal and place it over the cable. Now pass the cable through the body of the cable gland.

9. Put the rear housing back tn the front housing. Install the 6 sealing screws (Torque is

1.8N*m± 0.5). Insert the above cable through the housing and connect it to the board.

USB Peripheral Cover

Barcode Scanner cable

or RFID cable

M25 Cable gland

Cap nut

M25 Hole

EN-8

10. Install the body of the cable gland into the rear housing. Tighten the cable gland.

11. Push the rubber seal into the body of the cable gland.

12. Fasten the Cover of M25 Gland.

Cable gland

Rubber seal

The Cover of M25 Gland
