NordicTrack NTL29008.0 Manuel utilisateur

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal

Model No. NTL29008.0

Serial No.

Write the serial number in the space

above for reference.

www.nordictrack.com

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT CON-

TACT THE STORE; please contact

Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-825-2588

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.nordictrackservice.com

USER'S MANUAL

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS .................................................................3

BEFOREYOUBEGIN .......................................................................5

ASSEMBLY ...............................................................................6

OWTOUSET EC ESTPULSESENSOR ...................................................12

OPERATIONANDADJUSTMENT ............................................................13

OWTOMOVET ETREADMILL ............................................................25

TROUBLES OOTING ......................................................................26

EXERCISEGUIDELINES ...................................................................28

PARTLIST ...............................................................................30

EXPLODEDDRAWING ......................................................................32

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY...............................................................BackCover

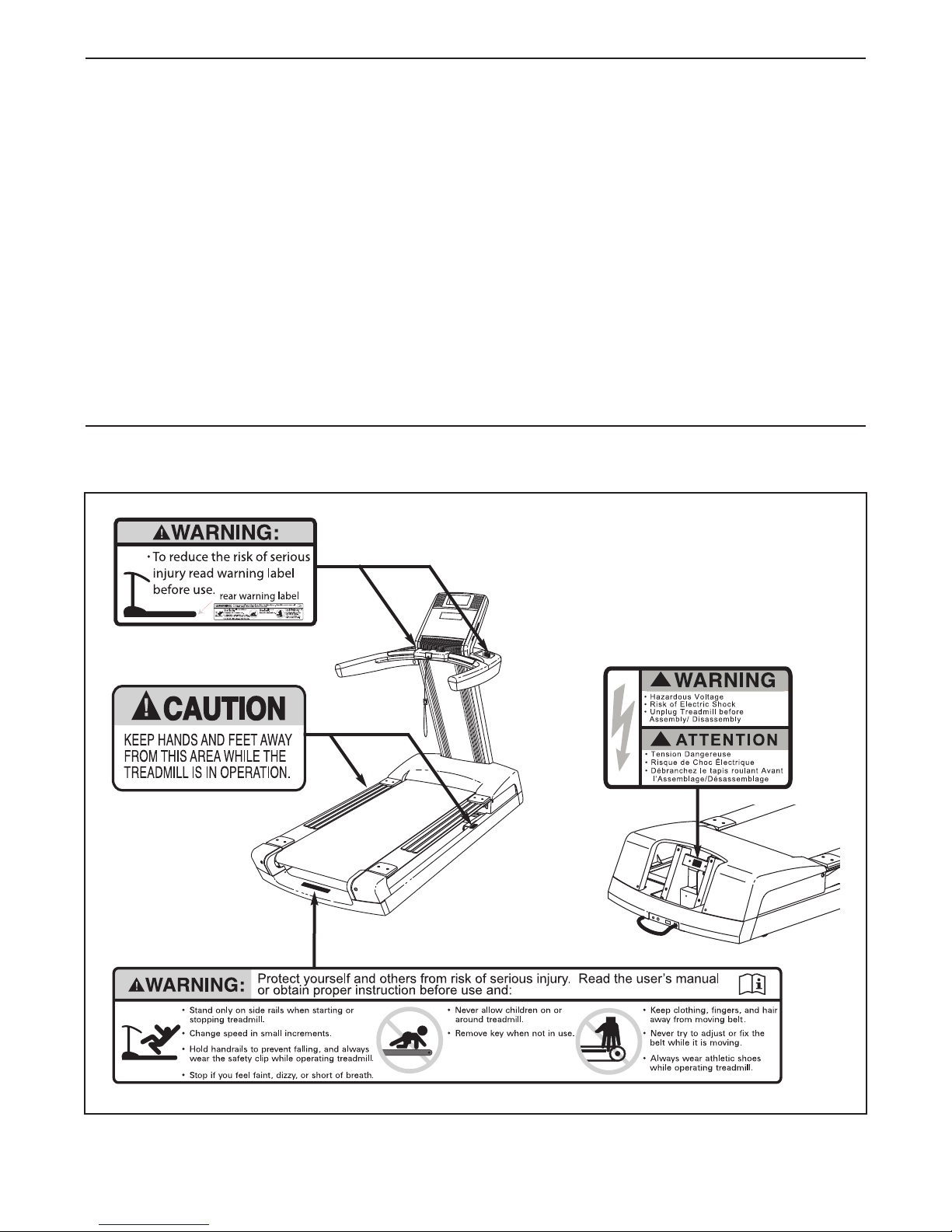

These drawings show the locations of the

warning decals. If a decal is missing or il-

legible, call the telephone number on the

front cover of this manual and request a

free replacement decal. Apply the decal

in the location shown. Note: The decals

may not be shown at actual size.

WARNING DECAL PLACEMENT

NordicTrack is a registered trademark of ICON IP, Inc.

1. Before beginning this or any exercise pro-

gram, consult your physician. This is espe-

cially important for persons over age 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Place the treadmill on a level surface, with at

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open-

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by per-

sons weighing 350 lbs. (159 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

11. When connecting the power cord (see page

13), plug the power cord into a surge suppres-

sor (not included) and plug the surge sup-

pressor into a grounded circuit capable of

carrying 15 or more amps. No other appliance

should be on the same circuit. Do not use an

extension cord.

12. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 13. To purchase a surge suppressor,

see your local NordicTrack dealer or call the

telephone number on the front cover of this

manual and order part number 146148, or see

your local electronics store.

13. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may slow,

accelerate, or stop unexpectedly, which may

result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

TROUBLESHOOTING on page 26 if the tread-

mill is not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 15).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

WARNING: To reduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

IMPORTANT PRECAUTIONS

18. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

19. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

20. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and switch the reset/off cir-

cuit breaker to the “off” position when the

treadmill is not in use. (See the drawing on

page 5 for the location of the reset/off circuit

breaker.)

21. Do not attempt to move the treadmill until it is

properly assembled. (See ASSEMBLY on page

6, and HOW TO MOVE THE TREADMILL on

page 25.) You must be able to safely lift 45 lbs.

(20 kg) to move the treadmill.

22. Do not change the incline of the treadmill by

placing objects under the treadmill.

23. Inspect and properly tighten all parts of the

treadmill regularly.

24. Never insert or drop any object into any

opening on the treadmill.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

26. The treadmill is intended for in-home use

only. Do not use the treadmill in any commer-

cial, rental, or institutional setting.

27. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

Thank you for selecting the revolutionary NordicTrack®

CLUB CR treadmill. The CLUB CR treadmill offers an

impressive selection of features designed to make

your workouts at home more enjoyable and effective.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please see the front cover of this man-

ual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

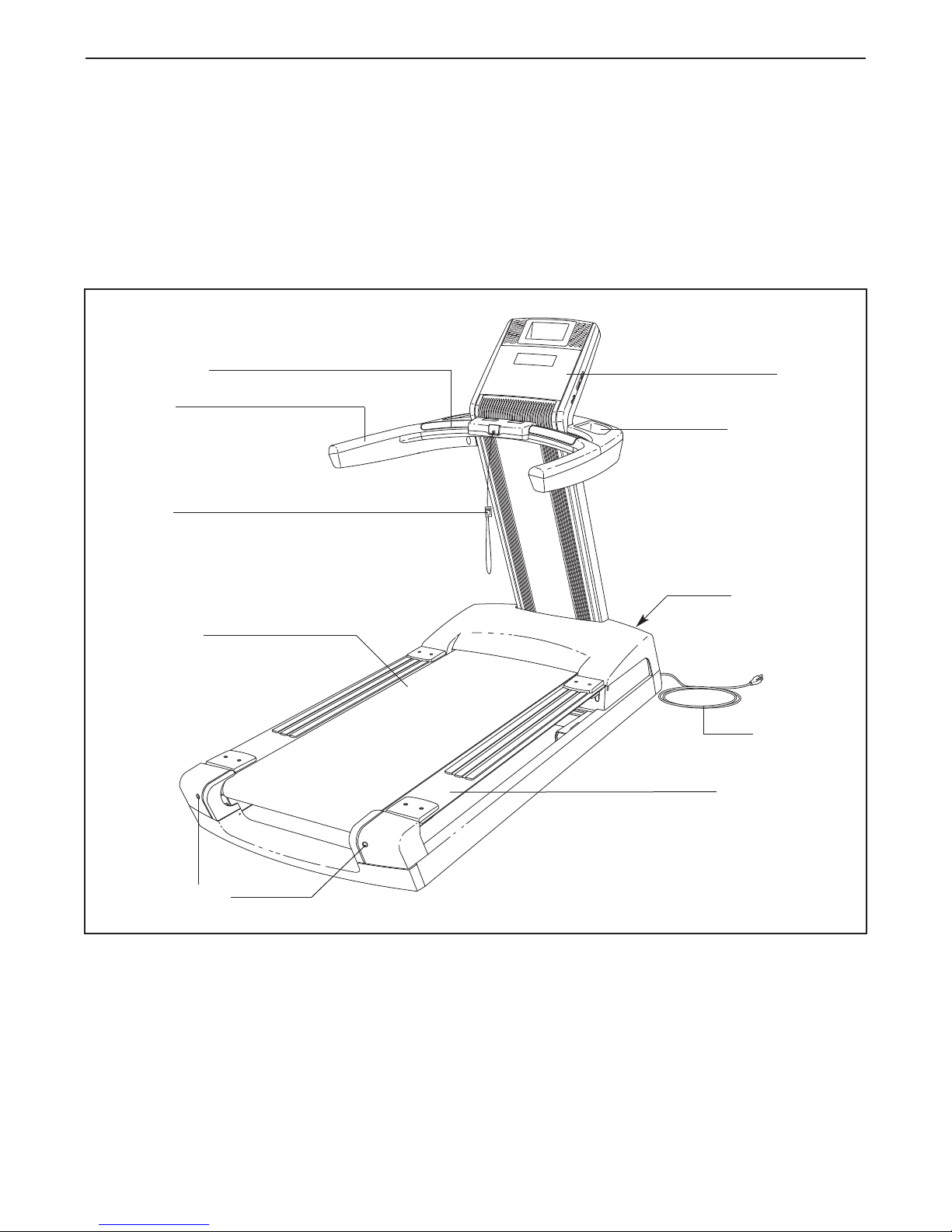

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

andrail

Console

Key/Clip

Reset/Off

Circuit Breaker

Walking Belt

Power Cord

Idler Roller

Adjustment Bolts

Pulse Sensor

Walking Platform

Accessory Tray

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of

the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-

cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex key and your own Phillips screwdriver .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached

to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-

bly. Extra hardware may be included.

3/8" Star

Washer (2)–6

#8 x 2 1/4" Machine Screw (3)–6

#8 x 1/2" Machine

Screw (4)–2

#6 x 5/8" Machine

Screw (128)–2

3/8" x 3 1/4" Patch Bolt (1)–6

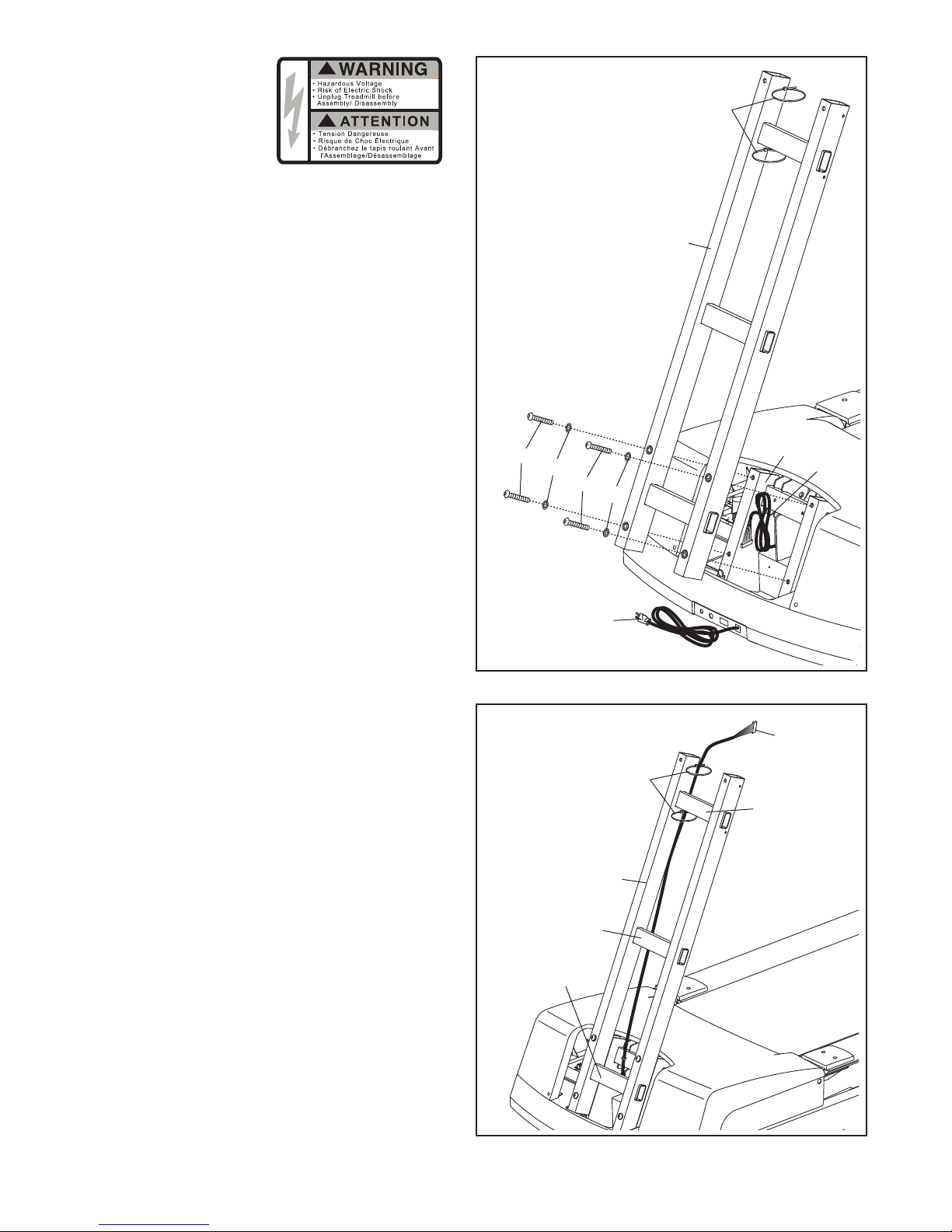

2. Insert the end of the Upright Wire (111) through

the looped plastic ties at the top of the Upright

(81). Make sure that the Upright Wire is be-

hind the crossbars on the Upright. Then, gen-

tly pull upward on the Upright Wire as you

tighten the plastic ties around the Upright Wire.

111

1. Make sure that

the Power Cord

(70) is unplugged.

Be careful not to

pinch the Power

Cord.

Slide the Upright Cover (not shown) off the

Upright (81).

Orient the Upright (81) and the plastic ties as

shown. Set the Upright on the tabs on the

Frame (53). Attach the Upright to the Frame with

four 3/8" x 3 1/4" Patch Bolts (1) and four 3/8"

Star Washers (2). Start all four Patch Bolts

before tightening any of them. Be careful not

to pinch the Upright Wire (111).

Plastic Ties

Crossbar

111

4. ave a second person hold the handrail assem-

bly near the Upright (81). Insert the Upright Wire

(111) up through the center of the handrail as-

sembly.

Slide the bracket on the handrail assembly over

the crossbar on the Upright (81) and set the

handrail assembly on the Upright. Be careful

not to pinch any wires.

andrail

Assembly

3. Slide the Upright Cover (80) down onto the

Upright (81). Be careful not to pinch the

Upright Wire (111). Be careful not to hit the

ceiling.

111

Bracket

111

Crossbar

5. ave a second person hold the Console (101)

near the handrail assembly.

Connect the Upright Wire (111) and the handrail

wires to the console wires. Make sure that the

console wire and the handrail wire that you are

connecting have connectors that are the same

size. See the lower drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and

then try again. IF THE CONNECTORS ARE

NOT CONNECTED PROPERLY, THE CON-

SOLE MAY BE DAMAGED WHEN THE

POWER IS TURNED ON.

Insert the excess wires downward into the

Upright Cover (80).

Set the Console (101) on the handrail assembly.

Be careful not to pinch any wires.

101

111

Console

Wires

111

Console

Wire

andrail

Assembly

andrail

Wires andrail

Wire

6. Align the holes in the Console (101) with the

holes in the handrail assembly and the holes in

the Upright (not shown). Attach the Console and

the handrail assembly to the Upright with two

3/8" x 3 1/4" Patch Bolts (1) and two 3/8" Star

Washers (2). Do not fully tighten the Patch

Bolts yet. Note: It may be helpful to press the

indicated bracket against the Upright (81)

and to press down on the Console to align

the holes.

6101

andrail

Assembly

Bracket

Teeth

102

8. Make sure that the teeth on the Fan Grill

(102) sit inside the grooves on the Upright

Cover (80).

See the lower drawing. Tighten the two 3/8" x

3 1/4" Patch Bolts (1).

7. Tighten two #6 x 5/8" Machine Screws (128) into

the Upright Cover (80) in the locations shown.

Be careful not to overtighten the Machine

Screws.

128

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NordicTrack tapis roulant

NordicTrack

NordicTrack NTL16915C.0 Manuel utilisateur

NordicTrack

NordicTrack Powertread 1750 Manuel utilisateur

NordicTrack

NordicTrack Ex 3300 Treadmill Manuel utilisateur

NordicTrack

NordicTrack A2350 NTL07007.1 Manuel utilisateur

NordicTrack

NordicTrack NTL29221-INT.0 Manuel utilisateur

NordicTrack

NordicTrack 17.0 Treadmill Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack T 5.3 Treadmill Manuel utilisateur

NordicTrack

NordicTrack Powertread 6.0 Manuel utilisateur

NordicTrack

NordicTrack EXP1000 NCTL09992 Manuel utilisateur

NordicTrack

NordicTrack T 23.0 Treadmill Manuel utilisateur

NordicTrack

NordicTrack 3100 R NTL15921 Manuel utilisateur

NordicTrack

NordicTrack NETL14711.0 Manuel utilisateur

NordicTrack

NordicTrack T5 Lv Treadmill Guide de configuration

NordicTrack

NordicTrack T5.5 NTL60011.1 Manuel utilisateur

NordicTrack

NordicTrack NTL10941 Manuel utilisateur

NordicTrack

NordicTrack C2270 Treadmill Manuel utilisateur

NordicTrack

NordicTrack T 7.2 Treadmill Guide de configuration

NordicTrack

NordicTrack NTTL25900 Manuel utilisateur

NordicTrack

NordicTrack NTTL18510 Manuel utilisateur

NordicTrack

NordicTrack NTL2495.2 Manuel utilisateur

NordicTrack

NordicTrack T 7.2 Treadmill Manuel utilisateur

NordicTrack

NordicTrack C2300 NTL12944 Manuel utilisateur

NordicTrack

NordicTrack 831.24990.0 Manuel utilisateur

NordicTrack

NordicTrack CTL49021 Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

Master

Master F22 Manuel utilisateur

Precor

Precor PRECISION SERIES Manuel technique

Horizon Fitness

Horizon Fitness DT680 Manuel utilisateur

Matrix

Matrix T130 XI Manuel utilisateur
