NordicTrack EXP1000 NCTL09992 Manuel utilisateur
USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual be ore using
this equipment. Save this manual
or uture re erence.
Serial Number Decal
Model No. NCTL09992
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
www.nordictrack.com
Visit our website at
If you require SER ICE for this
product, please call
SEARS:
1-800-4 MY HOME
(469-4663)
If you are MISSING PARTS or
require INFORMATION on how
to operate this product, call
1-888-936-ICON
(4266)
2
TABLE OF CONTENTS
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MO E THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the centre of this manual.
LIMITED WARRANTY
ICON OF CANADA INC., (ICON), warrants this product to be free from defects in workmanship and material,
under normal use and service conditions, for a period of one year from the date of purchase. This warranty ex-
tends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at
ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made
must be received by ICON at one of its authorized service centers with all freight and other transportation
charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This
warranty does not extend to any product or damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to
products used for commercial or rental purposes, or to products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property, loss
of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of
whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential dam-
ages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any
and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited
in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an im-
plied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to province
or so specified by the retailer of your equipment.
ICON o Canada, Inc., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
1. It is the responsibility o the owner to ensure
that all users o this treadmill are adequately
in ormed o all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level sur ace, with at
least 2 m (8 t.) o clearance behind it. Do not
place the treadmill on any sur ace that blocks
air openings. To protect the loor or carpet
rom damage, place a mat under the treadmill.
4. When choosing a location or the treadmill,
make sure that the location and position per-
mit access to a plug.
5. Keep the treadmill indoors, away rom mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under the age o 12 and pets
away rom the treadmill at all times.
8. The treadmill should not be used by persons
weighing more than 114 kgs (250 lbs).
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth-
ing that could become caught in the treadmill.
Athletic support clothes are recommended or
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

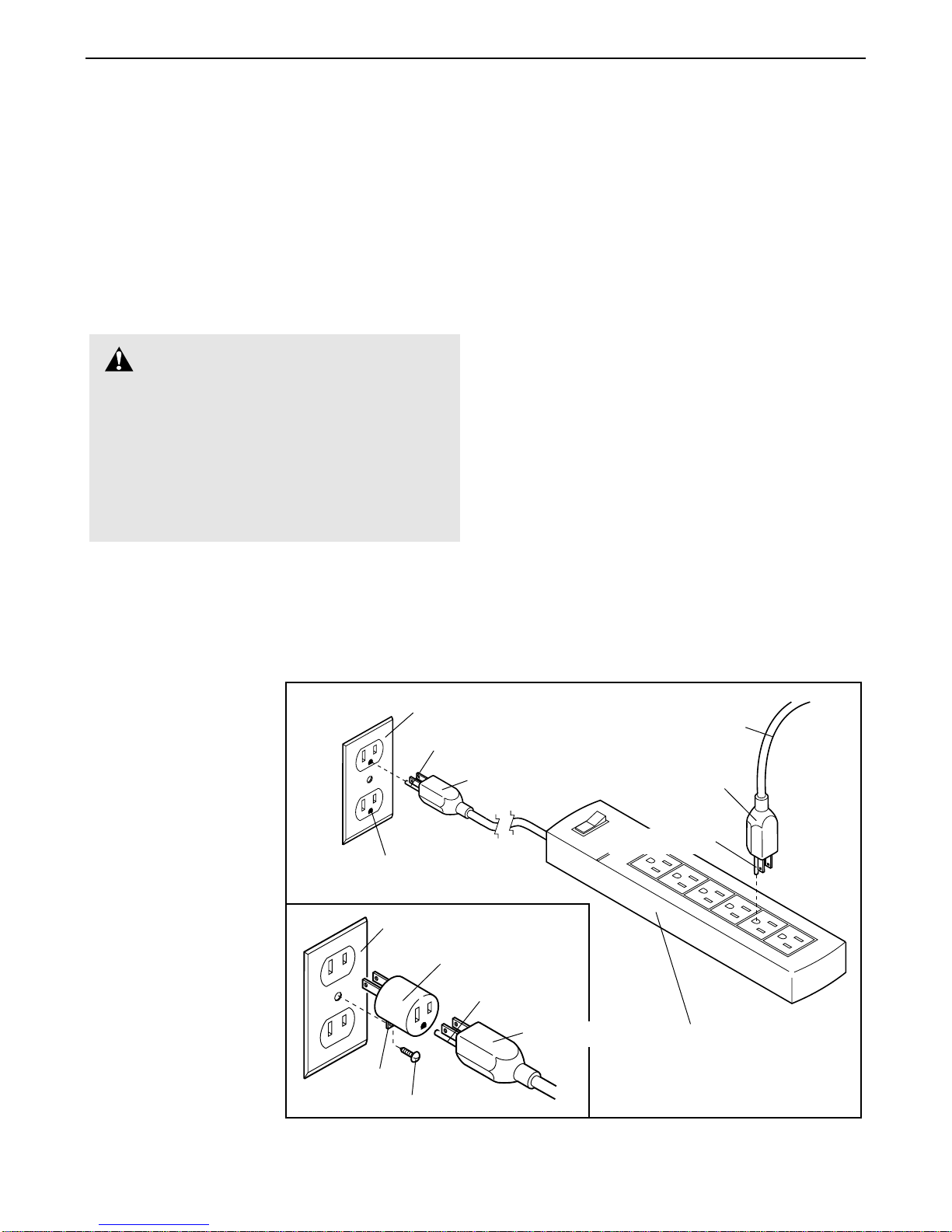

11.When connecting the power cord (see HOW
TO PLUG IN THE POWER CORD on page 8),
plug the power cord into a surge protector
(not included) and plug the surge protector
into a grounded circuit capable o carrying 15
or more amps. No other appliance should be
on the same circuit.
12. Use only a CUL-listed surge protector, rated
at 15 amps, with a 1 mm2(14-gauge) cord o
1.5 m (5 t.) or less in length. Do not use an
extension cord.
13. Keep the power cord and the surge protector
away rom heated sur aces.
14. Never move the walking belt while the power
is turned o . Do not operate the treadmill i
the power cord or plug is damaged, or i the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 i the tread-
mill is not working properly.)
15. Never start the treadmill whilst you are stand-
ing on the walking belt. Always hold the
handrails whilst using the treadmill.
16. The treadmill is capable o high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
17. The pulse sensor is not a medical device.
Various actors, including the user's move-
ment, may a ect the accuracy o heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
18. Never leave the treadmill unattended whilst it
is running. Always remove the key, unplug
the power cord and move the on/o switch to
the o position when the treadmill is not in
use. (See the drawing on page 5 or the loca-
tion o the on/o switch.)
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 22.) You
must be able to sa ely li t 20 kg (45 lbs.) in
order to raise, lower, or move the treadmill.
20. Do not change the incline o the treadmill by
placing objects under the treadmill.
WARNING:To reduce the risk o burns, ire, electric shock, or injury to persons, read the
ollowing important precautions and in ormation be ore operating the treadmill.
IMPORTANT PRECAUTIONS
3
4
21. When olding or moving the treadmill, make
sure that the storage latch is ully closed.
22. When using iFIT.com CD’s and videos, an
electronic “chirping” sound will alert you
when the speed and/or incline o the treadmill
is about to change. Always listen or the
“chirp” and be prepared or speed and/or in-
cline changes. In some instances, the speed
and/or incline may change be ore the per-
sonal trainer describes the change.
23. When using iFIT.com CD’s and videos, you
can manually override the speed and incline
settings at any time by pressing the speed
and incline buttons. However, when the next
“chirp” is heard, the speed and/or incline will
change to the next settings o the CD or video
program.
24. Always remove iFIT.com CD’s and videos
rom your CD player or VCR when you are not
using them.
25. Inspect and tighten all parts o the treadmill
regularly.
26. Never insert or drop any object into any
opening.
27. DANGER:Always unplug the power
cord immediately a ter use, be ore cleaning
the treadmill, and be ore per orming the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be per ormed by an authorized service
representative only.
28. This treadmill is intended or in-home use
only. Do not use this treadmill in any commer-
cial, rental, or institutional setting.
WARNING:Be ore beginning this or any exercise program, consult your physician. This
is especially important or persons over the age o 35 or persons with pre-existing health problems.
Read all instructions be ore using. ICON assumes no responsibility or personal injury or property
damage sustained by or through the use o this product.
SAVE THESE INSTRUCTIONS

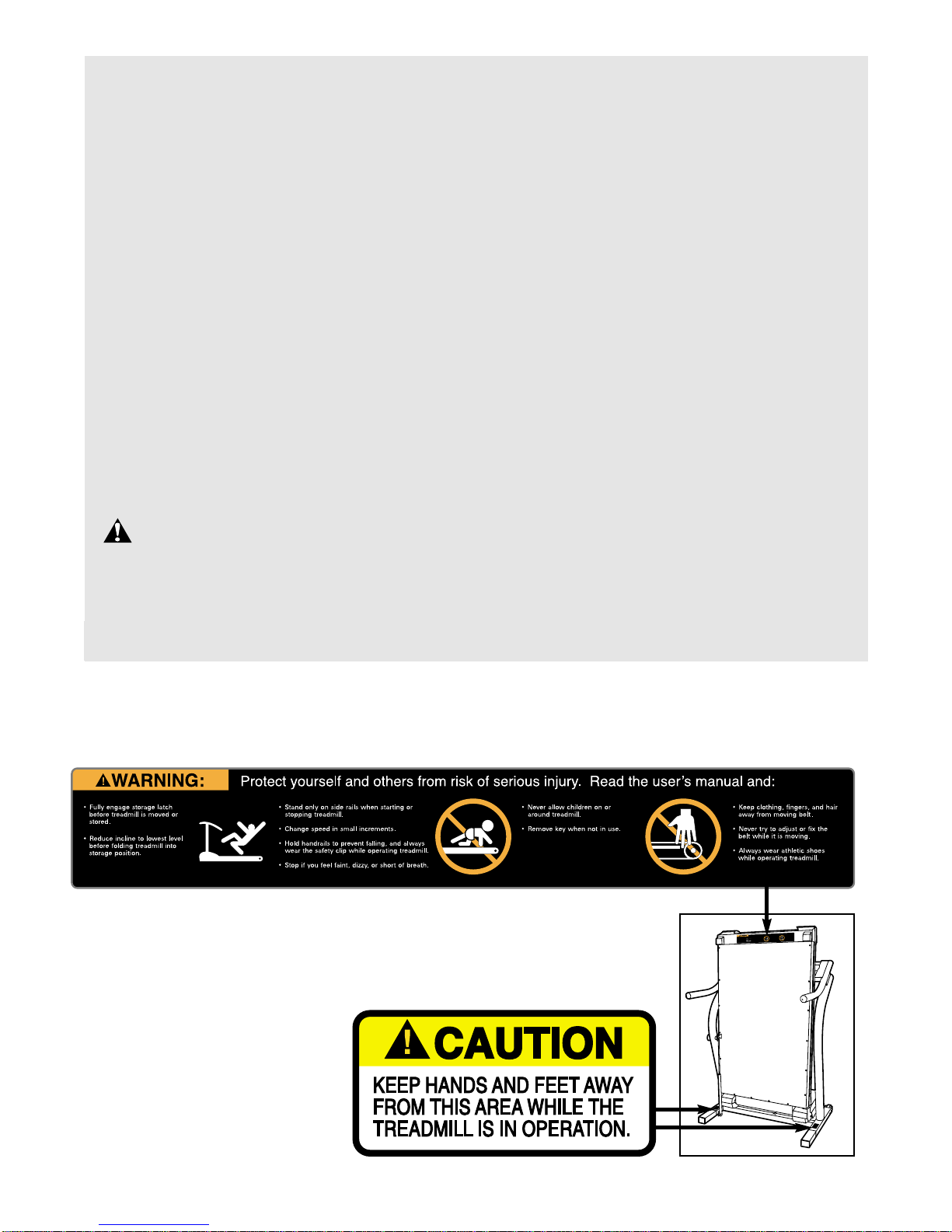

Note: This decal is shown at 38% of actual size.
The decals shown below have been placed on your treadmill. I a decal is missing, or i it is not legible,
please call 1-888-936-4266 to order a ree replacement decal (see ORDERING REPLACEMENT PARTS on the
back cover o this manual). Apply the replacement decal in the location shown.
5
Thank you for selecting the revolutionary NordicTrack®
EXP1000 treadmill. The EXP1000 treadmill combines
advanced technology with innovative design to help
you get the most from your exercise program in the
convenience of your home. And when you’re not exer-
cising, the unique EXP1000 can be folded up, requiring
less than half the floor space of other treadmills.
For your bene it, read this manual care ully be ore
using the treadmill. If you need more information, call
our Customer Service Department toll-free at 1-888-
936-4266, Monday through Friday 8h00 until 18h30
Eastern Time (excluding holidays). To help us assist
you, please note the product model number and serial
number before calling. The model number of the tread-
mill is NCTL09992. The serial number can be found on
a decal attached to the treadmill (see the front cover of
this manual for the location).

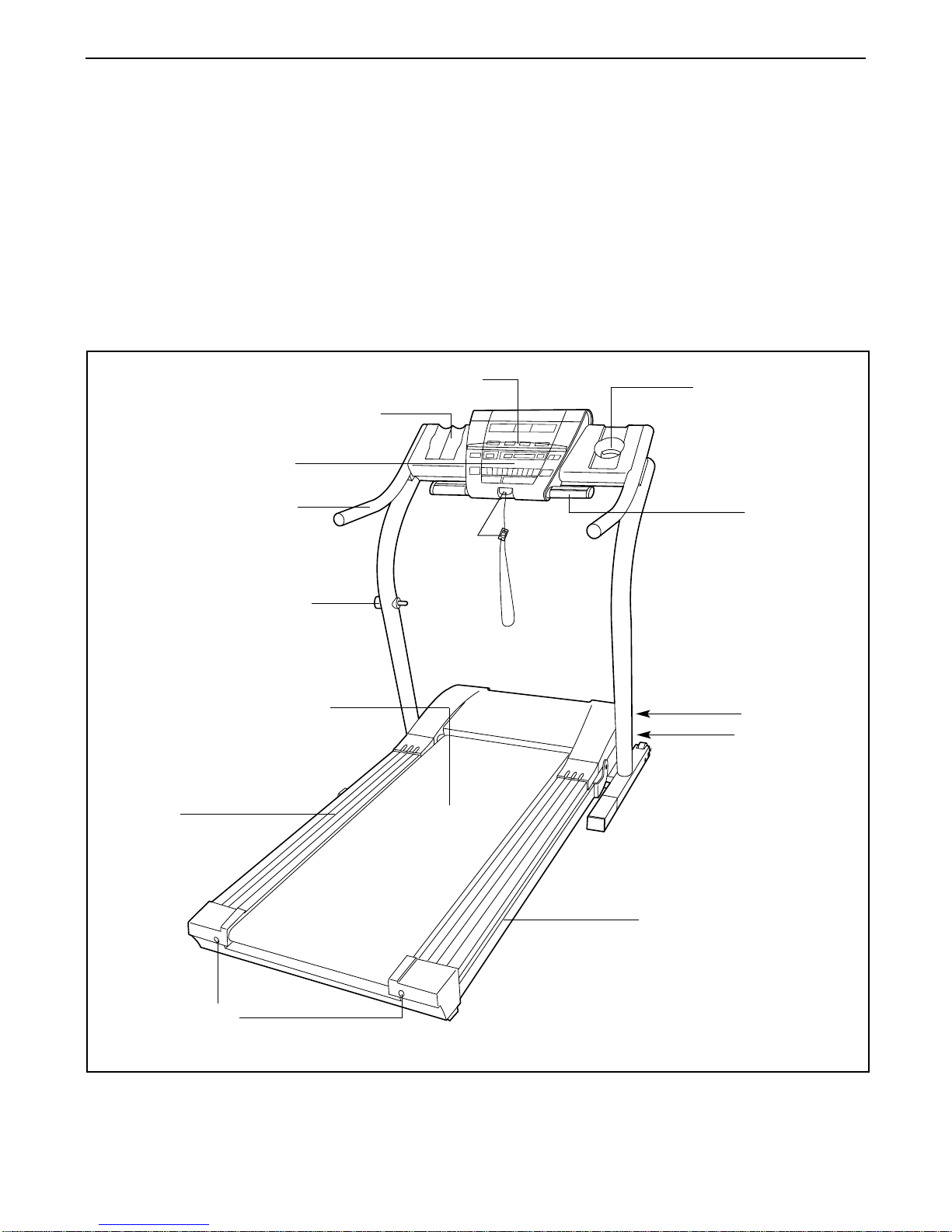

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Hand Weight Holder*
Lock Knob
Book Holder
Key/Clip
Circuit Breaker
On/Off Switch
Walking Belt
Cushioned Walking Platform
Foot Rail
Rear Roller
Adjustment Bolts
Water Bottle Holder†
Pulse Sensor
RIGHT SIDE
LEFT SIDE
*For information about optional hand
weights, see page 21.
†No water bottle is included.
6

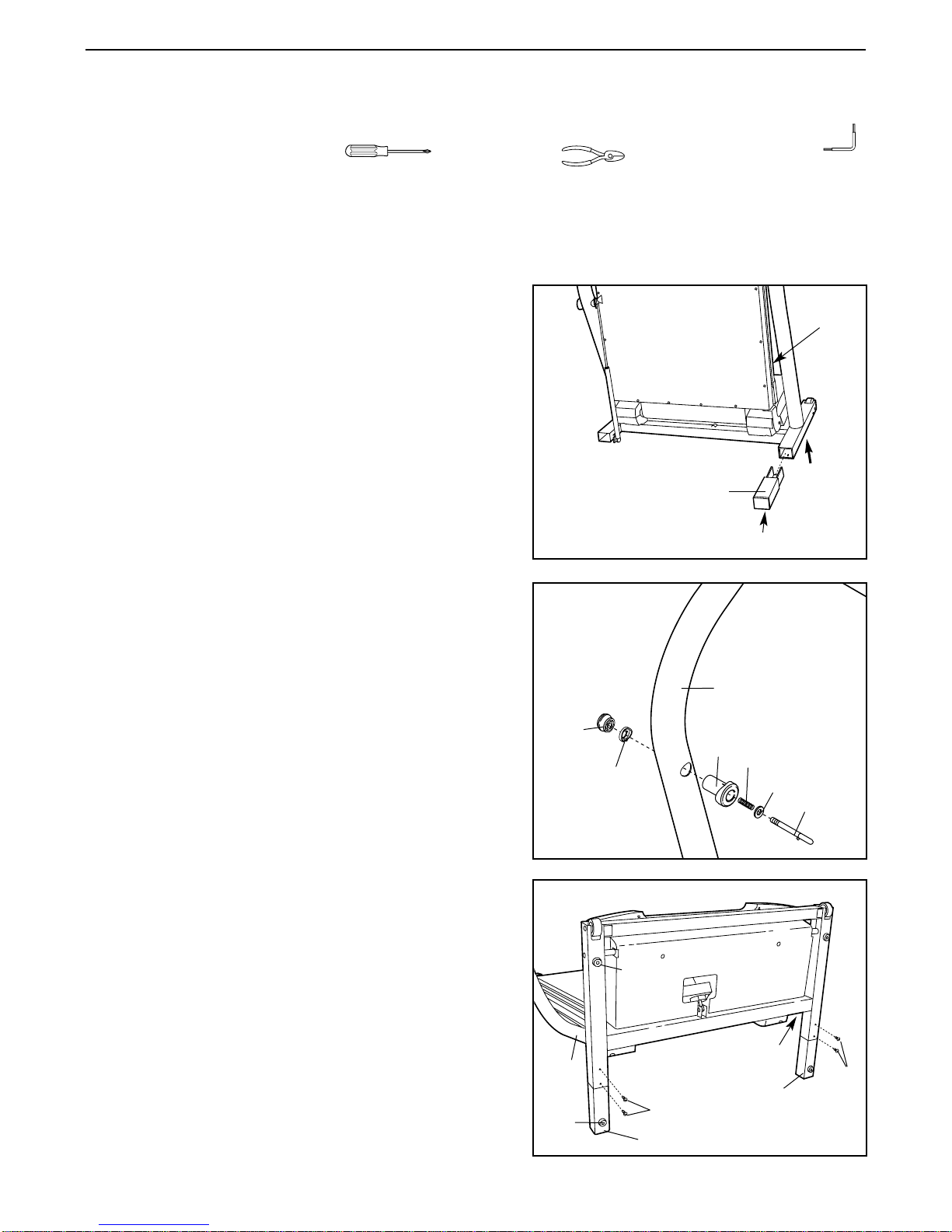

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver and wire cutters .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
treadmill to the upright position.
Whilst a second person tips the treadmill to one side
and holds it, insert one of the Extension Legs (102) into
the treadmill as shown. Make sure that the Extension
Leg is turned so the Base Pad (99) is on the bottom.
Next, tip the treadmill to the other side and insert the
other Extension Leg (not shown) in the same way. Lower
the side of the treadmill so that both Extension Legs
(102) are resting flat on the floor.
With the help of a second person, carefully lower the
treadmill frame.
1Frame
102
99
2. Press the Lock Knob Sleeve (70) into the left Upright (69).
Make sure that the Lock Pin Collar (72) and the Spring
(71) are on the Lock Pin (74). Insert the Lock Pin (74) into
the Lock Knob Sleeve (70) and the left Upright (69). Next,
press the Lock Knob Spacer (117) onto the left Upright.
Tighten the Lock Knob (68) onto the Lock Pin. 69
117
70
68
71 72 74
2
3. With the help of a second person, carefully tip the
Uprights (69) down as shown. Make sure that the
Extension Legs (102) remain in the Uprights.
Attach each Extension Leg (102) with two Screws (111)
as shown.
With the help of a second person, carefully tip the
Uprights (69) back to the vertical position.
111
102
69 69 111
102
99
99
3
7
7. Make sure that all parts are tightened be ore you use the treadmill. Note: If there is a thin sheet of clear
plastic on the hood decal, remove it. Keep the included allen wrench in a secure place. The allen wrench is
used to adjust the walking belt (see page 24). To protect the floor or carpet from damage, place a mat under
the treadmill.

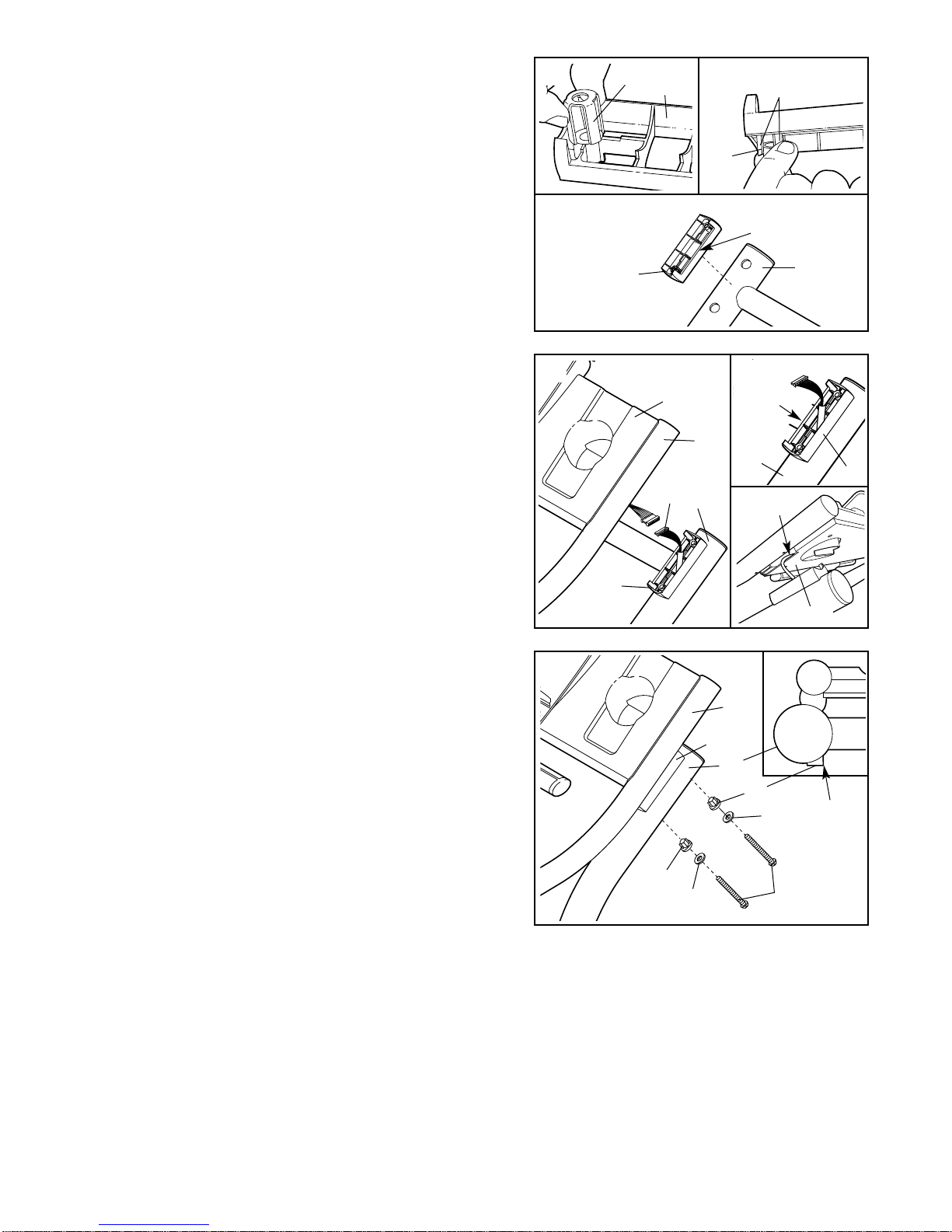

6. Insert two Handrail Bolts (78) with Handrail Washers (77)
and Handrail Bushings (75) into the right Upright (69) and
the right Handrail Spacer (65). Turn the Handrail
Bushings so they fit against the Upright with the thick
sides of the Bushings toward the center of the treadmill
as shown in the inset drawing. Lift the right Handrail (66)
to align the Bolts with the holes in the Handrail. Next,
thread the Bolts into the Handrail. Do not tighten the
Bolts yet.
Attach the left Handrail (not shown) in the same way.
Tighten all four Handrail Bolts (78).
6
78
77
75
69
66
65
75
77 Thick
Side
5. Pull the Upright Wire Harness (98) up through the other
Handrail Spacer (65). Place the Handrail Spacer on the
right Upright (69) as shown, with the cutout on the indi-
cated side (see inset drawing A).
Have a second person hold the Handrails (66) near the
Uprights (69) as shown. Connect the Upright Wire
Harness (98) to the wires extending from the Console
Base (81). Insert the connectors and the Upright Wire
Harness into the hole in the Console Base (see inset
drawing B).
Being careful not to pinch the Upright Wire Harness (98),
set the Handrails (66) on the Handrail Spacers (65).
5
98 69
66
81
65
69 65
81
98
B
4. Slide the Electronics Ground Bracket (119) onto one of
the Handrail Spacers (65) in the location shown.
See inset drawing A. Pinch the tabs on the Electronics
Ground Bracket (119) to allow the tabs to fit inside the
hole in the Upright (69, see inset drawing B).
See inset drawing B. Place the Handrail Spacer (65) on
the left Upright (69) as shown, with the cutout on the indi-
cated side. Note: Make sure that the tabs on the
Electronics Ground Bracket (119, see inset drawing A)
are inserted into the hole in the Upright.
4Tabs
A
B
69
119
119
65
65
Cutout
Cutout
A
8
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
Important: Never apply silicone spray or other sub-
stances to the walking belt or the walking plat orm.
They will deteriorate the walking belt and cause ex-
cessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
oltage surges, spikes, and noise interference can re-
sult from weather conditions or from other appliances
being turned on or off.
To decrease the pos-
sibility o your tread-
mill being damaged,
always use a surge
protector (not in-
cluded) with your
treadmill.
Surge protectors are
sold at most hardware
stores and department
stores. Use only a CUL-
listed surge protector,
rated at 15 amps, with a
14-gauge cord of five
feet or less in length.
This product must be
grounded. If it should
malfunction or break
down, grounding pro-
vides a path of least re-
sistance for electric cur-
rent to reduce the risk of
electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into a surge
protector, and plug the surge protector into an ap-
propriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge protector to a 2-pole recep-
tacle as shown in drawing 2 if a properly grounded out-
let is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a quali ied elec-
trician to determine i the outlet box cover is
grounded be ore using an adapter.
DANGER:Improper connection
o the equipment-grounding conductor can
result in an increased risk o electric shock.
Check with a quali ied electrician or service-
man i you are in doubt as to whether the
product is properly grounded. Do not modi y
the plug provided with the product—i it will
not it the outlet, have a proper outlet in-
stalled by a quali ied electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Treadmill Power Cord
Grounding Plug
Grounding Plug
Grounding Pin
Surge Protector
Grounding Pin
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
9

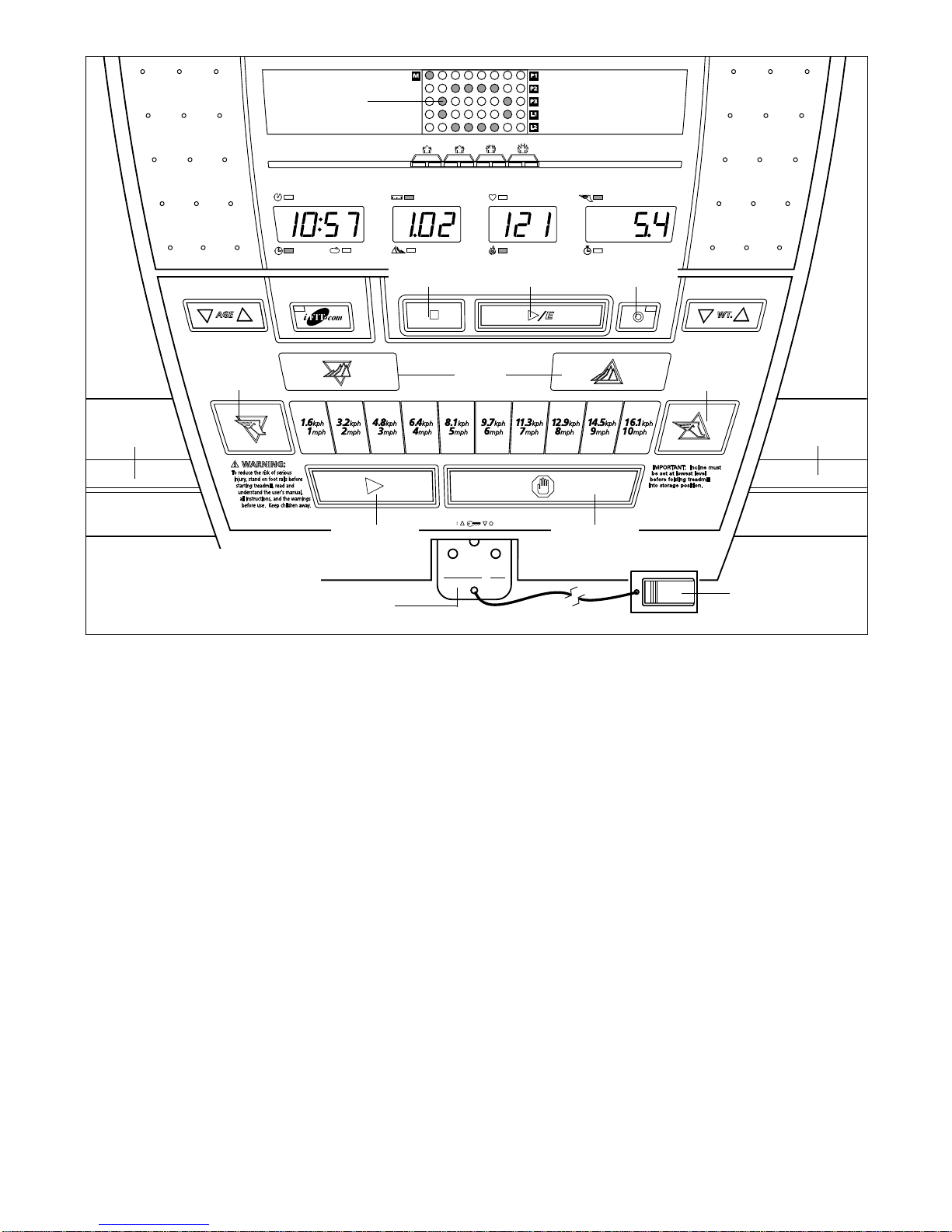

FEATURES OF THE CONSOLE
The advanced console offers an impressive array of
features to help you get the most from your exercise.
When the console is in the manual mode, the speed
and incline of the treadmill can be changed with a touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the built-in pulse sensor.
Three preset workout programs are also offered. Each
program automatically controls the speed and incline
of the treadmill to give you an effective workout. You
can even create your own custom workout programs
and store them in memory for future use.
The console also features new iFIT.com interactive
technology. IFit.com technology is like having a per-
sonal trainer right in your home. Using the included
audio cable, you can connect the treadmill to your
home stereo, portable stereo, or computer and play
special iFIT.com CD programs (CD’s are available sep-
arately). IFit.com CD programs automatically control
the speed and incline of the treadmill as a personal
trainer guides you through every step of your workout.
High-energy music provides added motivation. Each
CD features two programs designed by certified per-
sonal trainers.
In addition, you can connect the treadmill to your CR
and T and play iFIT.com video programs (videocas-
settes are available separately). ideo programs offer
the same benefits as iFIT.com CD programs, but add
the excitement of working out with a class and an
instructor—the hottest new trend at health clubs.
With the treadmill connected to your computer, you
can also go to our new internet site at www.iFIT.com
and access basic programs, audio programs, and
video programs directly from the internet.
For more in ormation, please call our Customer
Service Department at 1-888-936-4266.
To use the manual mode o the console, follow the
steps beginning on page 11. To use a preset program,
see page 12. To create and use a custom program,
see pages 14 and 15. To use an iFIT.com CD or
video program, refer to page 18. To use an iFIT.com
program directly rom our internet site, see page 20.
Program
Display
Pulse
Sensor Pulse
Sensor
Clip
Key
Note: If there is a thin sheet
of clear plastic on the face
of the console, remove it.
SpeedSpeed Incline
StopStart
Select Record
Start Program
10

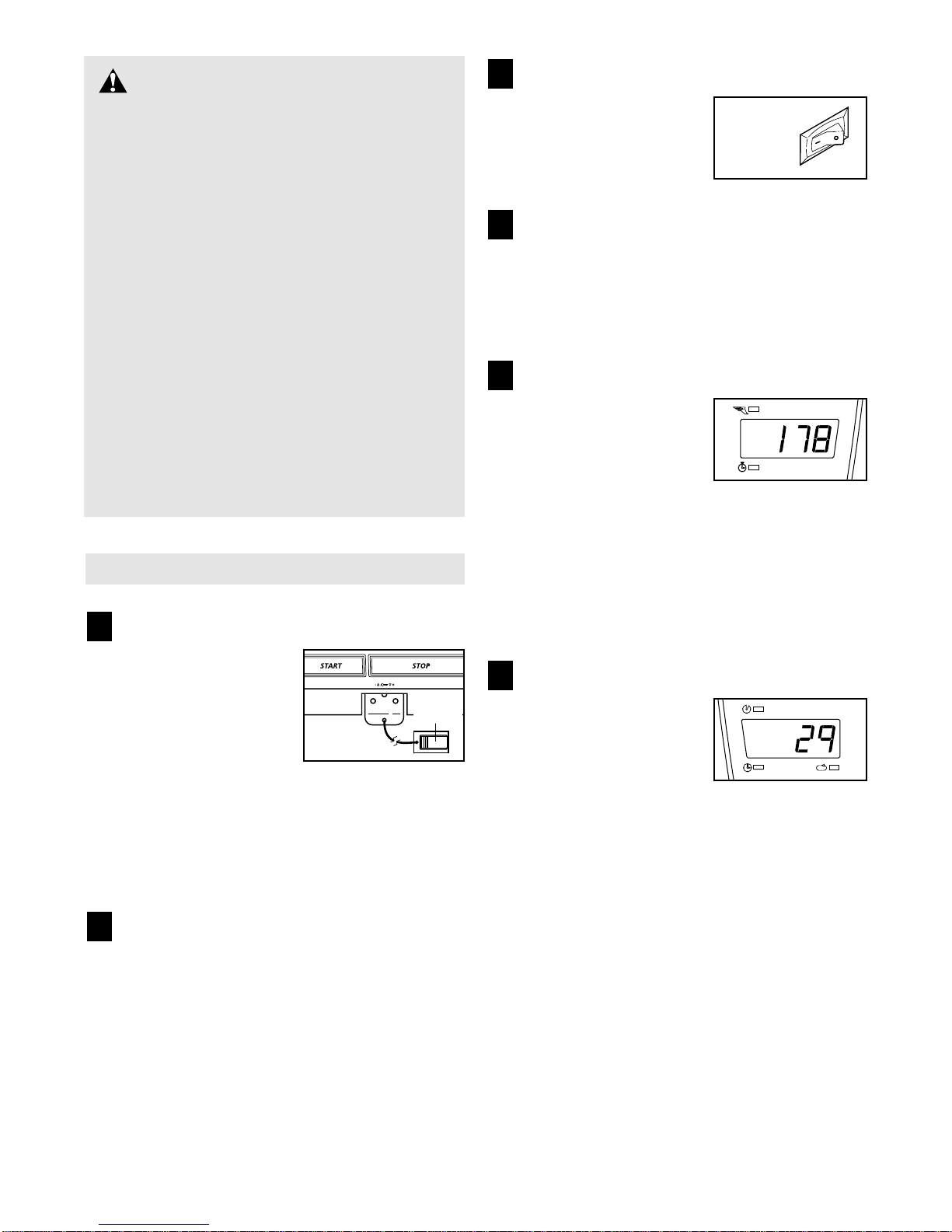

GETTING STARTED
Attach the clip to the waistband o your clothes.
Stand on the foot rails
of the treadmill. Find
the clip attached to the
key and slide the clip
onto the waistband of
your clothes. Next, in-
sert the key into the
console. Test the clip
by care ully taking a ew steps backward until
the key is pulled rom the console. I the key is
not pulled rom the console, adjust the posi-
tion o the clip as needed. Then, remove the key
from the console.
Plug in the power cord.
See HOW TO PLUG IN THE POWER CORD on
page 8.
Move the on/o switch to the on position.
Locate the on/off switch
on the treadmill near the
power cord. Move the
on/off switch to the on
position.
Insert the key ully into the console.
Stand on the foot rails of the treadmill. Make sure
that the clip is securely attached to the waistband
of your clothes. Next, insert the key into the con-
sole. After a moment, various displays and indica-
tors on the console will light.
Enter your weight.
Although you can use
the console without
entering your weight, the
console will display your
calorie expenditure more
accurately if you enter
your weight. To enter your weight, press either of
the Weight buttons. The current weight setting will
appear in the Speed/Pace display. Press the
Weight buttons again to enter your weight. Four
seconds after the buttons are pressed, the weight
setting will disappear from the display. Your
weight will then be saved in memory.
Enter your age, i necessary.
Although you can use
the console without en-
tering your age, some
features on our internet
site may require you to
enter your age (see
page 20). To enter your age, press either of the
Age buttons. The current age setting will
appear in the Time/Laps display. Press the Age
buttons again to enter your age. Four seconds
after the buttons are pressed, the age setting will
disappear from the display. Your age will then be
saved in memory.
6
5
4
3
2
1
CAUTION:Be ore operating the
console, read the ollowing precautions.
• Do not stand on the walking belt when turn-
ing on the power.
• Always wear the clip (see the drawing below)
whilst operating the treadmill.
• Adjust the speed in small increments to avoid
sudden jumps in speed.
• The pulse sensor is not a medical device.
Various actors, including the user’s move-
ment, may a ect the accuracy o heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
• To reduce the possibility o electric shock, keep
the console dry. Avoid spilling liquids on the
console and place only a sealed water bottle
in the water bottle holder.
On
Position
Clip
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels NordicTrack tapis roulant
NordicTrack
NordicTrack T 5.5 Treadmill Manuel utilisateur
NordicTrack
NordicTrack Pro 3000 Treadmill Manuel utilisateur
NordicTrack
NordicTrack NTL12905.3 Manuel utilisateur
NordicTrack
NordicTrack NTL15008.5 Manuel utilisateur
NordicTrack
NordicTrack T 20.5 NETL19713.0 Manuel utilisateur
NordicTrack
NordicTrack NTL2495.3 Manuel utilisateur
NordicTrack
NordicTrack C4000 Treadmill Guide de configuration
NordicTrack
NordicTrack 19.0 Treadmill Manuel utilisateur
NordicTrack
NordicTrack 19.0 Treadmill Guide de configuration
NordicTrack
NordicTrack COMMERCIAL 1500 Manuel utilisateur
NordicTrack
NordicTrack ViewPoint NTL11806.0 Manuel utilisateur
NordicTrack
NordicTrack 5100 R NTTL18513 Manuel utilisateur
NordicTrack
NordicTrack SUMMIT 4500 Manuel utilisateur
NordicTrack
NordicTrack 17.0 Treadmill Guide de l'utilisateur
NordicTrack
NordicTrack NTL14212.0 Manuel utilisateur
NordicTrack
NordicTrack C2155 NTL07707.0 Manuel utilisateur
NordicTrack
NordicTrack NTL15008.1 Manuel utilisateur
NordicTrack
NordicTrack S 30 Manuel utilisateur
NordicTrack
NordicTrack A2550 Pro Treadmill Manuel utilisateur
NordicTrack
NordicTrack NTL17215.0 Manuel utilisateur
Manuels tapis roulant populaires d'autres marques
FitLogic
FitLogic freewill d225 Manuel utilisateur
HOP-SPORT
HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur
Horizon Fitness
Horizon Fitness Adventure 5 Plus Manuel utilisateur
Stamia
Stamia InMotion II Manuel utilisateur
Smooth Fitness
Smooth Fitness EVO 3i Manuel utilisateur
Schwinn
Schwinn 830/Journey 8.0 Manuel utilisateur
