UC5 MAX Ultrasonic Sensor Upgrade
Installation Manual
5468BC-MAX
Printed in Canada
Copyright 2015 by NORAC Systems International Inc.
Reorder P/N: 5468BC-MAX-INST Rev A (UC5 MAX Ultrasonic Sensor Upgrade)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.
Contents
1Introduction................................................................................................................ 1
2Kit Parts ...................................................................................................................... 2
3MAX Ultrasonic Sensor Installation ........................................................................ 3
4Roll Sensor Removal.................................................................................................. 6
5Software Setup........................................................................................................... 7
6Appendix A: Sensor Bracket Installation ................................................................ 8
7Appendix B: Cable Drawings.................................................................................. 12
1
1Introduction
Congratulations on your purchase of the NORAC Spray Height Control System. This system is
manufactured with top quality components and is engineered using the latest technology to
provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Do not use high speed power tools/drills when installing hardware.
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.
2

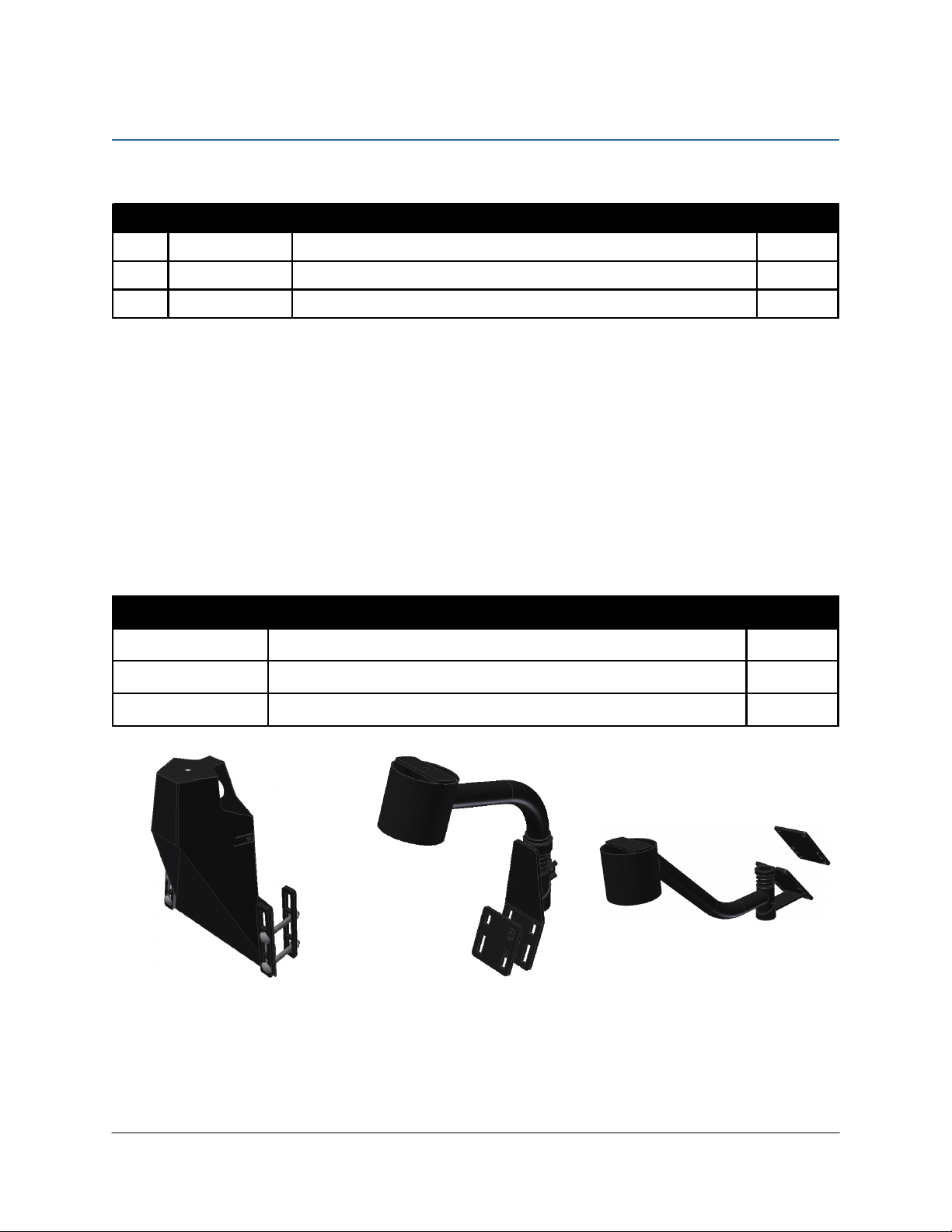

2Kit Parts
2.1 List of Parts
Item Part Number Name Quantity
E07 50100 ULTRASONIC MAX SENSOR 2
M02 5468BC-MAX-INST MANUAL INSTALLATION UC5 MAX ULTRASONIC SENSOR UPGRADE 1
P03 105882 UC5 NETWORK 6 PIN PLUG 2
2.2 Severe Terrain Bracket and Hardware Kits
If the sprayer already has two sets of brackets installed on each boom, one near the end and
one approximately halfway between the outer bracket and the chassis, the severe terrain
option has already been installed. Follow the installation instructions in Section 3.1.
If the sprayer only has one set of brackets near the end of the booms, a bracket kit is needed
to complete the installation. Depending on the type of brackets needed, the following kits are
available from NORAC. Follow the installation instructions in Section 3.2.
Part Number Name Quantity
5464BC-LP UC5 LOW PROFILE BRACKETS AND HARDWARE 1
5464BC-BA UC5 BREAK-AWAY BRACKETS AND HARDWARE 1
5464BC-NT UC5 NITRO BRACKETS AND HARDWARE 1
Figure 1: Low Profile Bracket
Figure 2: Break-Away Bracket Figure 3: Nitro Bracket
3
3MAX Ultrasonic Sensor Installation
3.1 Sensor Installation with an Existing Severe Terrain Option
1. Remove the inner height sensors from the brackets. Keep these sensors as spares.
2. Install the sensors (E07) into the brackets with the lower serial number on the left (Figure
4 and Figure 5). Connect the sensors where the original sensors were disconnected.
Figure 4: Sensor Serial Number Arrangement (Rear Mount Boom)
The E07 sensors will be mounted in the positions shown in black.
Figure 5: Sensor Serial Number Arrangement (Front Mount Boom)
4
3.2 Sensor Installation without an Existing Severe Terrain Option
1. Install the brackets as shown in Section 6.
2. Install the sensors (E07) into the brackets with the lower serial number on the left (Figure
4 and Figure 5).
3. The outer wing sensors will have been installed with either a 2-way coupler with terminator
(NORAC part number 43764T [E20]) or a 3-way coupler and a terminator plug (NORAC
part numbers 43760 and 43764 [E10 & E20]). Determine which type is installed and follow
the appropriate set of instructions.
3.2.1 Installation with 2-Way Coupler with Terminator
1. Remove the 2-way coupler with terminator (E20) from the outer sensor and install it at the
inner sensor.
2. Install the 3-way coupler (E10) at the outer sensor. Plug the existing CANbus cable (C05)
and the sensor cable into the 3-way coupler.
3. Connect the CANbus cable (C06) between the 2-way coupler with terminator (E20) and
the 3-way coupler (E10).
Components shown in black are included in this kit.
Components shown in green are included in the bracket and hardware kit.
Components shown in blue are existing components.
Figure 6: Electrical Installation: 2-Way Coupler with Terminator
5
3.2.2 Installation with 3-Way Coupler and Terminator Plug
1. Remove the terminator plug (E20) from the existing 3-way coupler installed at the outer
sensor.
2. Install the 3-way coupler (E10) at the inner sensor. Plug the terminator plug (E20) and the
sensor cable into the 3-way coupler.
3. Connect the CANbus cable (C06) between the 3-way couplers.
Components shown in black are included in this kit.
Components shown in green are included in the bracket and hardware kit.
Components shown in blue are existing components.
Figure 7: Electrical Installation: 3-Way Coupler and Terminator Plug
6
4Roll Sensor Removal
1. Locate the two NORAC roll sensors (small rectangular box with a cable running from it).
There will be one mounted on the boom frame and one mounted on the intermediate
frame of the sprayer. Some machines will have a third roll sensor mounted on the chassis.
2. Disconnect and remove all roll sensors. Refer to the installation manual for the specific
make/model of sprayer for roll sensor mounting locations. Installation manuals are available
at www.norac.ca.
3. Insert the 6-pin plugs (P03) into the 8-way coupler where the roll sensors were connected.
Figure 8: NORAC Roll Sensor
Figure 9: NORAC 8-Way Coupler
7
5Software Setup
1. Start up your sprayer and test the sprayer’s functionality. The display terminal does not
need to be powered on for the original boom function switches to operate. Unfold the
booms and raise/lower each boom and the main section.
Confirm that the cabling and hoses are agreeable to the entire range of motion.
2. If any functions do not work, review the hydraulic and electrical portions of this manual to
check for proper installation.
3. Turn on the power for the display terminal using the switch on the side.
4. The procedure for the installation of the Spray Height Control system is now complete.
Begin the AUTOMATIC SYSTEM SETUP procedure as described in the UC5 Spray Height
Control Operator’s Manual.
