Norac UC4 Total Control Manuel utilisateur
UC
4
Total Control
Automatic Boom Height
System
Hagie STS12
Installation Manual
Canada
NORAC Systems International Inc.
CALL TOLL FREE: 1-800-667-3921
(306) 664-6711
SHIPPING ADDRESS:
3702 Kinnear Place
Saskatoon, SK
S7P 0A6
United States
NORAC, Inc.
CALL TOLL FREE: 1-866-306-6722
(763) 786-3080
SHIPPING ADDRESS:
1290 Osborne Rd. NE, Suite F
Fridley, MN
55432-2892
For other service locations please view our website:
www.norac.ca
Improving the Competitiveness of Industry and Agriculture
through Precision Measurement
Printed in Canada
Copyright 2005-07 by NORAC Systems International Inc.
Reorder P/N: UC4-BC-HG1-INST Rev B (Hagie STS12)
NOTICE
NORAC Systems International Inc. reserves the right to improve products and their specifications without notice
and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy
of the information contained in this manual. The technical information in this manual was reviewed at the time of
approval for publication.
TABLE OF CONTENTS
1 INTRODUCTION .................................................................................................................................. 2
2 GENERAL SYSTEM DESCRIPTION .................................................................................................. 3
3 PARTS LISTS ...................................................................................................................................... 4
4 INSTALLATION PROCEDURE ........................................................................................................... 8
4.1 ELECTRICAL INSTALLATION ................................................................................................................ 8
4.2 HYDRAULIC INSTALLATION................................................................................................................ 12
4.3 WING SENSOR INSTALLATION ........................................................................................................... 15
4.4 MOUNTING THE CENTER SENSOR...................................................................................................... 20
4.5 COMPLETING THE INSTALLATION....................................................................................................... 20
5 ELECTRICAL REFERENCE – CABLE DRAWINGS ........................................................................ 22
5.1 ITEM C1: 44662B-40 –SENSOR TRUNK CABLE ................................................................................ 22
5.2 ITEM C2: 44668 –SENSOR BRANCH CABLE ..................................................................................... 22
5.3 ITEM C3: 44656 –VALVE CABLE (VARIABLE RATE) .......................................................................... 23
5.4 ITEM C4: 44651 –VALVE EXTENSION CABLE.................................................................................... 23
5.5 ITEM C10: 44650-13 –POWER CABLE HAGIE STS12....................................................................... 24
2
1 INTRODUCTION
Congratulations on your purchase of the NORAC UC4 Automated Sprayer Boom
Height Control System. This system is manufactured with top quality components
and is engineered using the latest technology to provide operating features and
reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage,
improve sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the
system. A thorough understanding of this manual will ensure that you receive the
maximum benefit from the system.
YOUR INPUT CAN HELP MAKE US BETTER! If you find issues or have
suggestions regarding the parts list or the installation procedure, please
don’t hesitate to contact us via the information given below:
Phone: 1-800-667-3921 in Canada (Toll Free)
1-866-306-6722 in the United States (Toll Free)
0-800-404-8389 United Kingdom (Toll Free)
1-306-664-6711 all other regions
E-mail: [email protected]
Website: www.norac.ca
3
2 GENERAL SYSTEM DESCRIPTION
Figure 1 depicts the general system layout of the UC4 Sprayer Boom Control
system.
Figure 1 – System Components and General Location
NOTICE:
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected specially to fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer. Please read
this manual in its entirety before attempting installation.
ATTENTION:
When installing the UC4 System please be aware that at a point in the installation
your sprayer booms will be inoperative until the installation is complete. Any
installation procedure requiring boom movement will need to be done
first. Once the hydraulics have been disconnected you must complete the electrical
installation before the booms become operative.
4
3 PARTS LISTS
The parts that come with your UC4 Sprayer Boom System are listed in Table 1. In
this document, the item number shown on the left side of this table references each
part.
Please ensure that all parts in your kit are present before proceeding with
your installation.
Table 1 – Hagie Sprayer Boom Control System Parts
Item Part Number Description Pcs Len
UC4-BC-HG1 KIT HARDWARE UC4 BOOM CONTROL HAGIE
STS12
1 EA
* BRACKET PARTS *
B10 44700-03 PLATE VALVE MOUNT UC3 BOOM CONTROL HAGIE 1 EA
B13* 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY
EXTENDED
2 EA
B16 44695-11 MOUNTING BRACKET BREAKAWAY ADAPTER UC3
SENSOR NITRO/HAGIE
2 EA
* CABLE PARTS *
C1 44662B-40 CABLE UC3 SENSOR TRUNK AMPF TO AMPF
BLACK STANDARD 40FEET
1 EA
C2 44668 CABLE UC3 SENSOR 1 AMP RECEPT 3 AMP PLUG
BC
1 EA
C3 44656 CABLE VALVE VARIABLE RATE 1 EA
C4 44651 CABLE VALVE EXTENSION 1 EA
C10 44650-13 CABLE POWER UC3 BOOM CONTROL HAGIE STS12 1 EA
* ELECTRONIC PARTS *
E1 4461BC UC4 BOOM CONTROL PANEL 1 EA
E2 44631 UC4 ULTRASOUND SENSOR 3 EA
5
Item Part Number Description Pcs Len
* HYDRAULIC PARTS *
V1 44933
or
44933S
VALVE PACKAGE CC LS PROP 2 STATION
EXPANDABLE W/FILTER
VALVE BLOCK ASSEM UC4-BC 2-STATION CC/LS
VARIABLE RATE
1 EA
H1 104369 COUPLING HYD 6MBP 2 EA
H7 103779 COUPLING HYD PLUG 6MJP 2 EA
H8 103071 COUPLING HYD 8MB 6MJ90 2 EA
H50 44928 ORIFICE INSERT .047 IN ONE WAY 4 EA
H51 103312 COUPLING HYD 6MB 6MJ 6 EA
* MISC. PARTS *
M1 446BC-MAN MANUAL UC4 BOOM CONTROL 1 EA
M2 100084 TIE CABLE 21 IN BLACK 10 EA
M3 100091 TIE CABLE 7.5 IN BLACK 150 EA
M4 104409 FOAM DISC 45 PPI CONDUCTIV 1/2 X 2-3/4
DIA
6 EA
M5 105435 CHAIN 1/2 IN PLASTIC 3 42 IN
M6 100660 BOLT HEX NC GR5 PLTD 1/4X1 3 EA
M7 100853 NUT HEX NC GR5 PLTD 1/4 IN 3 EA
M10 UC4-BC-HG1-INST MANUAL INSTALLATION UC4 HAGIE 1 EA
M11 105589 BOLT HEX NC GR5 PLTD 3/8 X 6-1/2 2 EA
M12 100612 BOLT HEX NC GR5 PLTD 3/8X1-1/2 2 EA
M13 100851 NUT HEX NC GR5 PLTD 3/8 IN 2 EA
M14 105436 TUBING PLASTIC CLEAR PETG 2.75 X.028 1 16 IN
M15 100947 WASHER LOCK SPRING PLTD 3/8 IN 4 EA
* In a kit shipped prior to February 1, 2007, the part number for Item B13 is 44722.
6
The parts that come with your UC4 System are shown below in their general
installation configuration.

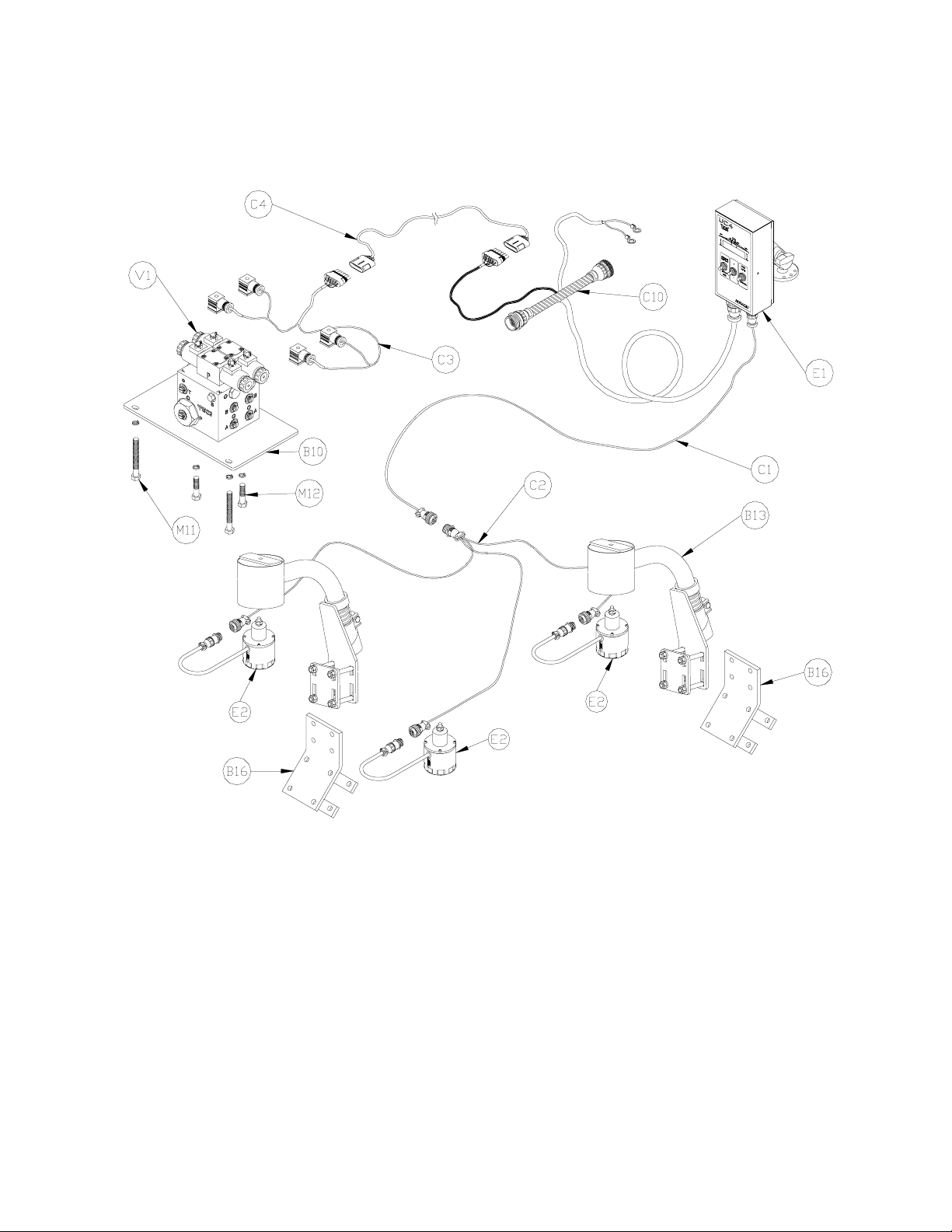

Figure 2 – UC4 Boom Control Components
7
Figure 3 – Hydraulic Plumbing Schematic
8
4 INSTALLATION PROCEDURE
4.1 E
LECTRICAL
I
NSTALLATION
Install the UC4 control panel (Item E1) in the cab of the sprayer with the supplied
mounting bracket. Mount the panel where it will be clearly visible and within easy
reach of the operator. The location must facilitate connecting the power and sensor
cables to the bottom of the control panel.
Generally in the cab, a good spot to mount the UC4 control panel is on the right
hand side of the cab to the ROP (Roll Over Protection). Four pilot holes for the
screws provided would need to be drilled to facilitate the mounting of the control
panel.
In the Hagie STS12 cab, a good spot to mount the UC4 control panel is on the right
hand side of the cab, near the front window (Figure 4).
Figure 4 – Control Panel Mounting
1. Connect the UC4 power cable (Item C10) to the UC4 control panel (Item E1) in
the sprayer cab. The cable coming from the Hagie switch handle routes to the
console on the right side of the cab and connects through to the outside with a
24-pin connector. Insert the UC4 power cable between this connection.
