Nokia NSB-9 Manuel utilisateur

CCS Technical Documentation

NSB-9 Series Transceivers

Issue 1 04/03 Nokia Corporation.

Disassembly and Assembly

Instructions

NSB-9 Company confidential

Disassembly and Assembly Instructions CCS Technical Documentation

Page 2 Nokia Corporation. Issue 1 04/03

Table of Content

Page No

Disassembly Instructions ............................................................................................... 3

Exchange of dome sheet ................................................................................................ 8

CCS Technical Documentation Disassembly and Assembly Instructions

Company confidential NSB-9

Issue 1 04/03 Nokia Corporation. Page 3

Disassembly Instructions

Protect LCD window to avoid dust and scratches. Press Release Button before removing Battery Cover.

Unscrew the two TORX PLUS® size 6 screws using the

order shown. For assembly, the reverse order and a

torque of 17Ncm have to be used.

Place the SRT-6 between B-Cover and A-Cover and

shift it carefully as shown in the picture. Note the

correct position of the SRT-6, the tip should not

touch the PWB.

Now, the same procedure on the other side. Separate the modules.

NSB-9 Company confidential

Disassembly and Assembly Instructions CCS Technical Documentation

Page 4 Nokia Corporation. Issue 1 04/03

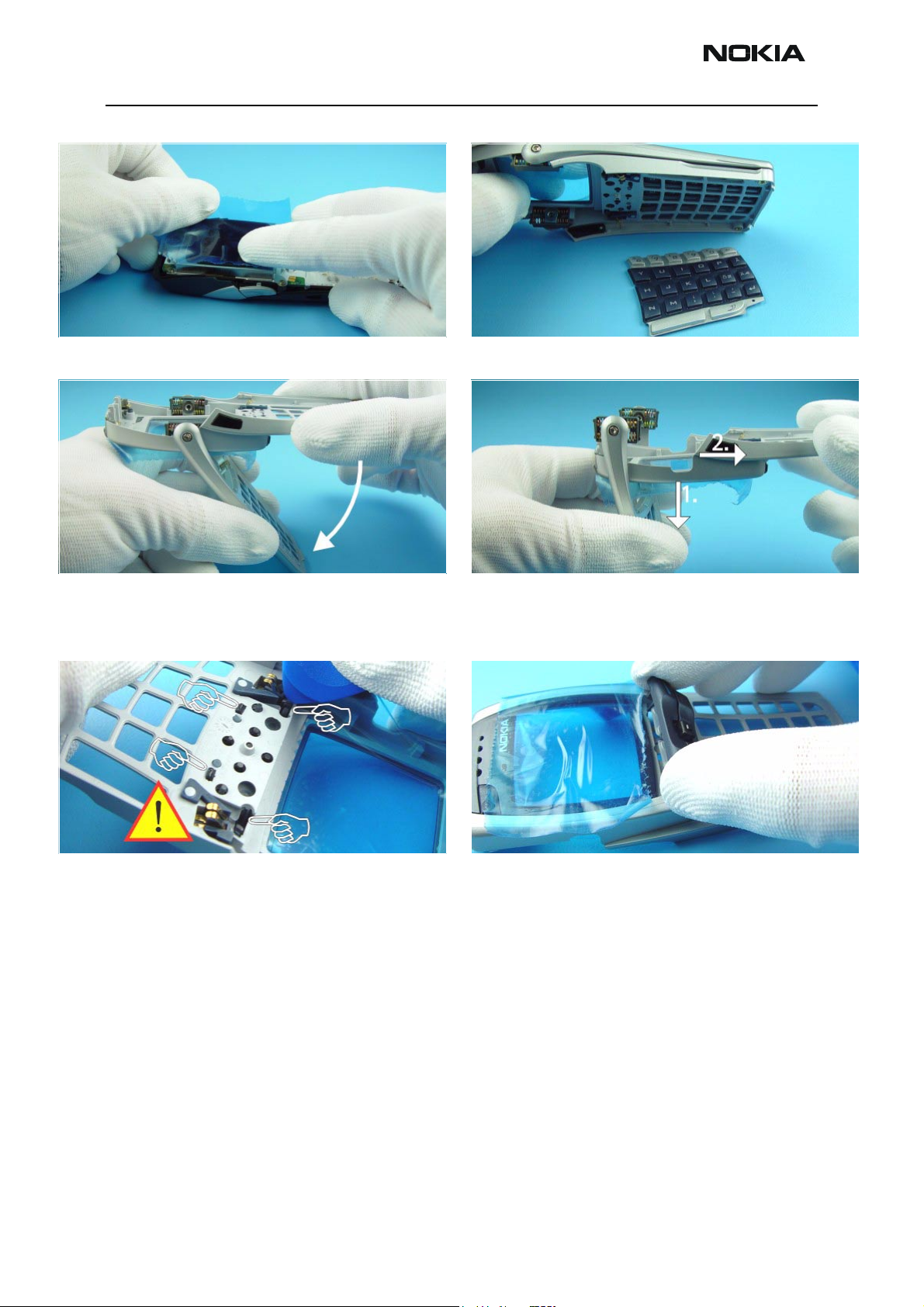

Protect LCD to avoid dust and scratches. Keymat drops out when turning A-Cover.

Open the Flip Cover.

Separate A-Cover from Flip Cover as shown in the pic-

ture. Note the right position of the Flip Hinges on

reassembly.

Function Keys are attached with four snaps to A-

cover. Use SRT-6 to release the snaps. Take care not to

damage the spring contacts.

Remove Function Keys if needed. Use always new keys

in reassembly!

CCS Technical Documentation Disassembly and Assembly Instructions

Company confidential NSB-9

Issue 1 04/03 Nokia Corporation. Page 5

Unscrew the five TORX PLUS® size 6 screws using the

order shown. For assembly, the reverse order and a

torque of 17Ncm have to be used.

Lift the engine from B-Cover.

Open the Light Guide snaps. Remove the Light Guide.

The LCD Metal Frame is attached with snaps to the

Radio Module on both sides.

Release the snap on the other side of the engine and

take away the LCD Module.

Note the right position of the LCD Module in LCD

Metal Frame when assembling. Also take care not to

damage the LCD spring contacts of Radio Module.

Separate the LCD Metal Frame from LCD Module and

protect the LCD window again.

NSB-9 Company confidential

Disassembly and Assembly Instructions CCS Technical Documentation

Page 6 Nokia Corporation. Issue 1 04/03

Do not remove the Earpiece from the LCD Frame, as

they are supplied as one part.

Volume Key can be removed easily.

To remove the DC Jack, place tweezers between the

spring contacts and under the Jack. You’ll need to use

additional force to pull the Jack upwards.

Use tweezers to pull up the Microphone.

Remove the Vibra Motor from its guidance. Place the SRT-6 between the spring contacts and lift

up the Antenna carefully. Do not damage the spring

contacts and the Antenna Radiator when removing

the Antenna.

CCS Technical Documentation Disassembly and Assembly Instructions

Company confidential NSB-9

Issue 1 04/03 Nokia Corporation. Page 7

Remove the Antenna from B-Cover. The Logo Bracket is attached with snaps to the B-

Cover. Take care not to break the snaps when releas-

ing the Bracket.

After releasing of the snaps, the Logo Bracket can be

removed.

NSB-9 Company confidential

Disassembly and Assembly Instructions CCS Technical Documentation

Page 8 Nokia Corporation. Issue 1 04/03

Exchange of dome sheet

Remove the defective Dome Sheet carefully. Put the new Dome Sheet onto the Dome Sheet

Assembly Jig. Note the guiding pins.

Place the Radio Module on the Jig. Press on the Radio Module evenly.

Lift the Radio Module with the new Dome Sheet from

the Jig.

Check that the Dome Sheet is correctly stuck to the

Radio Module. Do not damage the spring contacts of

LCD.
