Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 1of 13, MS

Product: Packard Bell Easy Lite

NEC/ZDS Versa Lite

SYSTEM DISASSEMBLY INSTRUCTIONS

Before starting the disassembly take notice of the ESD warning below.

Warning! All the components in the computer can be damaged

by static electricity (E.S.D. - Electro Static Discharge).

Discharge yourself and any tool you use to ground

(e.g. computer chassis) before touching or removing

a component. Place removed components in anti-

static bags.

Battery and Hard Disk Drive Removal

1- Turn over the unit, unlatch the battery by shifting the two clips (Picture below, Item A) and

remove it.

2- Instructions for removing the hard disk drive:

a- Remove the two screws (Picture below, Item B) of the hard disk cover.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 2of 13, MS

b- Take off the hard disk drive (HDD) cover.

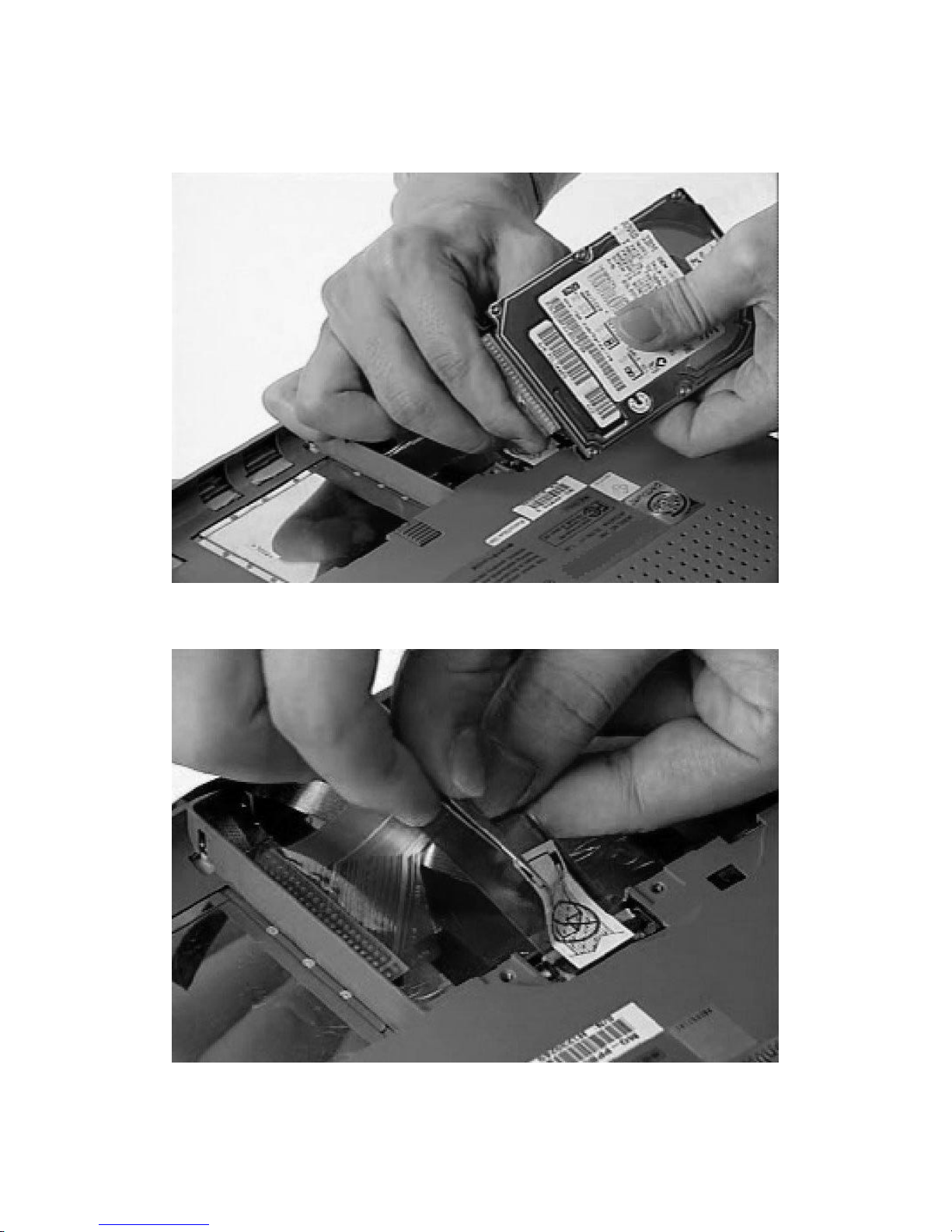

c- Lift the drive out and carefully disconnect the flatcable and take away the drive.

d- Disconnect the HDD flatcable from the mainboard by removing the caution label with a

pair of tweezers and carefully unlocking the cable.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 3of 13, MS

Removing the Keyboard

1- Remove the two screws at the corner of the base (location shown in the picture).

2- Turn over the unit, open the LCD panel and remove the two hinge caps by shifting them

sidewards.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 4of 13, MS

3- Lift the keyboard a little with a flatbed screwdriver and unlock the three spring latches

between the <Esc> and <F1> keys, the <F7> and <F8> keys, and the <Pause> and

<Page Up> keys.

1- Unlock the connector, free the keyboard cable and take away the keyboard.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 5of 13, MS

Taking Off the LCD Panel

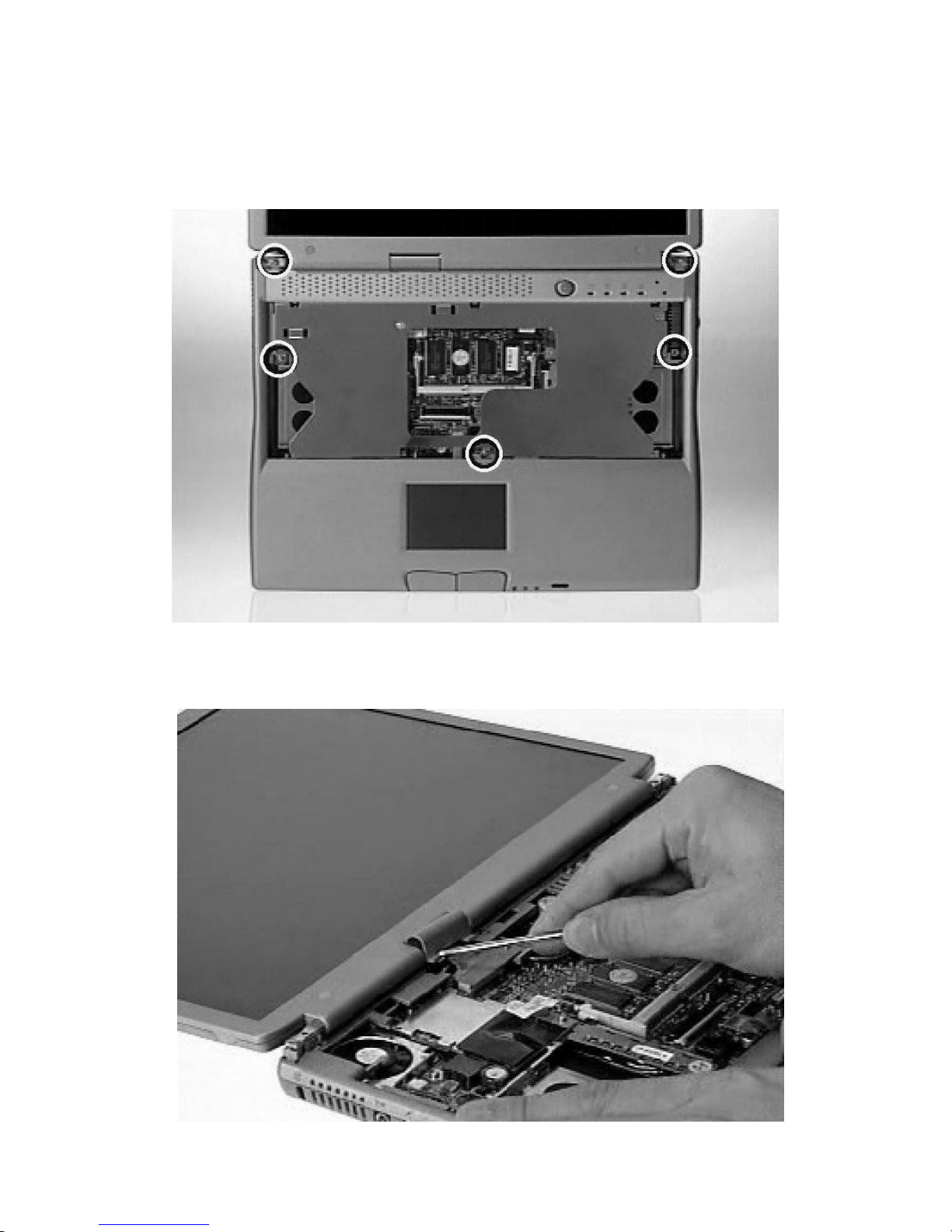

1- Remove the five screws that secure the speaker cover.

2- Remove the speaker cover.

3- Remove the harness cap that covers the cable leading from the mainboard to the LCD

panel (see picture). You may want to use a flatbed screwdriver.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 6of 13, MS

4- Remove the screw that secures the LCD connector.

5- Disconnect the LCD connector.

6- Take away the LCD panel from the base unit.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 7of 13, MS

LCD Panel Disassembly

1- First remove the four rubber pads that cover the screws of the display panel. Then

remove the four screws. Take notice that the two top screws differ from the two bottom

screws.

2- Carefully peel the display bezel of the LCD module and remove the cover latch. This latch

consists of the LCD hook (metal), the LCD hook button (plastic) and LCD hook spring.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 8of 13, MS

3- Remove the four screws that secure the LCD panel.

4- Remove the screw that secures the hinge on the right side and remove the hinge itself.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 9of 13, MS

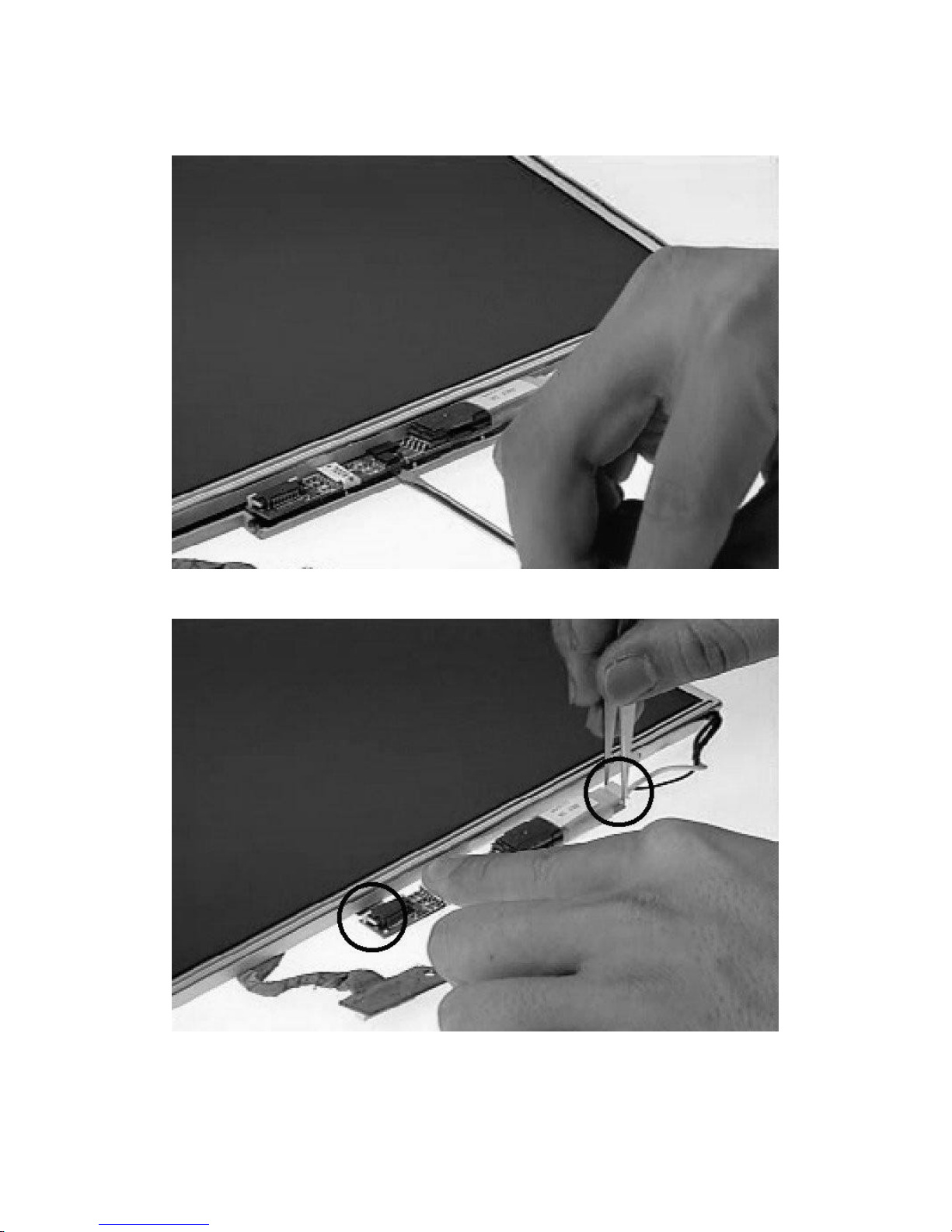

5- Insert a flatbed screwdriver between the Inverter and the panel and release it by lifting it.

This allows you to take out the LCD screen together with the inverter.

6- To remove the Inverter disconnect the two cables that connect the screen to the inverter.

Disassembly/re-assembly instructions Easy Lite / Versa Lite

Packard Bell NEC Europe, version 1.0, 18-05-99, Page 10 of 13, MS

Removing the CPU Module

1- Carefully remove the two screws that secure the CPU module.

2- Disconnect the CPU holding clip that is fastened by a screw in the area marked by “B”.

3- Take out the module by disconnecting the two connectors under the module in the area

marked by “A”.

Removing the Memory Module (if applicable)

1- Pull the memory latches outwards to release the memory module and take it out.
